FS-Curtis ML15+ 120G Horizontal 15HP Simplex Tank Electric Air Compressor #ML15Plus-SH
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML15Plus-SH |
| Horsepower | 15 HP |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 55.8 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML15Plus-SH — 15 HP Air Compressor
An owner just finished walking a competitor's shop and watched three techs pull air from one line without so much as a stutter in pressure — and came home wondering why their own compressor can't keep up the same way during a busy multi-bay shift.

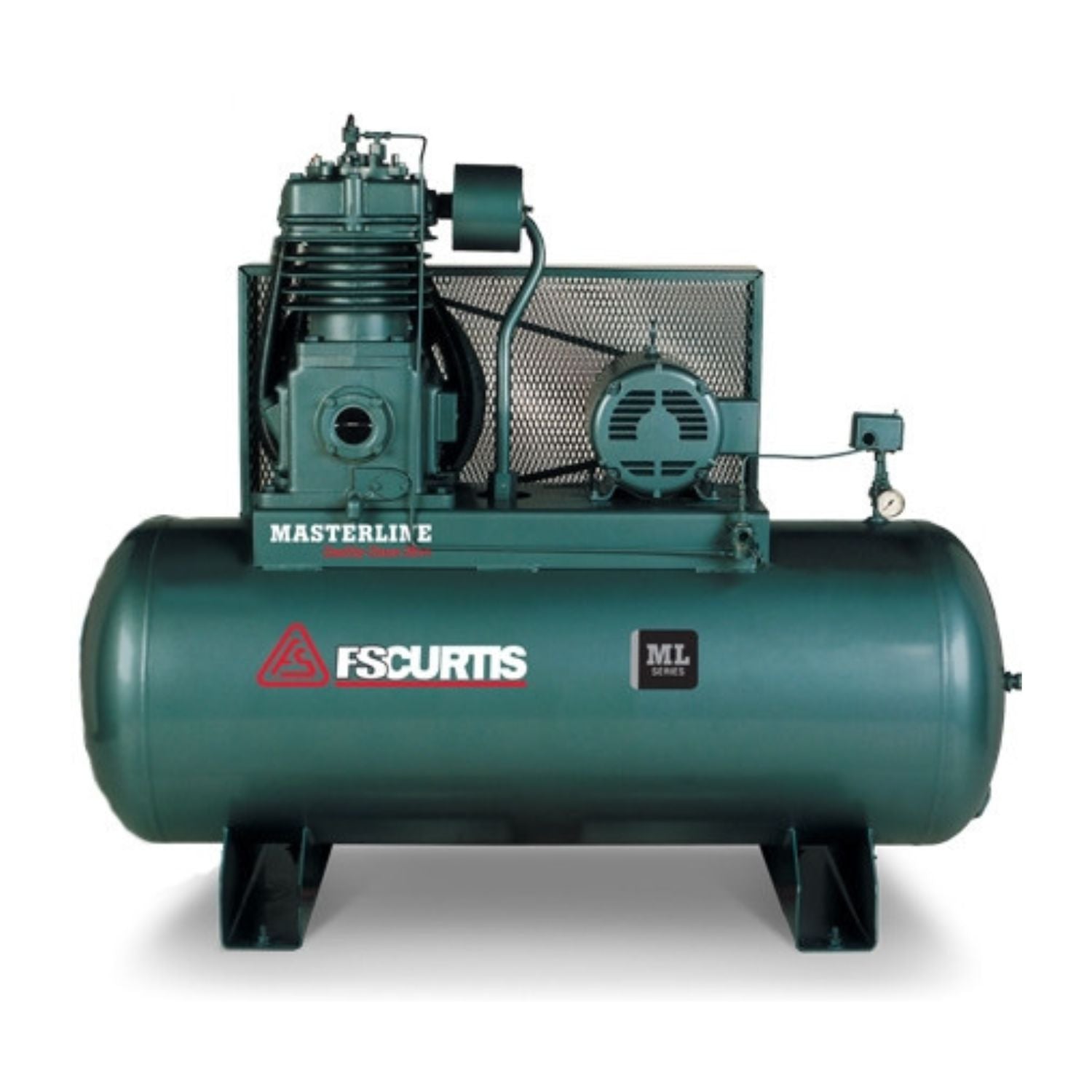

The FS-Curtis ML15Plus-SH is a two-stage reciprocating compressor rated for 15 HP with a 120 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML15Plus-SH Is Built For
- ✅ A commercial shop that's added bays over the years and watched its standard ML15's 49.5 CFM start falling short during a busy multi-tech shift, but already has a working refrigerated dryer installed from a prior upgrade and doesn't want to pay again for accessories it doesn't need
- ✅ An owner comparing the base ML15-SH against this ML15+ configuration line-by-line and choosing the C89 pump specifically because the extra 6.3 CFM matters more to their actual daily draw than the price gap
- ✅ A facility manager budgeting a compressor replacement who wants the highest-output pump platform in the 15 HP tier now, with the explicit plan to add Ultra Pack accessories in a later budget cycle rather than all at once
- ✅ A shop running several bays simultaneously where a tech has already noticed a tool losing pressure mid-job on the standard ML15, and needs the C89 pump's extra headroom without paying for a dryer bundle they'll install separately
- ✅ A multi-location operator standardizing on FS-Curtis's ML15+ pump platform across several shops for common parts and service, starting each new install at the base configuration and layering in accessories site-by-site as budgets allow
What the ML15Plus-SH Is NOT Built For
- ❌ Shops whose demand is fully covered by the standard ML15 (49.5 CFM) or an ML10 unit — the ML15+ costs more for the extra output
- ❌ Shops wanting factory auto-drain/dryer accessories standard — the Ultra Pack (ML15Plus-HUP) adds those, this base unit doesn't
- ❌ Shops needing single-phase power — this series is three-phase only
What Makes the ML15Plus-SH Different
Commercial 2-Stage Pump
The ML15Plus-SH uses a C89, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 55.8 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 55.8 CFM — highest 15 HP output
- Lower entry price, no bundled accessories
- High-demand commercial shops
- Shops covered by standard 15 HP
- Single-phase-only electrical
ML15Plus-SH vs. FS-Curtis ML15-SH (15 HP, Standard D97 pump) — Which Compressor Is Right for Your Shop?
| Decision Point | ML15Plus-SH | FS-Curtis ML15-SH (15 HP, Standard D97 pump) |
|---|---|---|
| Horsepower / Tank | 15 HP / 120 Gal Horizontal | 15 HP / 120 Gal Horizontal |
| CFM @ 175 PSI | 55.8 CFM | 49.5 CFM |
| Pump | C89 — higher-output pump platform | D97 — standard pump platform |
| Best fit | Shops needing the highest CFM available at 15 HP | Shops where standard 15 HP output is sufficient |
Choose the ML15+ SH for the highest CFM output available at 15 HP without the added accessory cost. Choose the standard ML15-SH if 49.5 CFM already covers your shop's demand — it costs less. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML15Plus-SH
| Model / Part Number | ML15Plus-SH |
| Horsepower | 15 HP |
| Pump | C89, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating |
| Tank | 120 Gallon Horizontal ASME |
| Airflow | 55.8 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML15C89H1S-A9L1XX) |
| Overall Dimensions | 74" L x 36" W x 57" H |
| Shipping Weight | 1250 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 74" L x 36" W x 57" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 1250 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML15Plus-SH
FS-Curtis backs the ML15Plus-SH with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML15Plus-SH
Why Buy the ML15Plus-SH from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 15 HP, a 120 gallon horizontal ASME tank, 55.8 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML15Plus-SH or the FS-Curtis ML15-SH (15 HP, Standard D97 pump) is the better fit? We’ll walk you through it.
