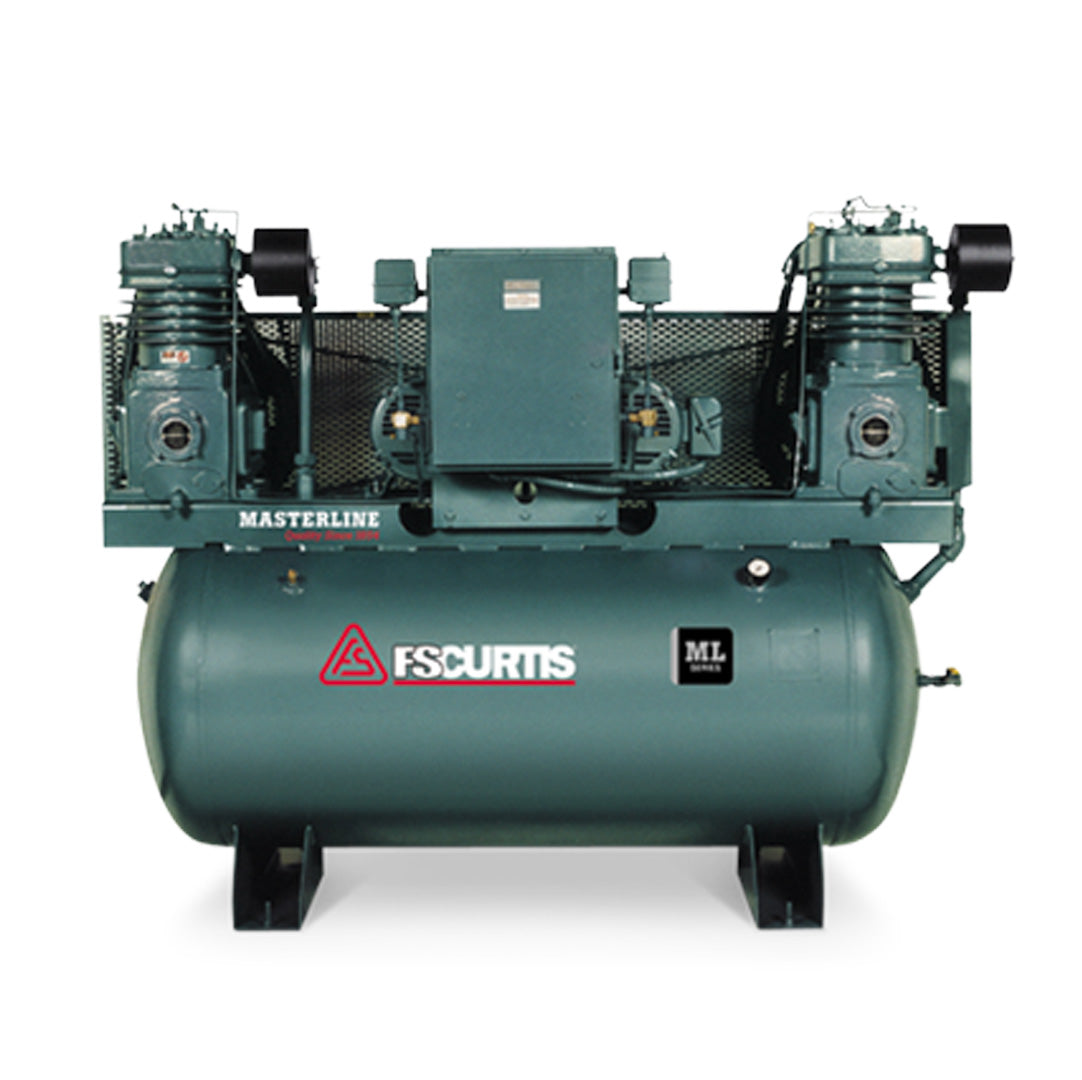

FS-Curtis ML15+ 200G 15HP(2) Duplex Tank Mounted Electric Air Compressor #ML15Plus-D
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML15+ Duplex |
| Horsepower | 15 HP (x2, Duplex) |
| Tank | 200 Gallon Horizontal ASME |
| Airflow | 111.6 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML15PLUS-D — 15 HP (x2, Duplex) Air Compressor
It's 2 AM on a night shift and the single compressor just tripped its breaker — every bay in the building goes quiet at once, techs standing around instead of working, and the plant manager is on the phone trying to figure out how many hours of production just got lost.
The FS-Curtis ML15PLUS-D is a duplex two-stage reciprocating compressor rated for 15 HP (x2, Duplex) with a 200 gallon horizontal ASME tank, built for shops and commercial operations that need compressed air on tap all day without paying for accessories they don’t need.
Who the ML15PLUS-D Is Built For
- âś… A large commercial or fleet facility running multiple shifts where a compressor outage stops every bay at once, and the second pump keeping the line running pays for itself the first time it's needed
- ✅ An operation with continuous high-draw demand across several bays or booths simultaneously that a single pump — even at 15 HP — can't sustain alone
- âś… A facility that's grown past what a simplex unit can support and needs both maximum combined CFM (111.6) and the uptime insurance of a second pump
- âś… An operator who's had a single-compressor setup fail during a busy shift at a high-volume facility and doesn't want to repeat that
- âś… A commercial operation standardizing on FS-Curtis's ML15+ tier for the largest, highest-demand location in a multi-shop group
What the ML15PLUS-D Is NOT Built For
- ❌ Single-bay or mid-size shops where a simplex 15 HP unit (ML15+ SH) already covers the air draw
- ❌ Budget-conscious buyers — duplex units cost significantly more than a simplex configuration at the same HP
- ❌ Shops with limited floor space — the 200-gallon duplex tank has one of the largest footprints in the ML lineup
What Makes the ML15PLUS-D Different
Commercial 2-Stage Pump
The ML15PLUS-D uses a C89 (x2), Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 111.6 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Power Requirements
Three-Phase only, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- 111.6 CFM combined output
- Built-in pump redundancy
- Largest commercial facilities
- Single-bay / mid-size shops
- Tight floor space
ML15PLUS-D vs. FS-Curtis ML10-D (10 HP x2, Duplex, 200 Gal) — Which Compressor Is Right for Your Shop?
| Decision Point | ML15PLUS-D | FS-Curtis ML10-D (10 HP x2, Duplex, 200 Gal) |
|---|---|---|
| Horsepower / Tank | 15 HP x2 / 200 Gal Horizontal | 10 HP x2 / 200 Gal Horizontal |
| CFM @ 175 PSI | 111.6 CFM | 79.6 CFM |
| Redundancy | Duplex — two independent 15 HP pumps | Duplex — two independent 10 HP pumps |
| Best fit | Facilities needing the highest combined CFM with redundancy | Facilities whose demand is covered at the 10 HP tier |
Choose the ML15Plus-D for the highest combined CFM output with full pump redundancy. Choose the ML10-D if 79.6 CFM combined already covers your facility's demand — it costs less. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML15PLUS-D
| Model / Part Number | ML15+ Duplex |
| Horsepower | 15 HP (x2, Duplex) |
| Pump | C89 (x2), Cast-Iron, Two-Stage |
| Configuration | Duplex Two-Stage Reciprocating |
| Tank | 200 Gallon Horizontal ASME |
| Airflow | 111.6 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Three-Phase only, 230V/460V options available |
| Phase / Hz / Voltage |
Three Phase: 3/60/200-208V (FML15C89D2S-A9L1XX) |
| Overall Dimensions | 88" L x 36" W x 64" H |
| Shipping Weight | 2700 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Three-Phase only, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 88" L x 36" W x 64" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 2700 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML15PLUS-D
FS-Curtis backs the ML15PLUS-D with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML15PLUS-D
Why Buy the ML15PLUS-D from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 15 HP (x2, Duplex), a 200 gallon horizontal ASME tank, 111.6 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML15PLUS-D or the FS-Curtis ML10-D (10 HP x2, Duplex, 200 Gal) is the better fit? We’ll walk you through it.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Rates and Delivery Estimates: Shipping is FREE to the 48 contiguous United States.
Shipment Processing Time: All orders are processed within [2–3] business days of receipt, excluding weekends and holidays. Orders are not processed or shipped from Friday at 12 pm CST through Sunday or on holidays. During periods of high order volume, shipments may be delayed by a few days. Customers will be notified via email or phone in the event of significant delays.
See the attached document for FS CURTIS WARRANTY
