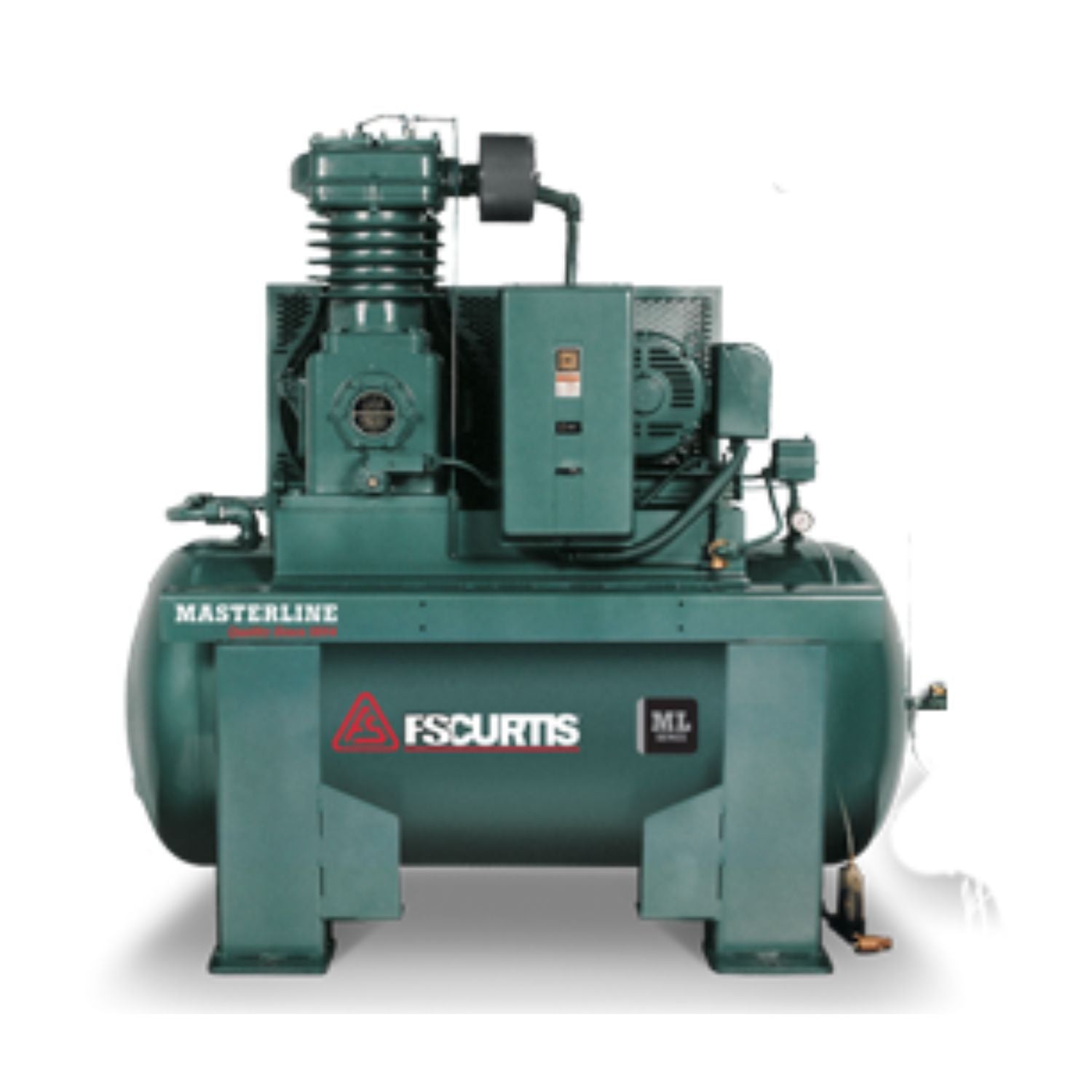

FS-Curtis ML5 80G Horiz 5HP Simplex Tank Ultra Pack Air Comp #ML5-HUP
Couldn't load pickup availability
FS-Curtis Shipping
Equipment and Parts: Free Shipping
| Model / Part Number | ML5 Ultra Pack Simplex |
| Horsepower | 5 HP |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 19.1 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Warranty | 12 months |
FS-Curtis ML5-HUP — 5 HP Air Compressor
A one- or two-bay shop just lost a tire-shine job to rust flakes blown out of a compressor tank that never gets drained, and the owner wants the auto-drain handled without having to remember it every night.
The FS-Curtis ML5-HUP is a two-stage reciprocating, ultra pack compressor rated for 5 HP with an 80 gallon horizontal ASME tank, built for multi-bay shops and commercial operations that need compressed air on tap all day. The included Ultra Pack — factory-installed automatic tank drain and refrigerated air dryer — cuts down on the maintenance routine so your team spends less time babysitting the compressor and more time on paying work.
Who the ML5-HUP Is Built For
- ✅ A one- or two-bay shop that's had a paint or finishing job ruined by rust or moisture from a tank nobody remembers to drain, and wants the auto-drain handled automatically
- ✅ A shop stepping up from the CA-series 5 HP output into FS-Curtis's heavier-duty ML Series pump platform
- ✅ An owner who wants the refrigerated dryer factory-installed instead of retrofitting one after an air-quality problem
- ✅ A tight-footprint shop where the horizontal 80-gallon tank's lower clearance fits under a low ceiling or storage platform
- ✅ A shop standardizing on FS-Curtis's Ultra Pack tier for consistent accessories across its equipment
What the ML5-HUP Is NOT Built For
- ❌ Multi-bay shops needing more than roughly 19-20 CFM continuous — look at the ML7.5 or ML10 tier instead
- ❌ Budget-conscious buyers who don't need the extra accessories yet — the base ML5-SH saves money
- ❌ Shops needing built-in redundancy — this is a simplex (single-pump) unit; look at the ML5-DUP instead
What Makes the ML5-HUP Different
Commercial 2-Stage Pump
The ML5-HUP uses a D96, Cast-Iron, Two-Stage pump built for daily, all-day duty cycles — not a hobby-grade single-stage unit that struggles under continuous shop use.
CFM & Pressure Output
Delivers 19.1 CFM @ 175 PSI and holds pressure up to 175 PSI, enough headroom to run impact wrenches, tire equipment, and paint tools without the tank running dry.
Ultra Pack Upgrades
Includes factory-installed automatic tank drain and refrigerated air dryer — upgrades that reduce maintenance and extend the life of the tank and pump versus a base-model compressor.
Power Requirements
Single or Three-Phase, 230V/460V options available. Confirm your panel and breaker sizing with an electrician before delivery.
- Factory air-quality accessories
- Compact horizontal footprint
- 5 HP daily-duty output
- Multi-bay shops needing more CFM
- Shops needing redundancy
ML5-HUP vs. FS-Curtis ML5-SH (5 HP, no accessories) — Which Compressor Is Right for Your Shop?
| Decision Point | ML5-HUP | FS-Curtis ML5-SH (5 HP, no accessories) |
|---|---|---|
| Horsepower / Tank | 5 HP / 80 Gal Horizontal | 5 HP / 80 Gal Horizontal |
| CFM @ 175 PSI | 19.1 CFM | 19.1 CFM |
| Included accessories | Ultra Pack bundle (auto-drain/dryer) | Standard configuration, no bundled accessories |
| Best fit | Shops wanting factory air-quality accessories | Budget-conscious shops that don't need accessories yet |
Choose the ML5-HUP for factory-installed air-quality accessories at a modest price premium. Choose the ML5-SH for a lower-cost simplex setup if you don't need the Ultra Pack accessories. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ML5-HUP
| Model / Part Number | ML5 Ultra Pack Simplex |
| Horsepower | 5 HP |
| Pump | D96, Cast-Iron, Two-Stage |
| Configuration | Two-Stage Reciprocating, Ultra Pack |
| Tank | 80 Gallon Horizontal ASME |
| Airflow | 19.1 CFM @ 175 PSI |
| Pressure Range | 175 PSI |
| Motor / Electrical | Single or Three-Phase, 230V/460V options available |
| Phase / Hz / Voltage |
Single Phase: 1/60/230V (FML05D96H8U-A2L1XX) Three Phase: 3/60/200-208V (FML05D96H8U-A9L1XX) 3/60/230V (FML05D96H8U-A3L1XX) 3/60/460V (FML05D96H8U-A4L1XXX) |
| Ultra Pack Features | factory-installed automatic tank drain and refrigerated air dryer |
| Overall Dimensions | 67" L x 29" W x 52" H |
| Shipping Weight | 650 lbs |
| Warranty | 12 months |
⚠️ Setup Requirements
- Electrical: Single or Three-Phase, 230V/460V options available; have an electrician confirm your panel capacity before delivery.
- Floor space: 67" L x 29" W x 52" H footprint; plan clear access on at least two sides for maintenance and tank drain.
- Ventilation: Locate in a dry, ventilated area away from dust and moisture to protect the pump and tank.
- Weight: 650 lbs shipping weight — confirm your floor/dock can receive and position the unit.
- Setup: Installation is available as a quoted service (piping, electrical tie-in, functional test) — it’s not included in the purchase price. Call (844) 480-6059 for an install quote if you’d like Alamo’s crew to set it up.
FS-Curtis Warranty — ML5-HUP
FS-Curtis backs the ML5-HUP with a 1-year parts-only warranty.
| Component | Coverage Term |
|---|---|
| Tank & pump | 1 year parts |
| Motor & electrical components | 1 year parts |
| Ultra Pack accessories (auto tank drain, refrigerated air dryer) | 1 year parts |
| Wear items (belts, filters, gaskets) | Not covered (consumable) |
Warranty service is through Alamo Equipment & Service — call (844) 480-6059 instead of waiting on a manufacturer hotline. Coverage is subject to FS-Curtis warranty terms, conditions, and requirements.
Frequently Asked Questions — FS-Curtis ML5-HUP
Why Buy the ML5-HUP from Alamo Equipment & Service?
- Installation available. Buying online gets you the compressor — piping and electrical tie-in are an extra-charge service. We have the crews to install it and can quote that separately; call (844) 480-6059 for a quote.
- We service it. These compressors need preventative maintenance up to 4x a year per the manufacturer — oil changes, belt and air filter checks, contactor and electrical inspection. Call (844) 480-6059 for maintenance, repairs, or support — and if you ever need warranty work, we register your equipment with the manufacturer and handle the claim directly, so you’re not stuck navigating vendor support on your own.
- We size it with you. 5 HP, an 80 gallon horizontal ASME tank, 19.1 CFM @ 175 PSI — we’ll confirm this matches your shop’s actual air draw before you order.
- Free shipping. Ships free to the 48 contiguous states.
- Expert comparison help. Not sure if the ML5-HUP or the FS-Curtis ML5-SH (5 HP, no accessories) is the better fit? We’ll walk you through it.
