Graco IM20 In-Line Electronic Meter #133480
| Part Number | 133480 |
| Model | IM20P |
| Type | Electronic In-Line Meter, Pulser Output (Wired) |
| Inlet / Outlet | 3/4 in. NPT |
| Flow Rate | 0.25 to 20 gpm (0.95 to 75.7 lpm) |
| Max Working Pressure | 1,500 psi (10 MPa, 102 bar) |
| For Use With | Petroleum-based oil, synthetic-based oil, antifreeze, windshield washer fluid |
| Overall Dimensions | 14.5 x 4.75 x 5.25 in. |
| Weight | 2.1 lb |

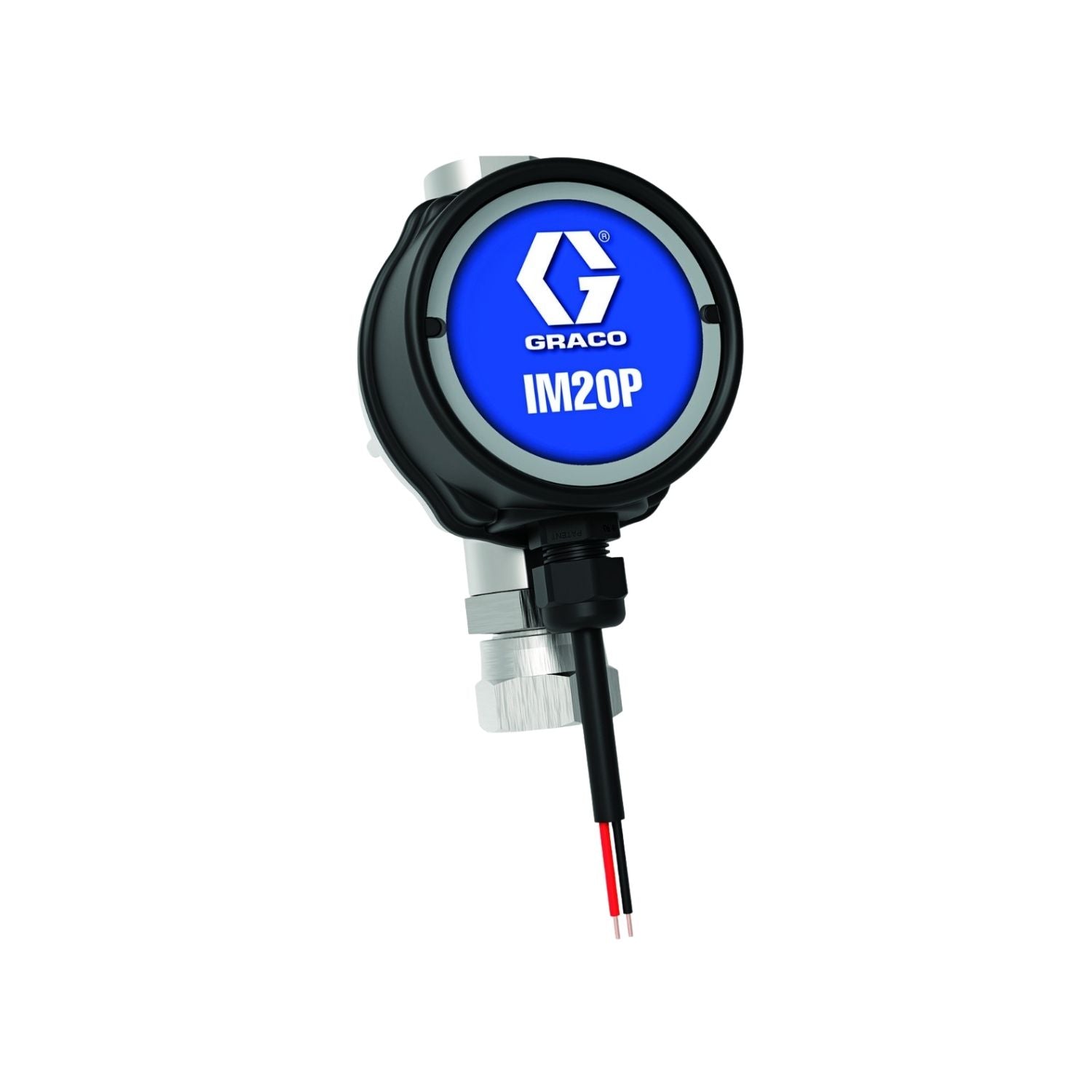

Graco IM20P Electronic Pulser Output In-Line Meter, 3/4 in. (19mm) Ports, NPT
Graco's IM20P wired electronic meter delivers precise in-line dispenses for in-plant, industrial, mobile service truck and mining applications. Its rugged aluminum housing and sealed electronics measure petroleum-based oil, synthetic-based oil, antifreeze and windshield washer fluid up to 20 gpm through a 3/4 in. NPT inlet and outlet, sending pulse output to a remote controller instead of an onboard LCD.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
3/4 in. NPT inlet and outlet install in-line on fluid supply plumbing. This is a pulser-output meter for use with a separate remote display/controller, not a standalone LCD unit -- confirm your control system accepts pulse output before ordering.
Warranty
Graco backs the IM20P meter with a 5-year warranty.
