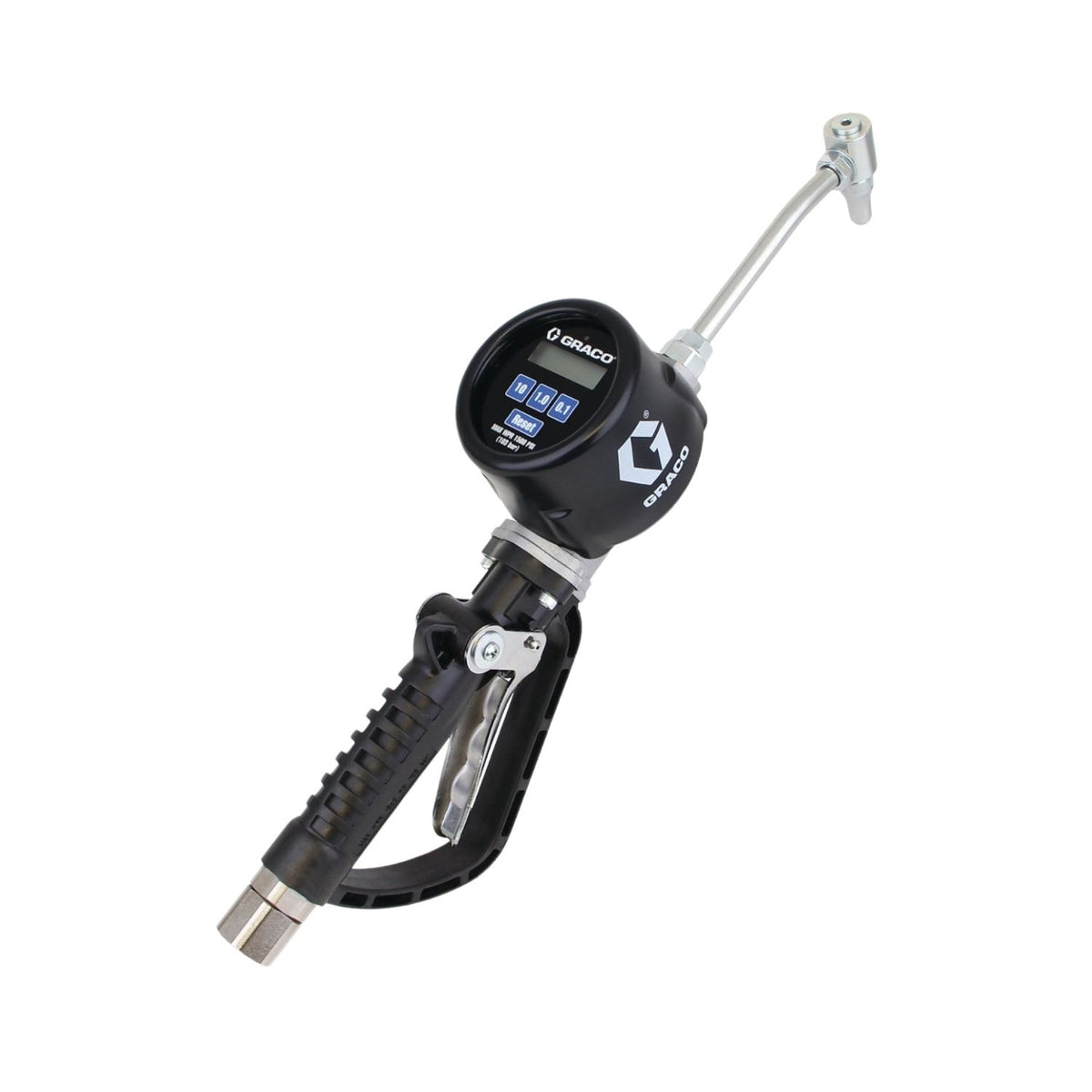

Graco PM Series PM8 Electronic Preset Meter #273158
| Part Number | 273158 |
| Model | PM8 |
| Type | Electronic Preset Metered Dispense Valve, Gear Lube |
| Extension | Rigid |
| Inlet | 1/2 in. NPT |
| Outlet | 3/4 in. ORB |
| Flow Rate | 0.25 to 8 gpm |
| Max Working Pressure | 1,500 psi (10 MPa) |
| Compatible Material | Petroleum-based oil, synthetic-based oil, antifreeze |
| Overall Dimensions | 22.6 x 4.1 x 7.2 in. |
| Weight | 5.2 lb |
Graco PM8 Electronic Preset Gear Lube Meter, 1/2 in. NPT Inlet
Graco's PM8 electronic preset meter dispenses fluids quickly, reliably and accurately to vehicles, trucks and yellow iron in the most demanding shop environments. Sealed IP69K electronics resist pressure washing and dust, and this gear lube extension variant is configured for heavier-viscosity fluid service.
Questions before ordering? Call (817) 865-3707 and our team will confirm fit for your application.
Compatibility & Fitment
1/2 in. NPT inlet, 3/4 in. ORB outlet. Gear lube extension with nozzle included. Rated to 1,500 psi.
Warranty
Graco backs the PM8 meter with 5 years on structural components, 3 years on electronics, and 1 year on wear parts.
