Hofmann Armored 2400P Wheel Balancer #EEWB784AUA1
Couldn't load pickup availability
| Brand | Hofmann |
| Part Number | EEWB784AUA1 |
| Data Entry | Automatic |
| Clamping System | Power Clamp |
| Wheel Lift | Optional |
| Report Generation | Yes |
| Automatic Rim Diameter Range | 14"–26" (35.5–66cm) |
| Automatic Rim Width Range | 3"–15" (7.6–38cm) |

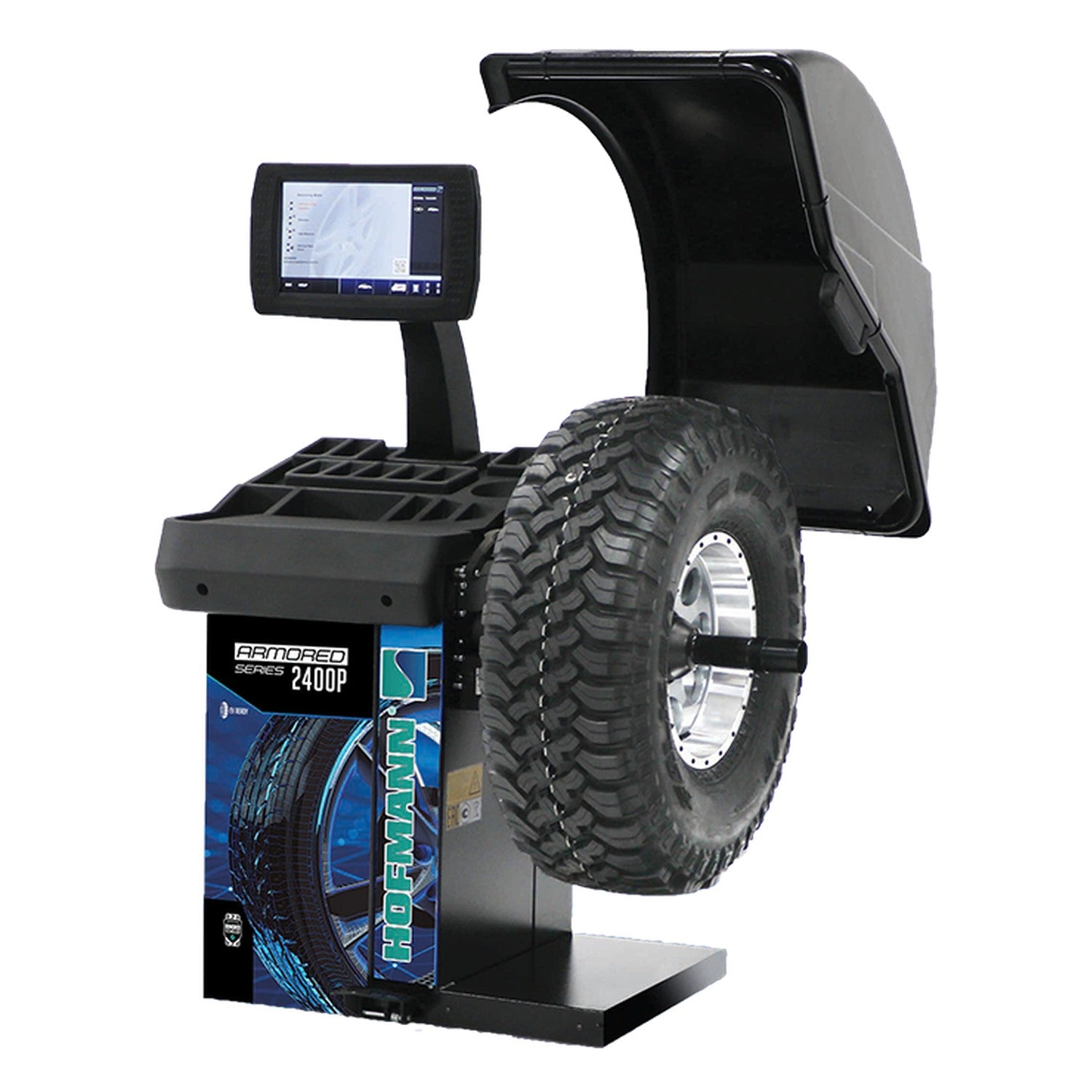

Hofmann Armored 2400P Wheel Balancer
A busy tire shop losing minutes on every job to manual rim measurement and hand-positioned weights adds up fast across a full day's schedule. The Hofmann Armored 2400P Wheel Balancer removes that friction with fully automatic, touchless data entry and laser-guided weight placement, so technicians spend their time balancing wheels instead of measuring them.
The 2400P's closest sibling is the Armored 2300P — both reach the same 44" max wheel diameter, but the 2400P adds fully automatic rim detection (vs. the 2300P's semi-automatic entry) plus automatic spoke detection for concealed split-weight placement, at a higher price that reflects that extra automation.
Who the Armored 2400P Is Built For
- A high-volume dealership service department where shaving even 15 seconds of manual measurement off each job adds up to real throughput gains across a full day of appointments.
- A shop that's had customer complaints about visible wheel weights on premium alloy wheels — the automatic spoke detection and concealed split-weight placement solves that cosmetic concern without extra manual steps.
- A tire center running a rotating cast of technicians with different experience levels, where automatic non-contact data entry removes the variability of manual measurement between operators.
- A shop working larger wheels up to the 44" max diameter and 156 lb. max weight, where Power Clamp™ electromechanical clamping keeps heavier assemblies centered consistently job after job.
- An operation that wants a documented balance report for every job — this model's report generation feature gives a paper trail for warranty or customer-facing documentation.
- A shop upgrading from a semi-automatic balancer that's tired of re-measuring rim width by hand — smartSonar™ technology handles that automatically on every wheel.
What the Armored 2400P Is NOT Built For
Shops that don't need fully automatic rim detection or spoke-position sensing and want to save on the sticker price should look at the Hofmann Armored 2300P instead — it covers the same 44" max wheel diameter with semi-automatic data entry at a lower price.
What Makes the Armored 2400P Different
Automatic Non-Contact Data Entry
Automatically detects wheel dimensions and balancing parameters to reduce setup time and manual input on every job.
Power Clamp™ System
Electromechanical clamping delivers consistent wheel centering and repeatable balancing accuracy versus a manual clamp.
easyWeight™ Laser Guidance
Laser-assisted weight placement improves balancing precision and technician efficiency.
smartSonar™ Technology + Automatic Spoke Detection
Sonar sensors automatically measure rim width while laser scanning identifies spoke positions for concealed split-weight placement — fewer manual steps per wheel.
High-Resolution Touchscreen + QuickBal™ Optimization
Rugged touchscreen simplifies operation while QuickBal™ reduces balancing cycle time for faster daily throughput.
- High-volume shops wanting hands-off data entry
- Premium alloy wheels needing concealed weights
- Budget-conscious shops on semi-automatic entry
- Low-volume bays that don't need automation
Armored 2400P vs. Armored 2300P — Which Fits Your Shop?
| Spec | Armored 2400P | Armored 2300P |
|---|---|---|
| Rim/Clamping Range | 14"–26" (35.5–66cm) | 8"–26" (20–66cm) |
| Max Wheel/Tire Diameter | 44" (111.7cm) | 44" (111.7cm) |
| Power Supply | 115V, 1-Phase, 60Hz | 115V, 1-Phase, 60Hz |
| Price | $11,700.71 | $9,896.91 |
| Best fit | Fully Automatic Touchscreen Wheel Balancer with Spoke Detection | Semi-Automatic Touchscreen Wheel Balancer |
Not sure which model is right for your shop? Call (844) 480-6059 and we'll help you decide.
Full Specifications — Armored 2400P
| Brand | Hofmann |
| Part Number | EEWB784AUA1 |
| Data Entry | Automatic |
| Clamping System | Power Clamp |
| Wheel Lift | Optional |
| Report Generation | Yes |
| Automatic Rim Diameter Range | 14"–26" (35.5–66cm) |
| Automatic Rim Width Range | 3"–15" (7.6–38cm) |
| Semi-Auto Rim Diameter Range | 8"–26" (20–66cm) |
| Semi-Auto Rim Width Range | 3"–14" (7.6–35.5cm) |
| Manual Rim Diameter Range | 8"–32" (20–81cm) |
| Manual Rim Width Range | 1"–20" (2.5–51cm) |
| Max Wheel Diameter | 44" (111.7cm) |
| Max Wheel Weight | 156 lbs. (70kg) |
| Power Supply | 115V, 1-Phase, 60Hz |
| Dimensions (L x W x H) | 53" x 39" x 75" (135 x 100 x 190cm) |
⚠️ Setup Requirements
- Power: Confirm your shop's electrical service matches this unit's power supply requirement before ordering.
- Air supply: Confirm shop compressed-air capacity meets the listed air pressure requirement (where applicable).
- Floor space: Confirm clear floor space for the unit's footprint plus operator clearance on all working sides.
- Setup help: Call (844) 480-6059 with any setup or first-use questions.
Hofmann Warranty — Armored 2400P
Hofmann backs the Armored 2400P with the following coverage terms.
| Item | Detail |
|---|---|
| Labor | 6 Months |
| Parts | 1 Year |
| Electronic Circuit Board | 3 Years |
| Electric Motor | 5 Years |
Warranty service is coordinated through Alamo Equipment & Service. Call (844) 480-6059 with any warranty question.
⚠️ Confirm exact terms at the time of purchase.
