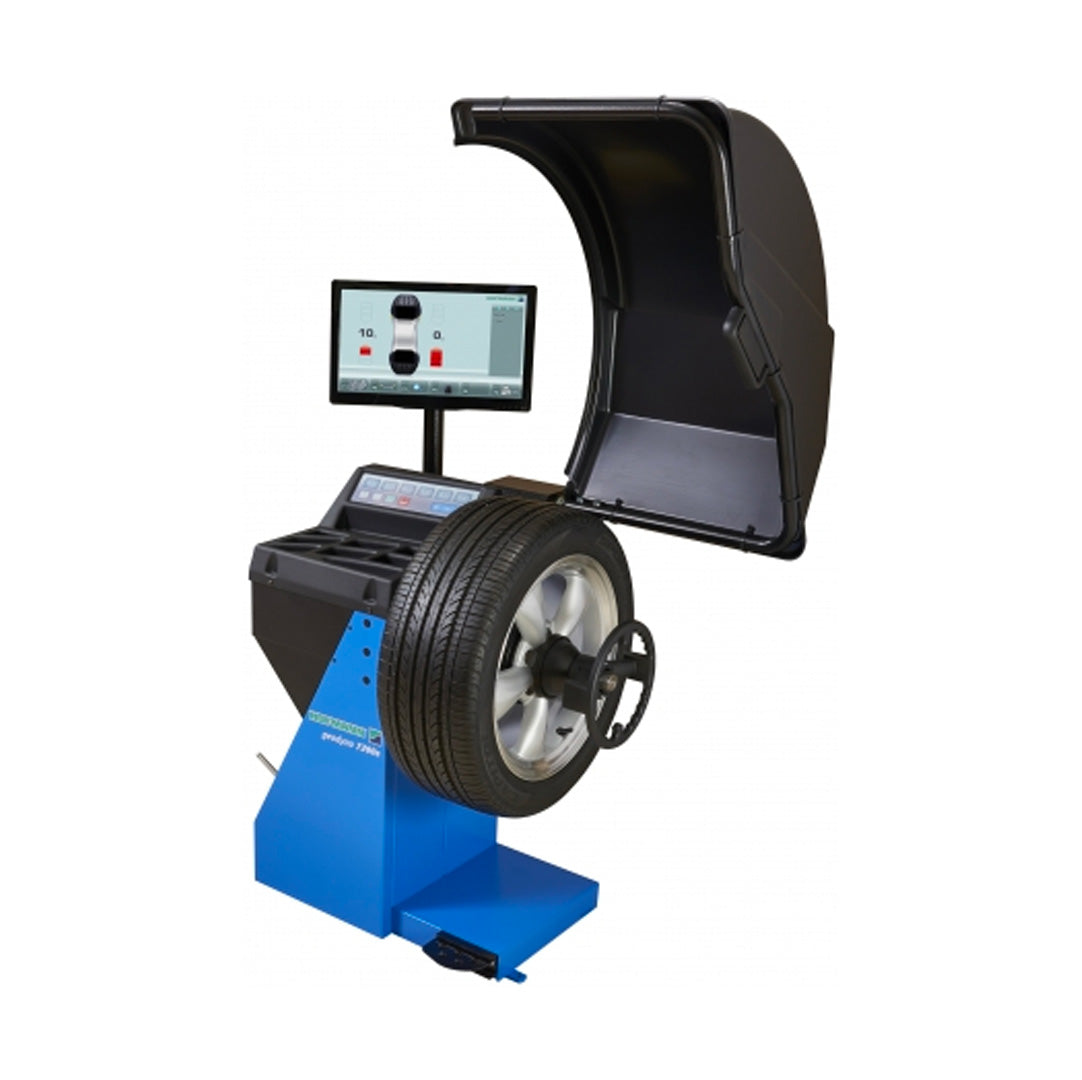

Hofmann GEODYNA® 7200S Wheel Balancer with LCD Monitor #EEWB746AS

• DESCRIPTION
• FEATURES
• SPECIFICATIONS
• WARRANTY + MANUALS

• DESCRIPTION

  The geodyna® 7200s High Performance Wheel Balancing System is ideal for all shops - small footprint complimented by the video display provides high-end features in a compact design. In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location. The fast spin cycle provides accurate measurement with minimum cycles for fast results.

  • Part Number: EEWB746AS
  • Ideal for all shops - small footprint complimented by the video display provides high-end features in a compact design
  • In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location
  • The fast spin cycle provides accurate measurement with minimum cycles for fast result
  • smartSonar simplifies parameter entry
  • Patented Virtual Plain Imaging (VPI) for precise measuring
  • Hidden weight mode
  • Automatic braking of the wheel after measurement
  • Pedal operated main shaft lock
  • Tire and wheel optimization program
  • Compact dimensions - for installation close to a wall
  • EZ-Collets - Mobile app helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a 6vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
  • The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.

• FEATURES

  • EZ-COLLETS MOBILE APP: The EZ-Collets mobile app makes wheel balancing more efficient.
  • SMART SONAR™: Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in the complete process when compared to manual operation.
  • TOUCH PANEL: Easy to operate with a comfortable touch panel.
  • EASYALU™: Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.
  • SPLIT WEIGHT MODE: Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.
  • QUICKBAL™: 30% reduced cycle time, less than 4,5 seconds, maintaining the same high accuracy.
  • GAUGE ARM: Semi-automatic data entry and positioning of adhesive weights.
  • OVERSIZED SHAFT: The 225 mm length allows the use of stud-hole flanges and other accessories for almost every type of rim.
  • VPM TECHNIQUE: Measurement system for high precision and repeatability.

• SPECIFICATIONS

  Specifications	GEODYNA7200
  Wheel clamping	Quick Nut
  Diameter of shaft	40 mm
  Measuring speed	< 200 rpm
  Balancing accuracy	0.035 (1 g)
  Angular resolution	±0.35°
  Length of shaft	225 mm
  Start/Stop balance time - Check spin (Wheel 195/65R15)	4.5 s
  Manual rim diameter range	8" - 32"
  Manual offset range	1" - 20"
  Manual rim width range	1" - 20"
  Semi-automatic rim diameter range	8" - 25"
  Semi-automatic rim width range	3" - 15"
  Max. wheel diameter	42"
  Max. wheel weight	154 lbs (70 kg)
  Motorized	Yes
  Power Requirements	230 VAC 1ph 50/60 Hz
  Dimensions LxWxH (Unit only)	40" x 31" x 72"
  Net Weight	220 lbs (100 kg)




• WARRANTY + MANUALS

  • 5 Years Motor
  • 2 Year Parts
  • 1 Year Labor



  GEODYNA® 7200

  WHEEL BALANCER SELECTOR

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Hofmann equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN WHEEL BALANCERS

• LABOR 6 MONTHS
• PARTS 1 YEAR
• ELECTRONIC CIRCUIT BOARD 3 YEARS
• ELECTRIC MOTOR 5 YEARS

HOFMANN WHEEL ALIGNERS

• LABOR - 6 MONTHS
• CIRCUIT BOARDS, PC’S, CRT & LCD - 3 YEARS
• PARTS & PRINTER - 1 YEAR

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN BRAKE LATHES

• LABOR - 6 MONTHS
• PARTS - 2 YEARS
• ELECTRIC MOTOR - 1 YEAR

HOFMANN TIRE CHANGERS

• LABOR - 6 MONTHS
• PARTS - 1 YEAR
• ELECTRIC MOTOR - 3 YEARS
• AIR MOTOR - 1 YEAR
• TRANSMISSION - 3 YEARS

Hofmann Equipment Warranty Policy - Hofmann USA products carry the following warranties:

HOFMANN LIFTS

• LABOR - 1 YEAR
• PARTS - 1 YEAR
• POWER PACK - 18 MONTHS (1 YEAR SCISSOR ALIGNMENT)
• HYDRAULICS - 1 YEAR
