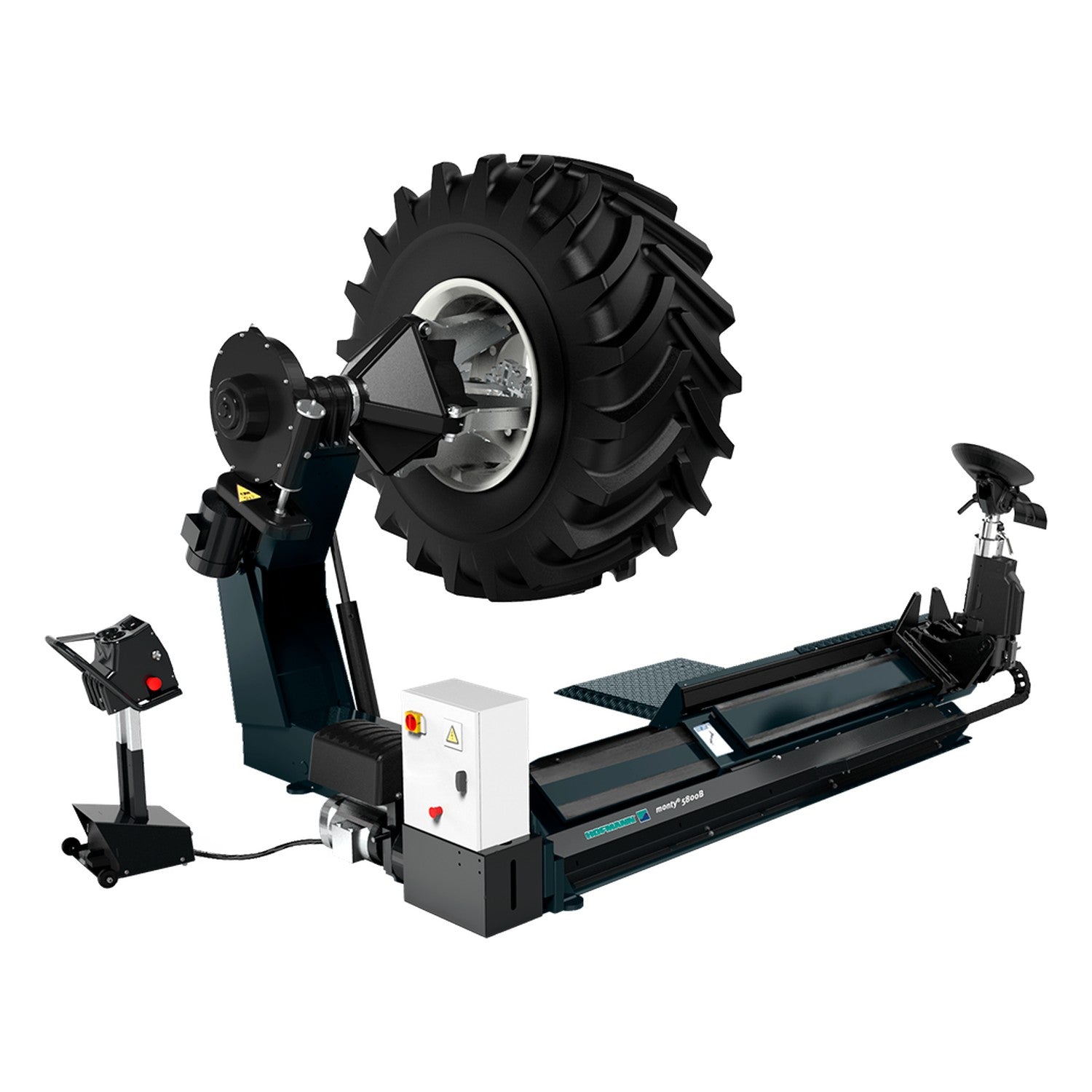

Hofmann monty® 5800B Heavy-Duty Truck Tire Changer #EEWH731ABU1

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOWNLOADS

• DESCRIPTION

  The Hofmann monty® 5800B Heavy-Duty Truck Tire Changer is engineered for demanding commercial truck, agricultural, industrial, and off-road tire service applications. Designed to handle oversized wheel assemblies with precision and control, this heavy-duty tire changer accommodates wheels up to 98.5 inches in diameter and weights up to 4,409 lbs.

  Powered by a robust electro-hydraulic system, the monty® 5800B features a self-centering four-jaw chuck, dual-speed operation, and a versatile mount/demount tool with 180-degree rotation capability. Its advanced hydraulic controls and mobile remote-control console allow a single technician to safely and efficiently perform challenging tire service procedures on commercial trucks, tractors, skidders, earthmovers, and OTR equipment.

• FEATURES AND BENEFITS

  • Heavy-Duty Electro-Hydraulic Operation: Provides powerful and precise control for oversized tire assemblies
  • Self-Centering Four-Jaw Chuck: Securely grips wheels while allowing accurate positioning during service
  • Dual-Speed Chuck System: Selectable 4 or 8 RPM operation improves control and productivity
  • Extremely Wide Clamping Range: Handles rims from 14" to 58" without extensions
  • 180° Rotating Mount/Demount Tool: Allows efficient tire service from both sides of the wheel assembly
  • Hydraulic Bead Breaker System: Tilting bead breaker disk improves bead breaking force and positioning accuracy
  • Mobile Remote Control Console: Enables safe single-technician operation from a distance
  • Independent Hydraulic Tool Control: Separately manages mounting tool positioning and rotation for improved precision
  • Designed for Commercial & OTR Applications: Ideal for trucks, tractors, earthmovers, skidders, and industrial equipment
  • Heavy-Duty Commercial Construction: Built for continuous use in demanding tire service environments
  • Handles Oversized Wheel Assemblies: Supports wheel diameters up to 98.5" and weights up to 4,409 lbs.
  • Long Jaw Design: Accommodates wheels with substantial rim offset for greater versatility


• SPECIFICATIONS

  Brand:	Hofmann
  Part Number:	EEWH731ABU1
  Rim Clamping Range:	14”-58” | 36-147cm
  Max. Tire Width:	59” | 150cm
  Max. Wheel Diameter:	98.5” | 250cm
  Max. Wheel Weight:	4,409 lbs. | 2,000 kg
  Power Supply:	208V 3Ph 60Hz
  Dimensions (L x W x H):	167” x 83” x 79” | 424 x 211 x 201cm

• DOWNLOADS

  • Brochure
  • Accessories Catalog
