iDEAL Auto Body Cart, Adjustable #BCA-3000
| Model / Part Number | BCA-3000 |
| Type | Adjustable auto body cart |
| Capacity | 3,000 lb |
| Adjustable Width | Up to 60 in |
| Adjustable Height | 28 in – 38 in |
| Adjustable Length | Up to 132 in |
| Ship Weight | 289 lb |
- Level shop floor rated for a loaded 3,000 lb cart plus 289 lb cart weight
- No anchoring required — rolls on 8" x 2" HD poly caster wheels
- Indoor use
- No electrical or air connection required — fully mechanical/manual adjustment
- Confirm bay space for up to 132 in extended length
- Allow room to maneuver the cart between body panels and workstations
- Ships by LTL freight

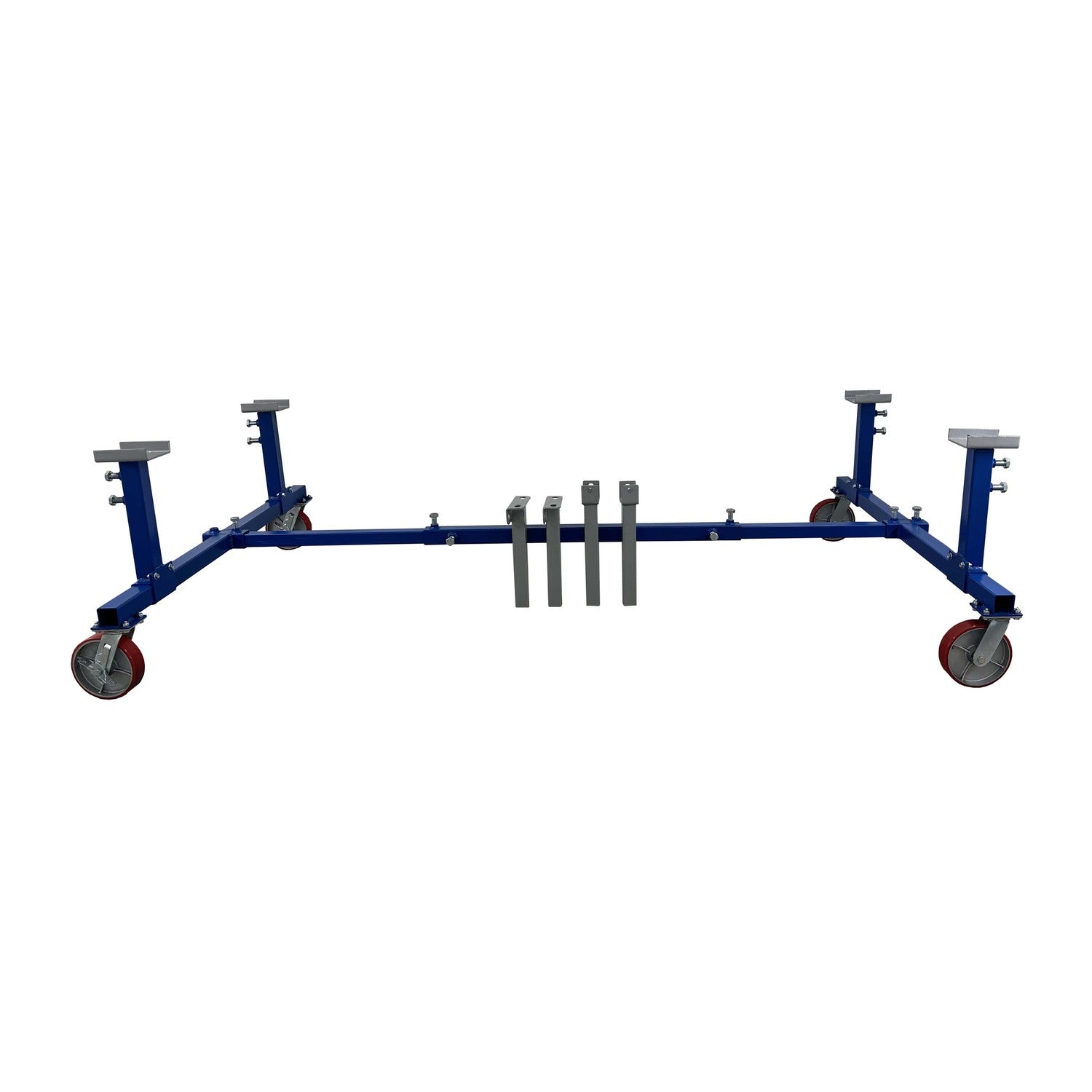

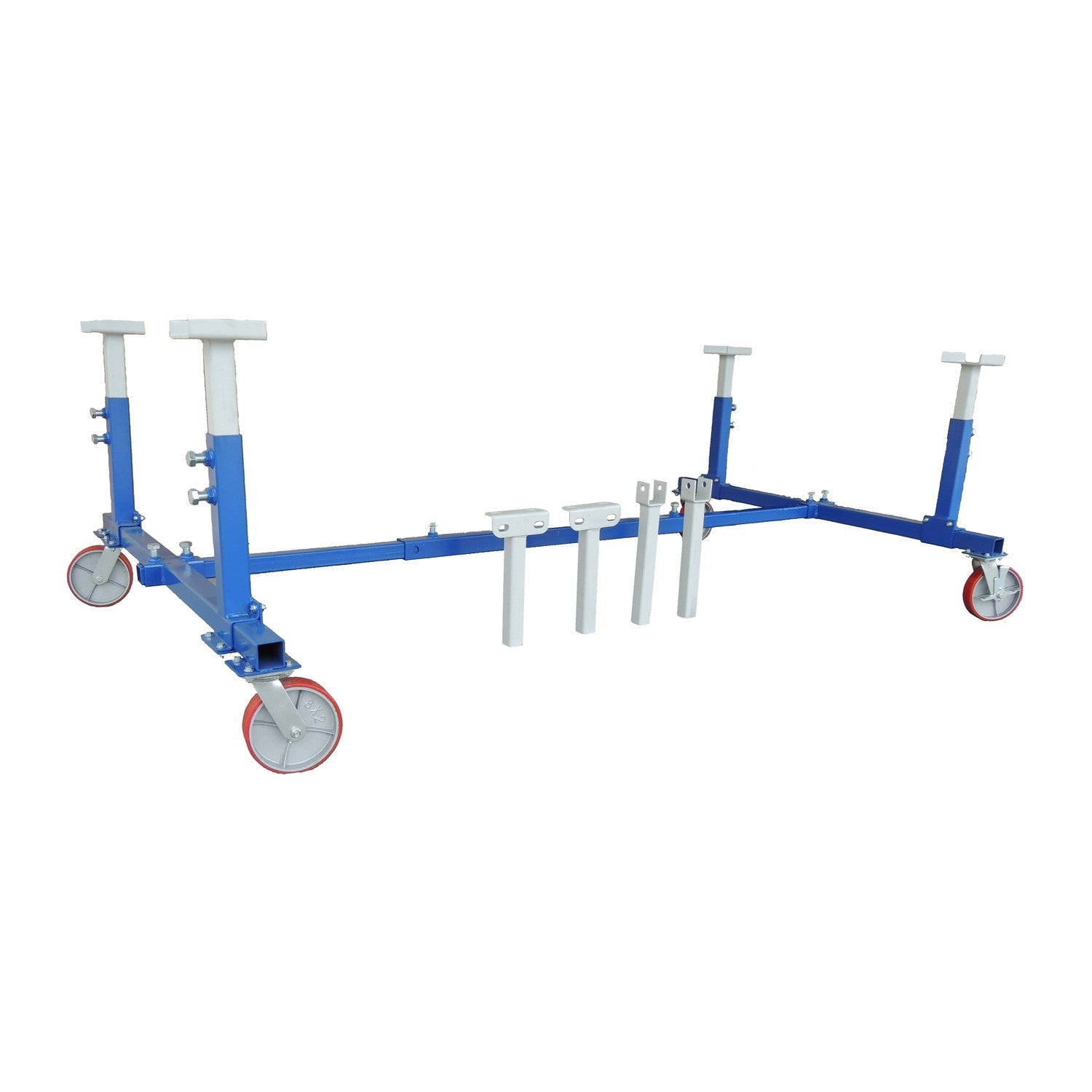

iDEAL BCA-3000 — Adjustable Auto Body Cart
The iDEAL BCA-3000 is a 3,000 lb adjustable auto body cart built to support removed body panels, hoods, doors, fenders, and bumpers during collision repair and paint prep. Unlike a fixed-size cart, the BCA-3000's frame extends up to 132 in in length and adjusts from 28 in to 38 in in height, so one cart can hold anything from a short bumper cover to a full door panel at a comfortable working height.
Four straddle adaptors, two leaf spring adaptors, and two boltdown adaptors ship standard, giving you multiple ways to secure a panel to the cart frame depending on its shape and mounting points — something a fixed-frame cart can't offer.
Heavy-duty 8 in x 2 in HD poly caster wheels roll the loaded cart around the shop floor, and the powder-coat finish holds up to daily paint-and-body shop use.
Who It's Built For
- ✅ Body shops handling a mix of panel sizes — hoods, doors, fenders, bumpers — on one cart
- ✅ Shops that need adjustable height to match panel work to a comfortable bench height
- ✅ Techs who want multiple mounting-adaptor options for irregular panel shapes
What It's NOT Built For
- ❌ Shops that only need a simple fixed-size cart — the lower-cost BCS-3000 covers standard panel sizes without the extra adjustability
- ❌ Loads over 3,000 lb
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the BCA-3000 Different
Extends to 132 In — Over Double the BCS-3000's Range
Where the standard BCS-3000 tops out at 65 in, the BCA-3000's adjustable frame reaches 132 in, long enough for full body sections or multiple smaller panels at once.
Height-Adjustable, Not Fixed
The 28 in to 38 in height range lets you set the cart to a comfortable working height for the task, instead of stooping or reaching with a fixed 22 in cart.
Three Adaptor Types Included
Four straddle adaptors, two leaf spring adaptors, and two boltdown adaptors ship standard — covering more panel-mounting scenarios than a cart with no included adaptors.
Heavy-Duty Casters and Powder-Coat Finish
8 in x 2 in HD poly caster wheels and a powder-coat finish are built for repeated loading/unloading in a working body shop.
✅ Best For
- ✅ Shops needing one cart to flex across many panel sizes and shapes
- ✅ Techs who want height adjustment instead of a fixed 22 in working height
❌ Not Ideal For
- ❌ Shops that only handle standard-size panels and don't need the extra length/height range — the BCS-3000 costs less
BCA-3000 vs. BCS-3000 — Adjustable or Standard?
Same 3,000 lb capacity and caster/finish quality — the real difference is adjustability range.
| Decision Point | BCA-3000 (this product) | BCS-3000 |
|---|---|---|
| Adjustable length | Up to 132 in | 38 in – 65 in |
| Adjustable height | 28 in – 38 in | 22 in (fixed) |
| Included adaptors | 4 straddle + 2 leaf spring + 2 boltdown | None listed |
| Ship weight | 289 lb | 188 lb |
Choose the BCA-3000 if you need length/height adjustability and mounting adaptors for varied panel shapes. Choose the BCS-3000 if your panels fit its 38-65 in range and you don't need the extra adjustment. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — BCA-3000
| Model / Part Number | BCA-3000 |
| Capacity | 3,000 lb |
| Adjustable Width | Up to 60 in |
| Adjustable Height | 28 in – 38 in |
| Adjustable Length | Up to 132 in |
| Ship Weight | 289 lb |
| Casters | 8 in x 2 in HD poly caster wheels |
| Included Adaptors | 4x straddle adaptors, 2x leaf spring adaptors, 2x boltdown adaptors |
| Finish | Powder coat |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a loaded 3,000 lb cart — no anchoring required, this is a portable rolling cart.
- Bay footprint: Confirm room for up to 132 in extended length plus maneuvering space.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: No installation required — arrives ready to roll. Call Alamo at (817) 865-3707 with any setup questions.
Warranty — BCA-3000
The BCA-3000 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — BCA-3000
Does the BCA-3000 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the BCA-3000 and BCS-3000?
The BCA-3000 is the adjustable version: it extends up to 132 in in length and adjusts 28 in-38 in in height, with 3 types of mounting adaptors included. The BCS-3000 is a standard cart with a fixed 22 in height and a 38 in-65 in adjustable range.
What is the BCA-3000's weight capacity?
3,000 lb.
What is the BCA-3000's warranty?
Tuxedo backs the BCA-3000 with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the BCA-3000 from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
Shipping follows the method shown on the product page and at checkout. Standard parcel, calculated LTL, freight quotes, included freight, and pickup may apply by item.
