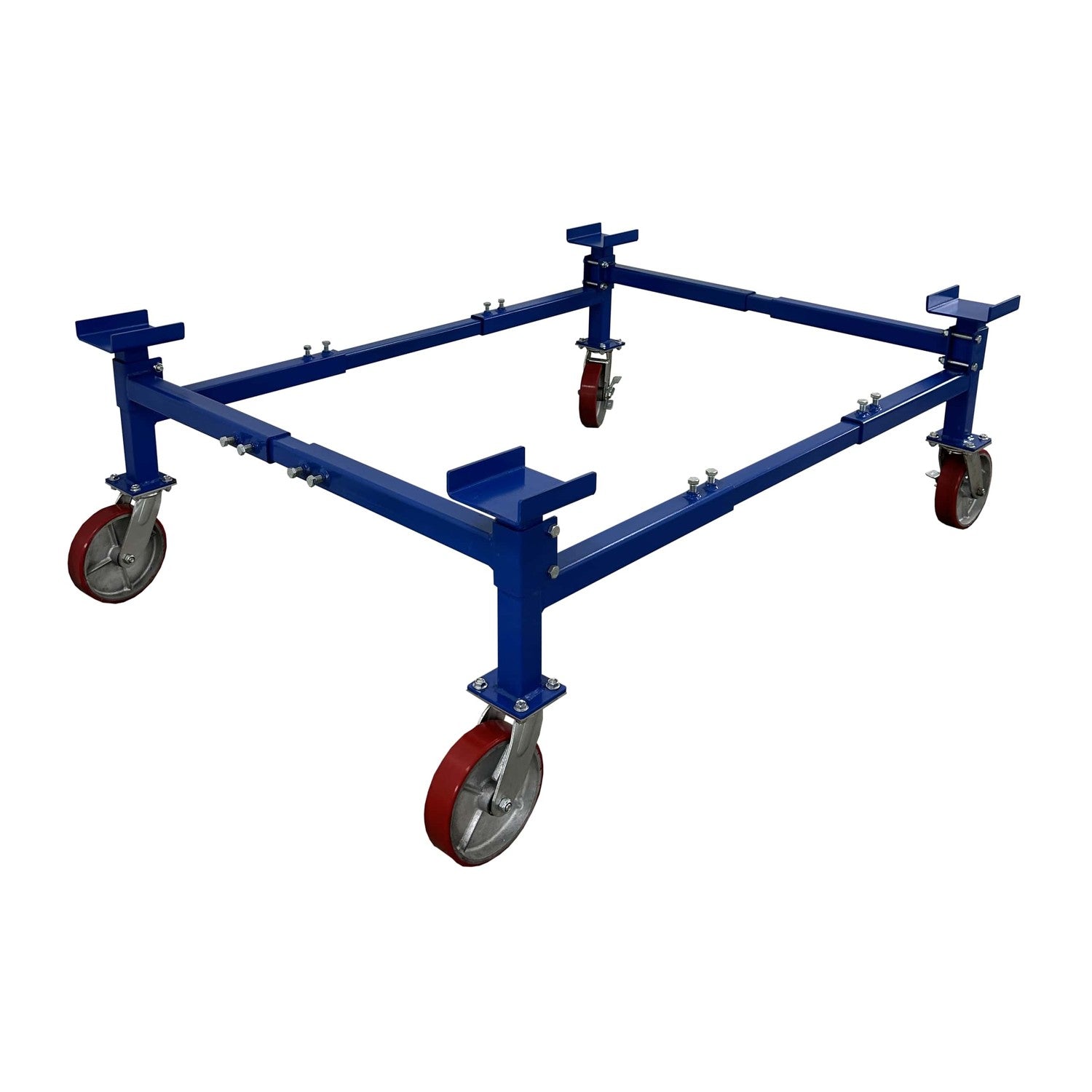

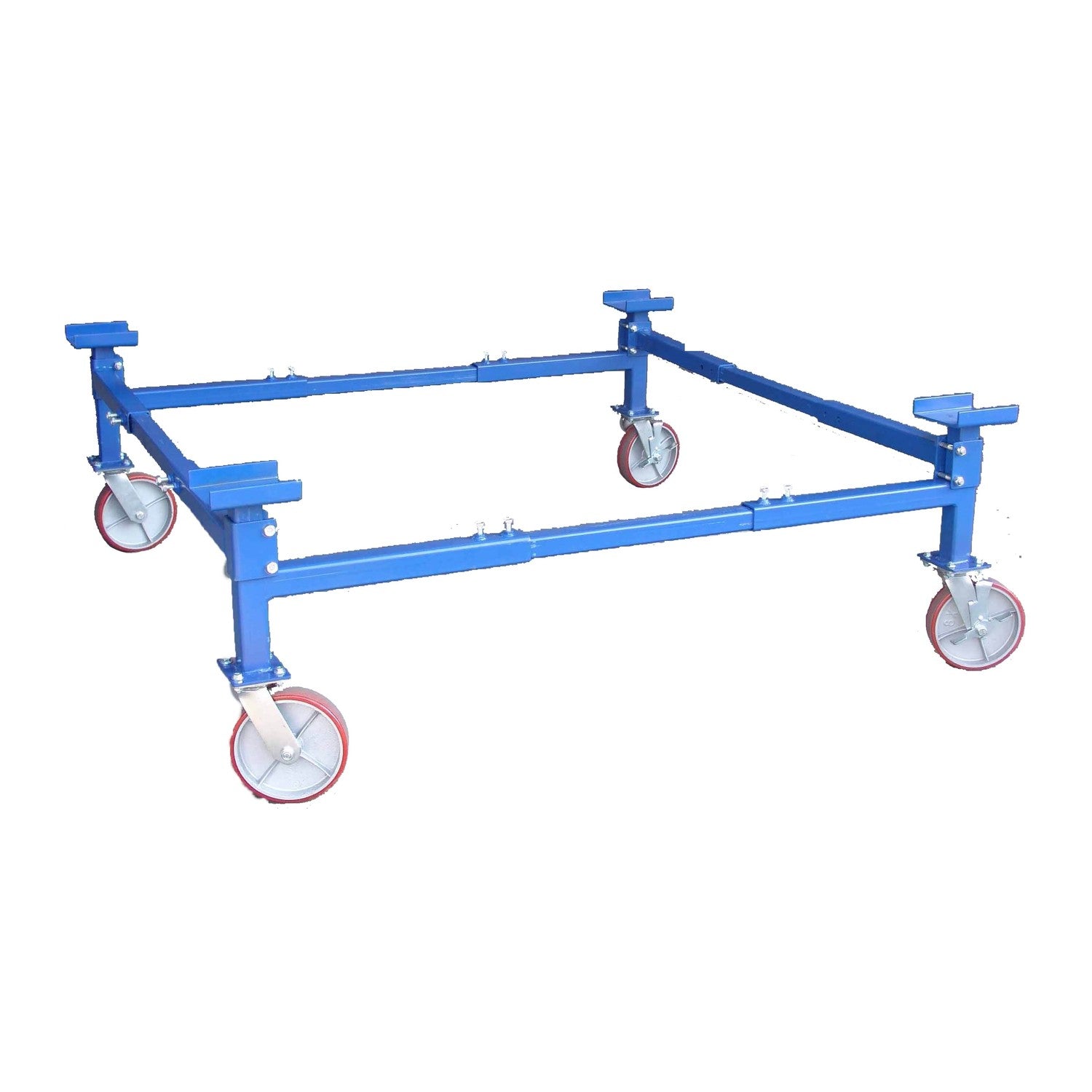

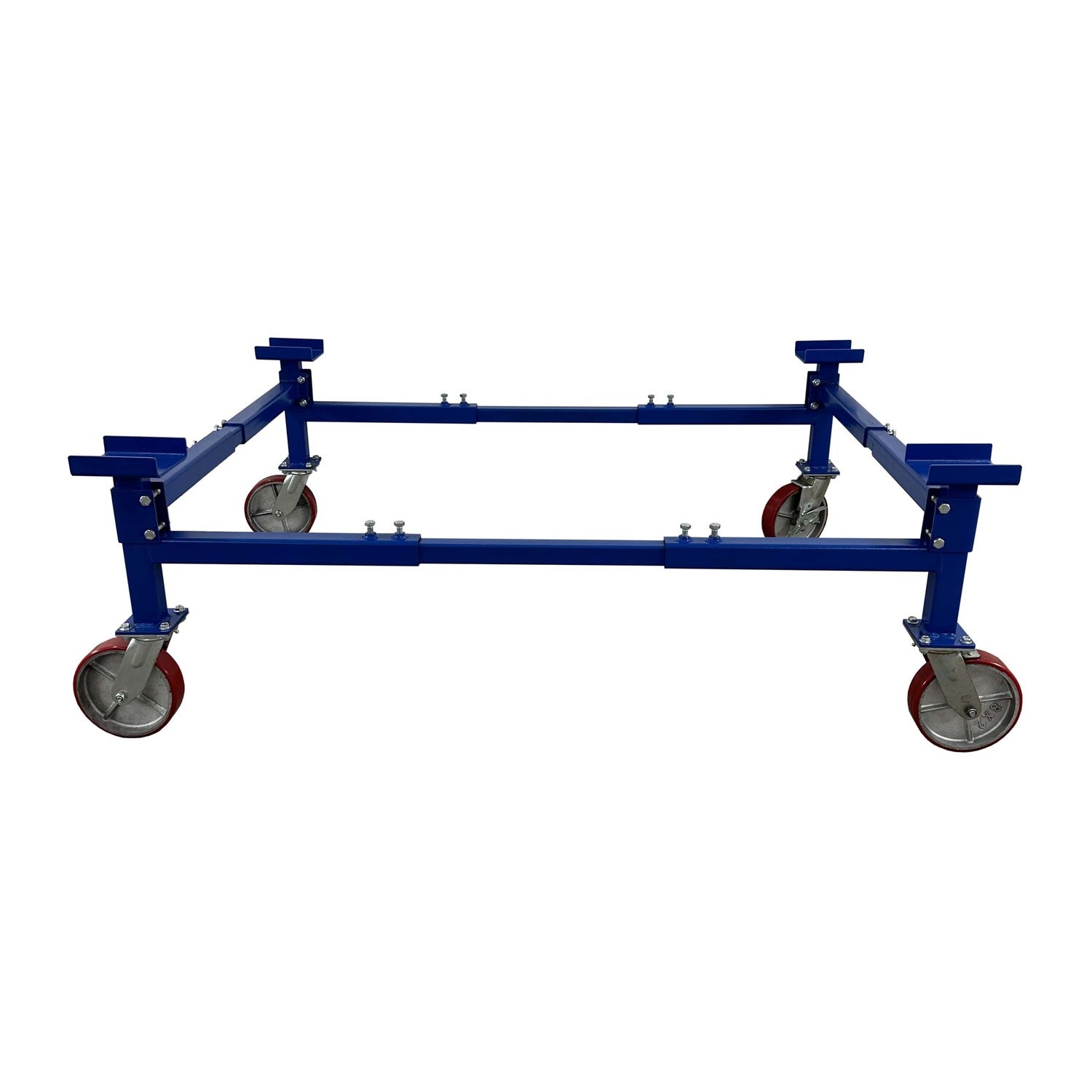

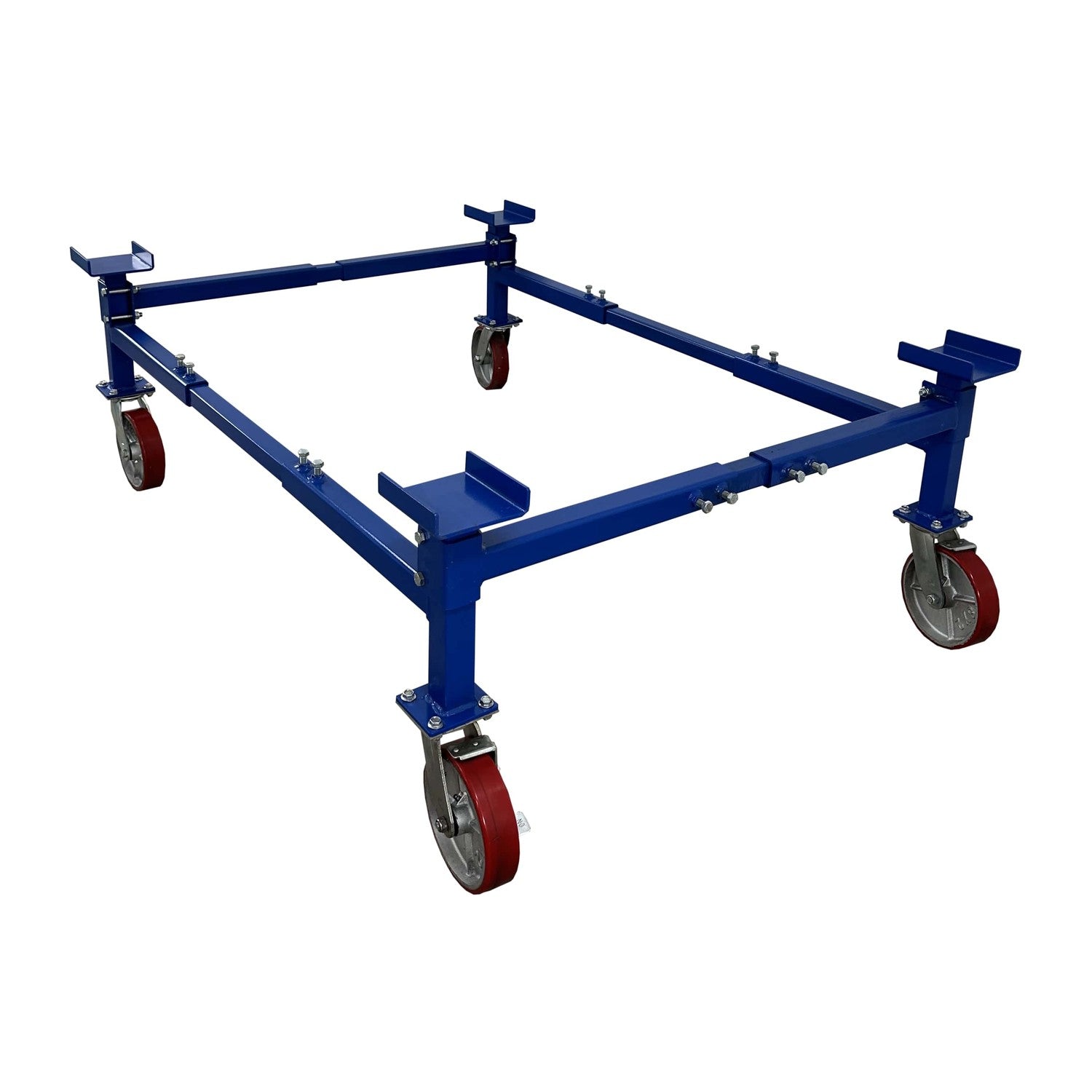

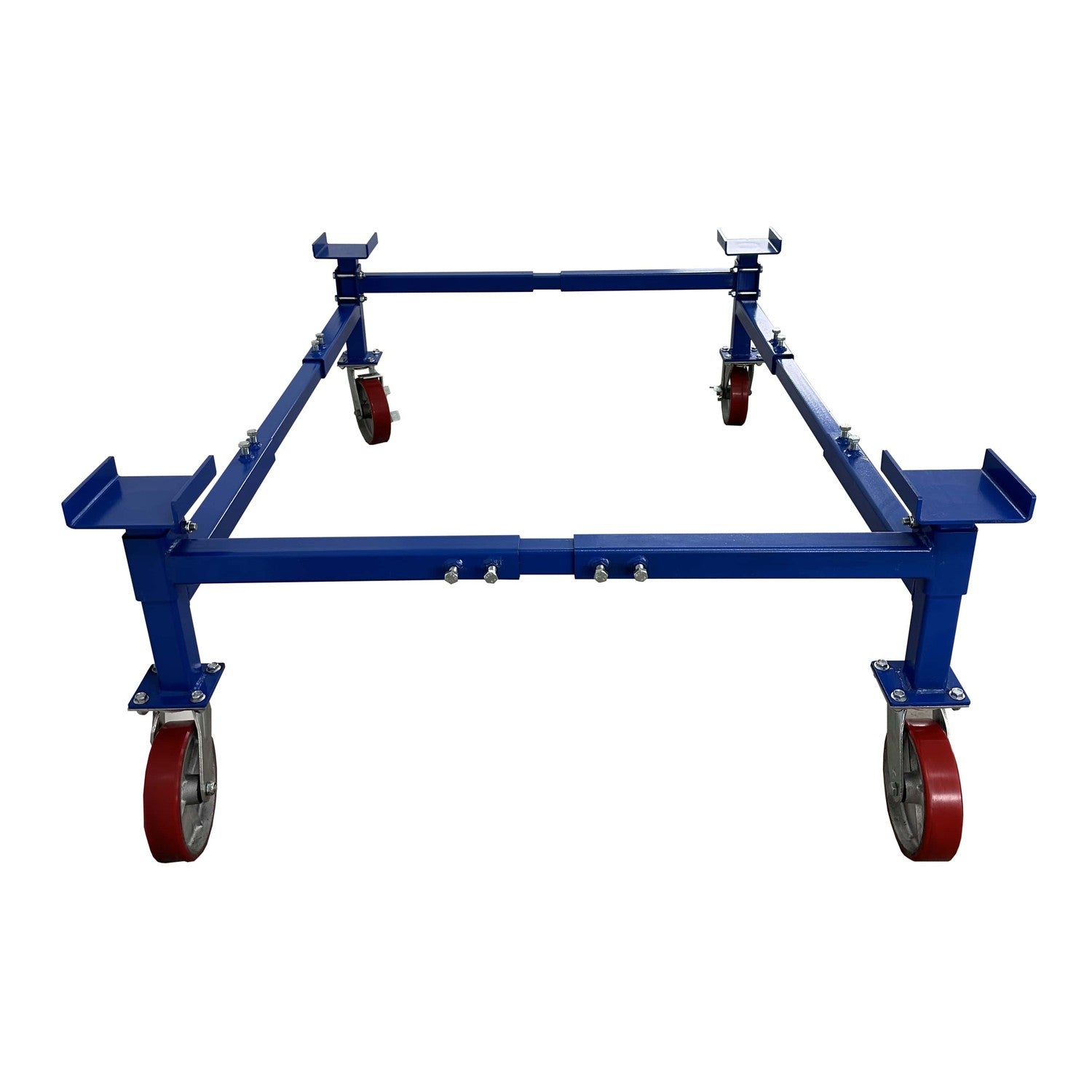

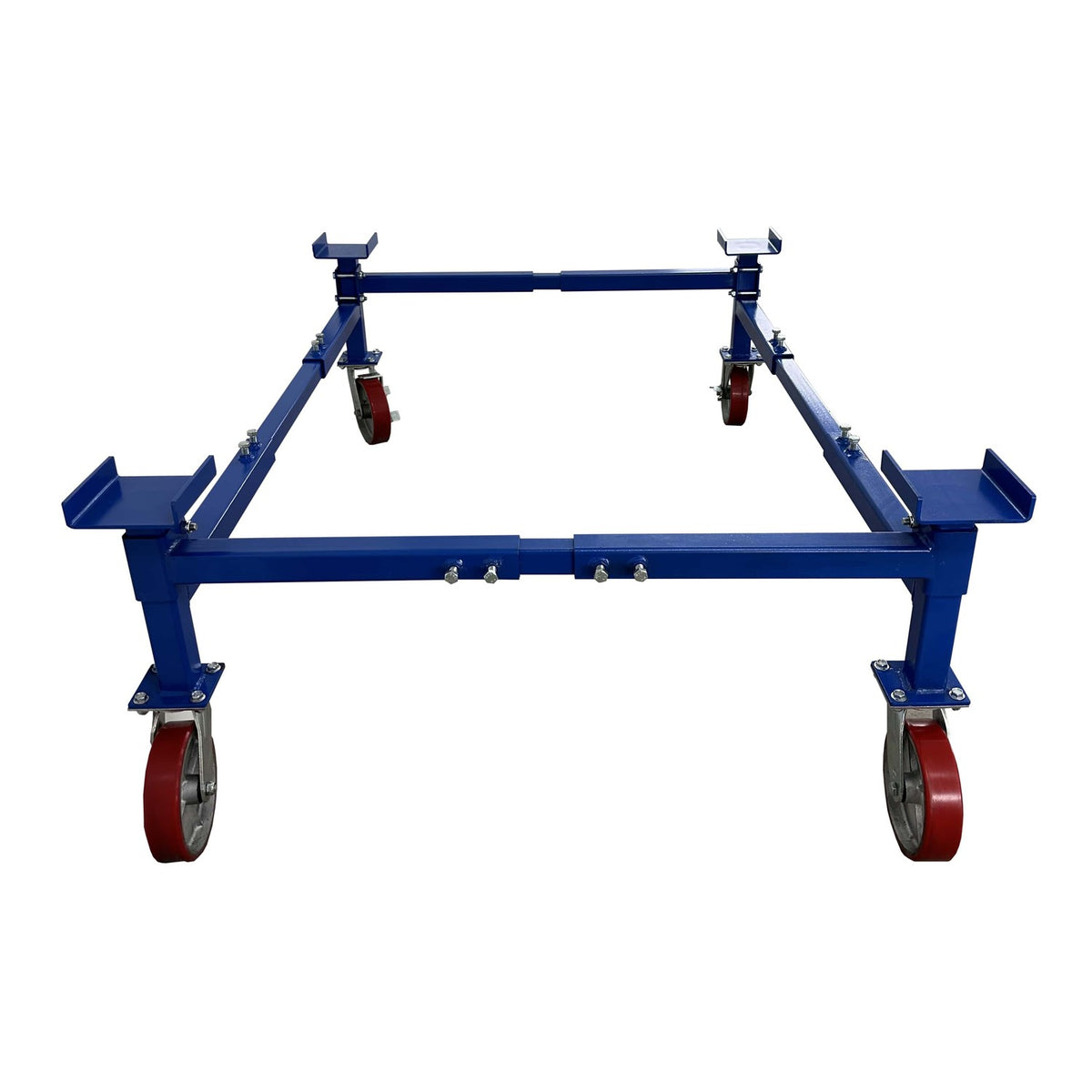

iDEAL Auto Body Cart, Standard #BCS-3000
| Model / Part Number | BCS-3000 |
| Type | Standard auto body cart |
| Capacity | 3,000 lb |
| Adjustable Width | 38 in – 65 in |
| Adjustable Height | 22 in (fixed) |
| Adjustable Length | 38 in – 65 in |
| Ship Weight | 188 lb |
- Level shop floor rated for a loaded 3,000 lb cart plus 188 lb cart weight
- No anchoring required — rolls on 8" x 2" HD poly caster wheels
- Indoor use
- No electrical or air connection required — fully mechanical/manual adjustment
- Confirm bay space for up to 65 in extended length/width
- Allow room to maneuver the cart between body panels and workstations
- Ships by LTL freight
iDEAL BCS-3000 — Standard Auto Body Cart
The iDEAL BCS-3000 is a 3,000 lb standard auto body cart for supporting removed panels — hoods, doors, fenders, bumpers — during collision repair, paint prep, and reassembly. Its universal design adjusts from 38 in to 65 in in both width and length to fit a range of common panel sizes at a fixed 22 in working height.
Heavy-duty 8 in x 2 in HD poly caster wheels roll the loaded cart around the shop floor, and the powder-coat finish is built for daily body shop use.
Who It's Built For
- ✅ Body shops that need a straightforward, lower-cost cart for standard panel sizes
- ✅ Shops comfortable with a fixed 22 in working height
- ✅ Techs who don't need extended-length capacity beyond 65 in
What It's NOT Built For
- ❌ Longer panels or full body sections beyond 65 in — see the BCA-3000, which extends to 132 in
- ❌ Shops that want height adjustment — the BCS-3000's 22 in height is fixed
- ❌ Loads over 3,000 lb
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the BCS-3000 Different
Simple, Lower-Cost Design for Standard Panels
The BCS-3000 covers the 38-65 in range most hoods, doors, fenders, and bumper covers fall into, without the extra hardware and adjustability of the BCA-3000 — useful if your shop doesn't need the longer reach.
Universal Adjustable Frame
Width and length both adjust from 38 in to 65 in to fit the panel you're supporting, at a fixed 22 in working height.
Heavy-Duty Casters and Powder-Coat Finish
8 in x 2 in HD poly caster wheels and a powder-coat finish hold up to repeated loading/unloading in a working body shop.
Lighter and Easier to Maneuver
At 188 lb, the BCS-3000 is over 100 lb lighter than the BCA-3000, making it easier to move around the shop when you don't need the extended-length capacity.
✅ Best For
- ✅ Shops that mainly handle standard-size panels within the 38-65 in range
- ✅ Buyers who want a lower-cost cart without the BCA-3000's extra adaptor hardware
❌ Not Ideal For
- ❌ Panels or sections longer than 65 in — the BCA-3000 extends to 132 in
- ❌ Shops that want adjustable working height — the BCS-3000's 22 in height is fixed
BCS-3000 vs. BCA-3000 — Standard or Adjustable?
Same 3,000 lb capacity and caster/finish quality — the real difference is adjustability range.
| Decision Point | BCS-3000 (this product) | BCA-3000 |
|---|---|---|
| Adjustable length | 38 in – 65 in | Up to 132 in |
| Adjustable height | 22 in (fixed) | 28 in – 38 in |
| Included adaptors | None listed | 4 straddle + 2 leaf spring + 2 boltdown |
| Ship weight | 188 lb | 289 lb |
Choose the BCS-3000 if your panels fit its 38-65 in range and a fixed 22 in height works for your shop. Choose the BCA-3000 if you need more length/height adjustability and mounting adaptors. Call (817) 865-3707 if you're not sure which fits your shop.
Full Specifications — BCS-3000
| Model / Part Number | BCS-3000 |
| Capacity | 3,000 lb |
| Adjustable Width | 38 in – 65 in |
| Adjustable Height | 22 in (fixed) |
| Adjustable Length | 38 in – 65 in |
| Ship Weight | 188 lb |
| Casters | 8 in x 2 in HD poly caster wheels |
| Finish | Powder coat |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a loaded 3,000 lb cart — no anchoring required, this is a portable rolling cart.
- Bay footprint: Confirm room for up to 65 in extended length/width plus maneuvering space.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: No installation required — arrives ready to roll. Call Alamo at (817) 865-3707 with any setup questions.
Warranty — BCS-3000
The BCS-3000 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — BCS-3000
Does the BCS-3000 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the BCS-3000 and BCA-3000?
The BCS-3000 is the standard version: a fixed 22 in height with a 38 in-65 in adjustable width/length. The BCA-3000 extends up to 132 in in length, adjusts 28 in-38 in in height, and includes 3 types of mounting adaptors.
What is the BCS-3000's weight capacity?
3,000 lb.
What is the BCS-3000's warranty?
Tuxedo backs the BCS-3000 with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
