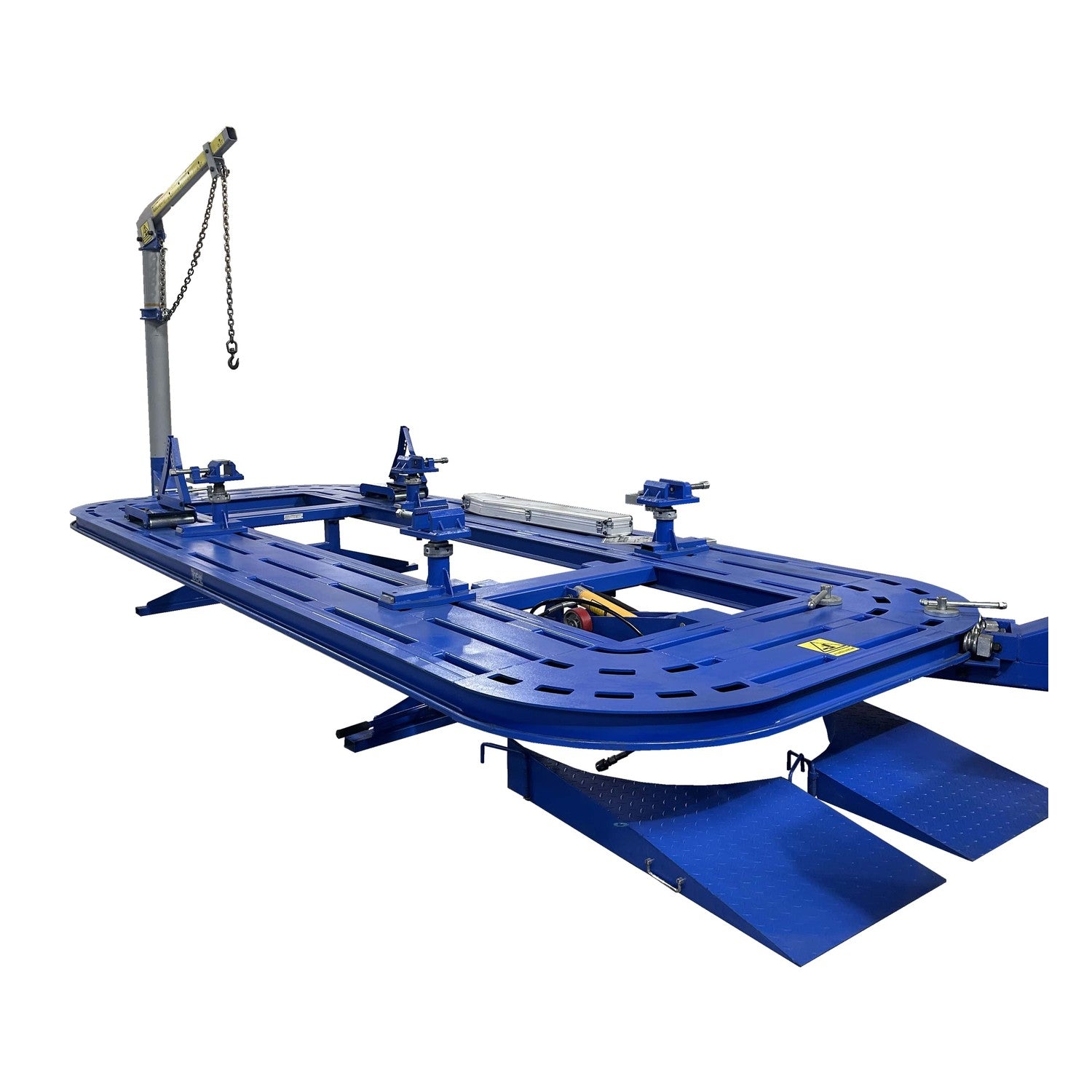

iDEAL 20' Tilt Deck/Steel Plate Platform Frame Rack #FR-77-20
| Model / Part Number | FR-77-20 |
| Type | Steel plate deck frame rack (tilt deck) |
| Deck Length | 20 ft |
| Deck Width | 82.6 in |
| Deck Height | 19.7 in |
| Lifting Capacity (Tilt Deck) | 7,700 lb |
| Pull Force Per Tower | 10 ton |
| Ship Weight | 6,000 lb |
- Level, load-rated concrete shop floor rated for a bolt-down frame machine
- Confirm anchoring/slab thickness against the manufacturer's installation manual before delivery
- Indoor use
- Shop compressed air line, 100–120 PSI, for the two air/hydraulic pumps
- No electrical circuit required — this machine runs on shop air
- Allow clearance for the overhead boom pull tower swing and both pulling towers
- Plan the delivery path for crated freight
- Ships by LTL freight, crated
iDEAL FR-77-20 — 20' Steel Plate Deck Frame Rack
The iDEAL FR-77-20 is a 20-foot tilt-deck, steel plate platform frame rack for full-service collision repair on longer vehicles — extended-cab trucks, vans, and SUVs — where an 18-foot deck runs out of room. The deck tilts to grade for drive-on loading and back up for pulling, rated for 7,700 lb with the drive-on ramps.

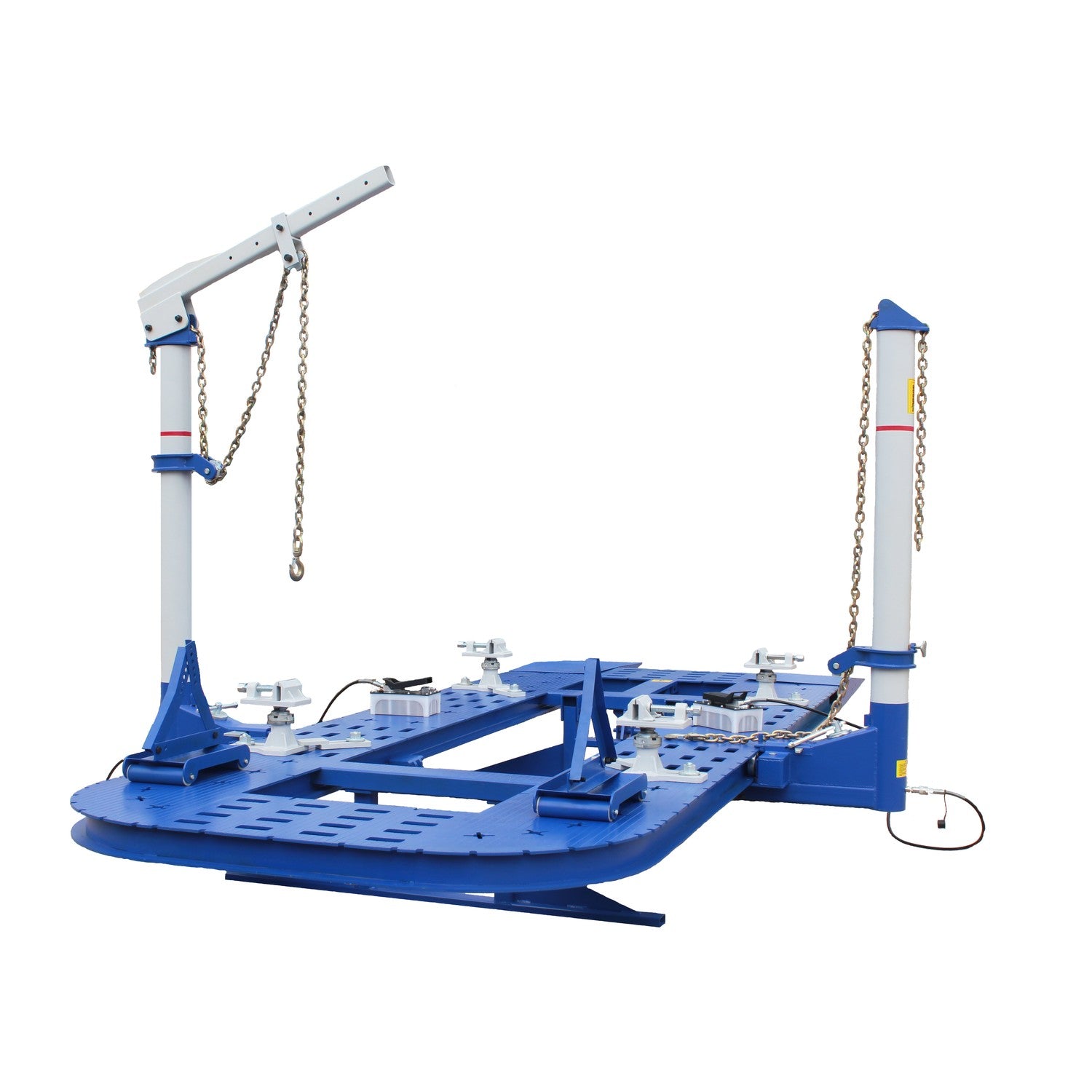

Two 10-ton pulling towers with telescoping heads ride on adjustable collars anywhere along the 20-foot deck, and an overhead boom pull tower extension adds upward pull angles for roof and pillar corrections. The universal anchoring system's adjustable-height pinch weld assemblies clamp the vehicle's rocker panels directly to the deck to hold it rigid under pulling load.
Two high-quality air/hydraulic pumps with pressure gauges power both towers through quick-disconnect hydraulic fittings, so a single pump can be moved between towers as needed.
Who It's Built For
- ✅ Collision repair shops that regularly service longer vehicles — extended trucks, vans, full-size SUVs
- ✅ Shops that need two independent pulling towers with room to work both ends of a long vehicle
- ✅ Facilities with shop air (100–120 PSI) already in place
What It's NOT Built For
- ❌ Smaller shops that mostly service compact/midsize vehicles — the shorter FR-77-18 uses less bay floor
- ❌ Bays without room for the longer 20-foot crated footprint plus boom tower swing
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the FR-77-20 Different
20 Feet of Deck for Longer Vehicles
The extra two feet over the FR-77-18 gives more room to anchor and work extended-cab trucks, cargo vans, and full-size SUVs without the vehicle overhanging the deck.
Same Two 10-Ton Pulling Towers, More Room to Reposition
Both towers ride adjustable collars the full 20-foot length, so on longer vehicles you have more positioning range to hit the right pull point without repositioning the car.
Overhead Boom Pull Tower Extension
Adds upward and angled pull directions for roof crush, pillar, and header-panel work that a deck-level tower alone can't reach — same accessory-compatible tooling as the FR-77-18.
Includes a Wheel Stand and Dead Vehicle Dolly
Load a non-running vehicle onto the deck without a separate dolly — the universal wheel stand and dead vehicle dolly ship standard.
✅ Best For
- ✅ Shops with a mix of longer trucks, vans, and SUVs that need the extra deck length
- ✅ Multi-bay collision centers with room for the larger crated footprint
❌ Not Ideal For
- ❌ Tight bays — the shorter FR-77-18 has the identical tooling package on less floor
- ❌ Shops without 100–120 PSI shop air already run to the bay
FR-77-20 vs. FR-77-18 — Which Deck Length Fits Your Shop?
Same pulling-tower package and 7,700 lb capacity on both — the real difference is deck length.
| Decision Point | FR-77-20 (this product) | FR-77-18 |
|---|---|---|
| Deck length | 20 ft | 18 ft |
| Ship weight | 6,000 lb | 5,300 lb |
| Deck width / height | 82.6 in / 19.7 in | 82.6 in / 19.7 in (same) |
| Pulling towers / capacity | Two 10-ton towers, 7,700 lb | Two 10-ton towers, 7,700 lb (same) |
Choose the FR-77-20 if you regularly work on longer trucks, vans, or SUVs. Choose the 18-foot FR-77-18 if your bay or typical vehicle mix fits comfortably in less deck length. Call (817) 865-3707 if you're not sure which length fits your shop.
Full Specifications — FR-77-20
| Model / Part Number | FR-77-20 |
| Deck Design | Steel Plate (tilt deck) |
| Deck Length | 20 ft |
| Deck Width | 82.6 in |
| Deck Height | 19.7 in |
| Pull Force Per Tower | 10 ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100–120 PSI |
| Lifting Capacity (Tilt Deck, w/ Drive-On Ramps) | 7,700 lb |
| Ship Weight | 6,000 lb |
| Included | Two 10-ton pulling towers w/ telescoping heads, overhead boom pull tower extension, two 10' pulling chains w/ hooks, two air/hydraulic pumps w/ pressure gauges, universal wheel stand and dead vehicle dolly |
| Optional Accessories | FR-77-TBK25 Tool Board Kit, FR-PROMEASRKIT Professional Measure Kit, FR-EWINCH Electric Winch, FR-BAGJACK Air Bag Jack |
⚠️ Installation Requirements
- Floor: Level, load-rated concrete shop floor. This is a bolt-down frame machine — confirm slab thickness/anchoring against the manufacturer's installation manual before delivery.
- Air supply: Shop compressed air line, 100–120 PSI, to run the two air/hydraulic pumps.
- Bay footprint: Confirm clearance for the crated deck length plus room to swing the overhead boom pull tower and work around both pulling towers.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup.
Warranty — FR-77-20
The FR-77-20 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — FR-77-20
Does the FR-77-20 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the FR-77-20 and FR-77-18?
Both use the same two 10-ton pulling tower package, 82.6 in deck width, and 7,700 lb tilt-deck capacity. The FR-77-20 has a 20-foot deck for longer vehicles and the FR-77-18 has an 18-foot deck.
Does the FR-77-20 need shop air or electricity?
Shop air. It needs 100–120 PSI compressed air to run the two air/hydraulic pumps — no dedicated electrical circuit is required.
What is the FR-77-20's warranty?
Tuxedo backs the FR-77-20 with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
