iDEAL 3D iPRO Image Wheel Aligner System #IWA-60-2000T-K
| Model / Part Number | IWA-60-2000T-K |
| Type | 3D iPRO imaging wheel alignment system |
| Accuracy | 0.01 degrees |
| Working Height Range | “Wide Scope” — 2x conventional 3D aligners |
| Monitor | 21.5 in wide-screen LCD |
| Wheel Clamps | Self-centering, 4-point contact, reversible studs |
| Portability | Portable across multiple bays |
| Ship Weight | 465 lb |
- Level, standard shop floor at your chosen alignment bay(s)
- System is portable — designed to move between multiple bays
- No special foundation work required for standard use
- Standard shop electrical service for the cabinet, monitor, and software
- Confirm outlet placement at each bay if using the multi-bay portability feature
- Portable design supports use across multiple bays in your shop
- Confirm clearance for the 3D tower and target positioning at your alignment rack or lift
- Ships via LTL freight

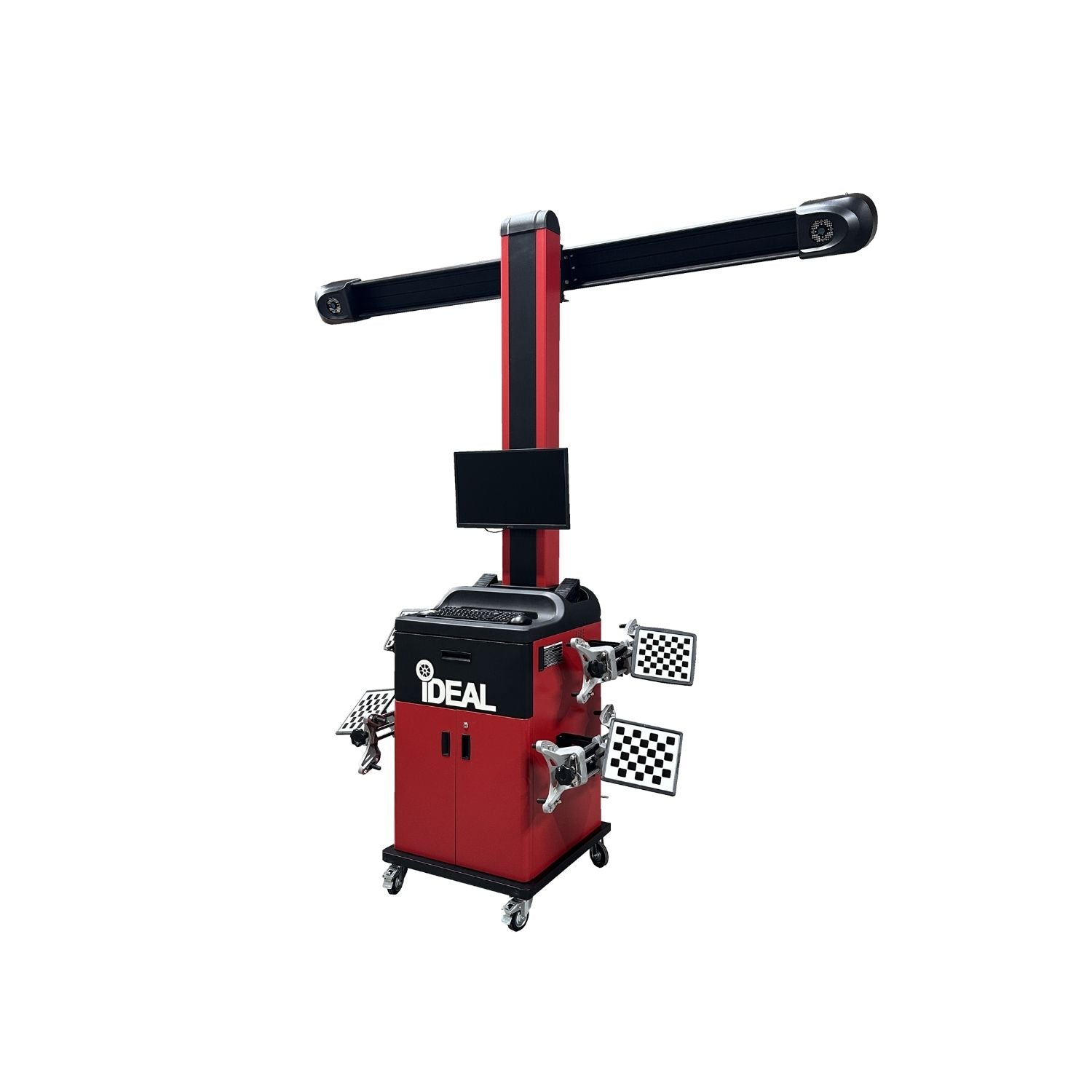

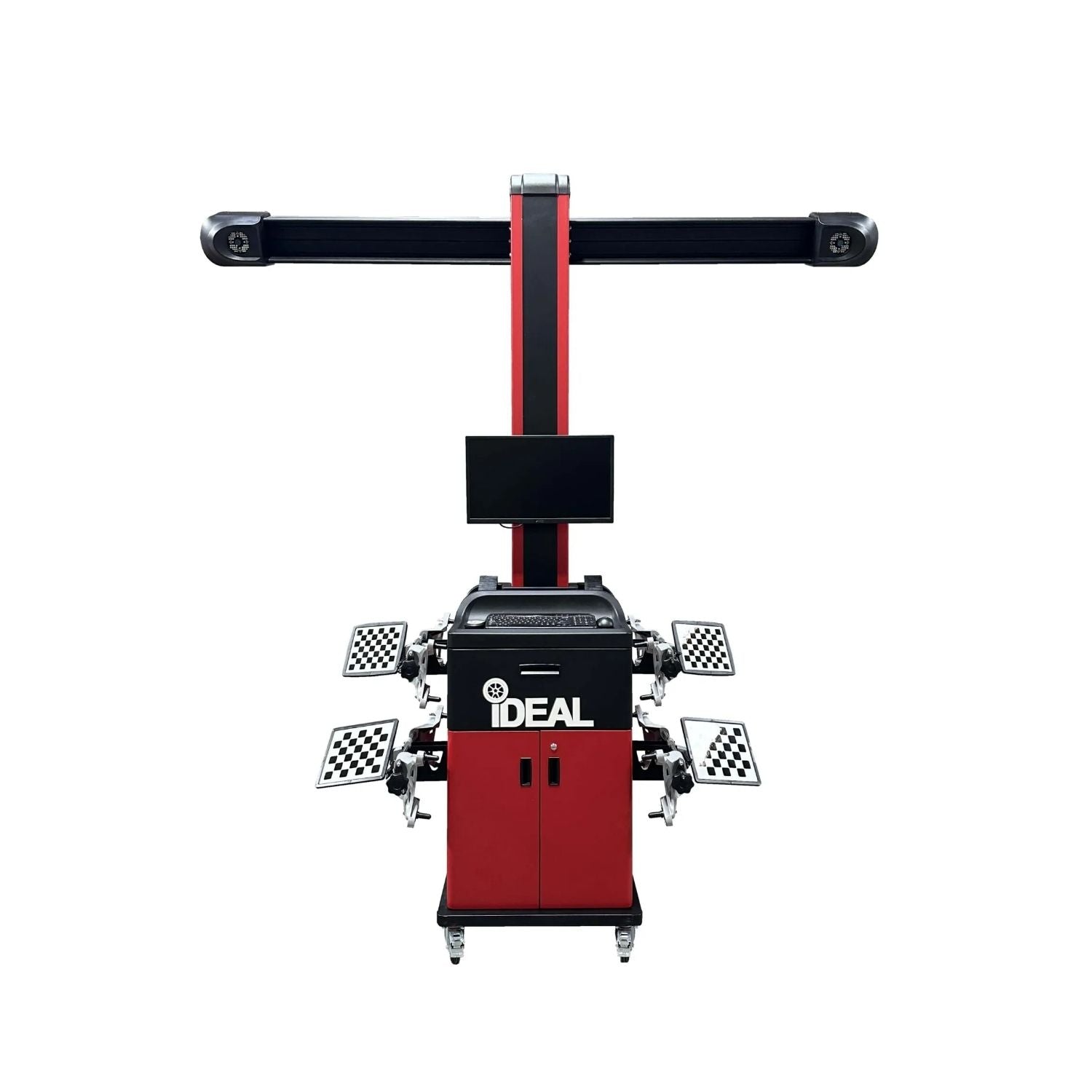

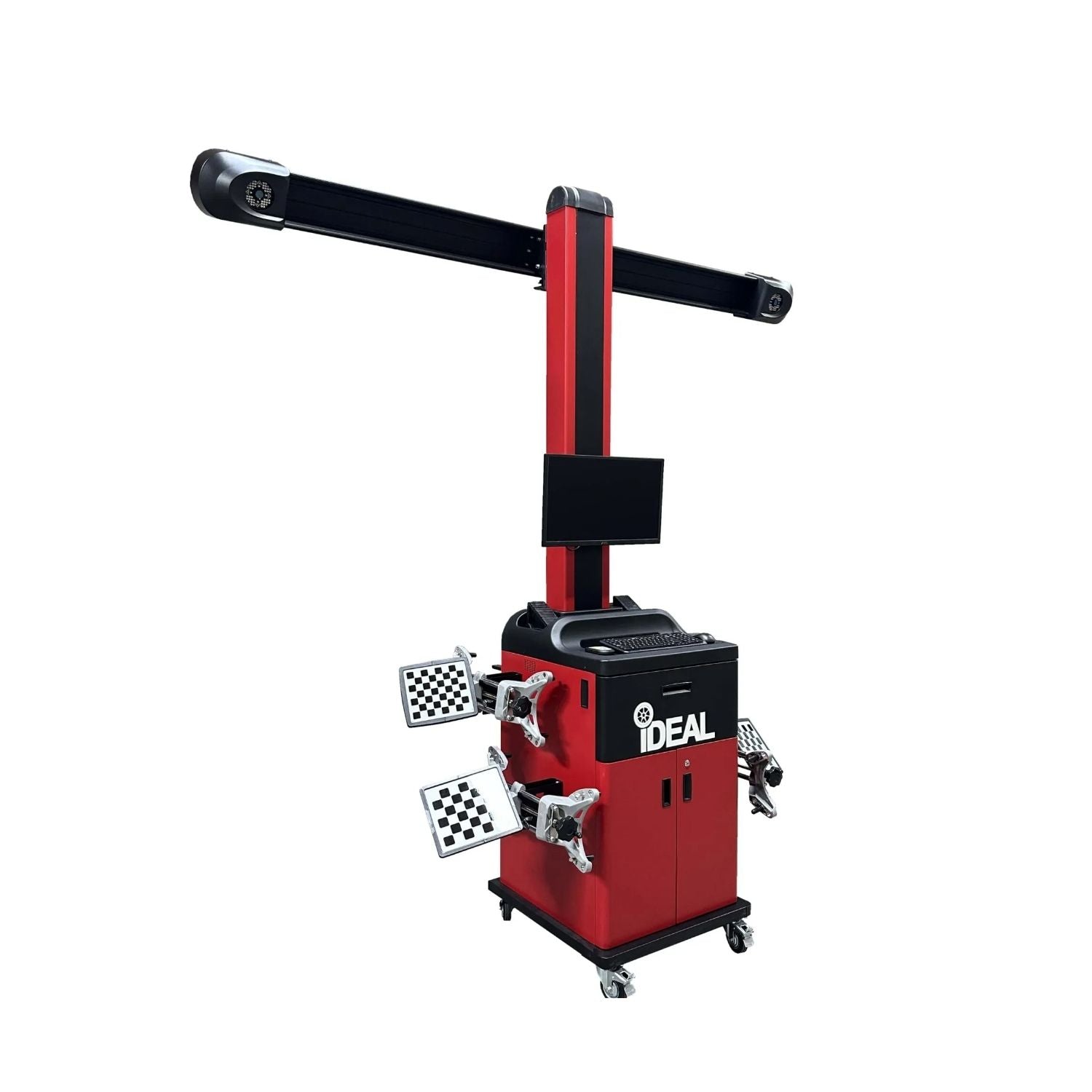

iDEAL 3D iPRO Imaging Wheel Alignment System — IWA-60-2000T-K
The IWA-60-2000T-K is a 3D iPRO imaging wheel alignment system engineered for precision, offering 0.01 degrees of alignment accuracy with real-time measurements. Its portable design supports use across multiple bays, and the innovative “Wide Scope” technology doubles the working height range compared to conventional 3D image wheel aligners.
Four-point contact, self-centering adjustable wheel clamps with reversible studs, paired with robust magnesium targets, provide rapid and accurate positioning across a wide range of tire rim sizes. The system's software includes 3D vehicle chassis models for immediate visualization of alignment angles, displayed on a 21.5 in wide-screen LCD monitor with 2D or 3D graphic illustrations and an integrated help system.
It's built for general automotive alignment bays that want a precise, portable multi-bay aligner for passenger cars and light trucks, without the footprint or floor-space requirements of a commercial/heavy-duty multi-axle system.
Who It's Built For
- ✅ General automotive repair and tire shops running passenger car/light truck alignments
- ✅ Facilities wanting a portable aligner usable across multiple bays
- ✅ Shops that want fast wheel clamp positioning across a wide range of rim sizes
What It's NOT Built For
- ❌ Medium/heavy-duty truck and trailer alignment — see the IWA-60-8500-HD-K multi-axle floor system instead
- ❌ Shops needing to measure more than 2 axles without repositioning
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the IWA-60-2000T-K Different
0.01° Accuracy with Real-Time Measurement
The 3D iPRO system delivers 0.01 degrees of alignment accuracy with real-time measurement to enhance shop productivity.
“Wide Scope” Technology
Innovative “Wide Scope” technology doubles the working height range compared to conventional 3D image wheel aligners.

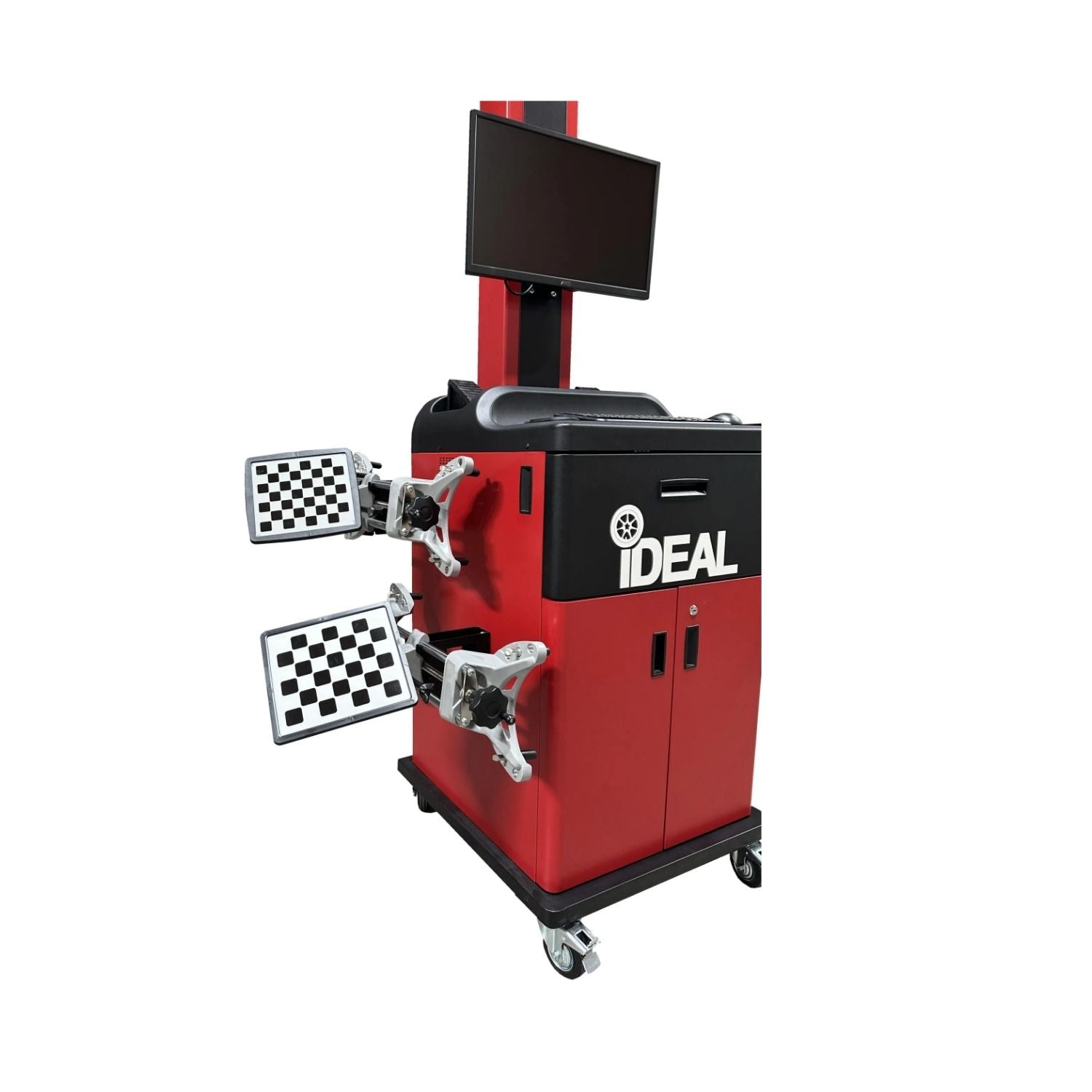

Self-Centering Wheel Clamps
Four-point contact, self-centering adjustable wheel clamps with reversible studs and robust magnesium targets provide rapid, accurate, and secure positioning for a wide array of tire rims.
21.5 in Wide-Screen LCD with 2D/3D Graphics
The intuitive software includes 3D vehicle chassis models for immediate visualization of wheel alignment angles, shown on a 21.5 in wide-screen LCD monitor with an integrated help system.
Portability Across Multiple Bays
The system's portable design lets one aligner serve multiple bays in your shop.
✅ Best For
- ✅ General automotive alignment bays servicing passenger cars and light trucks
- ✅ Shops wanting one portable aligner usable across multiple bays
- ✅ Facilities that value fast, precise wheel clamp positioning
❌ Not Ideal For
- ❌ Medium/heavy-duty truck and trailer alignment work
- ❌ Facilities needing 4-axle simultaneous measurement without a lift — see the IWA-60-8500-HD-K
IWA-60-2000T-K vs. iDEAL IWA-60-8500-HD-K — Which Wheel Aligner Fits Your Shop?
| Decision Point | IWA-60-2000T-K | IWA-60-8500-HD-K |
| Vehicle class | Passenger cars & light trucks | Medium/heavy-duty trucks & trailers |
| Setup type | Portable multi-bay system | Multi-axle floor system, no lift required |
| Ship weight | 465 lb | 1,300 lb |
| Best fit | General automotive alignment bays | Commercial/fleet truck & trailer shops |
Choose the IWA-60-2000T-K for passenger car and light-truck alignment work. Choose the IWA-60-8500-HD-K for medium/heavy-duty commercial vehicle alignment. Call (817) 865-3707 — we'll help you pick.
Full Specifications — IWA-60-2000T-K
| Model / Part Number | IWA-60-2000T-K |
| System Type | 3D iPRO imaging wheel alignment system |
| Accuracy | 0.01 degrees, real-time measurement |
| Working Height Range | “Wide Scope” technology — 2x conventional 3D aligners |
| Wheel Clamps | 4-point contact, self-centering, adjustable, reversible studs |
| Targets | Magnesium targets |
| Monitor | 21.5 in wide-screen LCD, 2D/3D graphics, integrated help system |
| Software | 3D vehicle chassis models for real-time visualization |
| Portability | Portable across multiple bays |
| Ship Weight | 465 lb |
⚠️ Installation Requirements
- Floor: Level, standard shop floor at your chosen alignment bay(s).
- Power: Standard shop electrical service for the cabinet, monitor, and software.
- Calibration: Initial setup and calibration should be performed per the installation manual.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate setup.
iDEAL Warranty — IWA-60-2000T-K
The IWA-60-2000T-K carries iDEAL/Tuxedo Distributors, LLC's published Limited Warranty for its Lifts and Wheel Service equipment line.
| Component | Coverage Term |
|---|---|
| All parts (materials/workmanship, normal use, original purchase) | 1 year, parts only (purchaser covers shipping) |
| Qualifying structural components (manufacturer's structural warranty terms for lift/wheel-service equipment) | 5 years |
| Normal maintenance parts & wear items | Not covered |
| On-site labor | Not covered |
Full terms are in the manufacturer's install & maintenance manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — IWA-60-2000T-K
Does the IWA-60-2000T-K price include shipping?
Yes. The advertised price includes delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
How accurate is this aligner?
It offers 0.01 degrees of alignment accuracy with real-time measurement.
Can it be used in more than one bay?
Yes — the system is portable and designed for use across multiple bays in your shop.
What's the difference between this and the IWA-60-8500-HD-K?
The IWA-60-2000T-K is built for passenger cars and light trucks in a portable multi-bay format; the IWA-60-8500-HD-K is a multi-axle floor system for medium/heavy-duty trucks and trailers.
