DESCRIPTION

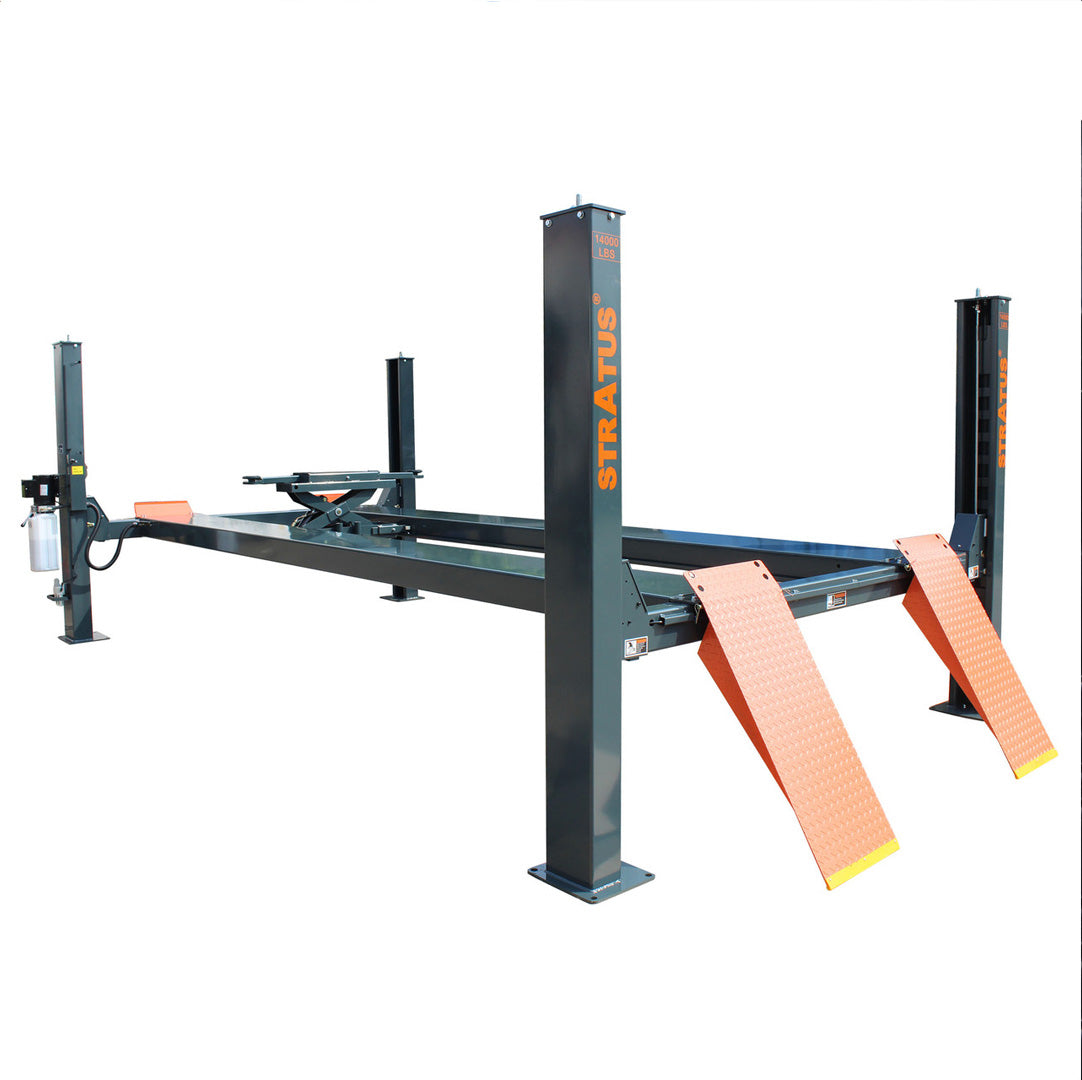

Stratus SAE-414C 4 Post 14,000 LBS Capacity Pneumatic Safety Lock Release Compact Car Lift
Meet the Stratus SAE-414C! This 4-Post car lift boasts an impressive 14,000 lbs lift capacity, making it perfect for lifting even your heaviest vehicles with ease. Despite its high power, it maintains a compact design, freeing up valuable space in your garage. Plus, its pneumatic safety lock release feature ensures that your vehicle stays safe and secure during maintenance. Grab your Stratus Four Post Car Storage Lift today and transform your auto work into a piece of cake!
-
FEATURES + BENEFITS
- 14,000 lbs lifting capacity.

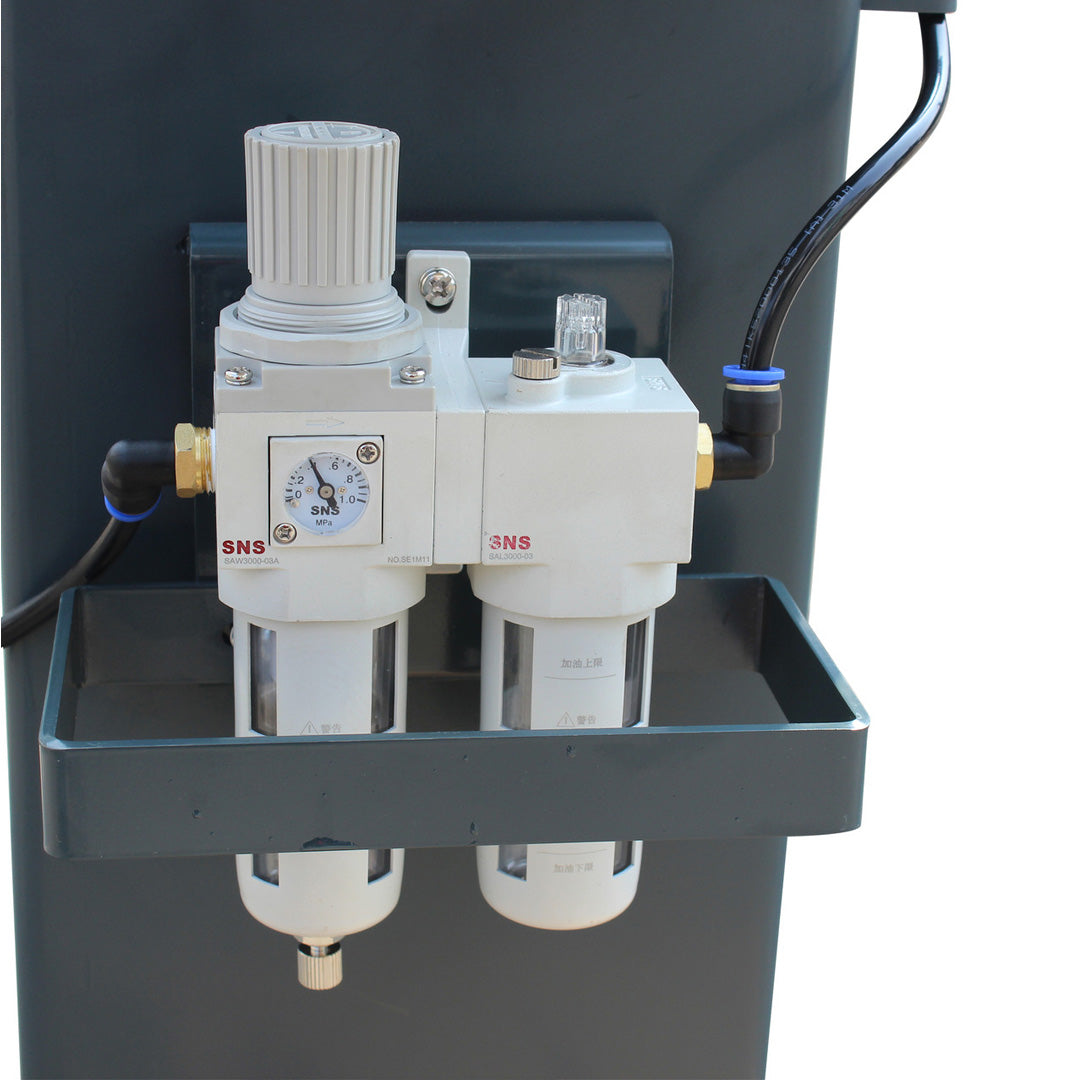

- Pneumatic safety lock release compact lift
- Max lifting height limiter switch to ensure the cylinders work within the stroke.
- Skid-proof diamond platform
- Dual safety device design: The second safety device will be automatically locked while the primary safety locks are out of operation.
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Includes
- 2pcs ramps
Optional Add-On Accessories (Sold Separately)
- Rolling bridge jack
-

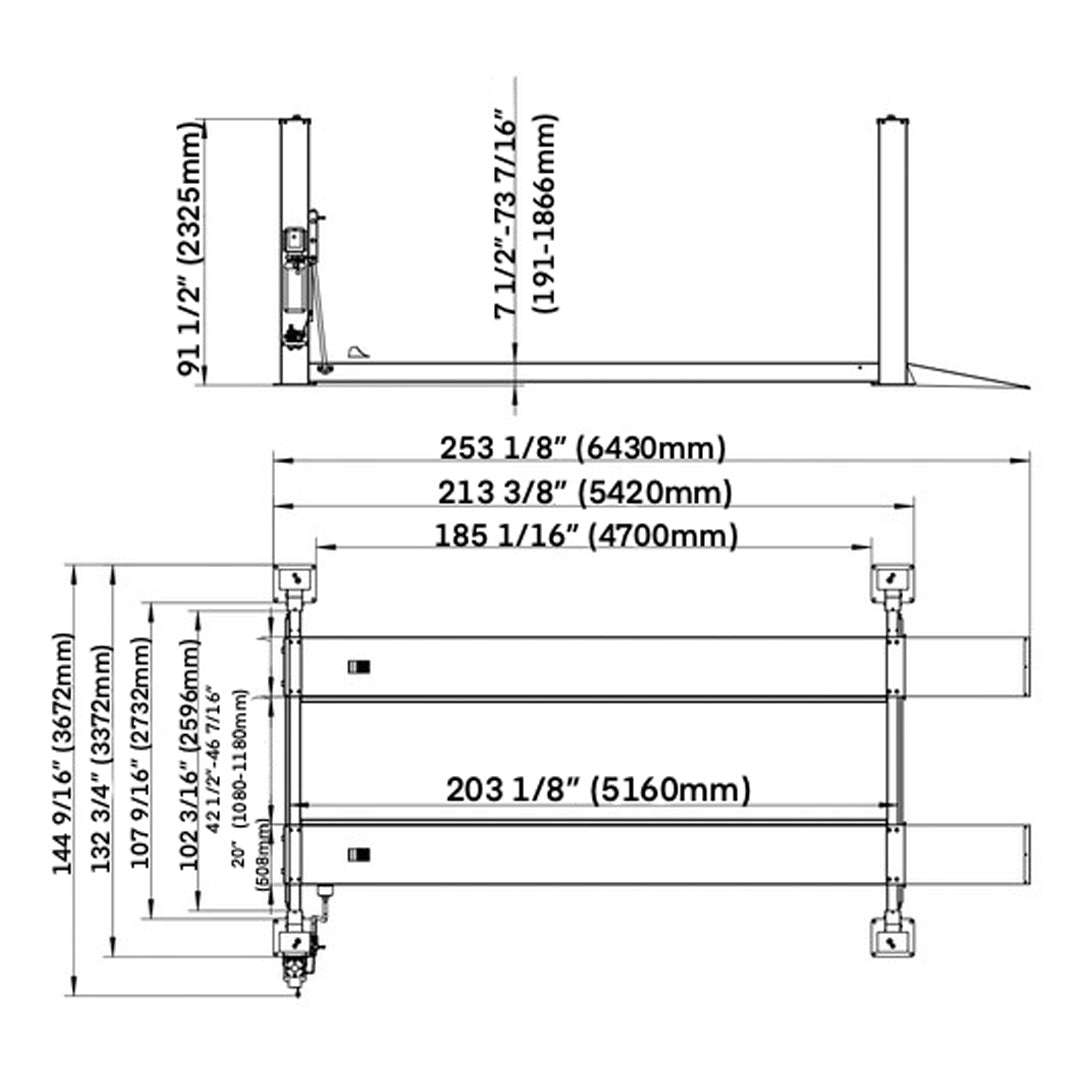

SPECIFICATIONS
Model SAE-414C Capacity 14,000 lbs Minimum Lifting Height 7 1/2” (191 mm)
Maximum Lifting Height
73 7/16” (1865 mm) Lifting Time
~50 sec
Clearance Height
65 15/16” (1675 mm)
Overall Height
91 1/2” (3672 mm)
Overall Width
144 9/16” (3672 mm)
Overall Length with ramps
253 1/8” (6430 mm)
Overall Length without ramps
213 3/8” (5420 mm)
Width Columns 107 9/16" (2732 mm) Drive Thru 82 1/2" - 86 7/16" (2096mm - 2196mm) Total Runway Width
179 3/4" (2025 mm)
Drive Thru
112 3/16" (2850 mm)
Runway Width 20” (508 mm)
Runway Length 203 1/8” (5160 mm)

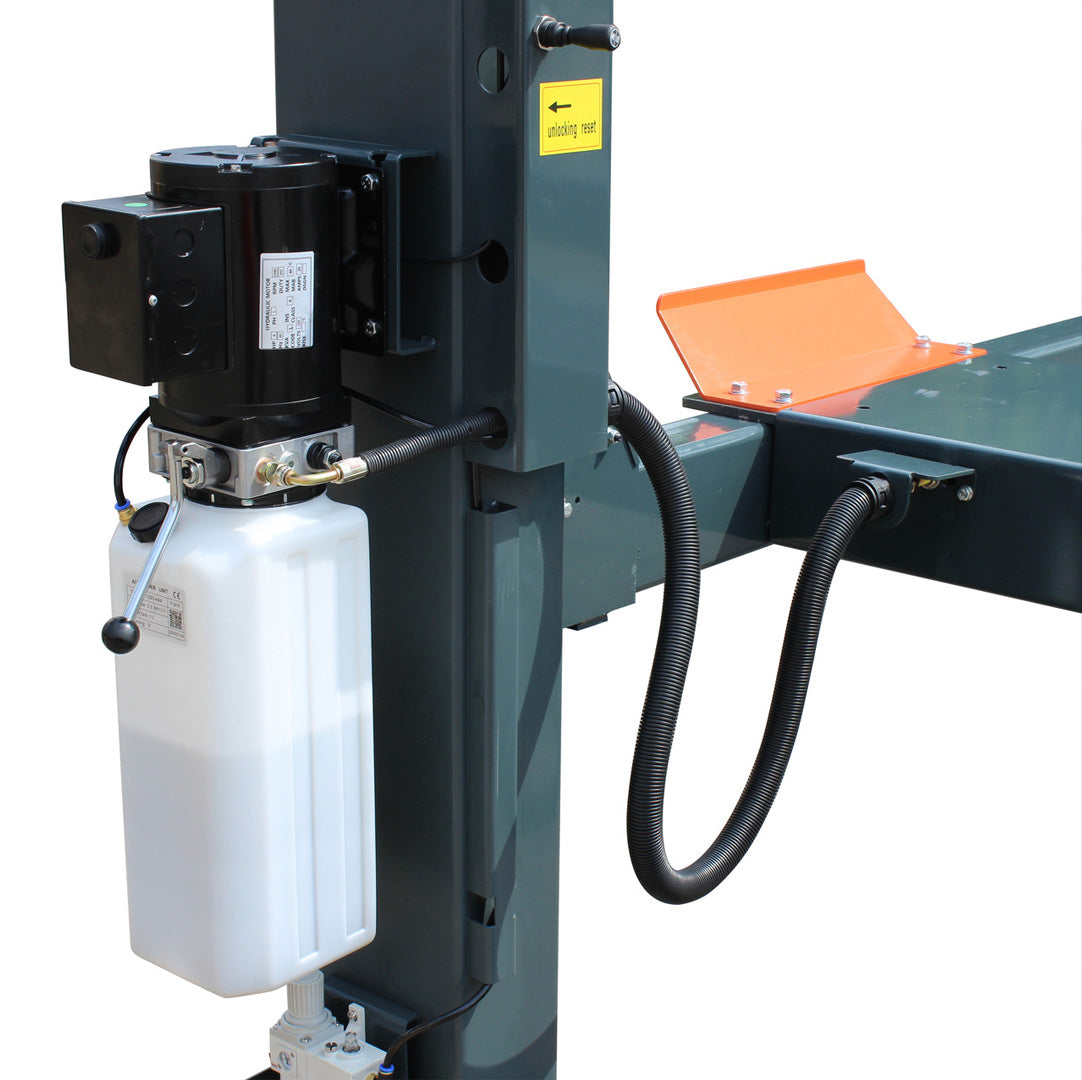

Width Between Runways 42 1/2” - 46 7/16" (1080mm - 1180mm) Motor 4 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 3027 lbs Dimensions 211"L x 25"W x 37"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
