Stratus 4-Post 8k lbs Manual Release Car/Storage Lift w/Casters SAE-P48-G3
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

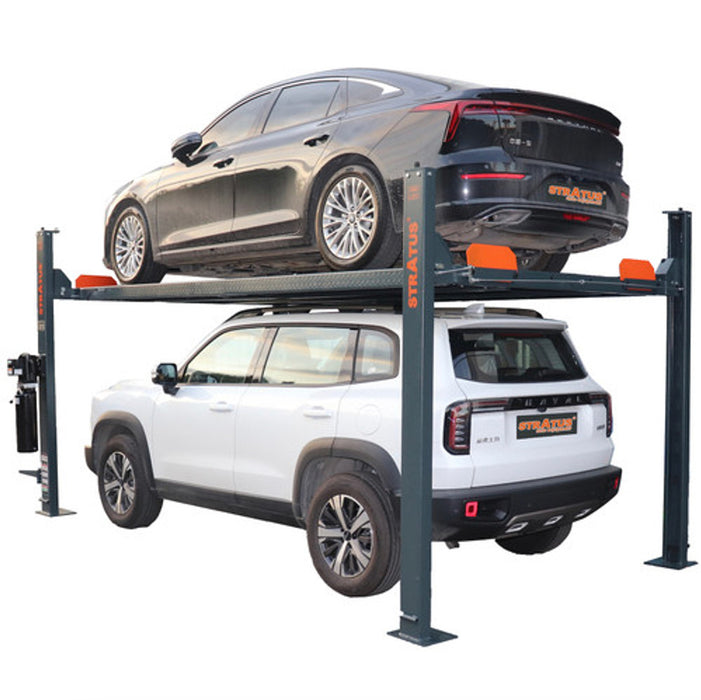

Stratus SAE-P48 G3 4 Post 8,000 LBS Capacity Manual Release Storage Car Lift With Casters
Introducing the remarkable 3rd Generation Stratus 4 Post Storage Car Lift, an example of our excellent engineering and Stratus quality construction. Designed with an 8,000 lbs carrying capacity, it brilliantly caters to your vehicle lifting needs. The manual safety release ensures your operations are entirely in your control, ensuring complete peace of mind. The 8,000 lbs 4-post car lift also comes with convenient castors, making maneuverability a breeze. With the SAE-P48-G3 model, you get powerful lifting capabilities and a handy solution all wrapped in one garage car lift for storage.
-
FEATURES + BENEFITS
- Hands-free lock release latch system
- Relocatable Power Unit
- Cable Failure Protection - The second safety device will be automatically locked while the primary safety locks are out of operation.
- Skid-proof diamond platform
- Multi-level locking positions (11 locking positions)
- Manual Safety Lock Release
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Reinorange (RAL 2004)
Includes
- Rolling Jack Tray
- Castor Kit (Set of 4)
- Drip Trays (3 pcs)
Optional Accessories
- SAE-BJ5 Rolling bridge jack
- Aluminum ramps
-

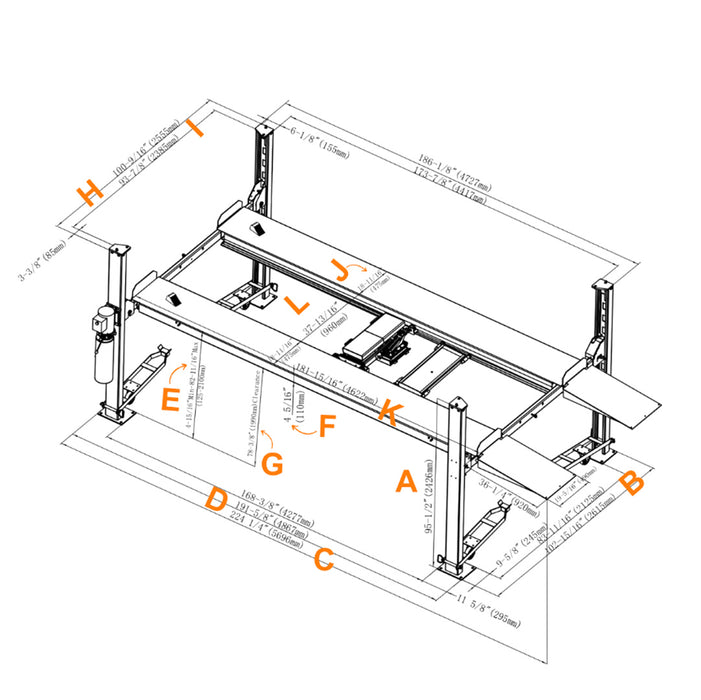

SPECIFICATIONS
Model P48-G3 Capacity 8,000 lbs Overall Height 95 1/2"(2426mm)
Overall Width 102 15/16" (2615mm)
Overall Length with Ramps
224 1/4" (5696mm)
Overall Length without Ramps
191 5/8" (4867mm)
Max Lifting Height
82 11/16" (2100mm)
Min Lifting Height
4 15/16" (125mm)
Clearance Height
78 3/8" (1990mm)
Lifting Time
~ 45 sec
Width Outside Columns
100 9/16" (2555mm)
Width Inside Columns
93 7/8" (2385mm) Runway Width 18 11/16" (475mm) Runway Length 181 15/16" (4622mm)
Width Between Runways 37 13/16" (960mm) Motor 3 HP, 1100V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Weight 1865 lbs Dimensions 183"L x 23"W x 30"H -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
