Stratus Commercial Grade 11000 LBS Alignment Scissor Car Lift #SAE-FS11AP

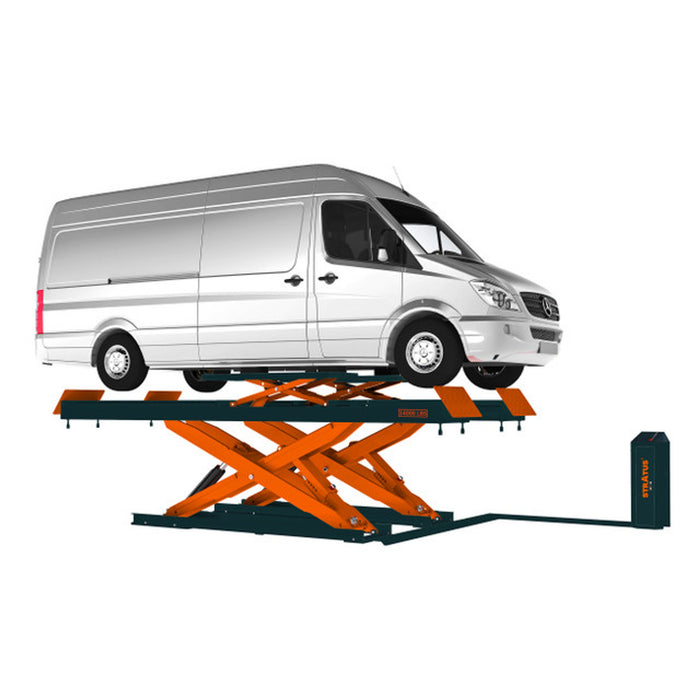

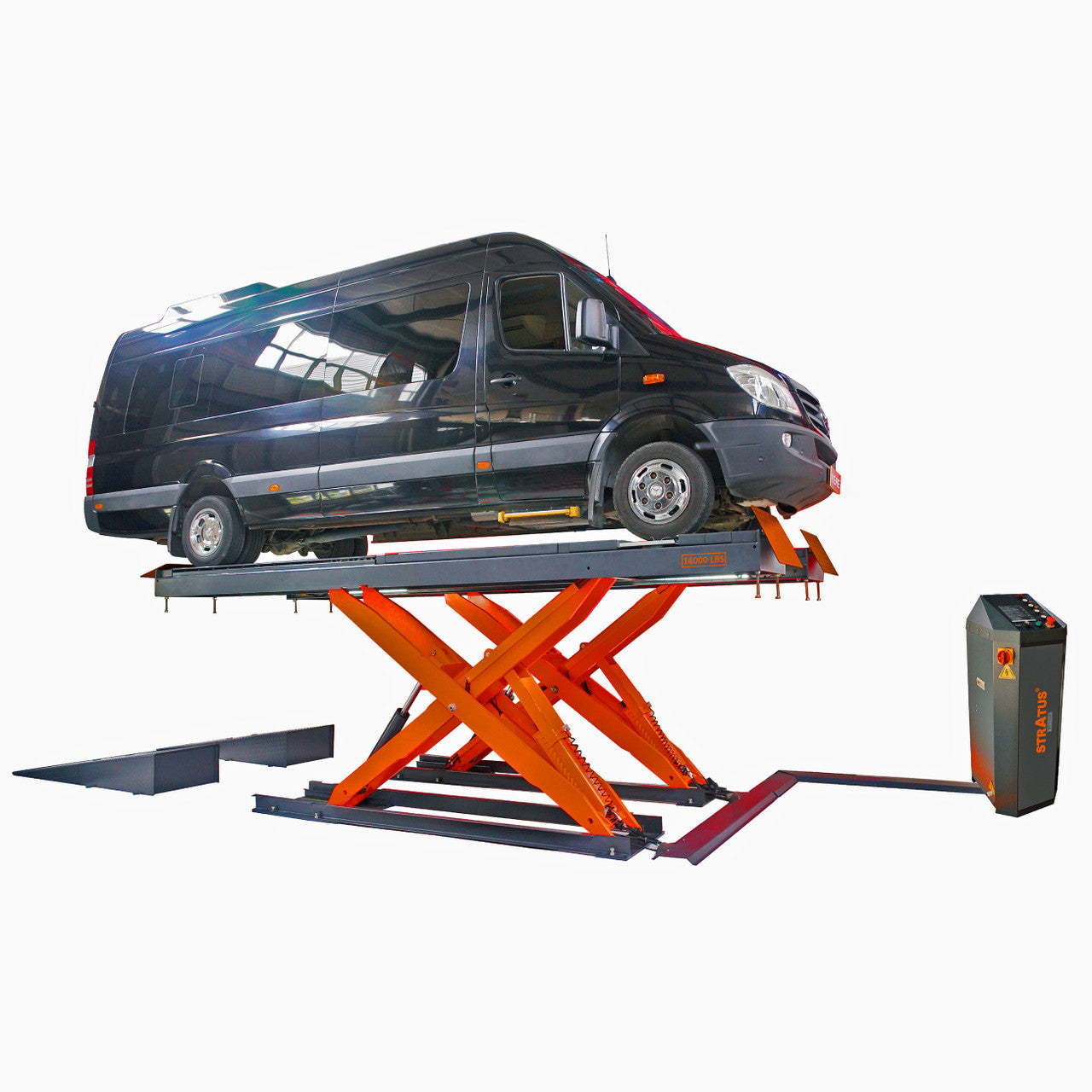

Stratus SAE-FS11AP — 11,000 lbs Open-center full-rise alignment scissor lift, surface or flush mount

Alignment shops servicing longer vehicles run into a hard limit fast: a standard-length platform simply does not accommodate extended wheelbases, forcing awkward workarounds or turning the job away. And a shop mid-build-out often does not know yet whether the bay will end up surface mounted or flush — locking into one option too early can mean re-ordering equipment later.

The Stratus SAE-FS11AP solves both: a 210 5/8" platform long enough for extended-length cars and trucks, and support for both surface mount and in-ground flush mount installation so the bay design decision does not have to happen before the lift is ordered. Call Alamo at (844) 480-6059 for details on fit, install, and pricing.

Who the SAE-FS11AP Is Built For

• Alignment shops that regularly service longer vehicles and have been stretching a standard-length platform past what it was designed to hold
• Shops mid-build-out that have not finalized whether the bay will be surface mounted or flush — the SAE-FS11AP supports either without forcing that decision early
• Facilities that want 2 bridge jacks and turntable plates included as standard equipment instead of pricing them separately
• Owners who need an open-center design so nothing obstructs access to the undercarriage during alignment inspection
• Shops running both 400V and 220V electrical service who need a lift that works with either supply
• Facilities replacing an alignment lift that could not accommodate their longest wheelbase vehicles

What the SAE-FS11AP Is NOT Built For

• ❌ Shops needing more than 11,000 lbs capacity — see the SAE-414A 4-post at 14,000 lbs
• ❌ Facilities that specifically want a traditional 4-post layout rather than an open-center scissor design

Questions about fit or capacity? Call Alamo at (844) 480-6059.

What Makes the SAE-FS11AP Different

11,000 lbs Across a 210 5/8" Platform — Built for Long Wheelbases

The extended platform length is the SAE-FS11AP’s whole reason for existing: extended-length cars and trucks that overhang a standard alignment lift fit fully supported here, at 11 locking positions spaced 1 5/8" apart for precise height control.

Dual Air Cylinder Safety on Top of Pneumatic Lock Release

A 4-cylinder hydraulic drive design paired with a dual air cylinder safety structure means the lift has built-in redundancy — the pneumatic safety lock release is backed by a second safety layer, not the only thing standing between the vehicle and the floor.

Flexible Power, Flexible Mounting

The SAE-FS11AP runs on either 400V or 220V single-phase AC, and supports both in-ground flush mount and on-ground surface mount installation — confirm your bay’s electrical service and mounting plan with Alamo before ordering.

5-Year Structural Warranty, Serviced by Alamo

The 5-year structural / 3-year hydraulic / 2-year electrical parts warranty backs the SAE-FS11AP. Call (844) 480-6059 for service and reach the team that installed your lift, not a manufacturer switchboard.

An Open-Center Footprint With Nothing in the Way

At 84.65" overall width, the open-center scissor design leaves the undercarriage fully exposed for alignment work with no center obstruction. Confirm exact drive-through clearance and bay dimensions with Alamo before ordering.

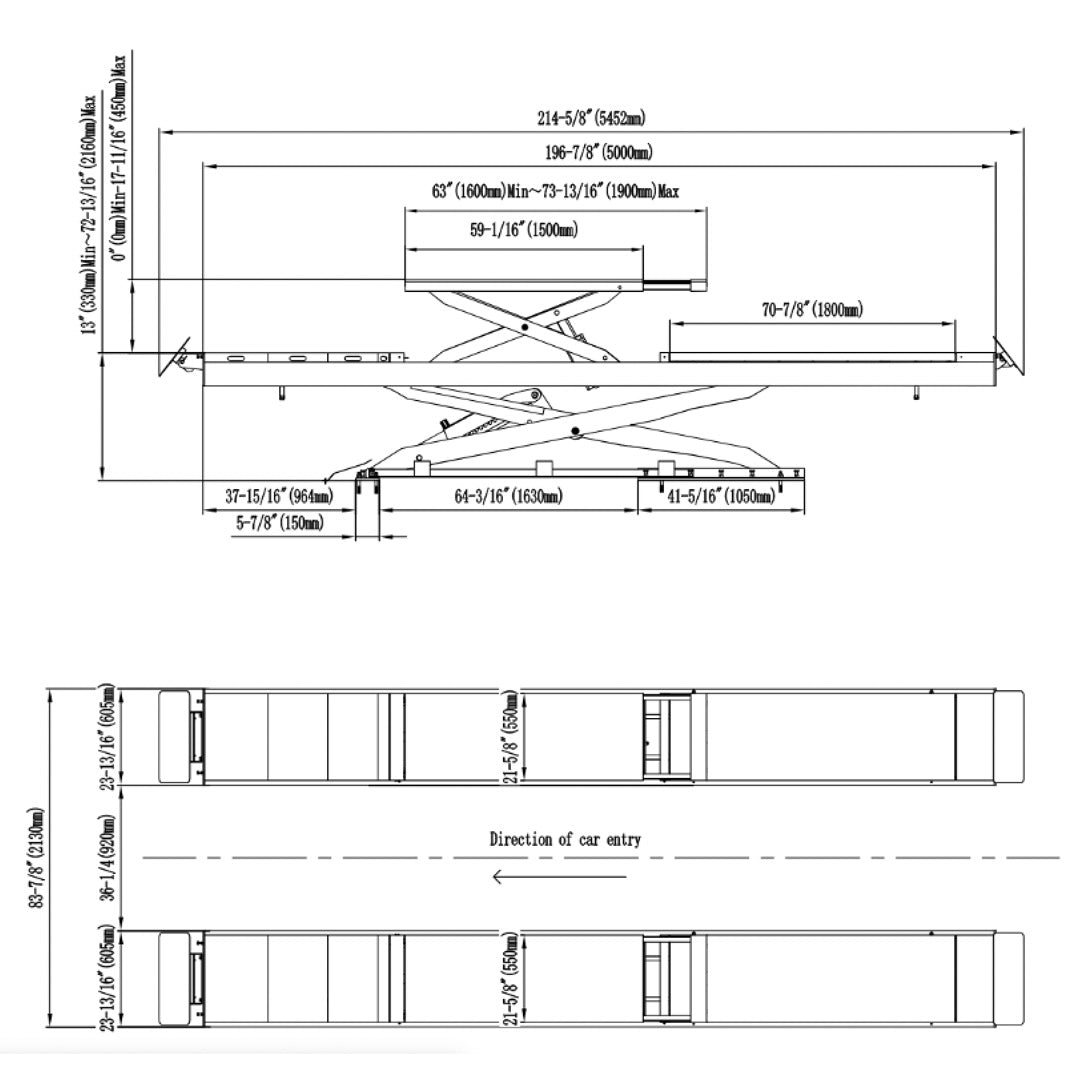

Full Specifications — SAE-FS11AP

Stratus Warranty — SAE-FS11AP

Atlas backs the SAE-FS11AP with its published warranty terms for this model. Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the SAE-FS11AP and should not be assumed to apply to other Atlas models.

Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
