Stratus Pro Asymmetric & Symmetric 10k lbs 2-Post Lift SAE-C10P
Delivery Notice
A $425 Surcharge will be applied to the following: OR, WA, ID, MT, ND, SD and ME
Sales tax will be automatically waived for out of Texas Buyers
Lift will be shipped with free delivery to Residential Addresses, Commercial Address, Local Installer, and Truck Terminals
Buyer is responsible for unloading freight - freight companies have a time limit of 30 minutes, any time exceeding will be charged to customer
-
DESCRIPTION

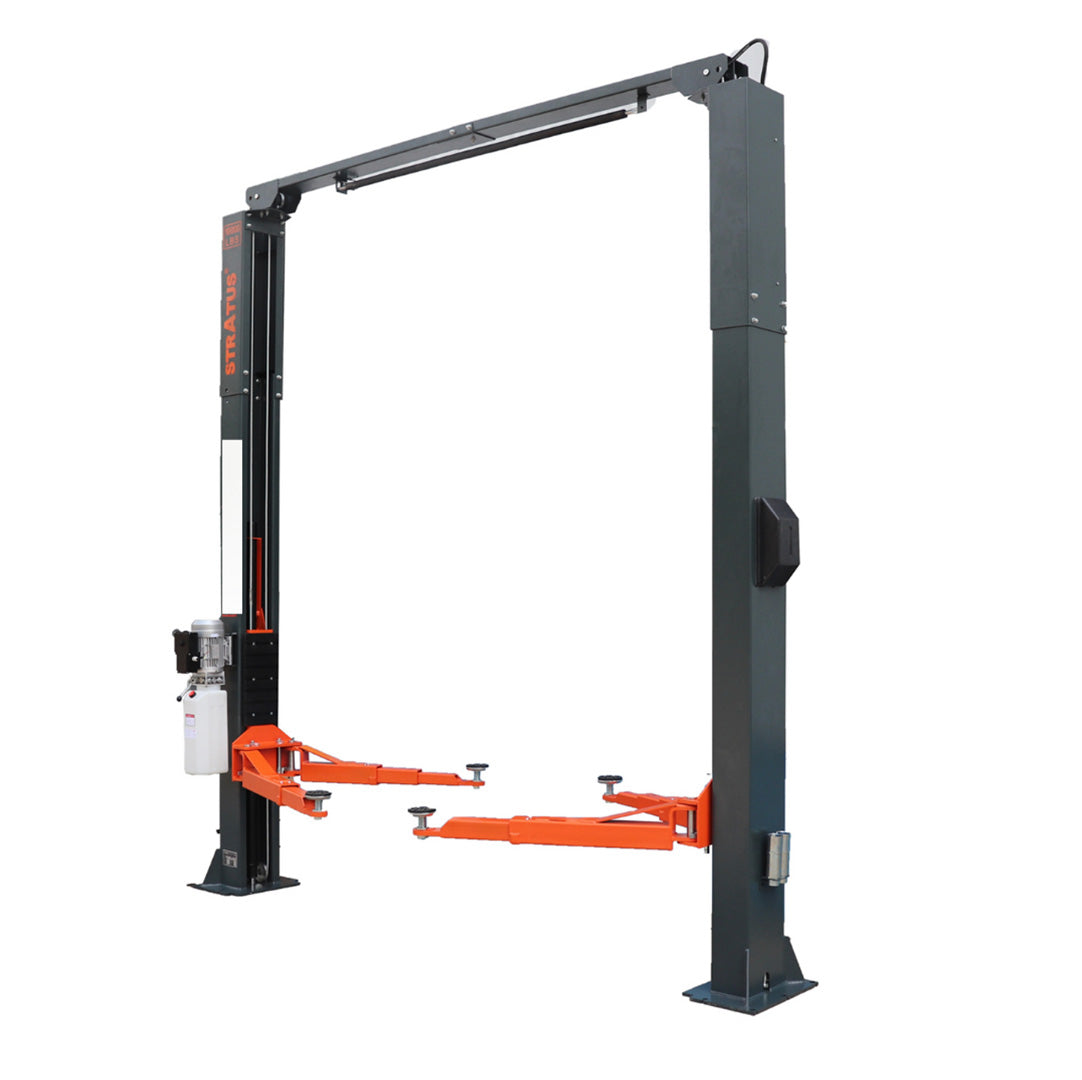

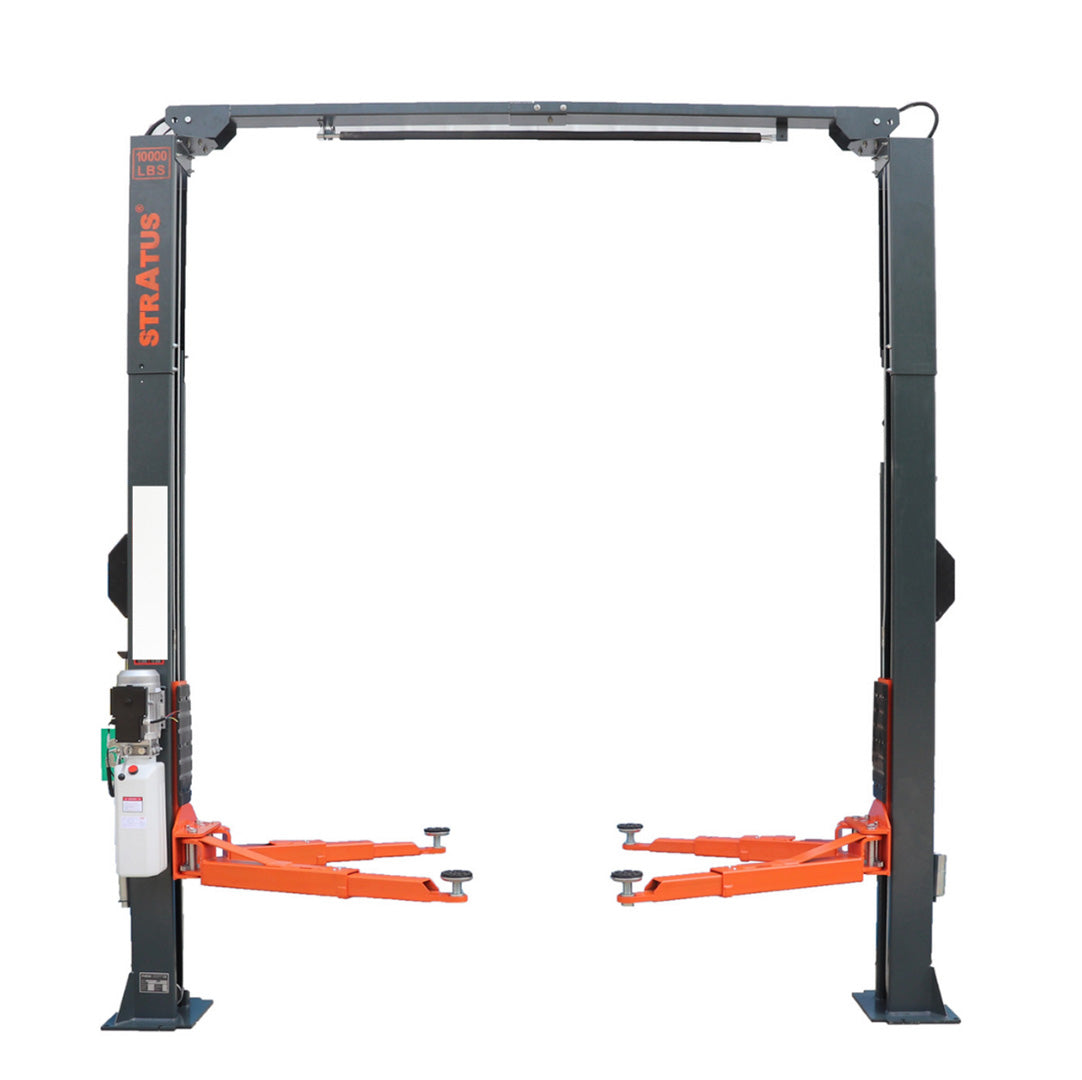

Stratus SAE-C10P Pro Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 LBS Capacity Single Point Manual Release Car Lift
Make your car repairs and maintenance easy breezy with the Stratus Pro Asymmetric & Symmetric 2-in-1 Clear Floor Direct Drive 10,000 lbs capacity Car Lift. With its two-post design and a clear floor feature, it’s about to become your garage’s best friend. Its robust capacity of 10,000 lbs makes it versatile for a range of vehicles. The single-point manual release offers convenience and safety. Buy this 2-post clear floor car hoist and see the difference yourself!
-
FEATURES + BENEFITS
- Installation methods: Symmetric & Asymmetric
- Overhead / Clear floor design
- Single-point manual release

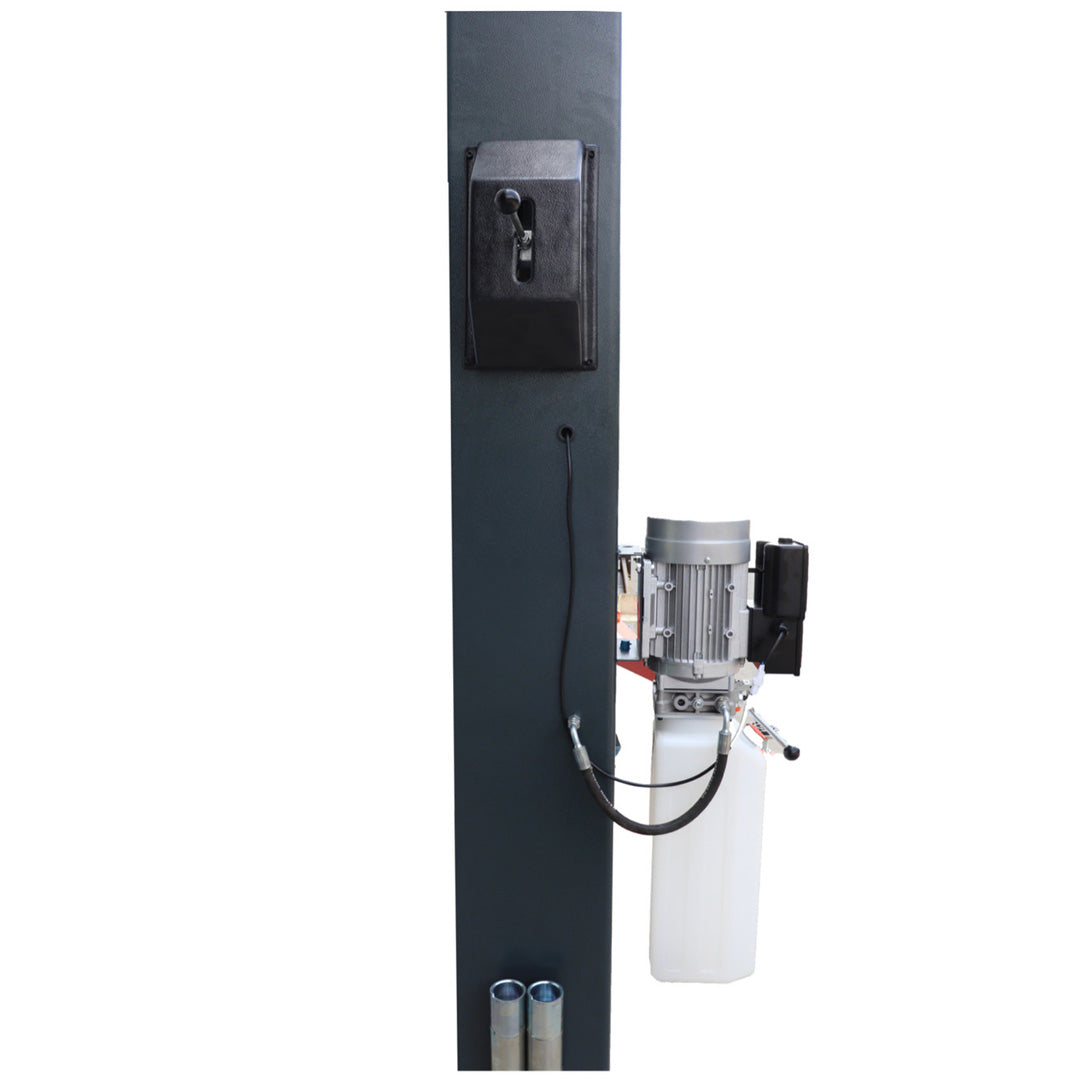

- Direct Drive
- 2 Top limiter switch
- Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity
- Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)
Includes
- 4pcs Screw-up rubber pads - Peg 50mm (4")

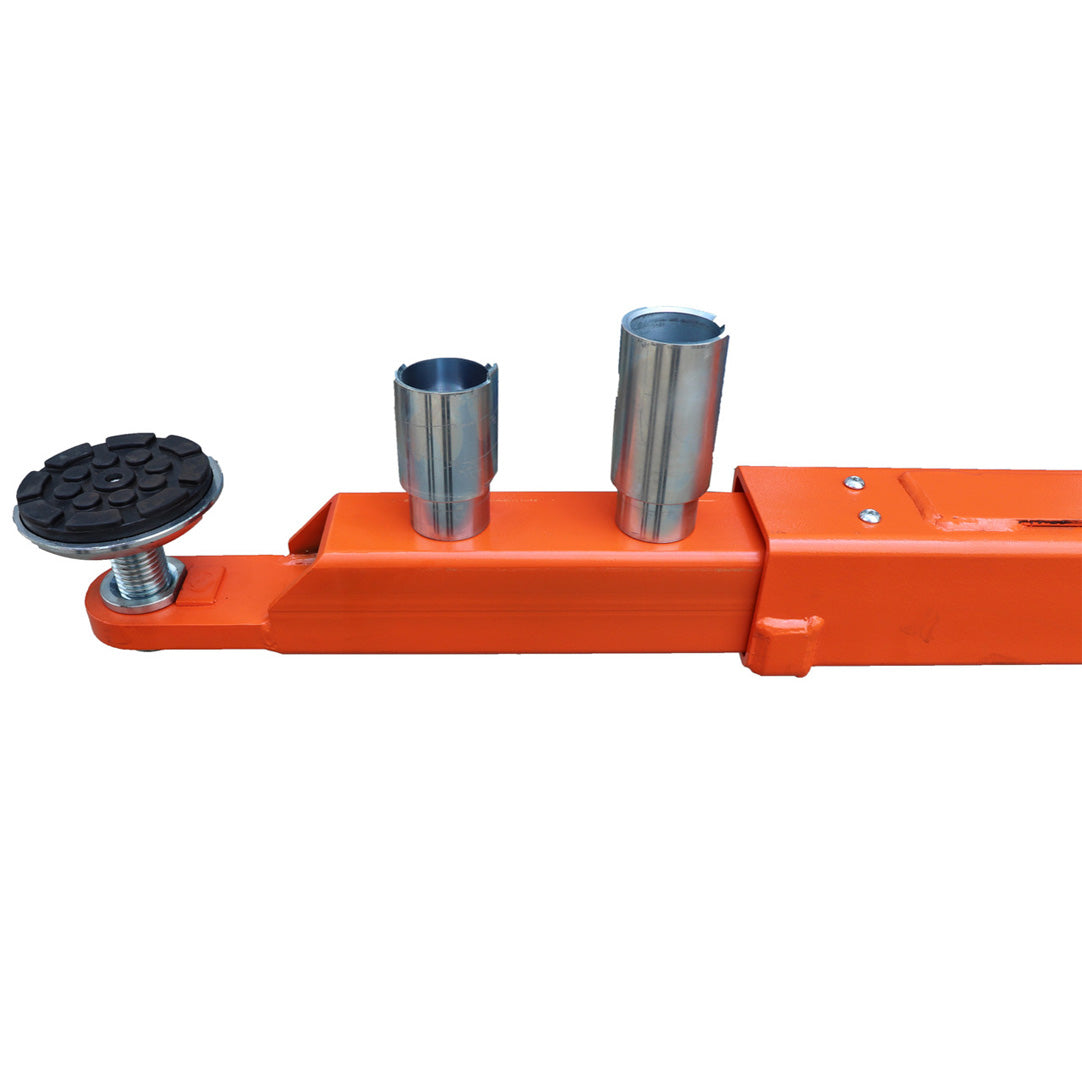

- 8pcs Truck Adapators - 4pcs of each height 2 3/4" & 4"
-

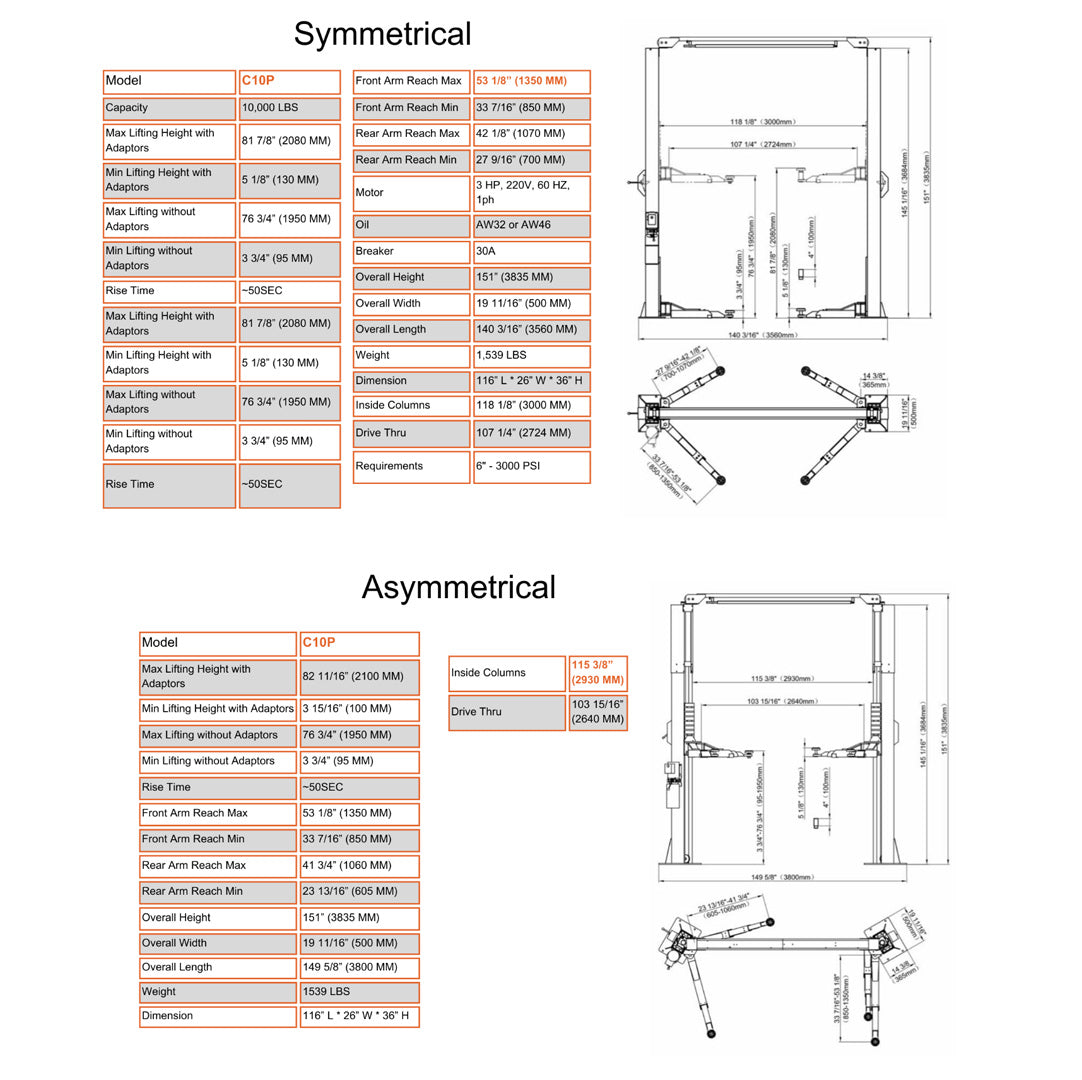

SPECIFICATIONS
Model - SYMMETRICAL SAE-C10P Capacity 10,000 lbs Max Lifting Height with Adaptors 81 7/8"(2080mm)
Min Lifting Height with Adaptors
5' 1/8" (130mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 3/4" (95mm)
Rise Time
~50 sec
Min LIfting Height with Adaptors
76 3/4" (1950mm)
Max Lifting without Adaptors
129 15/16" (3300mm)
Min Lifting without Adaptors
3 3/4" (95mm) Rise Time 50 sec~ Front Arm Reach Max 53 1/8" (1350)
Front Arm Reach Min 33 7/16" (850) Rear Arm Reach Max 42 1/8" (1070) Rear Arm Reach Min 27 9/16" (700) Motor 3 HP, 220V, 60 HZ, 1PH Oil AW32 or AW46 Breaker 30A Overall Height 151" (3835mm) Overall Width 19 11/16" (500mm) Overall Length 140 3/16" (3560mm) Weight 1539 lbs Dimensions 116"L x 26"W x 36"H Inside Column 118 1/8" (3000mm) Drive Thru 107 1/4" (2724mm) Requirements 6" - 3000 psi Model - ASYMMETRICAL SAE-C10P Capacity 10,000 lbs Max Lifting Height with Adaptors 82 11/16"(2100mm)
Min Lifting Height with Adaptors
3' 5/16" (100mm)
Max Lifting Height without Adaptors
76 3/4" (1950mm)
Min Lifting Height without Adaptors
3 3/4" (95mm)
Rise Time
~50 sec
Front Arm Reach Max 53 1/8" (1350)
Front Arm Reach Min 33 7/16" (850) Rear Arm Reach Max 41 3/4" (1060) Rear Arm Reach Min 23 13/16" (605) Overall Height 151" (3835mm) Overall Width 19 11/16" (500mm) Overall Length 149 5/8" (3800mm) Weight 1539 lbs Dimensions 116"L x 26"W x 36"H Inside Column 115 3/8" (2930mm) Drive Thru 103 15/16" (2640mm) -
WARRANTY
Warranty Information
- 5-Year Structural Components Warranty
- 3-year Hydraulic Components Warranty
- 2-year Electrical Parts Warranty
- 5-Year Structural Components Warranty
