Atlas® TC221 & WB11 Motorcycle Combo Package #ATETCWB-MC-COMBO1-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

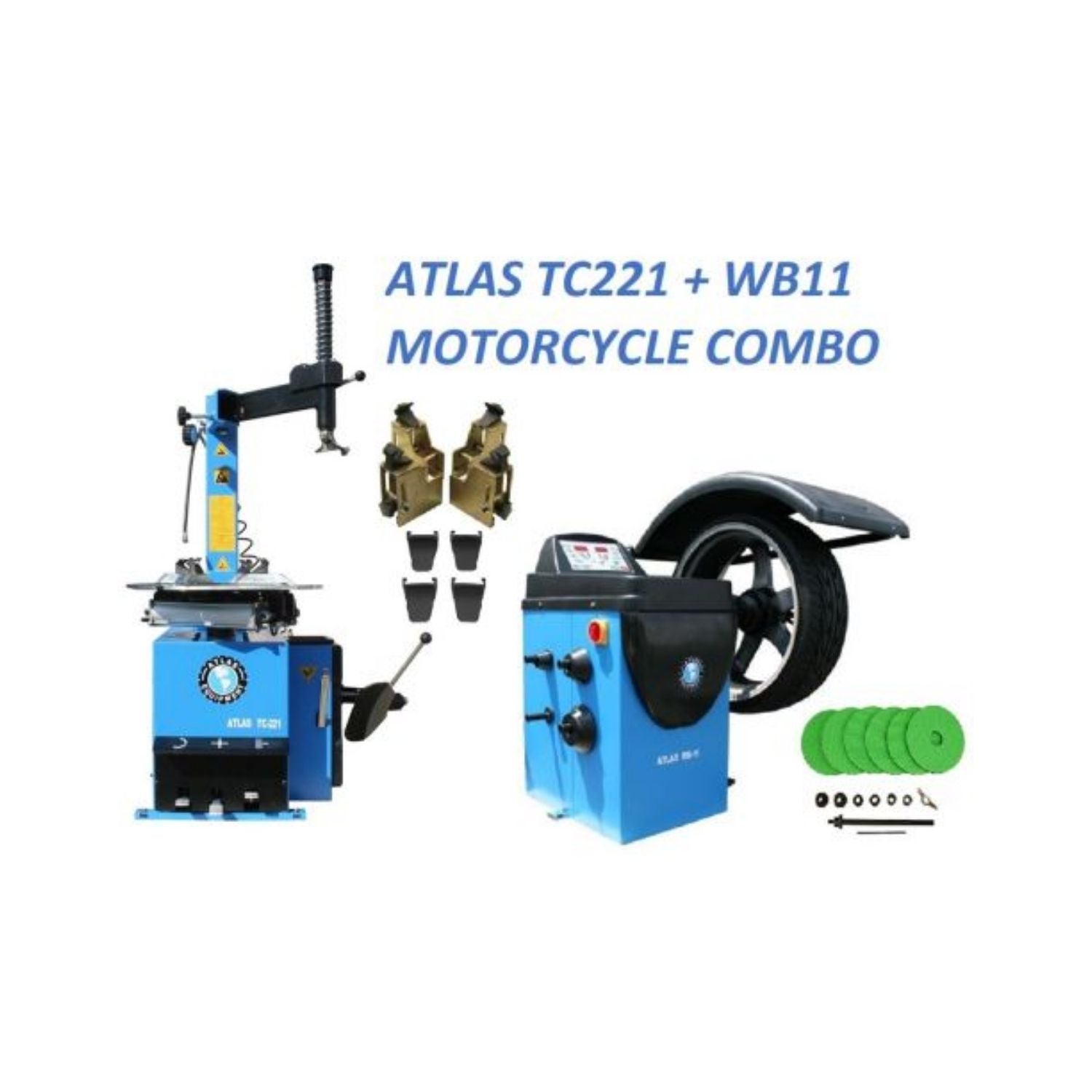

  The Atlas® TC221 & WB11 Motorcycle Combo Package is designed for motorcycle shops, powersports dealers, and service garages that require dependable tire changing and wheel balancing equipment for motorcycle and ATV wheels. This combo package includes the Atlas® TC221 tire changer with motorcycle attachment kit and the Atlas® WB11 computerized wheel balancer for accurate tire service operations.

  The TC221 tire changer features a rim-clamp swing arm design with adjustable clamping positions, air-operated bead breaker, and electric turntable for efficient tire mounting and demounting. The included motorcycle adapters allow technicians to safely service motorcycle wheels. The WB11 wheel balancer provides static and dynamic balancing modes with self-calibration and rapid optimization functions for precise balancing results. Both units operate on standard 110V power and are ideal for professional motorcycle tire service applications.

• FEATURES AND BENEFITS

  Atlas® TC221 Tire Changer

  • Rim Clamp/Swing Arm Tire Changer
  • Air operated jaws & bead breaker (external air supply required)
  • Electric turntable
  • Adjustable jaws, three mounting positions
  • Metal mount/demount head w/ metal roller or replaceable plastic inserts
  • Inflation Gun with Gauge Included
  • Filter/Regulator/Lubricator Included
  • 20" Tire Tool Included
  • Lube Bucket with Brush Included
  • Set of Large Plastic Jaw Covers Included
  • Plastic Cover for Bead Breaker Shovel Included
  • Multiple Replacement Plastic Inserts for M/D Head Included
  • Motorcycle and ATV adapters available (sold separately)
  • Does not have a built in "Beadblaster"




  Atlas® WB11 Wheel Balancer

  • Computer Controlled Spin Balancer
  • Static and dynamic balancing modes.
  • Rapid optimization (OPT)
  • Self Diagnosis/Self Calibration
  • Display in grams or ounces, in mm or inches
  • 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATETCWB-MC-COMBO1-FPD
  Dimensions:	78" L × 48" W × 40" H
  UPC:	810524029049
  Country of Origin:	CHN

  Atlas® TC221 Specifications

  External Locking Rim Dimensions (From Narrow Position to Wide Position):	9 3/4" to 23 1/4"
  Internal Locking Rim Dimensions (From Narrow Position to Wide Position):	11 5/8" to 25 1/4"
  Maximum Tire Diameter:	39"
  Maximum Wheel Width (Bead Breaker):	13"
  Table Motor:	1 HP
  Turntable Rotating Torque:	885 ft/lbs.
  Bead Breaker:	5500 LB. Force
  Air Requirement:	90-110 PSI (MUST NOT EXCEED 140 PSI)
  Electric Requirement:	110volt
  Shipping Weight:	500 lbs

  Atlas® WB11 Specifications

  Max Tire Diameter:	39"
  Rim Sizes (Cars & Light Trucks):	10" - 32"
  Rim Width:	1 1/2" - 20"
  Shaft Size:	40mm
  Max Wheel Weight:	150 lbs.
  Balancing Speed:	150 rpm
  Data Entry:	All Dimensions Manual
  Measurement:	Standard or Metric
  Accuracy:	1 gram
  Weight Position Resolution:	1.4 Degrees
  Self Calibrating:	YES
  Motor:	1/4 Horsepower
  Electric Requirement:	110volt
  Shipping Weight:	355 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
