Tuxedo 1,000 lb Motorcycle Lift - With Cut Out #M-1000C
| Model / Part Number | M-1000C |
| Type | Pneumatic motorcycle lift, cut-out platform |
| Capacity | 1,000 lb |
| Max Lifting Height | 30 in |
| Platform Size | 84 in x 24 in |
| Power | Air, 90–100 PSI |
| Ship Weight | 395 lb |
- Level shop floor rated for a loaded unit plus 395 lb lift weight
- No anchoring required — portable platform lift
- Indoor use
- Shop compressed air line, 90–100 PSI
- No electrical circuit required
- Confirm 108 in overall length (with ramp) x 47 in width clearance
- Allow loading/unloading ramp approach space
- Ships by LTL freight
Tuxedo M-1000C — 1,000 lb Pneumatic Motorcycle Lift

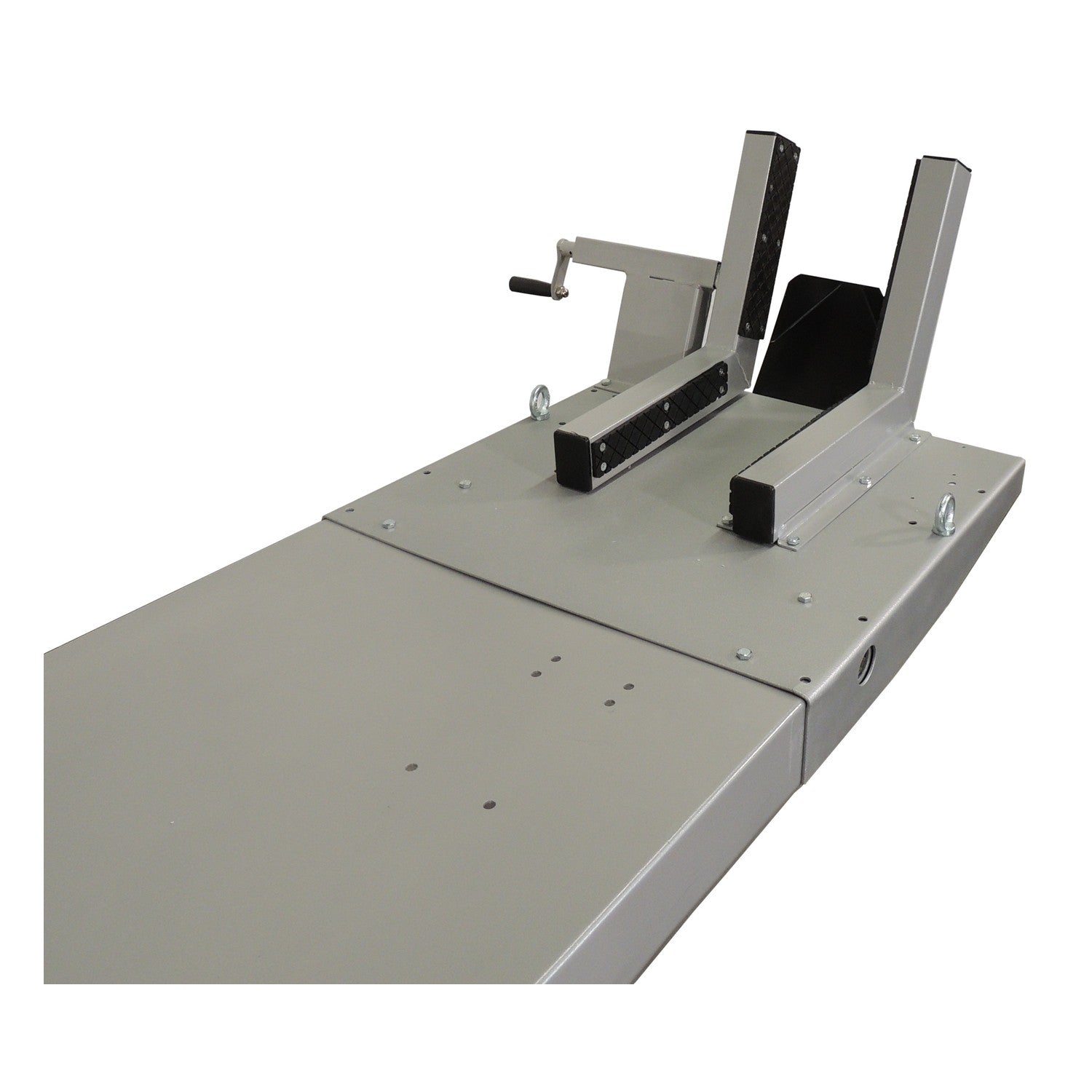

The Tuxedo M-1000C is an air-powered motorcycle lift rated for 1,000 lb, built to raise motorcycles, ATVs, snowmobiles, jet skis, and similar powersport equipment to a comfortable working height for maintenance and repair. It's built with a cut-out platform section so a motorcycle's kickstand or drop-down center stand can engage while the bike sits raised, without needing a separate wheel chock for every stand type.
The 84 in x 24 in platform, on a 108 in overall length with ramp, gives enough deck to load a full-size touring bike or a small ATV. It lifts to a maximum working height of 30 in from a 7 in minimum, running on 90–100 PSI shop air — no electrical circuit required.
A range of accessories — side extensions, front extension, vise, and jack — are available to customize the platform for wider bikes, ATVs, or added clamping capability.
Who It's Built For
- ✅ Powersport/motorcycle shops needing an air-powered lift with no dedicated electrical circuit
- ✅ Techs working on motorcycles, ATVs, snowmobiles, and jet skis on one platform
- ✅ Shops that want a lower entry-height (7 in) lift for easier bike loading than a high-rise bench
What It's NOT Built For
- ❌ Heavier loads over 1,000 lb — see the 1,500 lb M-1500C-HR instead
- ❌ Shops without a shop air line
Want the black powder-coat finish instead? See the M-1000C-BLK. Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the M-1000C Different
Air-Powered, No Electrical Circuit Needed
Runs on 90–100 PSI shop air — useful for shops that already have compressed air but don't want to run a dedicated 110V/220V circuit for a motorcycle lift.
Extra-Large 84 in x 24 in Platform
Long and wide enough for full-size touring motorcycles, ATVs, snowmobiles, and jet skis — not just sport bikes.
Low 7 in Entry Height
The 7 in minimum height makes loading easier than a high-rise bench-style lift, especially for riders loading solo.
Accessory-Ready Platform
Side extensions, front extension, vise, and jack accessories let you customize the platform for wider bikes or added clamping capability as your shop's needs grow.
✅ Best For
- ✅ Shops with existing shop air wanting to avoid new electrical work
- ✅ Multi-powersport shops (motorcycles, ATVs, snowmobiles, jet skis)
❌ Not Ideal For
- ❌ Loads over 1,000 lb — the M-1500C-HR handles 1,500 lb
- ❌ Shops wanting a built-in vise standard — the M-1500C-HR includes side extensions and vise; the M-1000C's vise is a separate accessory
M-1000C vs. M-1000C-BLK — Which Finish Fits Your Shop?
Identical lift mechanism, capacity, and platform on both — the only difference is finish color.
| Decision Point | M-1000C (this product) | M-1000C-BLK |
|---|---|---|
| Finish | Standard finish | Black powder coat |
| Capacity | 1,000 lb | 1,000 lb (same) |
| Ship weight | 395 lb | 395 lb (same) |
Both lift identically — choose whichever finish matches your shop's equipment lineup. Call (817) 865-3707 with any questions.
Full Specifications — M-1000C
| Model / Part Number | M-1000C |
| Capacity | 1,000 lb |
| Min. Height | 7 in |
| Max Lifting Height | 30 in |
| Overall Length w/ Ramp | 108 in |
| Overall Width | 47 in |
| Platform Size (L x W) | 84 in x 24 in |
| Power | Air (90–100 PSI) |
| Ship Weight | 395 lb |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a loaded unit plus 395 lb lift weight \u2014 no anchoring required for this portable platform lift.
- Air supply: Shop compressed air line, 90\u2013100 PSI.
- Bay footprint: Confirm 108 in overall length (with ramp) x 47 in width clearance.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — M-1000C
The M-1000C is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — M-1000C
Does the M-1000C price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the M-1000C and M-1000C-BLK?
They're mechanically identical — same 1,000 lb capacity, platform size, and lift mechanism. The only difference is the M-1000C-BLK's black powder-coat finish.
Does the M-1000C need shop air or electricity?
Shop air. It runs on 90–100 PSI compressed air — no electrical circuit is required.
What is the M-1000C's warranty?
Tuxedo backs the M-1000C with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the M-1000C from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
One clear delivered price for customers in the contiguous 48 states.
