Tuxedo 1,500 lb High Rise Motorcycle Lift Bench w/ Vise, Sides, Balance Bar, Pump #M-1500C-HR
| Model / Part Number | M-1500C-HR |
| Type | High rise motorcycle lift bench, w/ vise |
| Capacity | 1,500 lb |
| Max Lifting Height | 38-1/2 in |
| Platform Size | 88-1/2 in x 50 in |
| Power | Air/Hydraulic |
| Ship Weight | 765 lb |
- Level shop floor rated for a loaded unit plus 765 lb lift weight
- No anchoring required — portable bench lift
- Indoor use
- Shop compressed air line for the air/hydraulic pump
- No electrical circuit required
- Confirm 109-1/2 in overall length (with ramp) x 50 in width clearance
- Allow loading/unloading ramp approach space
- Ships by LTL freight
Tuxedo M-1500C-HR — 1,500 lb High Rise Motorcycle Lift Bench
The Tuxedo M-1500C-HR is an air/hydraulic high-rise motorcycle lift bench rated for 1,500 lb, built for motorcycles, snowmobiles, ATVs, jet skis, and similar powersport equipment. Unlike the lower-capacity M-1000C, the M-1500C-HR ships with a vise, side extensions, and a balance bar included standard — not as separate accessory purchases.

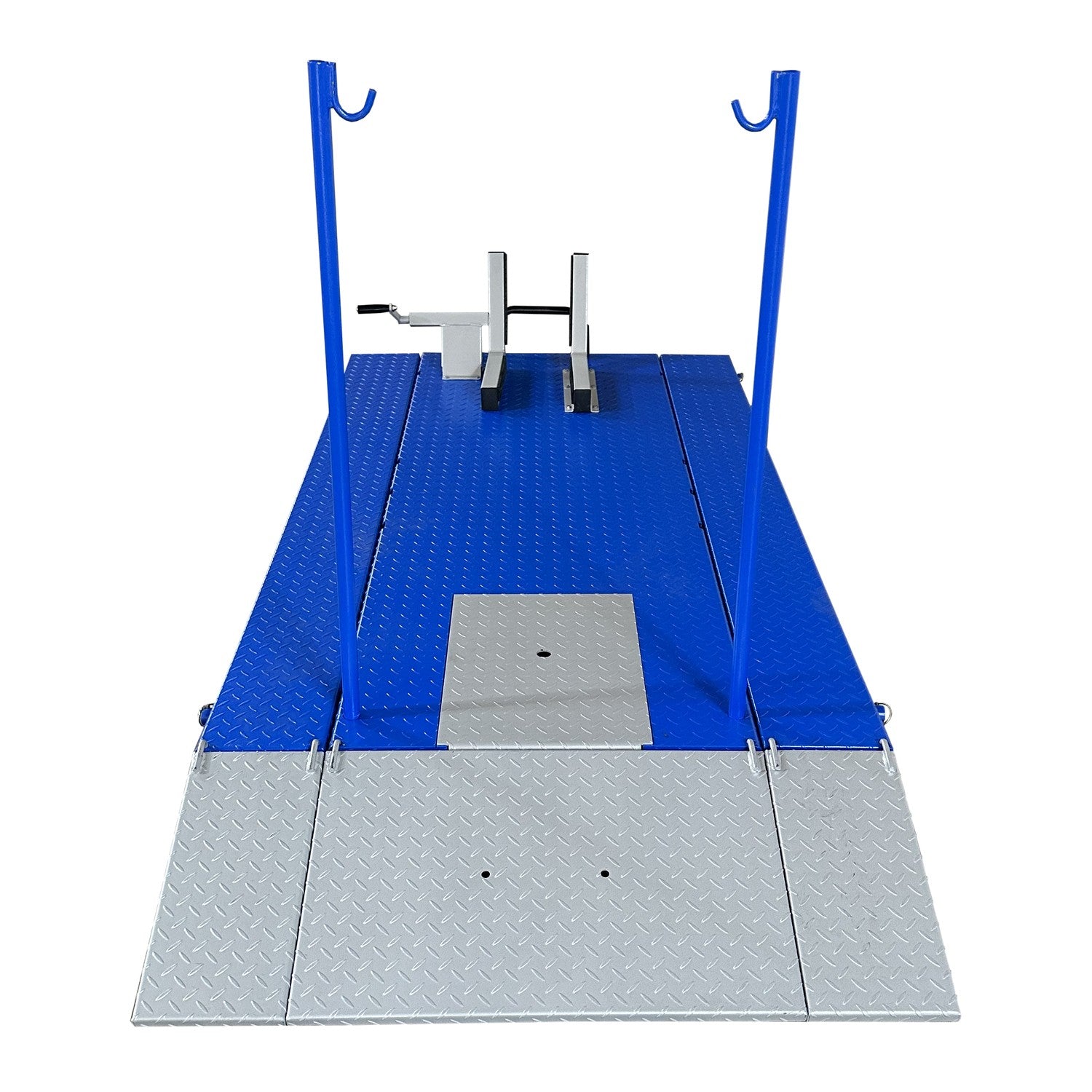

The 88-1/2 in x 50 in platform raises from a 6-3/4 in minimum to a 38-1/2 in maximum working height — a genuinely higher working height than the M-1000C's 30 in max, letting techs work standing upright on drivetrain, suspension, and exhaust service without bending over.

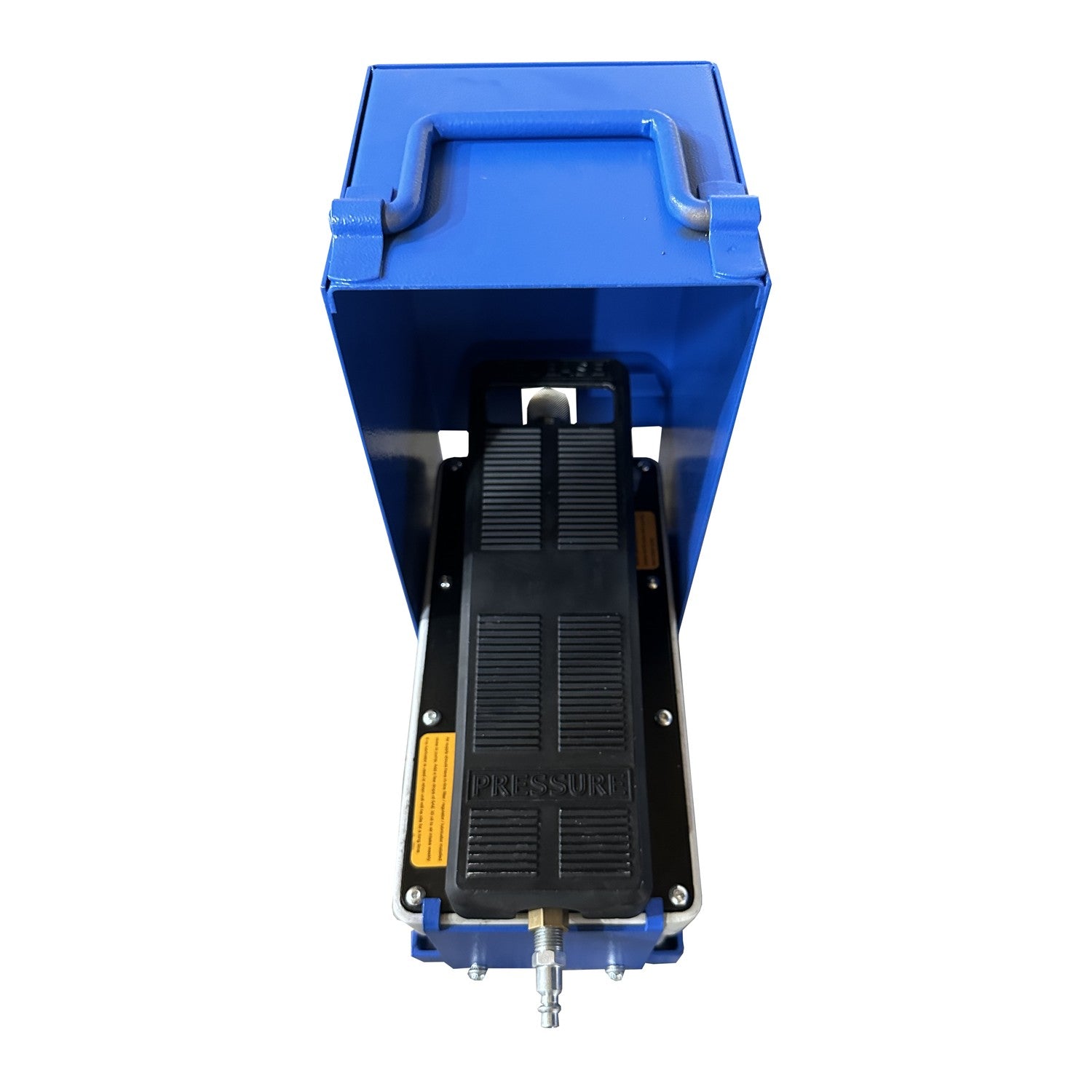

A vise, side extensions, and balance bar ship standard, along with the air/hydraulic pump — giving you clamping and lateral stability out of the box rather than as add-on purchases.
Who It's Built For
- ✅ Shops wanting a higher working height (38-1/2 in) than a standard motorcycle lift for extended service sessions
- ✅ Techs who want a vise, side extensions, and balance bar included rather than bought separately
- ✅ Shops servicing motorcycles, ATVs, snowmobiles, and jet skis up to 1,500 lb
What It's NOT Built For
- ❌ Shops that only need basic capacity and don't need the high-rise height or included accessories — see the lower-cost M-1000C
- ❌ Loads over 1,500 lb
Want the black powder-coat finish instead? See the M-1500C-HR-BLK. Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the M-1500C-HR Different
Higher Working Height Than the M-1000C
38-1/2 in max lifting height vs the M-1000C's 30 in — a genuinely higher working position for extended service sessions on drivetrain and suspension work.
Vise, Side Extensions, and Balance Bar Included
These ship standard on the M-1500C-HR, where the M-1000C treats a vise and side extensions as separate accessory purchases (M-VISE, M-SIDEEXT).
Higher Capacity for Larger Powersport Equipment
1,500 lb capacity handles heavier touring motorcycles, ATVs, and jet skis than the M-1000C's 1,000 lb rating.
Built-In Drop-Out Panel
A built-in drop-out panel section on the platform gives access underneath for undercarriage and exhaust service without removing the bike from the lift.
✅ Best For
- ✅ Shops wanting the higher working height and included vise/extensions/balance bar
- ✅ Heavier powersport equipment up to 1,500 lb
❌ Not Ideal For
- ❌ Shops on a tighter budget that don't need the included accessories — the M-1000C costs less
M-1500C-HR vs. M-1500C-HR-BLK — Which Finish Fits Your Shop?
Identical lift mechanism, capacity, and included accessories on both — the only difference is finish color.
| Decision Point | M-1500C-HR (this product) | M-1500C-HR-BLK |
|---|---|---|
| Finish | Standard finish | Black powder coat |
| Capacity | 1,500 lb | 1,500 lb (same) |
| Included accessories | Vise, side extensions, balance bar | Vise, side extensions, balance bar (same) |
Both lift identically — choose whichever finish matches your shop's equipment lineup. Call (817) 865-3707 with any questions.
Full Specifications — M-1500C-HR
| Model / Part Number | M-1500C-HR |
| Capacity | 1,500 lb |
| Min. Height | 6-3/4 in |
| Max Lifting Height | 38-1/2 in |
| Overall Length w/ Ramp | 109-1/2 in |
| Overall Width | 50 in |
| Platform Size (L x W) | 88-1/2 in x 50 in |
| Power | Air/Hydraulic |
| Ship Weight | 765 lb |
| Included | Vise, side extensions, balance bar, pump |
⚠️ Installation Requirements
- Floor: Level shop floor rated for a loaded unit plus 765 lb lift weight \u2014 no anchoring required for this portable bench lift.
- Air supply: Shop compressed air line for the air/hydraulic pump (see manufacturer's manual for exact PSI range).
- Bay footprint: Confirm 109-1/2 in overall length (with ramp) x 50 in width clearance.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 with setup questions.
Warranty — M-1500C-HR
The M-1500C-HR is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — M-1500C-HR
Does the M-1500C-HR price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
What's the difference between the M-1500C-HR and M-1500C-HR-BLK?
They're mechanically identical — same 1,500 lb capacity, platform size, and included vise/side extensions/balance bar. The only difference is the M-1500C-HR-BLK's black powder-coat finish.
What's the difference between the M-1500C-HR and the M-1000C?
The M-1500C-HR has a higher 1,500 lb capacity, a taller 38-1/2 in max working height (vs the M-1000C's 30 in), and ships with a vise, side extensions, and balance bar included standard.
What is the M-1500C-HR's warranty?
Tuxedo backs the M-1500C-HR with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
Why Buy the M-1500C-HR from Alamo Equipment & Service?
- Freight is included. The advertised price includes standard delivery within the contiguous 48 states.
- We coordinate delivery. Alamo helps confirm delivery details before shipment.
- We help with setup. Alamo can help coordinate professional installation.
- We service it. Questions after delivery? Call (817) 865-3707 — not a manufacturer hotline.
