Tuxedo 6,500 lb Mid-Rise Portable Scissor Lift #MR6.5K-38
| Model / Part Number | MR6.5K-38 |
| Type | Mid-rise scissor lift (portable, dolly-mounted power unit) |
| Capacity | 6,500 lb |
| Lifting Height | 38 in (39-1/2 in with adapters) |
| Overall Length | 77 in |
| Overall Width | 76-1/2 in |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 1,355 lb |
- Level concrete shop floor rated for a 1,355 lb portable lift plus vehicle load
- No anchoring required — this is a portable, non-bolted lift
- Indoor use
- Dedicated 115V, 15 Amp, single-phase circuit for the dolly-mounted power unit
- Confirm bay space for the 77 in x 76-1/2 in footprint
- Load-bearing flip-up ramp extensions need clearance to deploy
- Ships by LTL freight

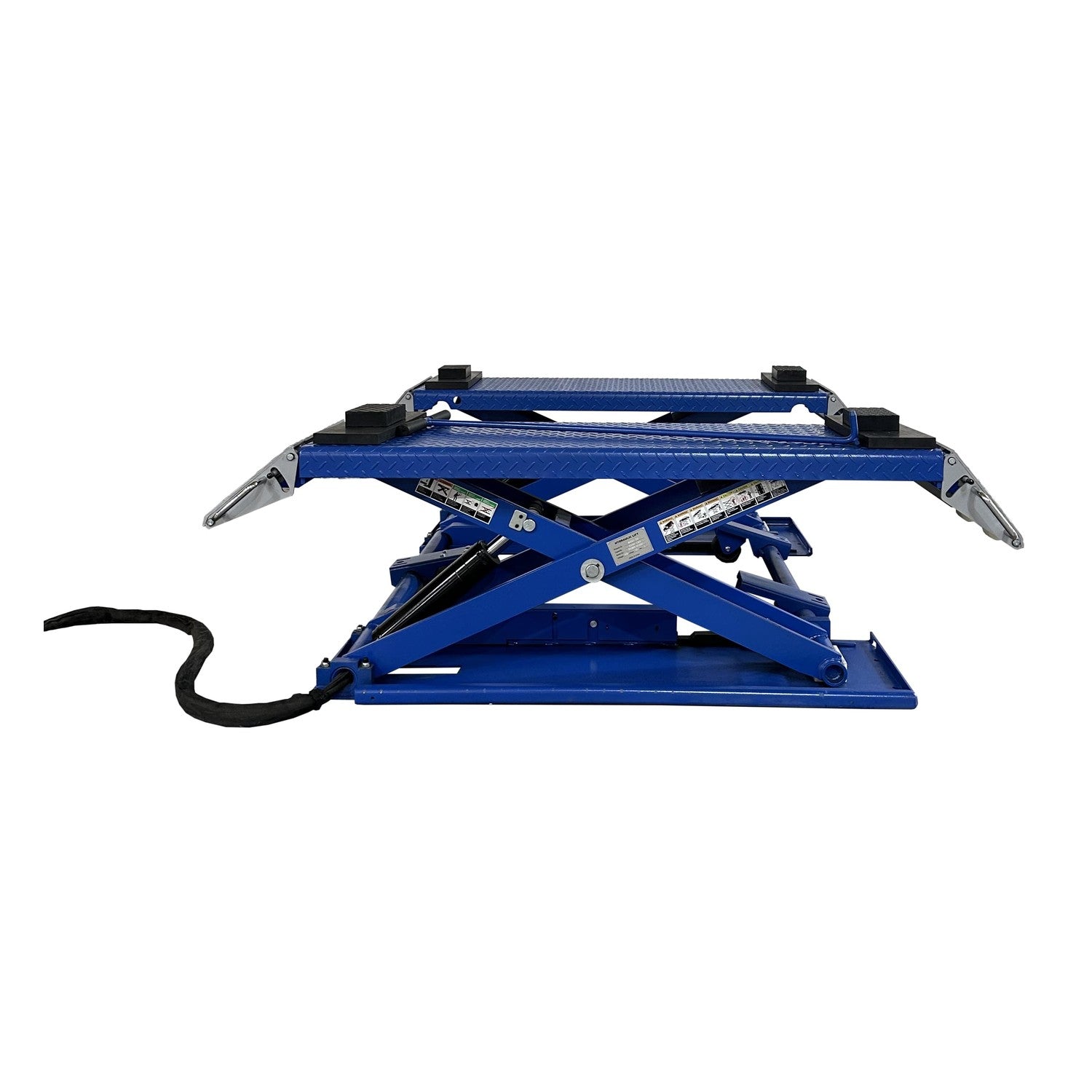

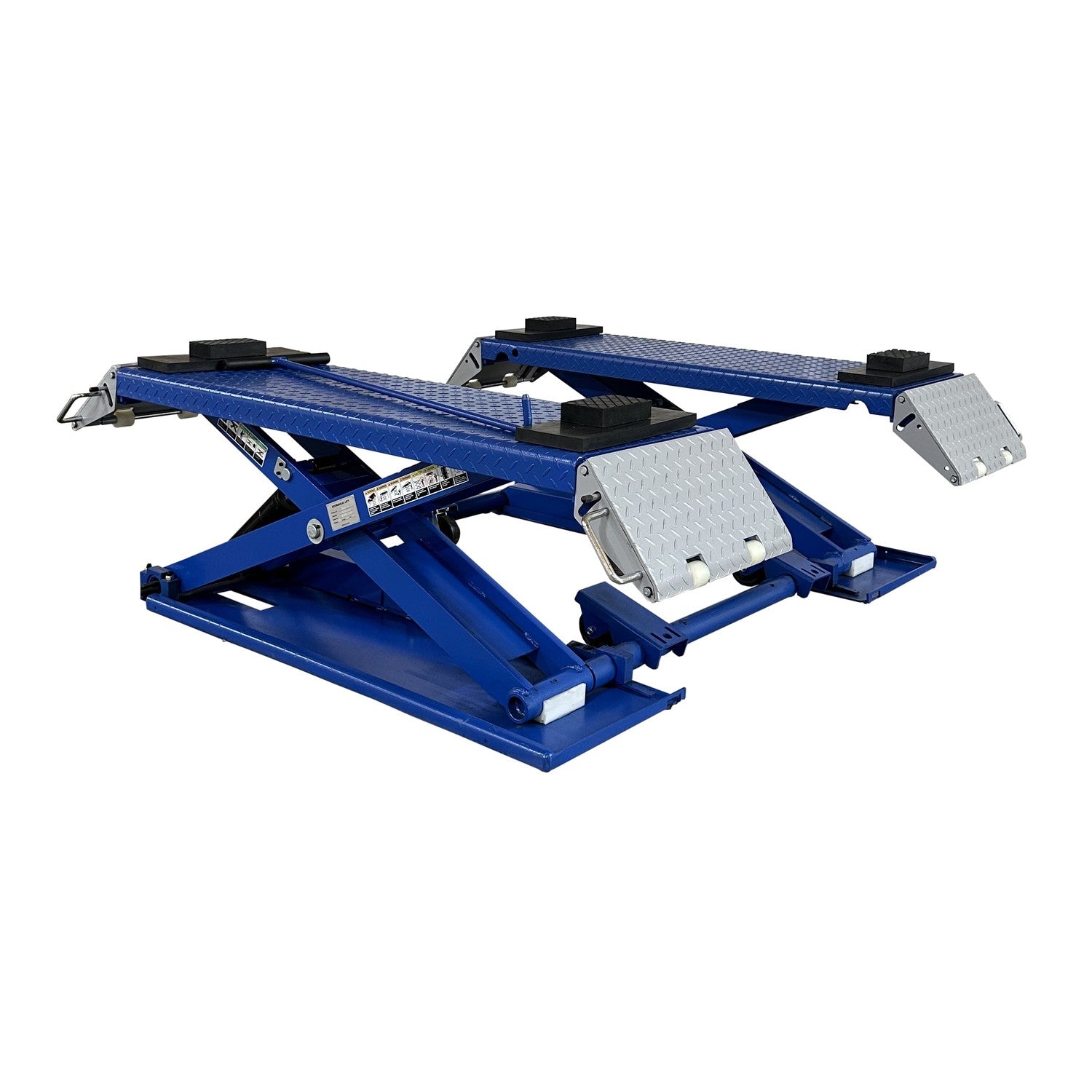

Tuxedo MR6.5K-38 — 6,500 lb Mid-Rise Portable Scissor Lift
The Tuxedo MR6.5K-38 is a 6,500 lb portable mid-rise scissor lift with a 38 in runway-style platform — wider between the runways than a single-arm scissor deck, giving techs room to work brakes, tires, and general underbody service without a permanent installation.
A dolly-mounted power unit rolls with the lift, and load-bearing flip-up ramp extensions add drive-on length when needed and fold away for a smaller footprint otherwise. A single-point pneumatic lock release engages the safety locks, and rubber spacer blocks are included standard for protecting vehicle contact points.
Who It's Built For
- ✅ Shops that want a wider, runway-style mid-rise platform instead of a narrow single-scissor deck
- ✅ Facilities needing portable lifting without a bolted-down two-post install
- ✅ Techs doing brake, tire, and underbody work at a comfortable 38 in working height
What It's NOT Built For
- ❌ Loads over 6,500 lb
- ❌ Shops needing the full 48+ in lift height of the higher-rise MR6K-48X
Questions about fit, freight, or capacity? Call Alamo at (817) 865-3707.
What Makes the MR6.5K-38 Different

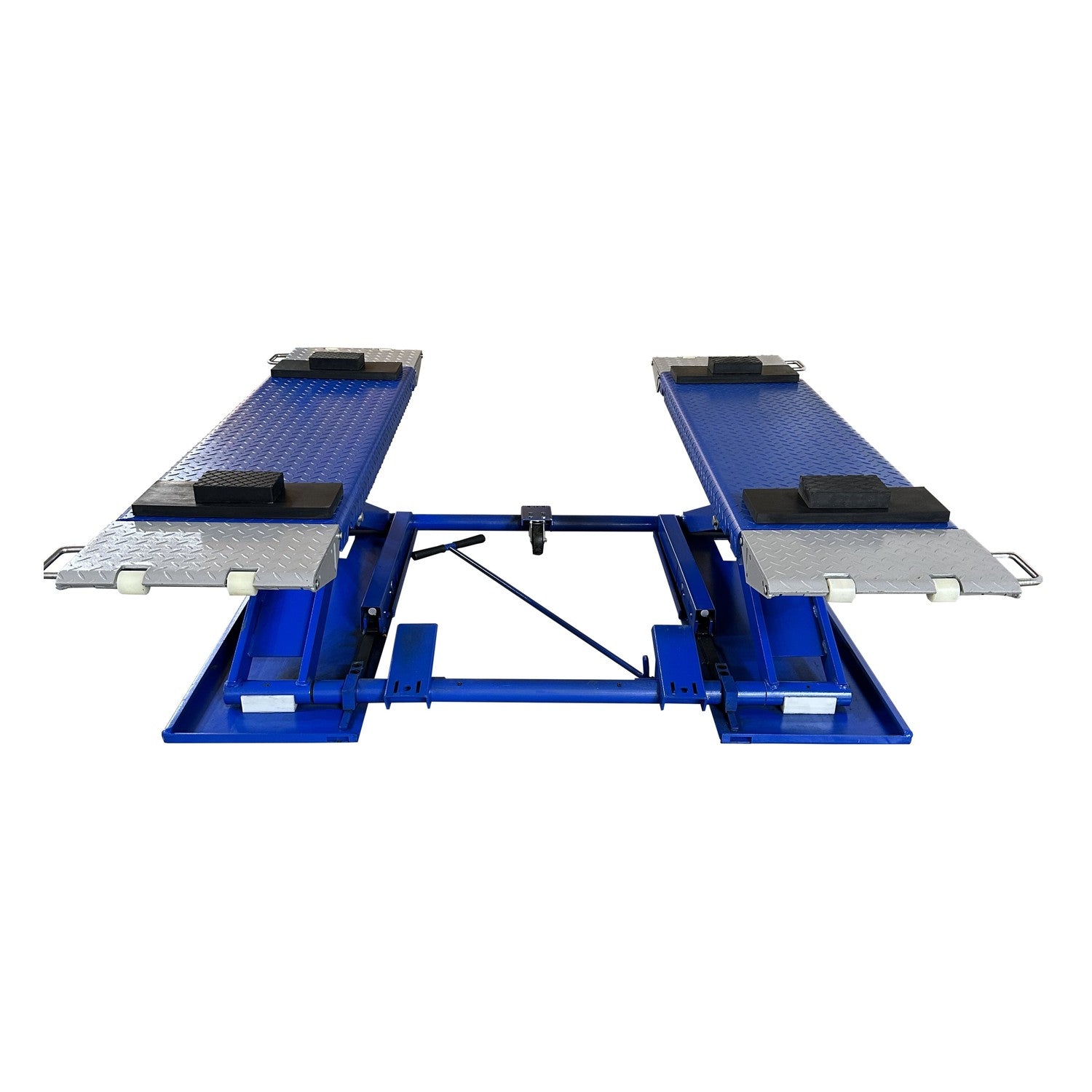

Wider Runway-Style Platform
At 33-1/4 in between runways and 18-3/16 in runway width, the MR6.5K-38's deck gives more standing/working room across the platform than a narrow single-arm scissor lift.
Load-Bearing Flip-Up Ramp Extensions
The ramp extensions fold up out of the way when not needed and fold down to extend drive-on length — useful for lower-clearance or longer-wheelbase vehicles.
Dolly-Mounted Power Unit
Like the MR6K-48X, the power unit rides on its own dolly for full-lift portability rather than a fixed wall-mount station.
Single-Point Pneumatic Lock Release
One pneumatic release disengages the safety locks across the platform, simplifying the lowering sequence.
✅ Best For
- ✅ Shops wanting a wider working platform than a narrow scissor deck
- ✅ Facilities needing portable mid-rise lifting
❌ Not Ideal For
- ❌ Vehicles over 6,500 lb
- ❌ Shops needing more than 38-39.5 in of lift height
Full Specifications — MR6.5K-38
| Model / Part Number | MR6.5K-38 |
| Type | Mid-rise scissor lift, portable |
| Capacity | 6,500 lb |
| Overall Length | 77 in |
| Overall Width | 76-1/2 in |
| Lifting Height | 38 in |
| Lifting Height with Adapters | 39-1/2 in |
| Min. Pad Height | 4 in |
| Width Between Runways | 33-1/4 in |
| Width of Runways | 18-3/16 in |
| Pad Length | 56 in |
| Lifting Speed | 40S |
| Power | 115V – 15 Amp – 1PH |
| Ship Weight | 1,355 lb |
| Optional Accessory | MR6K-38-SUV frame lifting adapter |
⚠️ Installation Requirements
- Floor: Level concrete shop floor rated for the lift plus vehicle load — no anchoring required, this is a portable lift.
- Power: Dedicated 115V, 15 Amp, single-phase circuit for the dolly-mounted power unit.
- Bay footprint: Confirm room for the 77 in x 76-1/2 in footprint, plus room for the flip-up ramp extensions to deploy.
- Freight: Delivery within the contiguous 48 states is included in the advertised price.
- Installation: Call Alamo at (817) 865-3707 to coordinate delivery and setup.
Warranty — MR6.5K-38
The MR6.5K-38 is covered by Tuxedo Distributors, LLC's published Limited Warranty for Lifts and Wheel Service equipment, which offers two coverage tiers to the original purchaser in the United States and Canada.
| Component | Coverage Term |
|---|---|
| Structural components (Columns, Legs, Tracks, Arms, Carriages, Cross Rails, Uprights, Overhead Beam, Top Rail Beam, Swivel Pins) | 5 years |
| All other parts (materials/workmanship, normal use) | 1 year, parts only (purchaser covers return shipping) |
| Normal maintenance & wear parts | Not covered |
| On-site labor | Not covered |
Warranty is void if the unit has been improperly installed, altered, or not maintained per specification. This Limited Warranty is granted to the original purchaser only and is not transferable. Full terms are in the manufacturer's installation manual, linked above.
Warranty service is coordinated through Alamo — call (817) 865-3707 for assistance rather than waiting on a manufacturer hotline.
❓ Frequently Asked Questions — MR6.5K-38
Does the MR6.5K-38 price include shipping?
Yes. The advertised price includes standard freight delivery within the 48 contiguous United States. Additional freight charges apply for Alaska and Hawaii.
How high does the MR6.5K-38 lift?
38 in standard, or 39-1/2 in with adapters.
Is the MR6.5K-38 portable?
Yes. It uses a dolly-mounted power unit and is designed to be repositioned rather than permanently bolted down.
What is the MR6.5K-38's warranty?
Tuxedo backs the MR6.5K-38 with a 5-year structural warranty plus a 1-year parts warranty to the original purchaser in the US and Canada.
