A/C Couplers

R-134a and R-1234yf use physically different quick-connect designs to prevent cross-contamination between refrigerant types. R-1234yf connectors have a different thread pattern and locking mechanism specifically to make it impossible to accidentally connect an R-134a machine to an R-1234yf vehicle system. Do not attempt to force-adapt between the two refrigerant systems.

The low-side coupler connects to the suction side of the A/C system (large fitting, blue-coded). The high-side coupler connects to the discharge side (small fitting, red-coded). These fittings are physically sized differently to prevent accidental connection of the wrong hose to the wrong
service port.

Couplers should be inspected regularly for o-ring wear, internal valve damage, and coupler body cracks. O-rings are the most common wear item and can often be replaced individually. A coupler that leaks refrigerant when connected or fails to seal consistently should be replaced immediately to prevent refrigerant loss.

Most professional couplers use standardized SAE quick-connect threading, making them broadly compatible across professional A/C service equipment. However, some OEM-specific vehicle ports require specialty adapters. Always verify the coupler size and thread pattern match both your service machine hoses and the vehicle's service ports.

Yes. O-ring kits for A/C service couplers are available as accessories in the A/C Parts and A/C Accessories collections. Using the correct o-ring material (HNBR for R-1234yf) is important — standard EPDM o-rings degrade when exposed to R-1234yf refrigerant and will fail prematurely.

Many A/C service couplers are compatible with nitrogen leak testing and vacuum evacuation as well as refrigerant handling — they connect to the same service ports. However, some couplers include internal check valves that only open under refrigerant system pressure. Verify your specific coupler's compatibility with nitrogen pressure before using for non-refrigerant work.

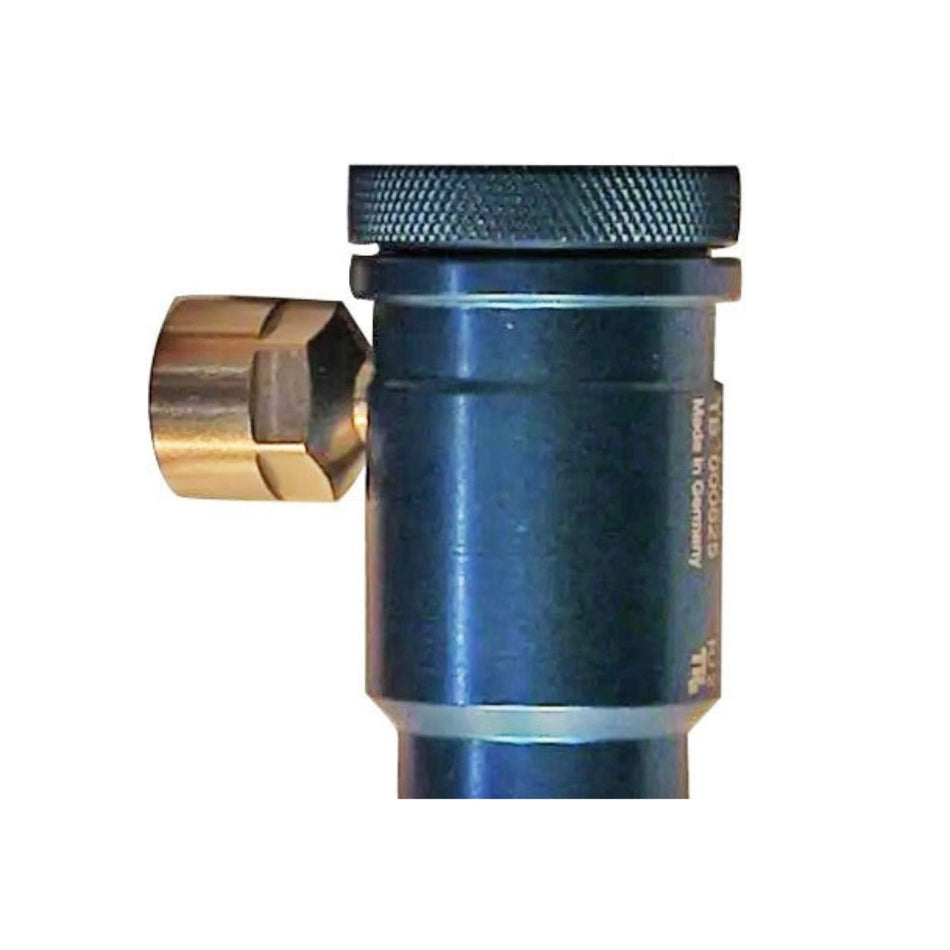

Yes. Alamo stocks Mahle -compatible coupler assemblies and service hose fittings for Mahle ACX and similar professional A/C service platforms. Contact us with your Mahle unit model number to confirm specific coupler compatibility and available part numbers for your machine configuration.
