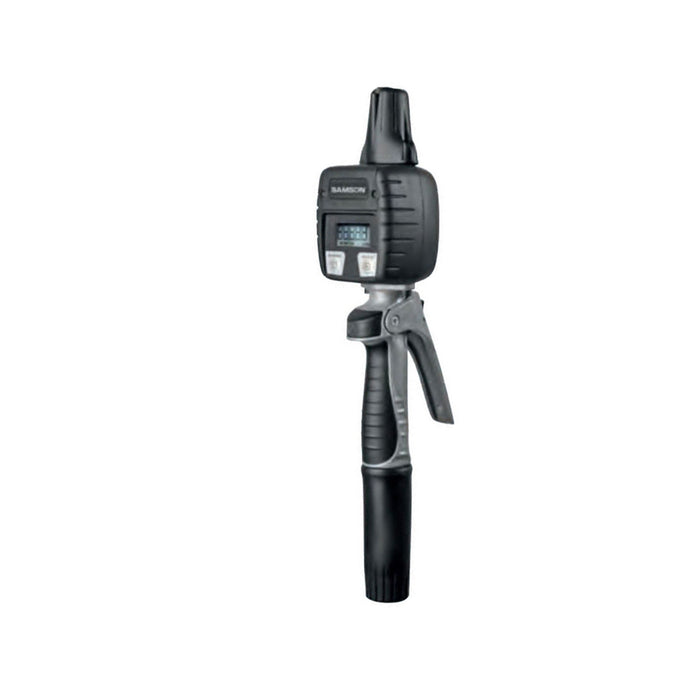

Samson Oil Control Handle with Digital Meter #365521
Lead time:
-
DESCRIPTION
Lube Trucks, Mining equipment maintenance, Car and Truck Dealerships, Fast Lube and Maintenance Shops, Fleet service
1/2 in. NPT (F) Inlet/Outlet, 1450 psi, 8 GPM Max, Bare Handle, without Extension
Samson's control handles are built for accuracy, durability, and higher flow performance and have been extensively and rigorously field-tested.
These control handles feature high-precision machined measuring chambers with tight tolerances. Quality gears and stainless steel shafts eliminate the need for calibration to adjust for fluid viscosity. The sealed battery compartment and isolated electronic register help extend the life of the control handles. Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions. Rough TPE boot surrounds the entire meter for even greater durability. Replaceable AAA batteries. Units of measure can be selected quarts, gallons, pints, and liters.
-
APPLICATIONS
Fluids Handled
- Gear Oil
- Hyraulic Oil and Fluids
- AFT
- Antifreeze Solutions
- Synthetic and Mineral Based Oil
-
SPECIFICATIONS
Model # Samson 365521 Maximum Free Flow Rate 8 gal/min (30 l/min) Maximum Working Pressure
1,450 psi (100 bar)
Fluid Inlet
1/2" NPT(F)
Fluid Outlet
1/2" NPT(F)
Accuracy
+/- 0.5%
Power Source
2x "AAA" 1.5 Batteries
Wetted Materials
Acetal / Aluminum/ Stainless steel / NBR / Zinc plated steel / TPU / Polyamide
*Image is a representation of this item. Actual item may vary.*
-
DOWNLOADS
Samson 365521 Oil Control Handle with Digital Meter
