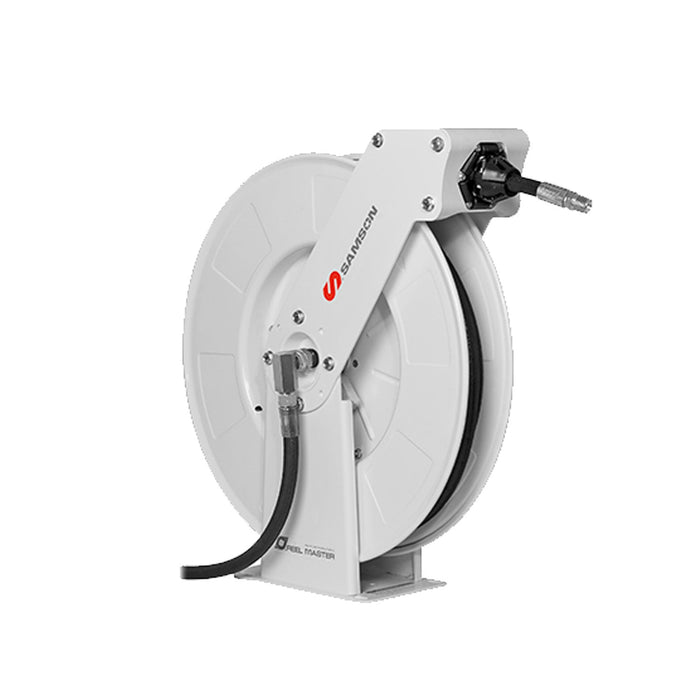

Samson Medium Pressure Spring Rewind Oil Hose Reel, 50' x 1/2" NPT(M) #504250
SKU 504250
Lead time:
by Samson
Original price
$660.11
-
Original price
$660.11
Original price
$660.11
$660.11
-
$660.11
Current price
$660.11
-
DESCRIPTION
Service Shops, Fleet service, Lube Trucks, Mining equipment maintenance, General Manufacturing, Car and Truck Dealerships, Mass Transit Maintenance, Railroad
1/2 in. NPSM Inlet(F), 1/2 in. NPT Outlet(F), with 50 ft. Hose, 2000 psi, 1/2 in Hose I.D.
-
FEATURES
Fluids Handled
- Very tough construction can stand regular use and abuse in Intensive Duty applications.
- Fatigue-resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
- Fully ported shaft and swivel.
- Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
- Large latching area for easier operation.
- Hose guide arm can be placed in different positions to accommodate any mounting method.
- A Narrow footprint allows for mounting more reels on the same surface.
- Hose reels with hose include 30″ inlet hose.
-
SPECIFICATIONS
Model #s 504250
Hose ID 1/2" Outlet Thread 1/2" NPT(M)
Max Working Pressure 2000 psi *Image is a representation of this item. Actual item may vary.*
-
DOWNLOADS
Samson 504250 Medium Pressure Spring Rewind Oil Hose Reel, 50' x 1/2" NPT(M)
