AMGO® 10,000 lb Two-Post Lift #OHX-10H
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OHX-10H |
| Lifting Capacity | 10,000 lbs |
| Lift Type | Clear-Floor Asymmetric |
| Overall Height | 157"–167 3/16" |
| Drive-Thru Clearance | 99 13/16" |
| Motor | 2.0 HP |
- 4" minimum thickness, 3,000 psi minimum concrete
- No reinforcing steel bars in the anchor zone
- Concrete only — do not install on asphalt
- 220VAC, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Requires ceiling over 13.08 ft (157")
- Low setting for workshop height up to 168"
- High setting for workshop height over 168"

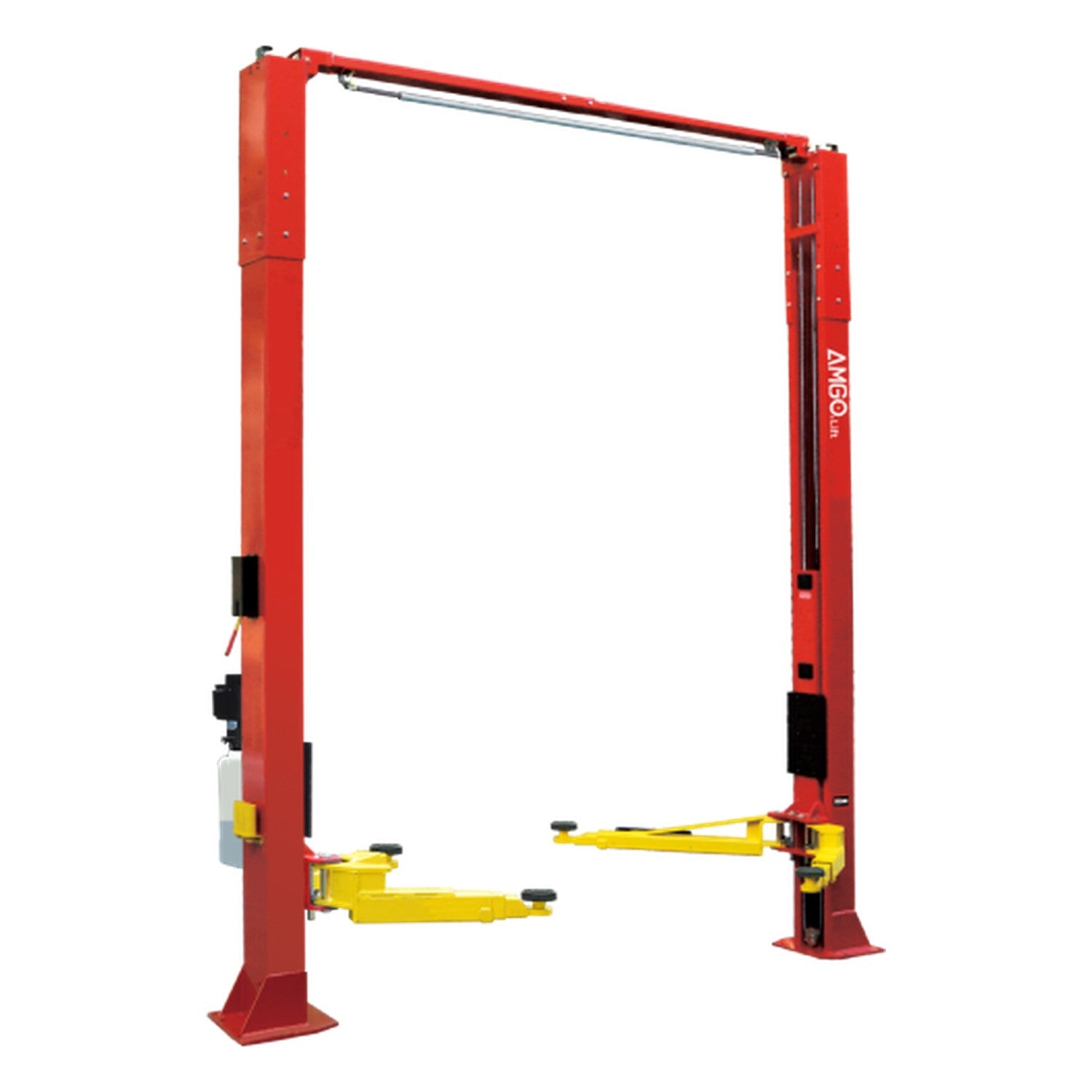

AMGO® OHX-10H 10,000 lb Two-Post Lift
The AMGO® OHX-10H is a 10,000 lb-capacity clear-floor two-post lift, built to reach higher on a fully open floor. The lift runs on a dual direct-drive cylinders system with Super-Asymmetric® arms, plus single-point manual release, overhead safety shut-off, automatic arm restraints. The matched 071101 power unit is included.
Two-section columns push the OHX-10H to a lift height up to 83 5/8", clearing taller vehicles and roof racks on a fully open floor.
Who It's Built For
- Ceilings-permitting shops chasing maximum lift height on a clear floor
- Vehicles that benefit from extra reach-up lift height
- Mechanics who want more room to work up high
- Tall shops that can use the added rise
- Restoration and specialty shops working on lifted vehicles
What It's NOT Built For
- Vehicles that exceed the load rating
- In-ground or flush conversions
- Substandard concrete pours
- Small powersport vehicles
- Wheel work that doesn't require a two-post
Key Differentiator: Open clear-floor access
Two-section columns push the OHX-10H to a lift height up to 83 5/8", clearing taller vehicles and roof racks on a fully open floor.
- Taller vehicles that need extra lift height
- Low-ceiling garages that can't use the extra rise
Where the OHX-10H Fits - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-9 | 9,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OH-10 | 10,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OHX-10 | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 144" | 134 15/16" |
| OHX-10H | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 157"–167 3/16" | 134 15/16" |
Deciding between standard and high-lift clearance? Alamo can talk through the tradeoff — call (817) 865-3707.
Full Specifications – OHX-10H
| Brand | AMGO® Hydraulics |
| Model | OHX-10H |
| Part / SKU | ALMAMGOHX10H |
| Lifting Capacity | 10,000 lbs |
| Design | Clear-Floor |
| Drive System | Dual Direct-Drive Cylinders |
| Arms | Super-Asymmetric® arms |
| Adapters / Extensions | double-screw rubber pad, 3" extension adapter (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 157"–167 3/16" |
| Overall Width | 134 15/16" |
| Drive-Thru Clearance | 99 13/16" |
| Minimum Pad Height | 3 9/16" |
| Motor | 2.0 HP |
| Lifting Time | 63s |
| Height Settings | two height settings, overall height 157"–167 3/16", up to 83 5/8" lift height |
| Power Unit | 071101 |
| Shipping Carton | 146" x 18" x 31" |
| Shipping Weight | 1,706 lbs |
Installation Requirements
- Concrete: 4-1/4"+ of 3,000 psi concrete to carry the taller column
- Power: 208-230V single-phase; a dedicated circuit is recommended
- Overhead: Clear the raised OHX-10H column and its shut-off hardware
- Anchoring: Torque the wedge anchors as the AMGO manual states
AMGO 5-3-2 Limited Warranty – OHX-10H
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - OHX-10H
Why Buy the OHX-10H from Alamo Equipment & Service?
- We install it. Turnkey installation by people who do this daily.
- We service it. One number for parts, service and warranty: (817) 865-3707.
- We size it with you. We match the lift to your actual bay.
- Height advice. We confirm the extra rise is worth it for your work.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
