AMGO® 10,000 lb Two-Post Lift #OHX-10
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OHX-10 |
| Lifting Capacity | 10,000 lbs |
| Lift Type | Clear-Floor Asymmetric |
| Overall Height | 144" |
| Drive-Thru Clearance | 99 13/16" |
| Motor | 2.0 HP |
- 4" minimum thickness, 3,000 psi minimum concrete
- No reinforcing steel bars in the anchor zone
- Concrete only — do not install on asphalt
- 220VAC, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Requires ceiling over 12 ft (144")
- Low setting for workshop height up to 168"
- High setting for workshop height over 168"

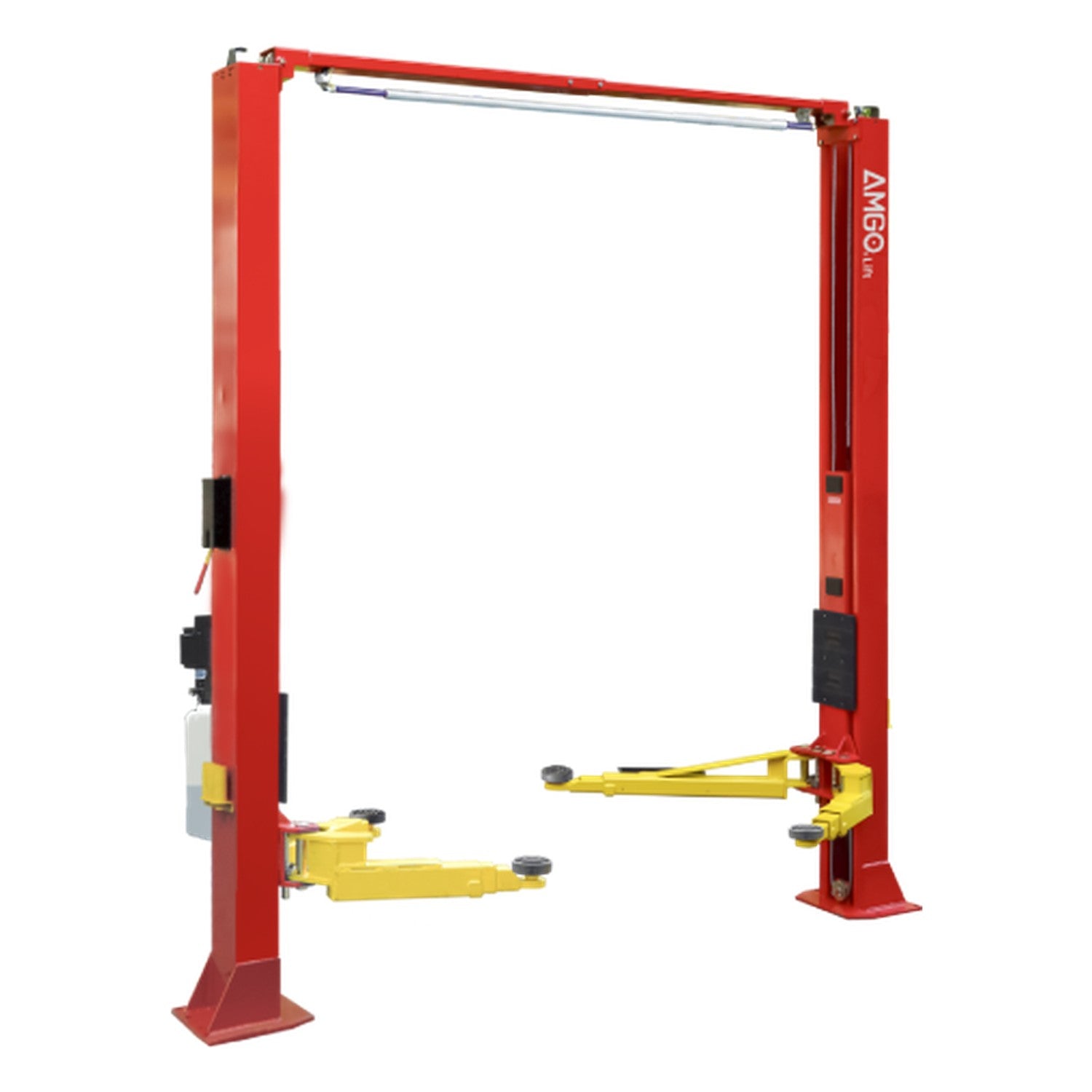

AMGO® OHX-10 10,000 lb Two-Post Lift
The AMGO® OHX-10 is a 10,000 lb-capacity clear-floor two-post lift, designed for dependable lifting where floor space is tight. A dual direct-drive cylinders arrangement moves Super-Asymmetric® arms, held safe by single-point manual release, overhead safety shut-off, automatic arm restraints. Every unit is packed alongside power unit 071101.
A single-piece column gives the OHX-10 a fast, simple install and a slim footprint that fits tight bays without giving up 10,000 lb capacity.
Who It's Built For
- Compact bays where a single-piece column saves valuable floor space
- Standard passenger and light-truck work in tight quarters
- Techs working where every square foot of the bay counts
- Installs where a slim column footprint matters
- Mobile-tech setups where floor space is at a premium
What It's NOT Built For
- Anything heavier than the posted capacity
- Below-grade or pit installations
- Floors of unknown thickness — confirm first
- Motorcycle and ATV service
- Pure tire-shop use
Key Differentiator: Open clear-floor access
A single-piece column gives the OHX-10 a fast, simple install and a slim footprint that fits tight bays without giving up 10,000 lb capacity.
- Tight bays that still need full 10,000 lb capacity
- Wide bays that would rather have twin standard columns
OHX-10 in the Clear-Floor Lineup - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-9 | 9,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OH-10 | 10,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OHX-10 | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 144" | 134 15/16" |
| OHX-10H | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 157"–167 3/16" | 134 15/16" |
Not sure which clear-floor model fits your column footprint? Call (817) 865-3707 and Alamo will measure it with you.
Full Specifications – OHX-10
| Brand | AMGO® Hydraulics |
| Model | OHX-10 |
| Part / SKU | ALMAMGOHX10 |
| Lifting Capacity | 10,000 lbs |
| Design | Clear-Floor |
| Drive System | Dual Direct-Drive Cylinders |
| Arms | Super-Asymmetric® arms |
| Adapters / Extensions | double-screw rubber pad, 3" extension adapter (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 144" |
| Overall Width | 134 15/16" |
| Drive-Thru Clearance | 99 13/16" |
| Minimum Pad Height | 3 9/16" |
| Motor | 2.0 HP |
| Lifting Time | 57s |
| Height Settings | overall height 144" (single-piece column) |
| Power Unit | 071101 |
| Shipping Carton | 146" x 18" x 31" |
| Shipping Weight | 1,587 lbs |
Installation Requirements
- Concrete: A solid 4-1/4" 3,000 psi pad, especially in a compact footprint
- Power: 208-230V single-phase supply near the columns
- Overhead: Clear the raised OHX-10 column and its shut-off hardware
- Anchoring: Wedge anchors set to spec in a tight footprint
AMGO 5-3-2 Limited Warranty – OHX-10
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - OHX-10
Why Buy the OHX-10 from Alamo Equipment & Service?
- We install it. We plumb, anchor and test the lift before we leave.
- We service it. Warranty coordination is handled here, on your behalf.
- We size it with you. No guesswork on clearance or capacity.
- Space planning. We help you use every inch of a small bay.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
