AMGO® 10,000 lb Two-Post Lift #OH-10
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OH-10 |
| Lifting Capacity | 10,000 lbs |
| Lift Type | Clear-Floor Asymmetric |
| Overall Height | 142 1/2"–150 1/2" |
| Drive-Thru Clearance | 99 1/2" |
| Motor | 2.0 HP |
| Certification | ALI / ETL certified |
- 4" minimum thickness, 3,000 psi minimum concrete
- No reinforcing steel bars (concrete only, not asphalt)
- ALI-certified install — slab verified before anchoring
- 220VAC / 60Hz / 20A, single-phase
- Supply cord 12 AWG or larger
- Separate circuit breaker per power unit
- HIGH setting: workshop ceiling over 151"
- LOW setting: ceiling 143" to 151"
- Not suitable under 143" ceiling

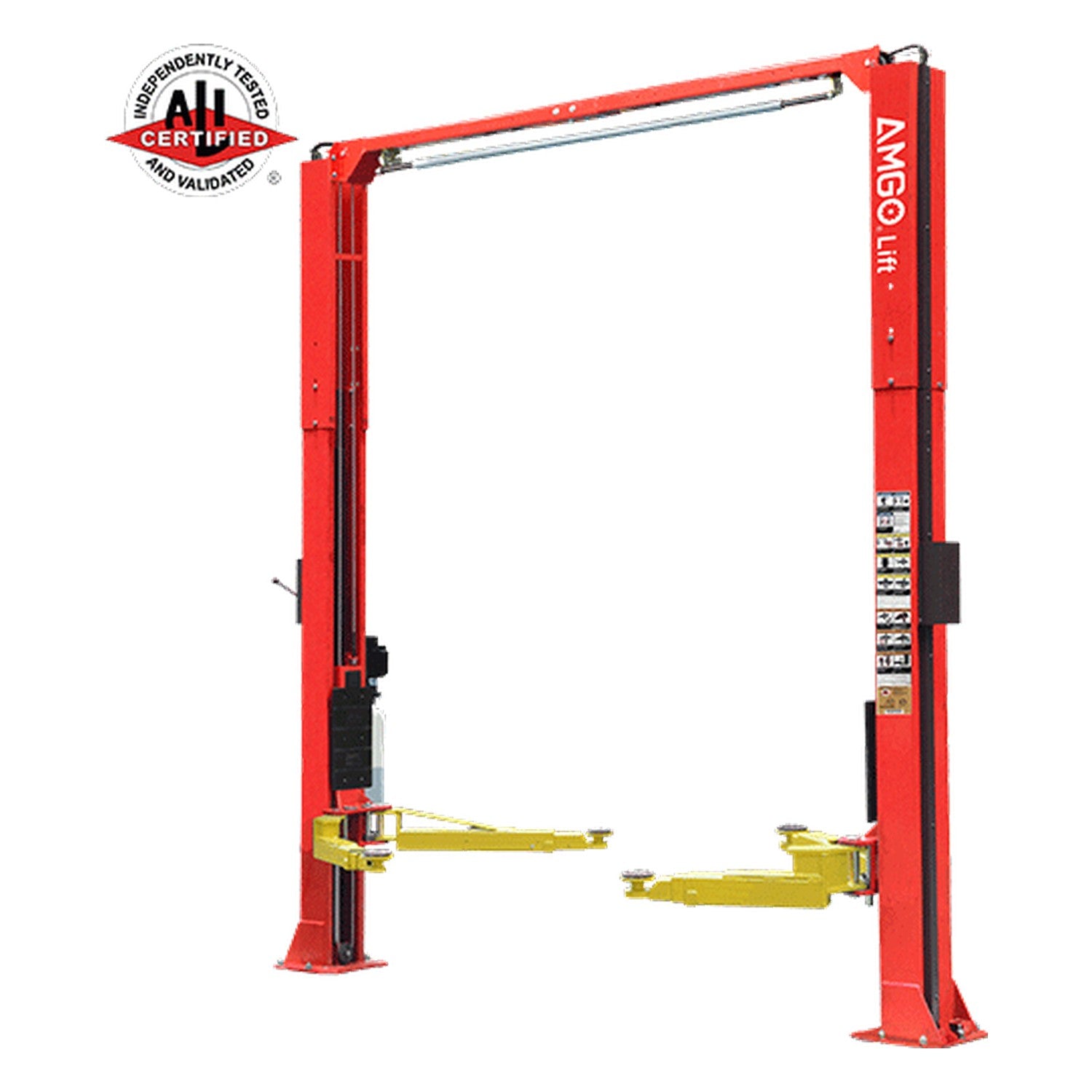

AMGO® OH-10 10,000 lb Two-Post Lift
The AMGO® OH-10 is a 10,000 lb-capacity clear-floor two-post lift, built to meet third-party safety standards day in and day out. Power comes from a direct-drive design driving Super-Asymmetric® arms, secured with single-point manual release, overhead safety shut-off, automatic arm restraints. Its AMGO power unit (071101) comes in the box.
The OH-10 is ALI-certified, so it carries independent, tested proof that its clear-floor, direct-drive design meets the national lift-safety standard.
Who It's Built For
- High-standard shops that want third-party safety certification on the wall
- Cars, SUVs and light trucks up to the rated ceiling
- Shops that want documented compliance for insurers and inspectors
- Certification-driven accounts and municipal or dealer bays
- Anyone who wants ALI peace of mind at a fair price
What It's NOT Built For
- Overweight vehicles — respect the rated limit
- Flush-mount jobs — the columns anchor on top of the slab
- Slabs that fall short of the concrete spec
- Bikes and quads — use the right specialty lift
- Bays that only ever spin wheels off the ground
Key Differentiator: Open clear-floor access
The OH-10 is ALI-certified, so it carries independent, tested proof that its clear-floor, direct-drive design meets the national lift-safety standard.
- Certification-driven shops, dealers and municipal accounts
- Bays that don't need third-party certification and want to save
OH-10 Against Its AMGO Siblings - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-9 | 9,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OH-10 | 10,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OHX-10 | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 144" | 134 15/16" |
| OHX-10H | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 157"–167 3/16" | 134 15/16" |
Comparing certified vs. non-certified options? Call Alamo at (817) 865-3707 and we'll walk through what ALI certification actually buys you.
Full Specifications – OH-10
| Brand | AMGO® Hydraulics |
| Model | OH-10 |
| Part / SKU | ALMAMGOH10 |
| Lifting Capacity | 10,000 lbs |
| Design | Clear-Floor |
| Drive System | Direct-Drive |
| Arms | Super-Asymmetric® arms |
| Adapters / Extensions | 1.5", 2.5" and 5" extension adapters |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 142 1/2"–150 1/2" |
| Overall Width | 135" |
| Drive-Thru Clearance | 99 1/2" |
| Minimum Pad Height | 3 15/16" |
| Motor | 2.0 HP |
| Lifting Time | 57s |
| Height Settings | two height settings, overall height 142 1/2"–150 1/2" |
| Power Unit | 071101 |
| Shipping Carton | 114" x 18" x 31" |
| Shipping Weight | 1,645 lbs |
| Certification | ALI / ETL certified |
Installation Requirements
- Concrete: 4-1/4" minimum of 3,000 psi concrete, verified for ALI compliance
- Power: 208-230V single-phase — confirm voltage before delivery
- Overhead: Clear the raised OH-10 column and its shut-off hardware
- Anchoring: ALI-compliant wedge anchoring per AMGO instructions
AMGO 5-3-2 Limited Warranty – OH-10
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
