AMGO® 9,000 lb Two-Post Lift #OH-9
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OH-9 |
| Lifting Capacity | 9,000 lbs |
| Lift Type | Clear-Floor Asymmetric |
| Overall Height | 142 1/2"–150 1/2" |
| Drive-Thru Clearance | 99 1/2" |
| Motor | 2.0 HP |
- 4" minimum thickness, 3,000 psi minimum concrete
- No reinforcing steel bars in the anchor zone
- Concrete only — do not install on asphalt
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Ceiling 151-1/2" or higher: low or high setting
- Ceiling 143-3/4" to 151-1/2": low setting only
- Not suitable under 143-3/4" ceiling

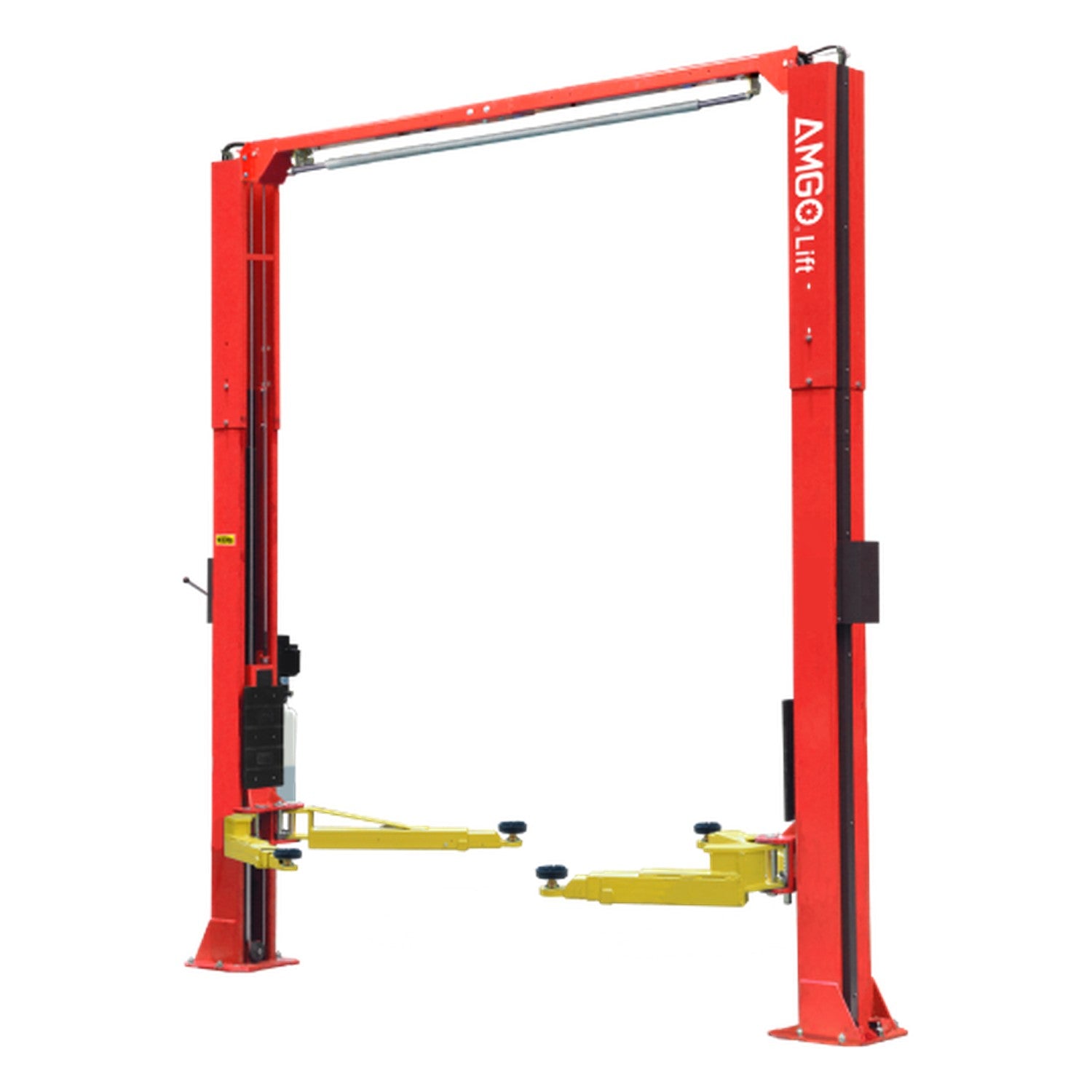

AMGO® OH-9 9,000 lb Two-Post Lift
The AMGO® OH-9 is a 9,000 lb-capacity clear-floor two-post lift, engineered for constant undercar service. Lifting is handled by a direct-drive setup and Super-Asymmetric® arms, protected by single-point manual release, overhead safety shut-off, automatic arm restraints. The lift ships with AMGO power unit 071101.
With a clear floor and Super-Asymmetric arms, the OH-9 opens the whole bay so jacks and drains roll under the vehicle unobstructed.
Who It's Built For
- Service bays that live or die by undercar throughput
- Passenger vehicles and light trucks needing open-floor access
- Crews that want jacks and drains to roll freely under the car
- Work that keeps the space between columns completely open
- Shops prioritizing quick in-and-out vehicle flow
What It's NOT Built For
- Loads beyond the capacity plate on the column
- In-ground pit applications of any kind
- Uncured or sub-spec floors
- Powersport machines — wrong tool here
- Standalone wheel jobs
Key Differentiator: Open clear-floor access
With a clear floor and Super-Asymmetric arms, the OH-9 opens the whole bay so jacks and drains roll under the vehicle unobstructed.
- High-throughput undercar and alignment-prep work
- Buyers who want the lowest possible entry price
Compare Clear-Floor AMGO Models - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-9 | 9,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OH-10 | 10,000 lb | Clear-Floor | Direct-Drive | 142 1/2"–150 1/2" | 135" |
| OHX-10 | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 144" | 134 15/16" |
| OHX-10H | 10,000 lb | Clear-Floor | Dual Direct-Drive Cylinders | 157"–167 3/16" | 134 15/16" |
All models stay inside Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – OH-9
| Brand | AMGO® Hydraulics |
| Model | OH-9 |
| Part / SKU | ALMAMGOH9 |
| Lifting Capacity | 9,000 lbs |
| Design | Clear-Floor |
| Drive System | Direct-Drive |
| Arms | Super-Asymmetric® arms |
| Adapters / Extensions | double-screw rubber pad, 3" extension adapter (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 142 1/2"–150 1/2" |
| Overall Width | 135" |
| Drive-Thru Clearance | 99 1/2" |
| Minimum Pad Height | 3 9/16" |
| Motor | 2.0 HP |
| Lifting Time | 57s |
| Height Settings | two height settings, overall height 142 1/2"–150 1/2" |
| Power Unit | 071101 |
| Shipping Carton | 114" x 18" x 31" |
| Shipping Weight | 1,493 lbs |
Installation Requirements
- Concrete: Confirm 4-1/4"+ depth at 3,000 psi before anchoring
- Power: Single-phase 208-230V; tell us if you run three-phase
- Overhead: Clear the raised OH-9 column and its shut-off hardware
- Anchoring: Anchor with wedge bolts to the manual's torque value
AMGO 5-3-2 Limited Warranty – OH-9
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
