AMGO® 12,000 lb Two-Post Lift #BP-12
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | BP-12 |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Floor-Plate Symmetric |
| Overall Height | 122 1/2" |
| Drive-Thru Clearance | 104 7/16"–109 13/16" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (spec brochure only — no full concrete-spec install manual published)
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Base-plate design (overall height 122 1/2")
- Two width settings: 118 1/8" / 123 1/2" between columns
- Not published in the AMGO documentation for this model — confirm with Alamo before install

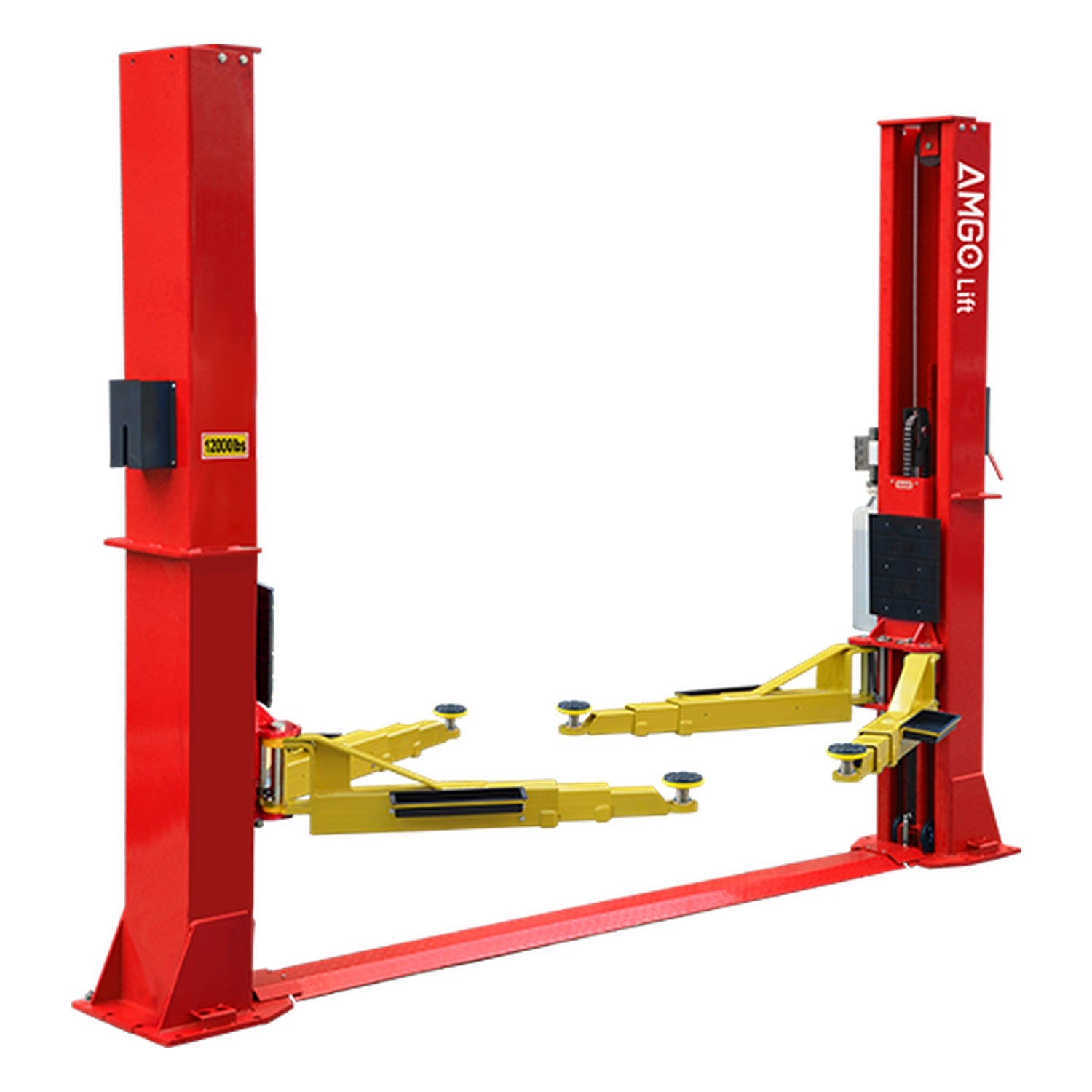

AMGO® BP-12 12,000 lb Two-Post Lift
The AMGO® BP-12 is a 12,000 lb-capacity floor base-plate two-post lift, built for heavier trucks in a working shop. Built around a chain-drive system, it uses four 3-stage arms with single-point manual release, automatic arm restraints. The heavy-duty 071102 power unit is included in the crate.
Heavier three-stage arms plus dual pad and saddle adapters let the BP-12 anchor 12,000 lb trucks on a rigid floor-plate base with two width settings.
Who It's Built For
- Truck-focused shops moving up from a 10,000 lb lift
- Three-quarter- and one-ton pickups and larger SUVs
- Techs stepping up to beefier arms and adapters
- Bays that can take a base-plate design at higher capacity
- Shops outgrowing their light-duty two-post lift
What It's NOT Built For
- Loads over capacity — choose a heavier lift
- Pit-style or in-ground setups
- Marginal concrete — check before ordering
- ATV and motorcycle work
- Quick wheel swaps that need no full raise
Key Differentiator: Heavy-capacity floor-plate strength
Heavier three-stage arms plus dual pad and saddle adapters let the BP-12 anchor 12,000 lb trucks on a rigid floor-plate base with two width settings.
- Three-quarter- and one-ton pickups on a rigid base
- Shops needing drive-through open-floor access
BP-12 vs Clear-Floor 12,000 lb Lifts - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| BP-12 | 12,000 lb | Floor Base-Plate | Chain-Drive | 122 1/2" | 145 3/8"–150 3/4" |
| OH-12 | 12,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-12S | 12,000 lb | Clear-Floor | Direct-Drive | 143 1/8"–167 1/8" | 150 3/4" |
Choose the BP-12 for a floor base-plate design that anchors directly to the slab. Choose the OH-12 or OH-12S for a clear-floor design with no base plate to trip over, with the OH-12S built for lower ceilings. All models stay inside Alamo's catalog. Call (817) 865-3707 and we will help you decide before ordering.
Full Specifications – BP-12
| Brand | AMGO® Hydraulics |
| Model | BP-12 |
| Part / SKU | ALMAMGBP12 |
| Lifting Capacity | 12,000 lbs |
| Design | Floor Base-Plate |
| Drive System | Chain-Drive |
| Arms | four 3-stage arms |
| Adapters / Extensions | single-screw rubber pad and saddle adapter, 3" and 6" extension adapters (2" pin), two width settings |
| Safety | single-point manual release, automatic arm restraints |
| Overall Height | 122 1/2" |
| Overall Width | 145 3/8"–150 3/4" |
| Drive-Thru Clearance | 104 7/16"–109 13/16" |
| Minimum Pad Height | 4 1/2" |
| Motor | 2.0 HP |
| Lifting Time | 65s |
| Height Settings | overall height 122 1/2" |
| Power Unit | 071102 |
| Shipping Carton | 115" x 23" x 37" |
| Shipping Weight | 2,238 lbs |
Installation Requirements
- Concrete: Heavier arms need a full 4-1/4" of 3,000 psi concrete
- Power: 208-230V single-phase sized for the heavier power unit
- Overhead: Clear the raised BP-12 column and its shut-off hardware
- Anchoring: Heavy-duty wedge anchors to the manual's torque figure
AMGO 5-3-2 Limited Warranty – BP-12
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - BP-12
Why Buy the BP-12 from Alamo Equipment & Service?
- We install it. Anchors, cables and shut-offs dialed in by our techs.
- We service it. We stock and source the wear parts you'll need.
- We size it with you. We make sure it clears your ceiling first.
- Upgrade guidance. We map the jump from 10k to 12k honestly.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
