AMGO® 12,000 lb Two-Post Lift #OH-12S
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OH-12S |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Clear-Floor Symmetric |
| Overall Height | 143 1/8"–167 1/8" |
| Drive-Thru Clearance | 109 3/4" |
| Motor | 2.0 HP |
- Not published in the AMGO documentation for this model — confirm with Alamo before install (AMGO publishes a spec brochure for the OH-12S; its concrete spec is not stated separately from the OH-12 manual — do not assume)
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- Low-profile: overall height 143 1/8" / 155 1/8" / 167 1/8"
- Built for garages under 14 ft ceiling
- Per-setting workshop-height table not published for this model

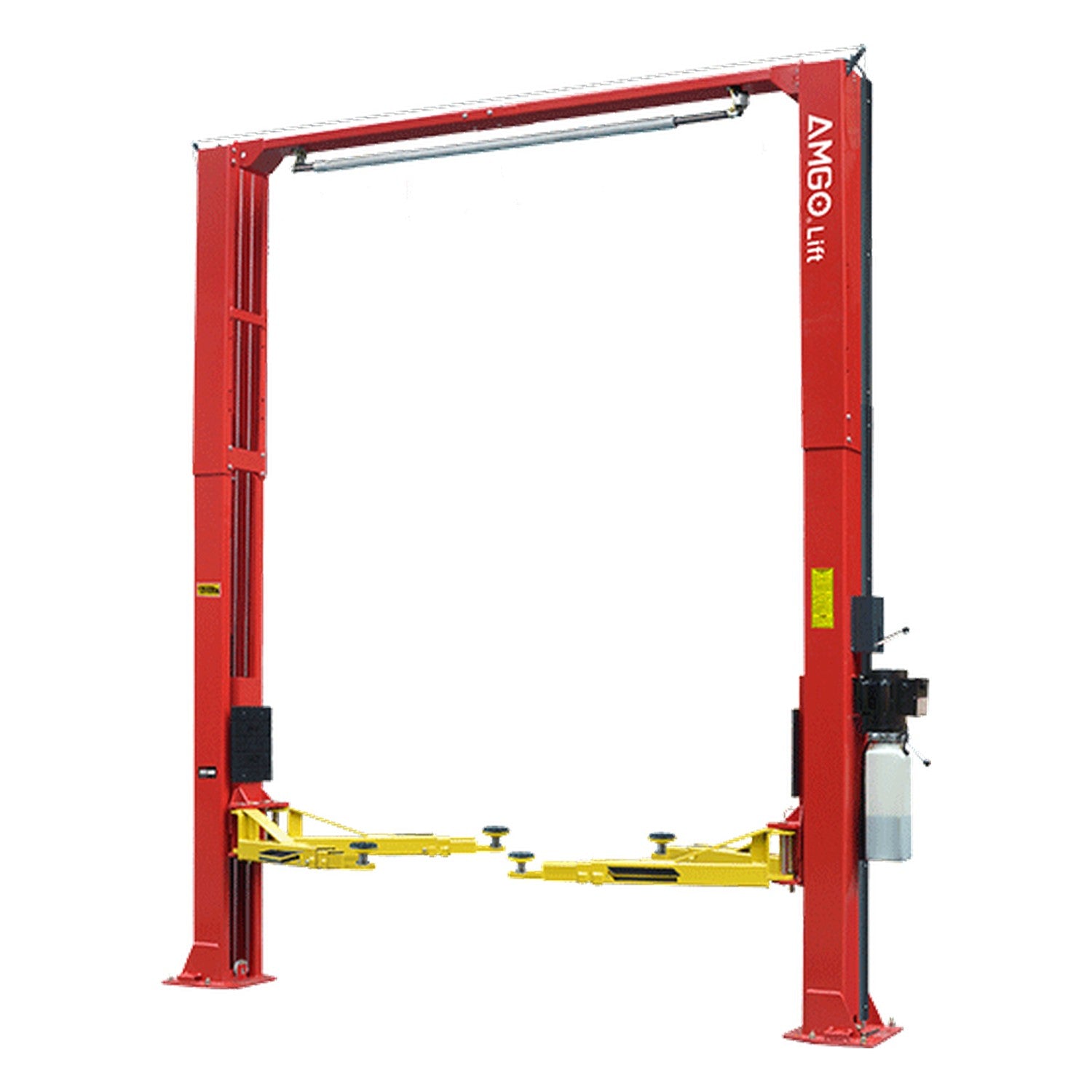

AMGO® OH-12S 12,000 lb Two-Post Lift
The AMGO® OH-12S is a 12,000 lb-capacity clear-floor two-post lift, made for heavy lifting under a lower ceiling. It relies on a direct-drive system and four 3-stage arms, with single-point manual release, overhead safety shut-off, automatic arm restraints. Power unit 071102 is crated with each lift.
Lower height settings (143 1/8"-167 1/8") let the OH-12S fit garages that can't clear a full-height 12,000 lb lift while keeping an open floor.
Who It's Built For
- Low-clearance garages that still need heavy-duty capacity
- Heavier vehicles where garage headroom is limited
- Shops fitting real capacity under a modest ceiling
- Garages trading a bit of height range for lower overall height
- Home-and-commercial hybrids with lower ceilings
What It's NOT Built For
- Anything over the stamped capacity figure
- Any in-ground mounting scheme
- Thin garage slabs that need an upgrade first
- Two-wheel and quad service
- Tire bays with no lifting requirement
Key Differentiator: Heavy-capacity open floor
Lower height settings (143 1/8"-167 1/8") let the OH-12S fit garages that can't clear a full-height 12,000 lb lift while keeping an open floor.
- Heavy lifting under a low garage ceiling
- Shops that need full standard lifting height
OH-12S in the Heavy-Duty Range - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-12 | 12,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-12S | 12,000 lb | Clear-Floor | Direct-Drive | 143 1/8"–167 1/8" | 150 3/4" |
| OH-15 | 15,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-18 | 18,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 151 15/16" |
Not sure whether the standard OH-12 or the low-ceiling OH-12S is the right fit? Alamo will help you check — call (817) 865-3707.
Full Specifications – OH-12S
| Brand | AMGO® Hydraulics |
| Model | OH-12S |
| Part / SKU | ALMAMGOH12S |
| Lifting Capacity | 12,000 lbs |
| Design | Clear-Floor |
| Drive System | Direct-Drive |
| Arms | four 3-stage arms |
| Adapters / Extensions | single-screw rubber pad, 3" and 6" extension adapters (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 143 1/8"–167 1/8" |
| Overall Width | 150 3/4" |
| Drive-Thru Clearance | 109 3/4" |
| Minimum Pad Height | 4 1/2" |
| Motor | 2.0 HP |
| Lifting Time | 69s |
| Height Settings | three lower height settings: 143 1/8" / 155 1/8" / 167 1/8" |
| Power Unit | 071102 |
| Shipping Carton | 114" x 21" x 30" |
| Shipping Weight | 2,233 lbs |
Installation Requirements
- Concrete: Verify 4-1/4" of 3,000 psi even in a lower-ceiling bay
- Power: 208-230V single-phase; compact runs to the power unit
- Overhead: Clear the raised OH-12S column and its shut-off hardware
- Anchoring: Anchor to spec even on a lower-height install
AMGO 5-3-2 Limited Warranty – OH-12S
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - OH-12S
Why Buy the OH-12S from Alamo Equipment & Service?
- We install it. Field crew handles the whole install for you.
- We service it. Repairs and PMs handled by our in-house crew.
- We size it with you. Lower-height options confirmed for tight ceilings.
- Clearance help. We confirm low-height settings suit your garage.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
