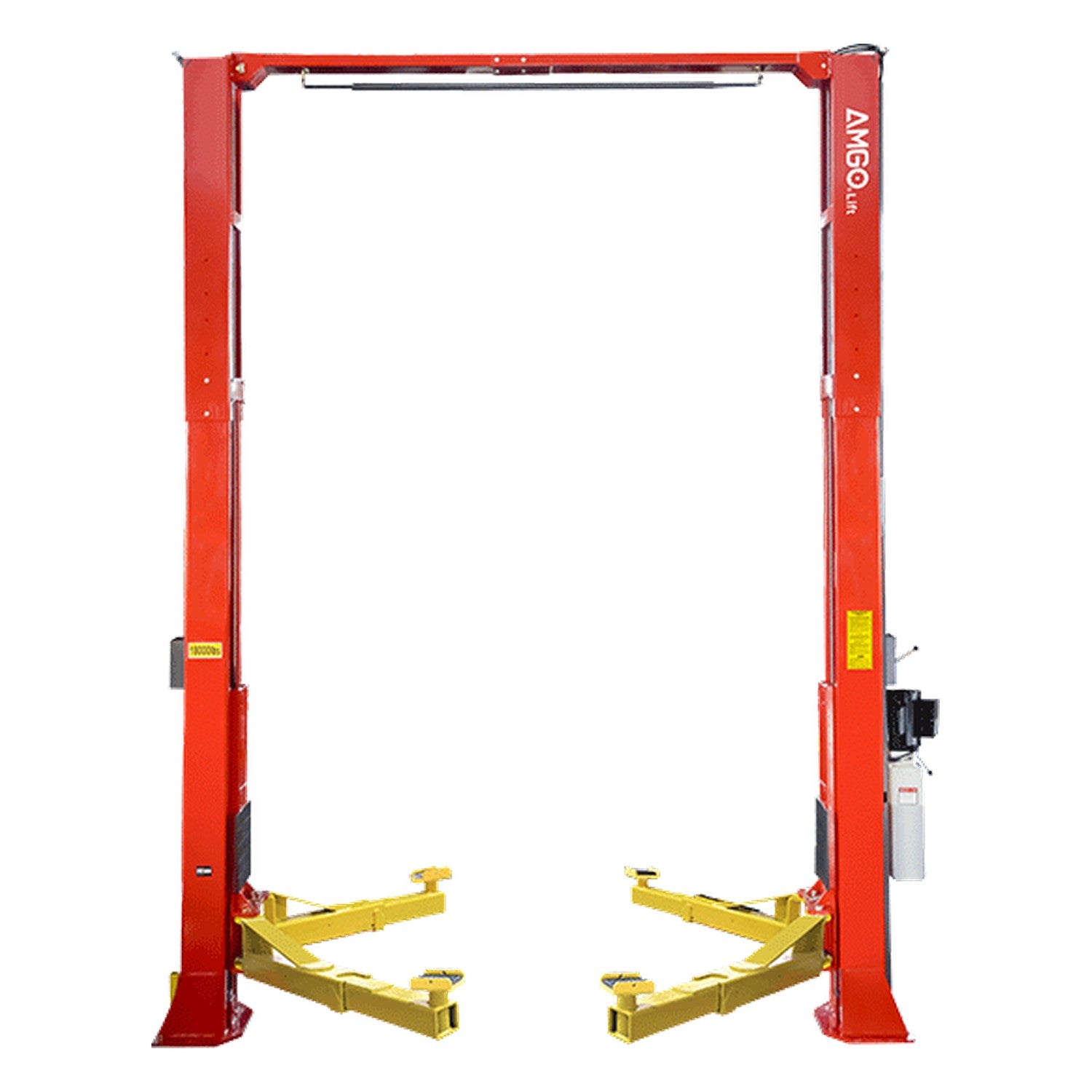

AMGO® 18,000 lb Two-Post Lift #OH-18
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OH-18 |
| Lifting Capacity | 18,000 lbs |
| Lift Type | Clear-Floor Symmetric |
| Overall Height | 174"–198" |
| Drive-Thru Clearance | 110 7/16" |
| Motor | 2.0 HP |
- 5" minimum thickness, 3,500 psi minimum concrete
- No reinforcing steel bars in the anchor zone
- Concrete only — do not install on asphalt
- Single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Voltage and circuit amperage not specified in the AMGO manual — confirm with your electrician
- High setting: workshop over 16.5 ft
- Medium 15.5–16.5 ft; Low 14.5–15.5 ft
- Not suitable under 14.5 ft ceiling
AMGO® OH-18 18,000 lb Two-Post Lift
The AMGO® OH-18 is a 18,000 lb-capacity clear-floor two-post lift, engineered for the largest trucks a shop will see. A robust direct-drive system drives four 2-stage arms, locked in by single-point manual release, overhead safety shut-off, automatic arm restraints. The heavy-duty power unit 071102 ships in the crate.
As the tallest-capacity lift in the line, the OH-18 anchors 18,000 lb vehicles on an open floor with three height settings for full-size fleet work.
Who It's Built For
- The biggest-vehicle bays that routinely lift one-ton-plus trucks
- The heaviest trucks a two-post lift can safely handle
- Operations that demand maximum rated capacity
- The rare bay built to anchor an 18,000 lb lift
- Truck and equipment dealers servicing their own inventory
What It's NOT Built For
- There is no heavier two-post option — do not exceed the rating
- In-ground truck pits
- Unrated or damaged floor slabs
- ATVs and bikes
- Wheel-only workflows
Key Differentiator: Heavy-capacity open floor
As the tallest-capacity lift in the line, the OH-18 anchors 18,000 lb vehicles on an open floor with three height settings for full-size fleet work.
- The heaviest fleet and diesel trucks a shop will lift
- Any bay that never lifts more than a full-size pickup
OH-18 at the Top of the Range - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-12 | 12,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-12S | 12,000 lb | Clear-Floor | Direct-Drive | 143 1/8"–167 1/8" | 150 3/4" |
| OH-15 | 15,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-18 | 18,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 151 15/16" |
At the top of AMGO's two-post range, fit and floor prep matter more than ever — call Alamo at (817) 865-3707 to confirm before you buy.
Full Specifications – OH-18
| Brand | AMGO® Hydraulics |
| Model | OH-18 |
| Part / SKU | ALMAMGOH18 |
| Lifting Capacity | 18,000 lbs |
| Design | Clear-Floor |
| Drive System | Direct-Drive |
| Arms | four 2-stage arms |
| Adapters / Extensions | single-screw rubber pad and saddle adapter, 3" and 6" extension adapters (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 174"–198" |
| Overall Width | 151 15/16" |
| Drive-Thru Clearance | 110 7/16" |
| Minimum Pad Height | 6 7/8" |
| Motor | 2.0 HP |
| Lifting Time | 84s |
| Height Settings | three height settings: 174" / 186" / 198" |
| Power Unit | 071102 |
| Shipping Carton | 134" x 23" x 37" |
| Shipping Weight | 2,895 lbs |
Installation Requirements
- Concrete: Max-capacity anchoring demands a verified 4-1/4" 3,000 psi slab
- Power: 208-230V single-phase; verify service ahead of an 18k install
- Overhead: Clear the raised OH-18 column and its shut-off hardware
- Anchoring: Wedge anchors for the 18k columns, torqued to spec
AMGO 5-3-2 Limited Warranty – OH-18
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - OH-18
Why Buy the OH-18 from Alamo Equipment & Service?
- We install it. Big-truck lift, big install — we own it start to finish.
- We service it. Full lifecycle support for your biggest lift.
- We size it with you. We plan anchor points for an 18k lift correctly.
- Max-duty advice. We confirm your shop can support the heaviest lift.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
