AMGO® 15,000 lb Two-Post Lift #OH-15
Shipping information
Enter your delivery ZIP code to see priced freight options for this item. Rates match checkout exactly.
AMGO® Hydraulics shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OH-15 |
| Lifting Capacity | 15,000 lbs |
| Lift Type | Clear-Floor Symmetric |
| Overall Height | 174"–198" |
| Drive-Thru Clearance | 109 3/4" |
| Motor | 2.0 HP |
- 5" minimum thickness, 3,500 psi minimum concrete
- No reinforcing steel bars in the anchor zone
- Concrete only — do not install on asphalt
- Single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Voltage and circuit amperage not specified in the AMGO manual — confirm with your electrician
- High setting: workshop over 16.5 ft
- Medium 15.5–16.5 ft; Low 14.5–15.5 ft
- Not suitable under 14.5 ft ceiling

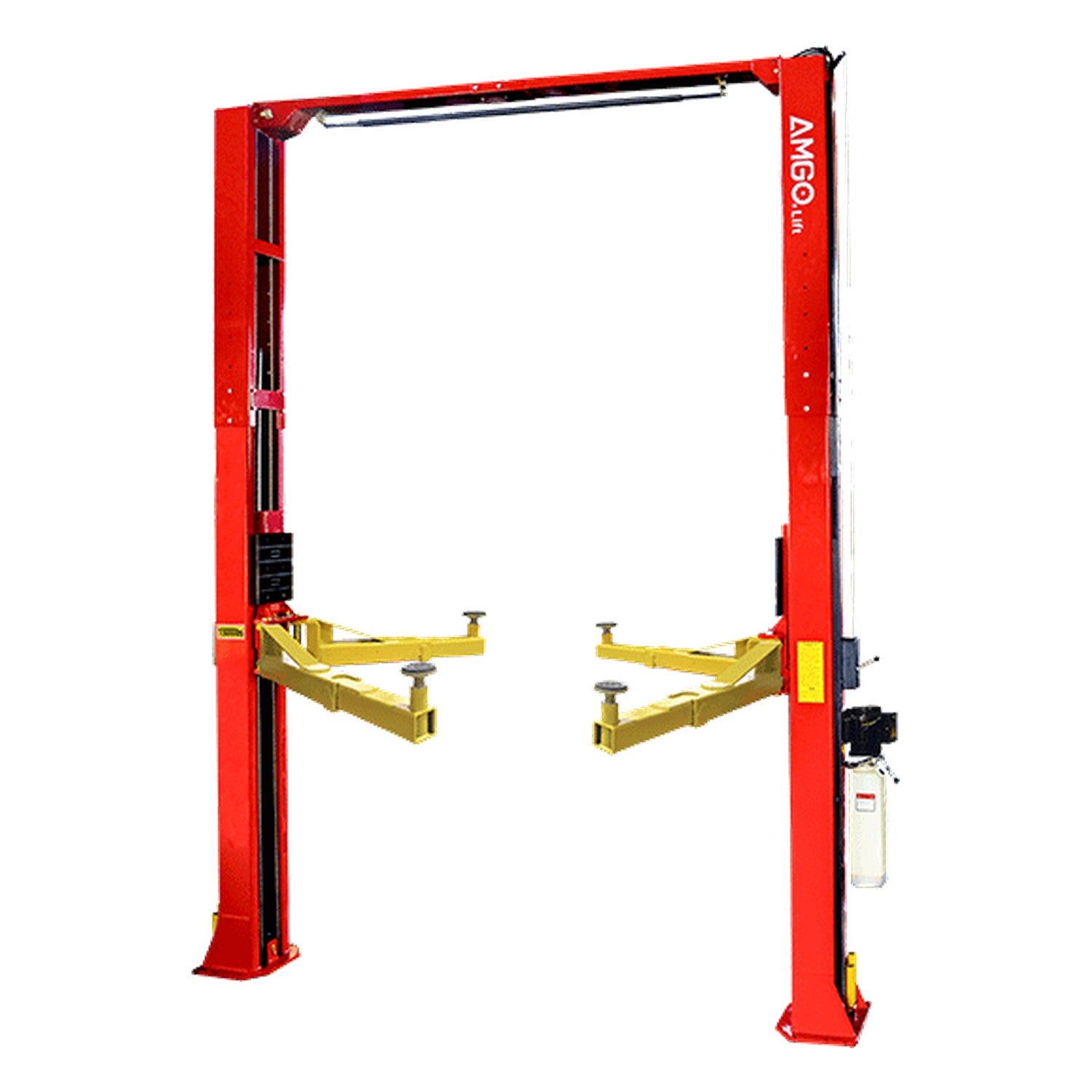

AMGO® OH-15 15,000 lb Two-Post Lift
The AMGO® OH-15 is a 15,000 lb-capacity clear-floor two-post lift, built for demanding fleet and diesel work. Lift power is direct-drive, moving four 2-stage arms, backed by single-point manual release, overhead safety shut-off, automatic arm restraints. Its matched power unit (071102) is included.
Two-stage arms and dual pad/saddle adapters give the OH-15 a firm 15,000 lb grip with three selectable heights for heavy trucks and vans.
Who It's Built For
- Fleet and diesel shops handling large trucks daily
- Larger trucks and commercial vehicles at the rated load
- Diesel and fleet techs who lift heavy every day
- Alignment and driveline jobs on heavy trucks
- Medium-duty fleets consolidating on one heavy lift
What It's NOT Built For
- Loads beyond the rated tonnage
- Below-floor or flush installations
- Concrete that hasn't fully cured
- Motorcycles — see our cycle lifts
- Balance-and-mount-only stations
Key Differentiator: Heavy-capacity open floor
Two-stage arms and dual pad/saddle adapters give the OH-15 a firm 15,000 lb grip with three selectable heights for heavy trucks and vans.
- Large trucks and vans needing selectable heights
- Light-duty bays where 15,000 lb is overkill
OH-15 Against the Heavy Lineup - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-12 | 12,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-12S | 12,000 lb | Clear-Floor | Direct-Drive | 143 1/8"–167 1/8" | 150 3/4" |
| OH-15 | 15,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-18 | 18,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 151 15/16" |
Comparing 15,000 lb capacity against the lineup's other heavy-duty options? Call Alamo at (817) 865-3707 before you order.
Full Specifications – OH-15
| Brand | AMGO® Hydraulics |
| Model | OH-15 |
| Part / SKU | ALMAMGOH15 |
| Lifting Capacity | 15,000 lbs |
| Design | Clear-Floor |
| Drive System | Direct-Drive |
| Arms | four 2-stage arms |
| Adapters / Extensions | single-screw rubber pad and saddle adapter, 3" and 6" extension adapters (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 174"–198" |
| Overall Width | 150 3/4" |
| Drive-Thru Clearance | 109 3/4" |
| Minimum Pad Height | 6 7/8" |
| Motor | 2.0 HP |
| Lifting Time | 84s |
| Height Settings | three height settings: 174" / 186" / 198" |
| Power Unit | 071102 |
| Shipping Carton | 114" x 22" x 42" |
| Shipping Weight | 2,423 lbs |
Installation Requirements
- Concrete: Truck-duty loads require 4-1/4"+ of 3,000 psi concrete
- Power: 208-230V single-phase; confirm amperage for truck-duty use
- Overhead: Clear the raised OH-15 column and its shut-off hardware
- Anchoring: Truck-duty wedge anchoring to AMGO's stated torque
AMGO 5-3-2 Limited Warranty – OH-15
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (817) 865-3707 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
Frequently Asked Questions - OH-15
Why Buy the OH-15 from Alamo Equipment & Service?
- We install it. Heavy-lift install done right by our service team.
- We service it. Heavy-lift service and inspections available locally.
- We size it with you. Heavy-truck footprint planned around your slab.
- Fleet guidance. We right-size heavy lifts for daily truck loads.
- Freight is calculated and paid at checkout. Only one freight item may be purchased per order. Please place parts or additional freight items in a separate order.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Your LTL freight rate is calculated at checkout. Each order may contain one lift or other freight-shipped item. Please order parts and additional freight items separately.
