AMGO® 12,000 lb Two-Post Lift #OH-12
AMGO shipping quote
Shipping is quoted by destination before payment. Select your options, then request your freight quote.
We will confirm the shipping total before sending a payment link.
| Model | OH-12 |
| Lifting Capacity | 12,000 lbs |
| Lift Type | Clear-Floor Symmetric |
| Overall Height | 174"–198" |
| Drive-Thru Clearance | 109 3/4" |
| Motor | 2.0 HP |
- 5" minimum thickness, 3,500 psi minimum concrete
- No reinforcing steel bars in the anchor zone
- Concrete only — do not install on asphalt
- 220V, 60Hz, single-phase; power unit rated 2.0 HP
- Supply cord 12 AWG or larger, properly grounded
- Circuit amperage not specified by AMGO — have your electrician size the breaker
- High setting: workshop over 16.5 ft
- Medium 15.5–16.5 ft; Low 14.5–15.5 ft
- Not suitable under 14.5 ft ceiling

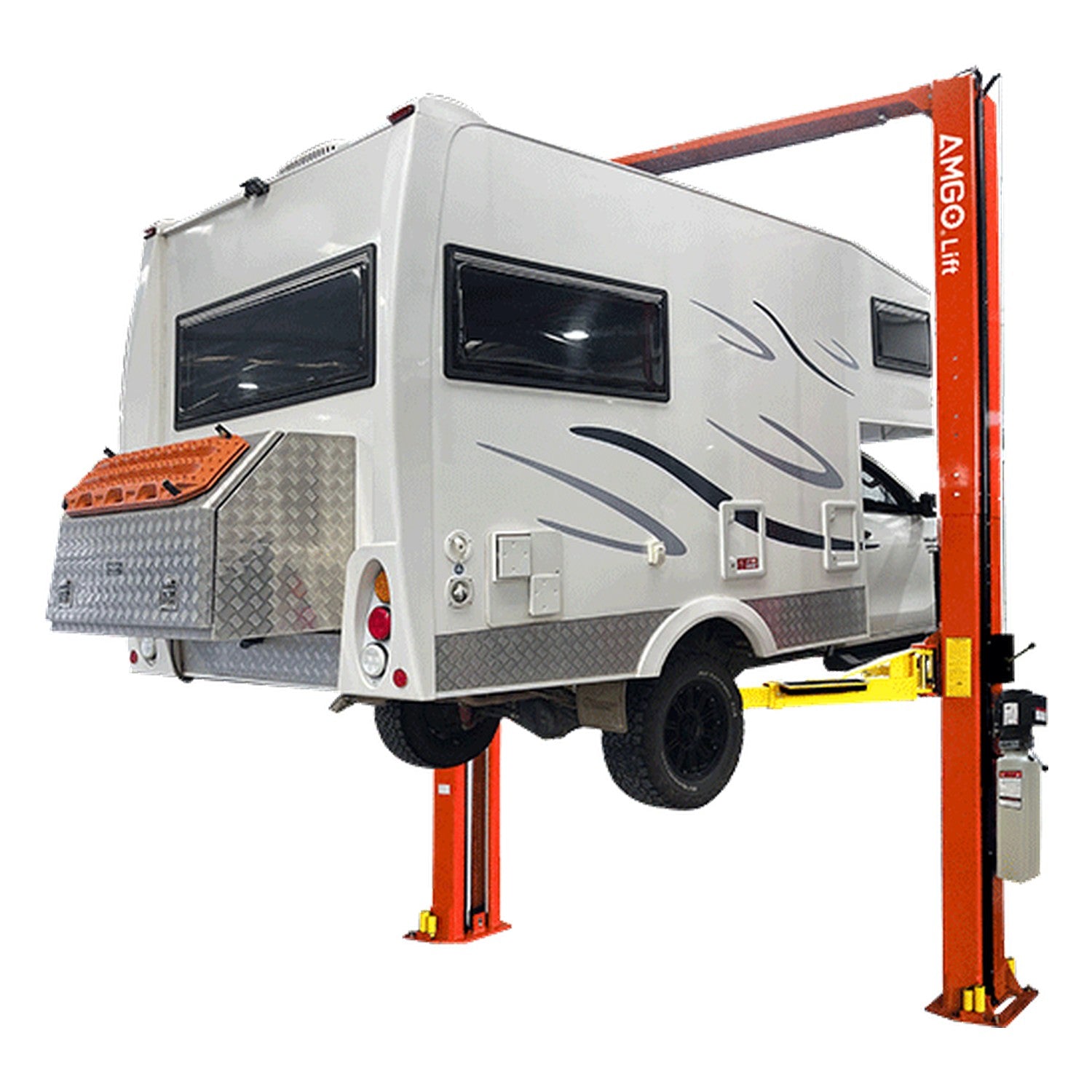

AMGO® OH-12 12,000 lb Two-Post Lift
The AMGO® OH-12 is a 12,000 lb-capacity clear-floor two-post lift, engineered for open-floor service on big vehicles. A direct-drive drivetrain works four 3-stage arms, safeguarded by single-point manual release, overhead safety shut-off, automatic arm restraints. It comes with power unit 071102 ready to connect.
The OH-12 combines 12,000 lb capacity, three selectable heights and a fully open floor for driveline work on big trucks.
Who It's Built For
- Heavy-line bays that need an open floor under big vehicles
- Full-size trucks, vans and heavier SUVs
- Crews that hate tripping over a floor cross-bar
- Driveline and alignment work needing full floor clearance
- Commercial accounts that need capacity and clear access
What It's NOT Built For
- Vehicles above the rated maximum weight
- Flush-floor designs; this mounts on the slab
- Floors below the required psi rating
- Powersport lifts belong to a different product line
- Wheel-service benches
Key Differentiator: Heavy-capacity open floor
The OH-12 combines 12,000 lb capacity, three selectable heights and a fully open floor for driveline work on big trucks.
- Heavy driveline and alignment work with open access
- Light-duty-only bays that never exceed 10,000 lb
OH-12 vs Other Heavy Clear-Floor Lifts - Which AMGO Lift Is Right for Your Shop?
| Model | Capacity | Design | Drive | Overall Height | Overall Width |
|---|---|---|---|---|---|
| OH-12 | 12,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-12S | 12,000 lb | Clear-Floor | Direct-Drive | 143 1/8"–167 1/8" | 150 3/4" |
| OH-15 | 15,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 150 3/4" |
| OH-18 | 18,000 lb | Clear-Floor | Direct-Drive | 174"–198" | 151 15/16" |
All models stay inside Alamo's catalog. Call (844) 480-6059 and we will help you decide before ordering.
Full Specifications – OH-12
| Brand | AMGO® Hydraulics |
| Model | OH-12 |
| Part / SKU | ALMAMGOH12 |
| Lifting Capacity | 12,000 lbs |
| Design | Clear-Floor |
| Drive System | Direct-Drive |
| Arms | four 3-stage arms |
| Adapters / Extensions | single-screw rubber pad and saddle adapter, 3" and 6" extension adapters (2" pin) |
| Safety | single-point manual release, overhead safety shut-off, automatic arm restraints |
| Overall Height | 174"–198" |
| Overall Width | 150 3/4" |
| Drive-Thru Clearance | 109 3/4" |
| Minimum Pad Height | 4 1/2" |
| Motor | 2.0 HP |
| Lifting Time | 69s |
| Height Settings | three height settings: 174" / 186" / 198" |
| Power Unit | 071102 |
| Shipping Carton | 114" x 22" x 42" |
| Shipping Weight | 2,454 lbs |
Installation Requirements
- Concrete: 4-1/4" minimum 3,000 psi slab for open-floor loading
- Power: 208-230V single-phase for the direct-drive cylinders
- Overhead: Clear the raised OH-12 column and its shut-off hardware
- Anchoring: Wedge anchors torqued for open-floor loading
AMGO 5-3-2 Limited Warranty – OH-12
AMGO Hydraulics backs every two-post lift with one of the strongest warranties in the industry, covering defects in materials and workmanship under normal commercial service. Coverage applies across the 48 contiguous states.
| Term | Component Group | What It Covers |
|---|---|---|
| 5 Years | Steel Structure Components | Columns, carriages, lifting arms, top beam, floor cover, platform, cross beam, car drive-in ramp, scissor, base plate |
| 3 Years | Hydraulic Parts | Cylinders, oil seal, oil hose, fittings |
| 2 Years | Other Parts, Electrical & Power Unit | Electrical components and power unit (consumption parts such as rubber pads are excluded) |
Alamo Equipment administers your warranty directly — call (844) 480-6059 and we coordinate parts and claims with AMGO on your behalf.
Coverage excludes consumable wear items (for example rubber pads) and is voided by installation on non-compliant concrete, loading past the rated capacity, or repairs using non-OEM parts. Confirm exact coverage at the time of purchase.
