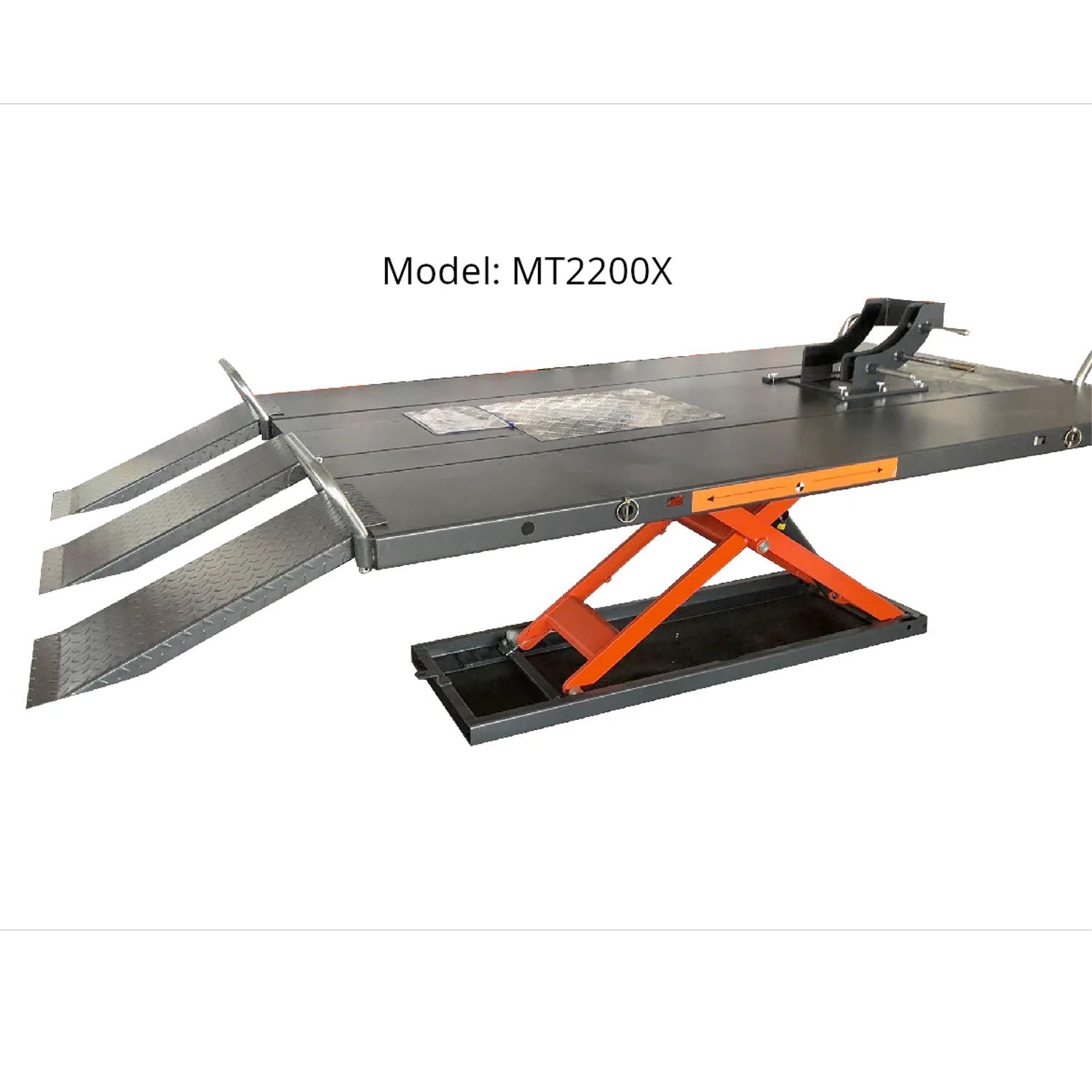

Falcon 61" Wide 2200 lb Electric Hydraulic Lift Table for Motorcycles, ATVs #MT2200X
Couldn't load pickup availability
| Model / Part Number | MT2200X |
| Capacity | 2,200 lbs |
| Lift Type | Electric/hydraulic motorcycle/ATV/UTV/snowmobile lift table, 61" wide with side extensions |
| Lifting Configuration | Automatic safety locking system (7 positions), electric/hydraulic power, drop-out tail |
| Overall Height | 47 1/4" maximum lifting height (table top to ground) |
| Minimum Ceiling Height | 8' |
| Overall Width | 61" with side extensions |
| Drive-Thru Clearance | N/A — motorcycle lift table, not a drive-through configuration |
| Rise Height | 47 1/4" max, 6 5/16" minimum (table top to ground) |
| Motor / Electrical | 110V, 60Hz, single phase — movable power unit station |
| Concrete / Floor Requirement | Standard shop floor — portable design |
- Standard shop floor — portable design
- Verify with Alamo before ordering
- 110V, 60Hz, single phase — movable power unit station
- Have an electrician confirm your circuit before install day
- Plan for 47 1/4" maximum lifting height (table top to ground) overall lift height
- Measure to lowest obstruction, not peak
APlusLift Falcon MT2200X — 2,200 lbs Electric/hydraulic motorcycle/ATV/UTV/snowmobile lift table, 61" wide with side extensions
A standard-width electric lift table runs into the same problem as a standard-width air table: trikes and wider ATVs simply don't sit securely on a narrow platform, no matter how much capacity the lift has. Shops that need both the extra capacity of electric/hydraulic power and a wider platform for these vehicles need a table built for both requirements together.
The APlusLift Falcon MT2200X delivers exactly that — the same 2,200 lb electric/hydraulic capacity as the standard MT2200, but on a 61" platform built with side extensions for trikes and wider ATVs/UTVs. It runs on standard 110V power, so there's no compressed air line to install, and it's a natural upgrade path for shops moving up from the air-operated MT1500 series. Note: this model has shown call-for-availability status — call Alamo at (844) 480-6059 to confirm current stock and lead time before ordering.
Who the MT2200X Is Built For
- Powersports shops servicing trikes and wider ATVs/UTVs that need more platform width than the standard 28" MT2200 table provides
- Shops that want electric/hydraulic power and 2,200 lb capacity without running compressed air to the bay
- Facilities upgrading from an air-operated MT1500-series table to both higher capacity and the convenience of electric power
- Dealerships handling a mixed fleet where trikes and wider vehicles show up regularly enough to justify the extra platform width
- Shops that need the drop-out tail and automatic 7-position locking of the Falcon series, but on a wider footprint than the base MT2200
- Buyers comfortable confirming lead time with Alamo given this model's call-for-availability status
What the MT2200X Is NOT Built For
- ❌ Shops that only service standard-width motorcycles — the base MT2200 costs less without the side extensions
- ❌ Shops with existing air infrastructure already invested in the MT1500 series
Questions about fit or capacity? Call Alamo at (844) 480-6059.
What Makes the MT2200X Different
2,200 lbs Capacity, 47 1/4" of Rise
The MT2200X carries the same 2,200 lb capacity as the standard MT2200, delivered on a 61" platform wide enough for trikes and wider ATVs/UTVs. Rise height runs from a 6 5/16" minimum up to 47 1/4", giving full standing-height clearance for underside work.
Automatic Locking and a Drop-Out Tail for Real Service Work
The MT2200X uses the same automatic 7-position safety locking system, electric/hydraulic power, and drop-out tail found on the standard MT2200 — the drop-out tail lets a tech pull the rear wheel and swingarm without fighting the table structure, a real advantage over fixed-platform tables.
Standard 110V Power — No Shop Air Line Needed
The MT2200X runs on standard 110V, 60Hz single-phase power through a movable power unit station, with no compressed air line required. It sits on a standard shop floor thanks to its portable design. Overall height is 47 1/4" at full lift — confirm your bay clearance with Alamo before ordering.
Atlas Build Quality Backed by a Real Warranty
The MT2200X carries Atlas's 2-year (24 months) parts warranty. Warranty service runs through Alamo — call (844) 480-6059 for any claim or service question, so a shop is never stuck waiting on a manufacturer hotline.
A Wider 61" Footprint for Trikes and Wider ATVs
Overall width is 61" with side extensions — noticeably wider than the standard MT2200, built for trikes and wider ATVs/UTVs that need the extra platform. Confirm this footprint against your bay before ordering; Alamo will walk through the numbers with you.
- ✅ Powersports shops servicing trikes and wider ATVs/UTVs that need more than the standard 28" table width
- ✅ Shops that want electric/hydraulic power (2,200 lb capacity) without running compressed air to the table
- ✅ Facilities upgrading from an air-operated MT1500-series table to higher capacity and electric convenience
- ❌ Shops that only service standard-width motorcycles — the base MT2200 costs less without the side extensions
- ❌ Shops with existing air infrastructure already invested in the MT1500 series
MT2200X vs. Falcon MT2200 (28" Wide) — Which Lift Is Right for Your Shop?
| Decision Point | MT2200X | Falcon MT2200 (28" Wide) |
|---|---|---|
| Width | 61" with side extensions | 28" (no side extensions) |
| Capacity | 2,200 lbs | 2,200 lbs |
| Best fit | Trikes and wider vehicles needing extra width | Standard motorcycles, compact footprint |
Choose the MT2200X for the extra 61" width when servicing trikes and wider powersports vehicles. Choose the base MT2200 if 28" of width covers your typical vehicle mix — it costs less. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — MT2200X
| Model / Part Number | MT2200X |
| Capacity | 2,200 lbs |
| Lift Type | Electric/hydraulic motorcycle/ATV/UTV/snowmobile lift table, 61" wide with side extensions |
| Lifting Configuration | Automatic safety locking system (7 positions), electric/hydraulic power, drop-out tail |
| Overall Height | 47 1/4" maximum lifting height (table top to ground) |
| Minimum Ceiling Height | 8' |
| Overall Width | 61" with side extensions |
| Drive-Thru Clearance | N/A — motorcycle lift table, not a drive-through configuration |
| Rise Height | 47 1/4" max, 6 5/16" minimum (table top to ground) |
| Motor / Electrical | 110V, 60Hz, single phase — movable power unit station |
| Concrete / Floor Requirement | Standard shop floor — portable design |
| Warranty | 2-year (24 months) — parts only |
| Adjustable Table Lengths | 86 5/8" - 102 3/8" |
| Table Length with Approach Ramp | 128" |
| Removable Approach Ramps | 26"L x 12"W (3 included) |
| Drop Out Tail | 20" x 20" |
| Side Extension Size | 86 5/8"L x 16 1/2"W |
| Distance Between Ramps | 10" |
⚠️ Installation Requirements
- Ceiling height: Plan for 47 1/4" maximum lifting height (table top to ground) overall lift height; measure to the lowest obstruction.
- Electrical: 110V, 60Hz, single phase — movable power unit station; consult an electrician for exact breaker sizing.
- Floor / Concrete: Standard shop floor — portable design.
- Bay width: Confirm 61" with side extensions floor width clearance; measure before ordering.
- Surface anchoring: Anchor per manufacturer specification where applicable — do not skip anchoring on production bays.
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
APlusLift Falcon Warranty — MT2200X
Atlas backs the MT2200X with its published warranty terms for this model — verified from Atlas’s own product documentation (manufacturer-web source). Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the MT2200X and should not be assumed to apply to other Atlas models.
| Component | Coverage Term |
|---|---|
| All components | 2 years (24 months) |
| Labor / normal wear / consumables | Not covered |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — MT2200X
What does the side extension add to the MT2200X?
It widens the table to 61", fitting trikes and wider vehicles that the base 28" MT2200 table can't accommodate.
How many ramps come with the MT2200X?
Three 26" long removable approach ramps, spaced 10" apart, are included.
Does the MT2200X need a shop air line?
No — it's electric/hydraulic on 110V single-phase power, no compressed air required.
Is the MT2200X always in stock?
Availability varies — this model has shown call-for-availability status; call Alamo at (844) 480-6059 to confirm current stock before ordering.
Why Buy the MT2200X from Alamo Equipment & Service?
- We install it. Every APlusLift Falcon MT2200X we sell can be professionally installed by our team — we set up the power unit station, wire the 110V circuit, mount the side extensions, and confirm the drop-out tail and locking system work correctly before we leave.
- We service it. When the MT2200X needs attention after install, call (844) 480-6059 — not a manufacturer hotline.
- We size it with you. Not sure if the 61" MT2200X gives you enough width for your trikes and ATVs, or if the standard MT2200 covers your fleet? Call and we'll walk through your measurements.
- Free shipping. The MT2200X ships free to all 48 contiguous states.
- Expert comparison help. Not sure if the wider MT2200X or the standard-width Falcon MT2200 is the right fit? Call (844) 480-6059 — we'll give you a straight answer, including current availability on this model.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
