APlusLift Falcon 2600lb Electric Vehicle Battery Lift - EL-26HM
Couldn't load pickup availability
| Model / Part Number | EL-26HM |
| Capacity | 2,600 lbs |
| Lift Type | Electric vehicle battery pack lift table, dual-platform design |
| Lifting Configuration | Tiltable and dividable working platform, dual-speed lifting, 24V magnetic remote control |
| Overall Height | 71 1/4" maximum lifting height (to table top) |
| Minimum Ceiling Height | 8' |
| Overall Width | 35 7/16" overall width |
| Drive-Thru Clearance | N/A — EV battery service table, not a drive-through configuration |
| Rise Height | 71 1/4" max, 31 1/2" lowered height (to table top) |
| Motor / Electrical | 110V, 60Hz, single phase, built-in power unit |
| Concrete / Floor Requirement | Standard shop floor — mobile on 8" castors |
- Standard shop floor — mobile on 8" castors
- Verify with Alamo before ordering
- 110V, 60Hz, single phase, built-in power unit
- Have an electrician confirm your circuit before install day
- Plan for 71 1/4" maximum lifting height (to table top) overall lift height
- Measure to lowest obstruction, not peak

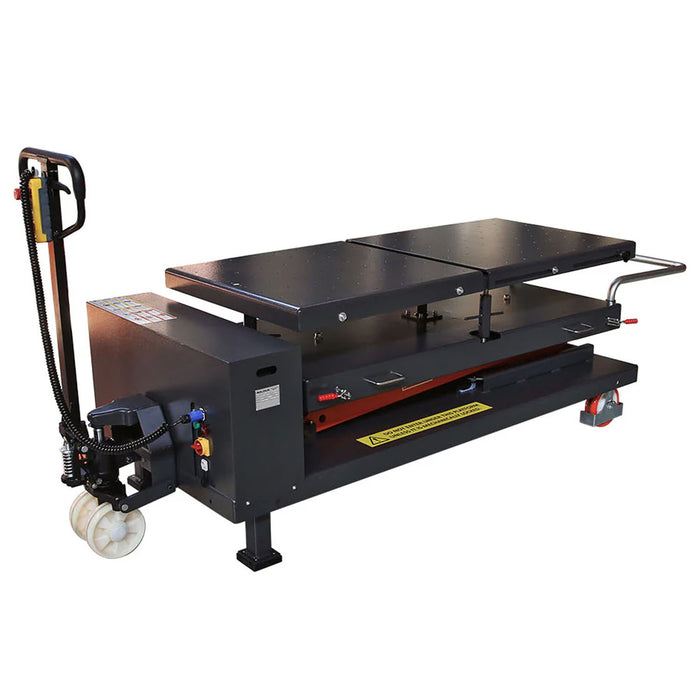

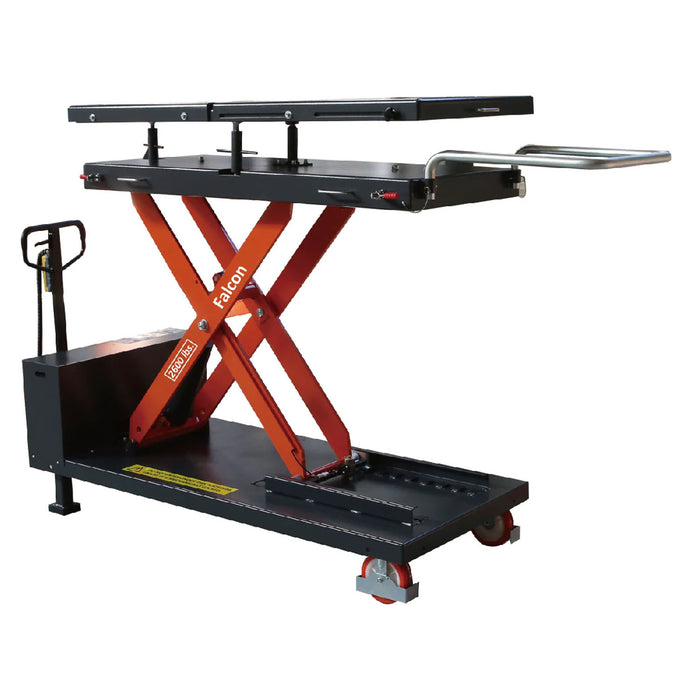

APlusLift Falcon EL-26HM — 2,600 lbs Electric vehicle battery pack lift table, dual-platform design

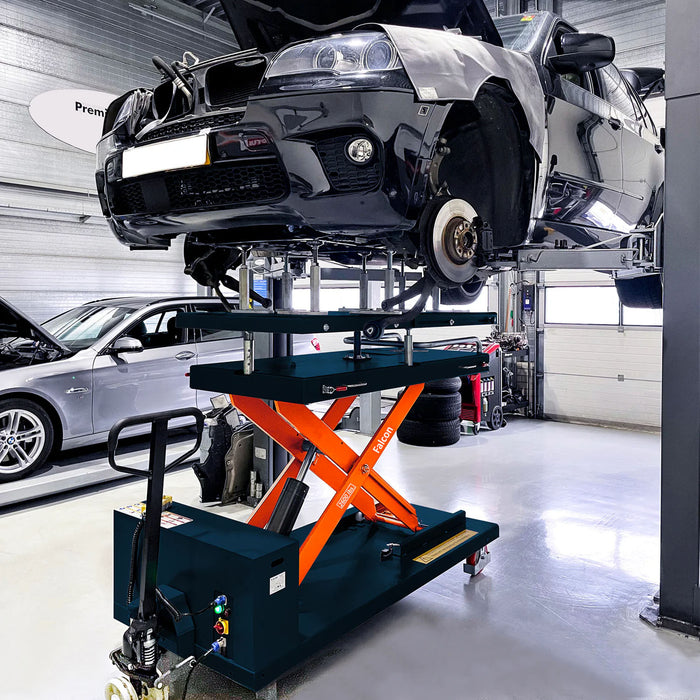

EV battery packs are heavy, awkward, and unforgiving of a shortcut — a shop trying to pull one with a standard transmission jack or an improvised rig is one slip away from a damaged pack or an injured tech. As EV service volume grows, shops need equipment purpose-built for battery removal and installation, not a workaround borrowed from combustion-engine service.
The APlusLift Falcon EL-26HM is a 2,600 lbs electric vehicle battery pack lift table with a dual-platform, tiltable design built specifically for that job. It also pulls double duty on traditional drivetrain and chassis work — engines, gearboxes, drive axles, fuel tanks, and suspension components all benefit from the same controlled, tiltable lifting platform. Call Alamo at (844) 480-6059 for details on fit, install, and pricing.
Who the EL-26HM Is Built For
- EV service shops that need a dedicated, purpose-built table for removing and installing battery packs safely, without relying on improvised jack setups
- Independent shops adding EV service capability alongside traditional combustion-engine work, where the same table handles engine, gearbox, drive axle, fuel tank, and suspension component removal
- Facilities wanting a tiltable platform to control battery pack angle during removal and installation — critical when packs don't sit flat relative to the vehicle underbody
- Dealership service departments servicing a growing share of EV and hybrid models where a dedicated battery table justifies the investment
- Shops that need the dual-speed lifting and 24V magnetic remote control for precise positioning during a delicate pull, not just raw lifting power
- Facilities wanting a mobile, caster-mounted table that can move between bays rather than a fixed installation
What the EL-26HM Is NOT Built For
- ❌ Shops needing to lift an entire vehicle — this table is purpose-built for battery packs and drivetrain components, not full-vehicle service
- ❌ Facilities without 110V single-phase power at the install location
Questions about fit or capacity? Call Alamo at (844) 480-6059.
What Makes the EL-26HM Different
2,600 lbs Capacity for Full-Size EV Battery Packs
The EL-26HM handles battery packs and drivetrain components up to 2,600 lbs — enough capacity for the vast majority of EV battery packs on the road today. Rise height runs from a 31 1/2" lowered height (to table top) up to 71 1/4" at full extension, giving a tech real working range whether the pack is coming from a lift bay or a low-clearance vehicle.

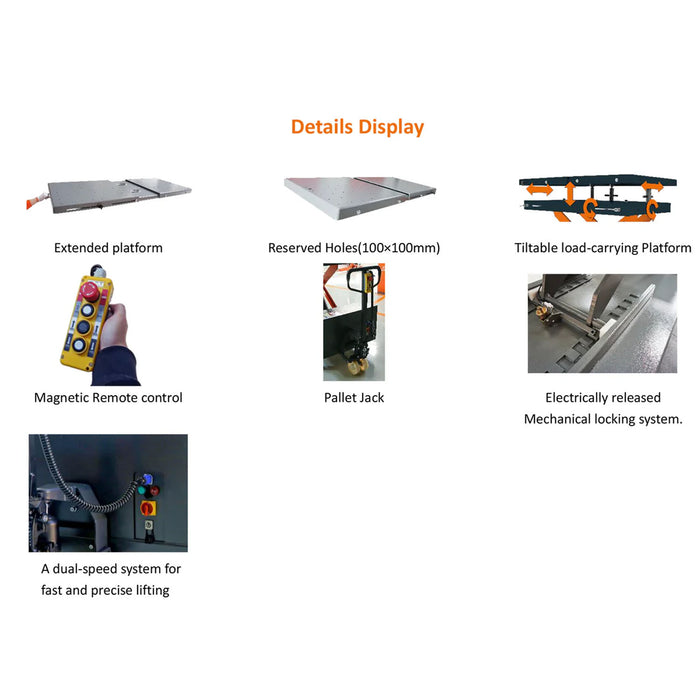

A Tiltable, Dividable Platform Built for Precision Work

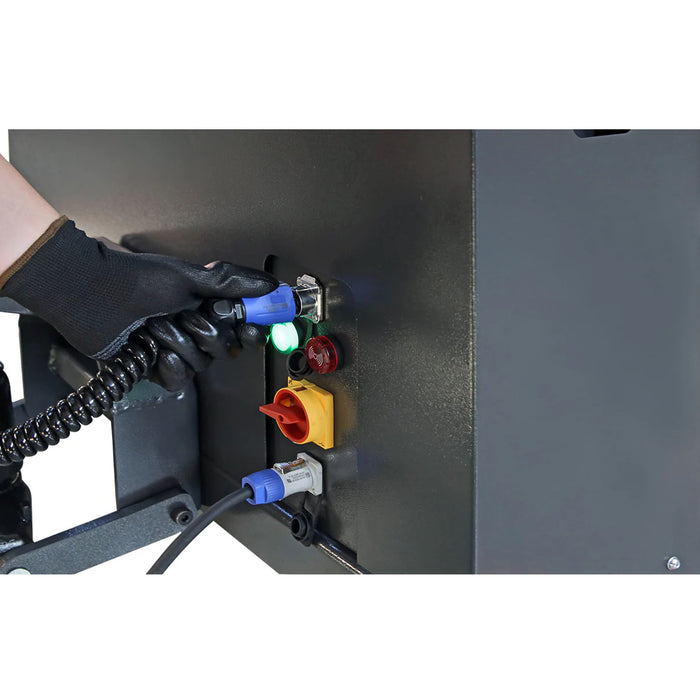

The EL-26HM's working platform tilts and divides, letting a tech angle the battery pack to match the vehicle's mounting geometry during removal and installation instead of forcing a flat, awkward approach. Dual-speed lifting and a 24V magnetic remote control give fine positioning control — critical when a multi-thousand-dollar battery pack is a few inches from expensive chassis components.
Standard 110V Power, No Special Floor Prep
The EL-26HM runs on standard 110V, 60Hz single-phase power through its built-in power unit — no special electrical work needed. It's mobile on 8" casters and sits on a standard shop floor, so it can move between bays as EV service demand shifts. Overall height at full lift is 71 1/4" — confirm your bay clearance with Alamo before ordering.
Atlas Build Quality Backed by a Real Warranty
The EL-26HM carries Atlas's 3-year (36 months) parts warranty — solid coverage for a table doing some of the most precision-critical lifting in a modern service bay. Warranty service runs through Alamo — call (844) 480-6059 for any claim or service question.
A Compact 35 7/16" Footprint That Moves Where You Need It
Overall width is 35 7/16", compact enough to store in a corner bay and roll out only when EV battery work comes in. Confirm this footprint against your bay before ordering; Alamo will walk through the numbers with you.
- ✅ EV service shops that need a dedicated table for removing and installing battery packs safely
- ✅ Shops also using the table for engine, gearbox, drive axle, fuel tank, suspension, and chassis component work on traditional vehicles
- ✅ Facilities wanting a tiltable platform to control battery pack angle during removal and installation
- ❌ Shops needing to lift an entire vehicle — this table is purpose-built for battery packs and drivetrain components, not full-vehicle service
- ❌ Facilities without 110V single-phase power at the install location
EL-26HM vs. Atlas EVBL3310 Battery Lifting Table — Which Battery Table Is Right for Your Shop?
| Decision Point | EL-26HM | Atlas EVBL3310 |
|---|---|---|
| Capacity | 2,600 lbs | 3,300 lbs |
| Platform design | Fixed 68 9/16"L platform, tilts and divides, 12 13/16" extension | Expandable 68 1/4"–79 3/4" length, tilts ±5.1° L/R, ±2.2° F/R |
| Control | 24V magnetic remote, dual-speed lifting | Wired remote (lift + tilt) |
| Mobility | Mobile on 8" casters, pallet-jack base | Reinforced legs, portable |
| Warranty | 3-year (36 months), parts only | 2yr structural / 2yr hydraulic / 1yr power unit / 90-day wear |
Choose the EL-26HM for a longer parts warranty and 24V remote-controlled dual-speed lifting if precision positioning matters more than raw capacity. Choose the EVBL3310 for more capacity (3,300 lbs) and a longer expandable platform when you're handling larger packs or components. Not sure which fits your service mix? Call (844) 480-6059 and we'll walk through your specific packs and components.
Full Specifications — EL-26HM
| Model / Part Number | EL-26HM |
| Capacity | 2,600 lbs |
| Lift Type | Electric vehicle battery pack lift table, dual-platform design |
| Lifting Configuration | Tiltable and dividable working platform, dual-speed lifting, 24V magnetic remote control |
| Overall Height | 71 1/4" maximum lifting height (to table top) |
| Minimum Ceiling Height | 8' |
| Overall Width | 35 7/16" overall width |
| Drive-Thru Clearance | N/A — EV battery service table, not a drive-through configuration |
| Rise Height | 71 1/4" max, 31 1/2" lowered height (to table top) |
| Motor / Electrical | 110V, 60Hz, single phase, built-in power unit |
| Concrete / Floor Requirement | Standard shop floor — mobile on 8" castors |
| Warranty | 3-year (36 months) — parts only |

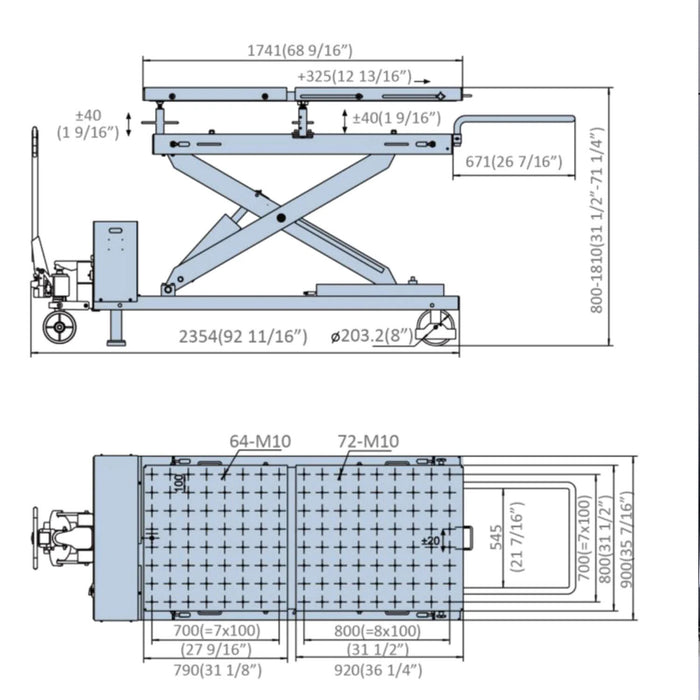

| Working Platform Size | 68 9/16"L x 35 7/16"W |
| Platform Extension | 12 13/16" in length |
| Reserved Holes on Platform | 4"x4" (100mm x 100mm) for fixture mounting |
| Overall Length with Handle | 119" |
| Castor Size | D8" |
| Electrical Cable Length | 23 ft |
| Shipping Weight | 1,900 lbs |
⚠️ Installation Requirements
- Ceiling height: Plan for 71 1/4" maximum lifting height (to table top) overall lift height; measure to the lowest obstruction.
- Electrical: 110V, 60Hz, single phase, built-in power unit; consult an electrician for exact breaker sizing.
- Floor / Concrete: Standard shop floor — mobile on 8" castors.
- Bay width: Confirm 35 7/16" overall width floor width clearance; measure before ordering.
- Surface anchoring: Anchor per manufacturer specification where applicable — do not skip anchoring on production bays.
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
APlusLift Falcon Warranty — EL-26HM
Atlas backs the EL-26HM with its published warranty terms for this model — verified from Atlas’s own product documentation (manufacturer-web source). Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the EL-26HM and should not be assumed to apply to other Atlas models.
| Component | Coverage Term |
|---|---|
| All components | 3 years (36 months) |
| Labor / normal wear / consumables | Not covered |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — EL-26HM
What is the EL-26HM designed to do?
It's built specifically for removing and installing electric vehicle battery packs, plus engine, gearbox, drive axle, fuel tank, suspension, and chassis components on traditional vehicles.
Can the platform tilt?
Yes — the working platform tilts to help safely position battery packs during removal and installation.
How is the EL-26HM controlled?

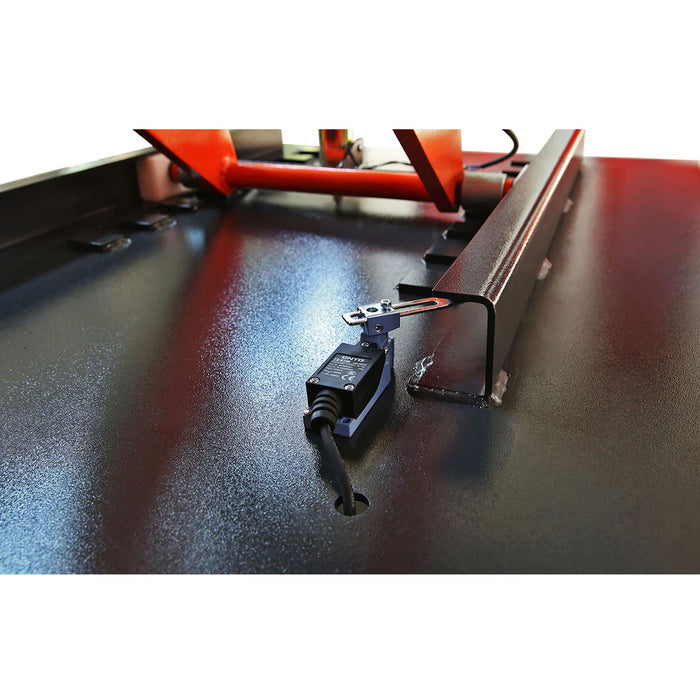

A 24V magnetic remote control operates the lift, with an electrically released mechanical locking system for safety.
Is the EL-26HM mobile?
Yes — it's mounted on a pallet jack base with large castors for easy repositioning around the shop.
Why Buy the EL-26HM from Alamo Equipment & Service?
- We install it. Every APlusLift Falcon EL-26HM we sell can be professionally installed by our team — we set it up, wire the 110V circuit, and walk your techs through the tilt/divide controls and remote before we leave.
- We service it. When the EL-26HM needs attention after install, call (844) 480-6059 — not a manufacturer hotline.
- We size it with you. Not sure if the EL-26HM's 2,600 lb capacity covers the EV battery packs you're servicing? Call and we'll walk through your fleet mix and bay layout.
- Free shipping. The EL-26HM ships free to all 48 contiguous states.
- Expert comparison help. Not sure if a dedicated EV battery table like the EL-26HM fits your service mix, or if you need a heavier-duty lift for full-vehicle work too? Call (844) 480-6059 — we'll give you a straight answer.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Warranty Information
- 3-Year Structural Components Warranty
- 1-year Parts Warranty
