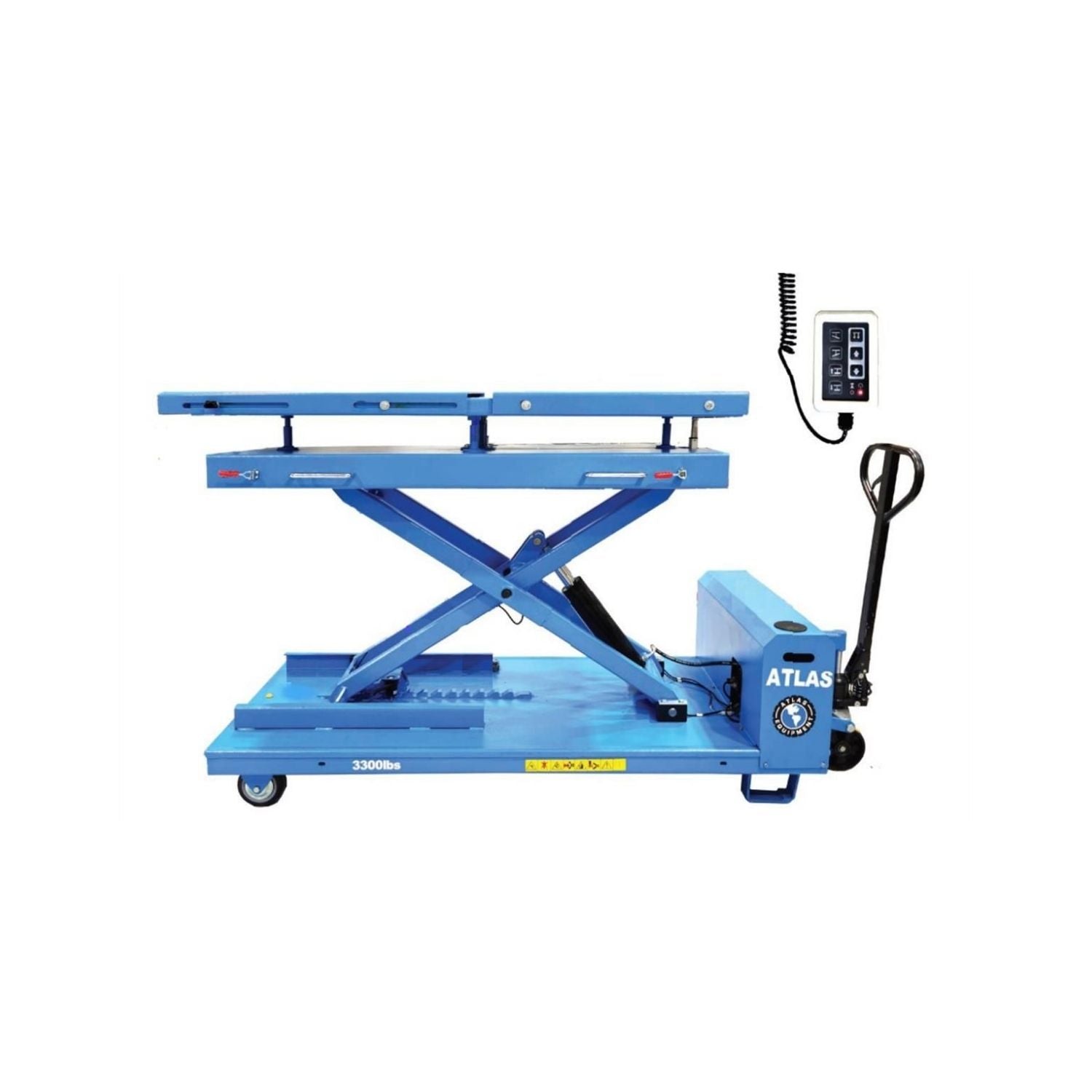

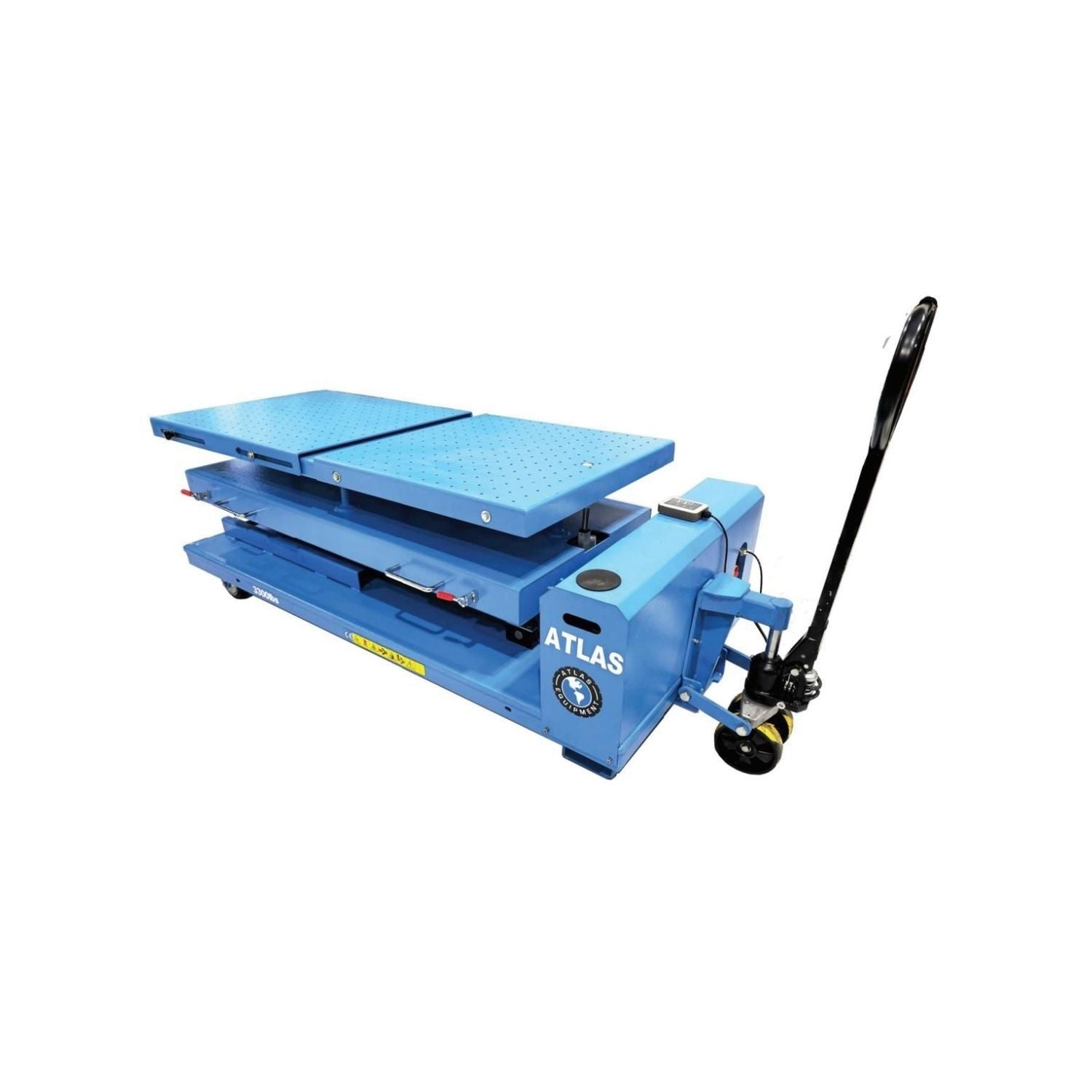

Atlas Electric Battery Lifting Table #ATEATTD-EVBL3310-FPD

Atlas Electric Battery Lifting Table #ATEATTD-EVBL3310-FPD

Pulling and positioning an EV battery pack with a floor jack and improvised blocking is a real safety risk — packs run several hundred pounds, sit in awkward mounting geometry, and don't forgive an unstable lift. The Atlas EVBL3310 is built to solve that directly: a 3,300 lb electric/hydraulic lifting table with an expandable, tilting platform designed to support and reposition battery packs and other heavy components safely.

The EVBL3310 runs on 110V power, ships with a wired remote for lift and tilt control, and includes a mechanical safety lock ladder so the platform doesn't rely on hydraulic pressure alone once it's positioned. Threaded mounting holes across the tabletop accept fixture adapters (sold separately) to secure the pack during transport.

Who the EVBL3310 Is Built For

• The EV shop that's been pulling battery packs with a floor jack and a stack of wood blocks, risking a dropped pack and a technician injury on every removal
• The independent shop adding EV service to its lineup and needing one table that also earns its keep on transmission and transfer-case R&R between EV jobs
• The tech who needs to tilt a pack to clear a subframe or crossmember during removal, not just raise and lower it in a flat plane
• The shop standardizing on a wired remote so the operator can step clear of a suspended pack while positioning it, instead of reaching under load
• The multi-bay shop that wants one mobile table it can roll between service bays instead of committing floor space to a fixed lift for occasional EV work

What the EVBL3310 Is NOT Built For

• ❌ Shops that need a fixed 2-post or 4-post vehicle lift — this is a component/battery table, not a vehicle lift
• ❌ Packs or components heavier than 3,300 lbs — a higher-capacity table or shop crane is the right tool
• ❌ Bays without a 110V circuit rated for the recommended 30-amp breaker

What Makes the EVBL3310 Different

110V Electric/Hydraulic Operation

Runs on external 110V power — no shop air or 220V circuit required to lift, tilt, or reposition a battery pack or major component.

Expandable, Tilting Platform

Platform length adjusts from 68 1/4" to 79 3/4" and tilts up to ±5.1° left/right and ±2.2° front/rear, so the table matches the geometry of the pack instead of forcing the pack to match the table.

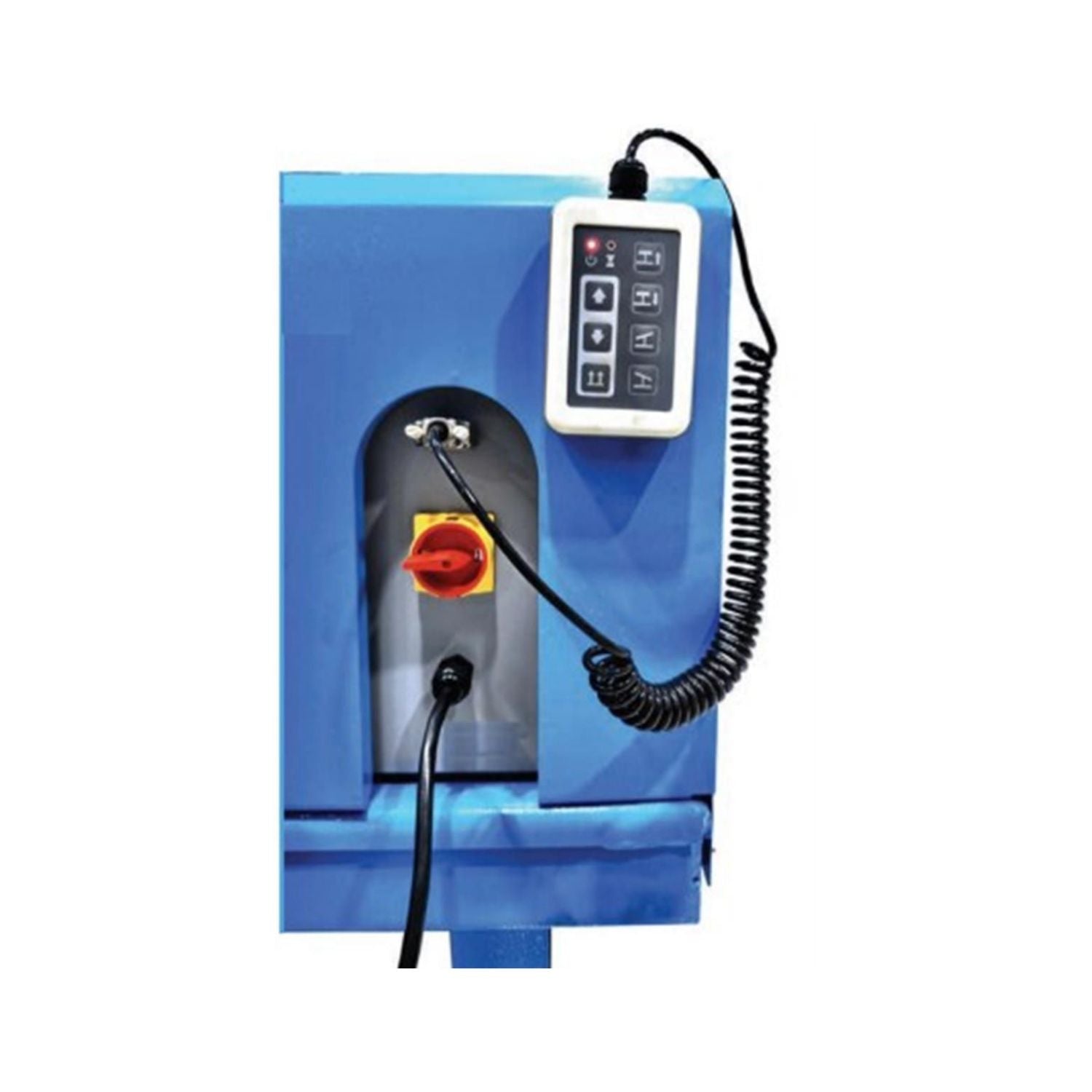

Wired Remote Control

Lift and tilt functions run from a wired remote, so a tech can position the platform without standing directly under a suspended battery pack.

Threaded Accessory Mounting Holes

50mm center-to-center threaded holes across the tabletop accept fixture adapters (sold separately) for securing packs and awkward components during transport.

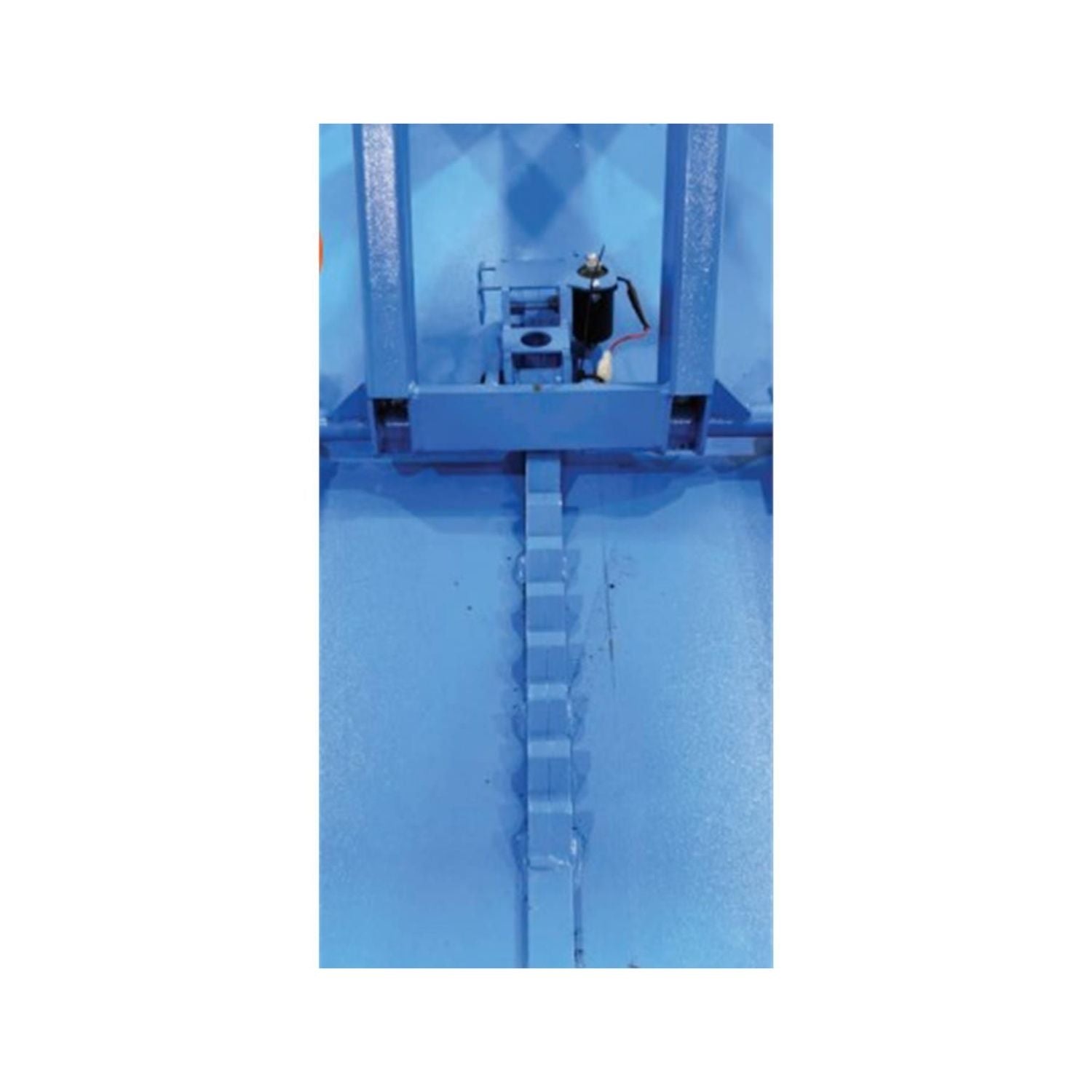

Built-In Safety Lock Ladder

A mechanical lock ladder with manual release holds the platform at height — the table doesn't rely on hydraulic pressure alone to keep a multi-hundred-pound pack from settling.

Portable, Reinforced Design

Reinforced legs and a mobile base let one table cover EV battery service, transmission work, and other heavy-component jobs across multiple bays.

Full Specifications — EVBL3310

Atlas Warranty — EVBL3310

Atlas backs the EVBL3310 with the following coverage terms.

Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it. Confirm exact terms at the time of purchase.
