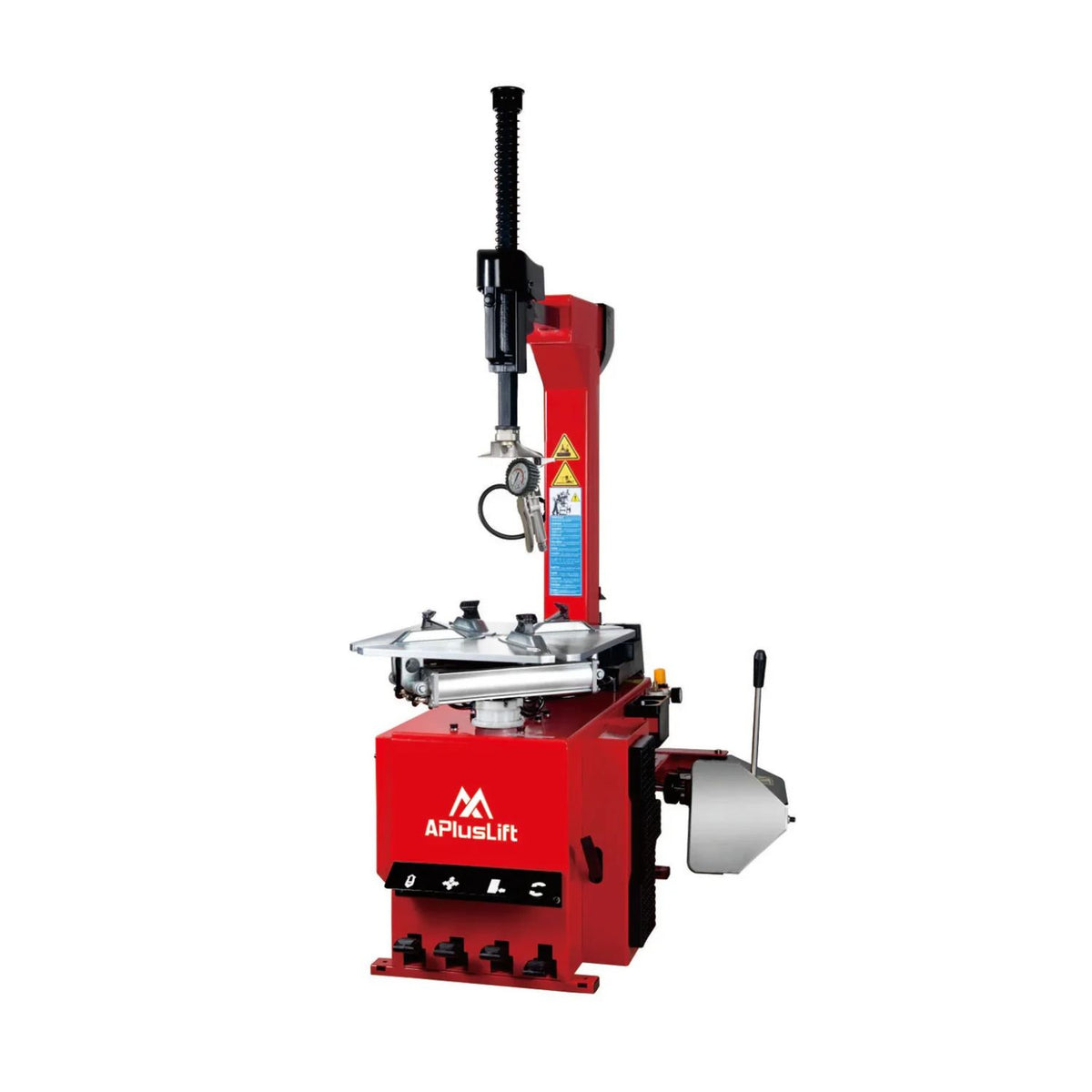

APlusLift TFW-26 Tire Changer #TFW-26

APlusLift TFW-26 — Tire Changer with Four-Angle Directional Pressing Shovel

Some tires don't want the shovel where the shovel usually sits — wide AT tires, awkward sidewall profiles, and the oddball jobs where a fixed pressing angle means fighting the bead instead of pressing it. The APlusLift TFW-26 is built around that problem: a four-angle directional pressing shovel that adjusts to the tire, on a 26-inch-turntable chassis with the big-tire numbers (45-inch diameter, 16-inch width).

It clamps 12–23 inches outside (14–26 inside), breaks beads with a 5,600-pound pneumatic piston at 120 PSI, runs on 110 volts with the plug included, and carries the same one-piece casting jaws and CE certification as the rest of the line.

Who the APlusLift TFW-26 Is Built For

• Shops working wide AT/MT and awkward-profile tires — the four-angle directional shovel adjusts its pressing position to the tire instead of forcing the tire to the tool.
• Light-truck tire specialists — 45" tire diameter and 16" of width on a 26" turntable covers the rubber the 24"-turntable models turn away.
• Shops that want shovel flexibility without the THA-28's help-arm package — the TFW-26's differentiator is the directional shovel, priced between the TSA-24 and the full THA-28.
• Plug-in buyers — 110 volts, plug included; the directional-shovel machine that installs itself.
• Shops with a mostly-truck mix — the clamping range (12"–23" external, 14"–26" internal) is aimed at truck and SUV wheels rather than custom 26" rims.

What the APlusLift TFW-26 Is NOT Built For

This is not for 24-inch-plus external rims — the THA-28's 26" external clamping is the big-rim machine; the TFW-26 tops out at 23" external. It has no bead blaster (the THA-28 carries one) and its noise spec runs under 75 dB — louder than the 60 dB siblings, worth knowing in a shared space.

Important sizing note: check your rim mix against the 12"–23" external / 14"–26" internal clamping range, confirm 120 PSI air, and plan a 110V outlet before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.

What Makes the APlusLift TFW-26 Different

The four-angle directional shovel — the point of the machine

The pressing shovel adjusts across four directional angles, meeting the tire where the bead needs pressing instead of at one fixed point.

• Four-angle directional shovel
• Adjustable pressing positions
• 26" turntable chassis

Big-tire numbers on a plug-in machine

45" tire diameter, 16" width, 5,600 lb pneumatic bead-break at 120 PSI — light-truck capability on a 110V plug-in build.

Same honest construction

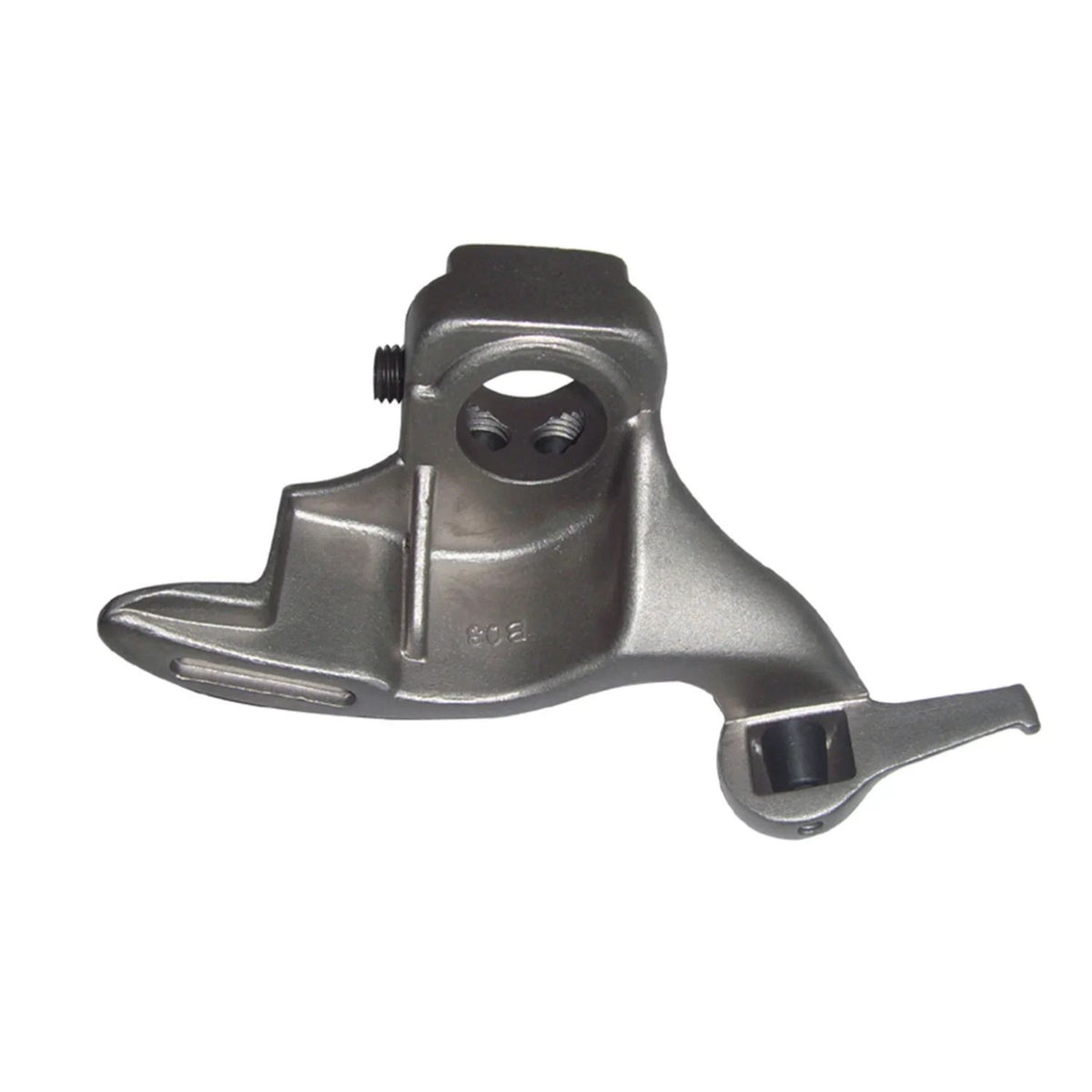

One-piece casting jaws, powder coat, CE certification — the TFW-26 shares the line's build quality and skips only what it doesn't need.

Best For

• Wide AT/MT tire work
• Truck / SUV wheel mixes
• Shovel flexibility
• 110V plug-in

Not Ideal For

• Rims over 23" ext (see THA-28)
• Bead-blaster requirements (see THA-28)
• Very quiet-space installs (<75 dB, not <60)

TFW-26 vs THA-28 — the 26-inch-turntable pair

Same big-tire chassis class — the THA-28 is the full big-rim package; the TFW-26 is the directional-shovel specialist.

Full Specifications - APlusLift TFW-26

APlusLift Warranty - APlusLift TFW-26

APlusLift backs the TFW-26 with a one-year warranty, handled through Alamo.

Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.

Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
