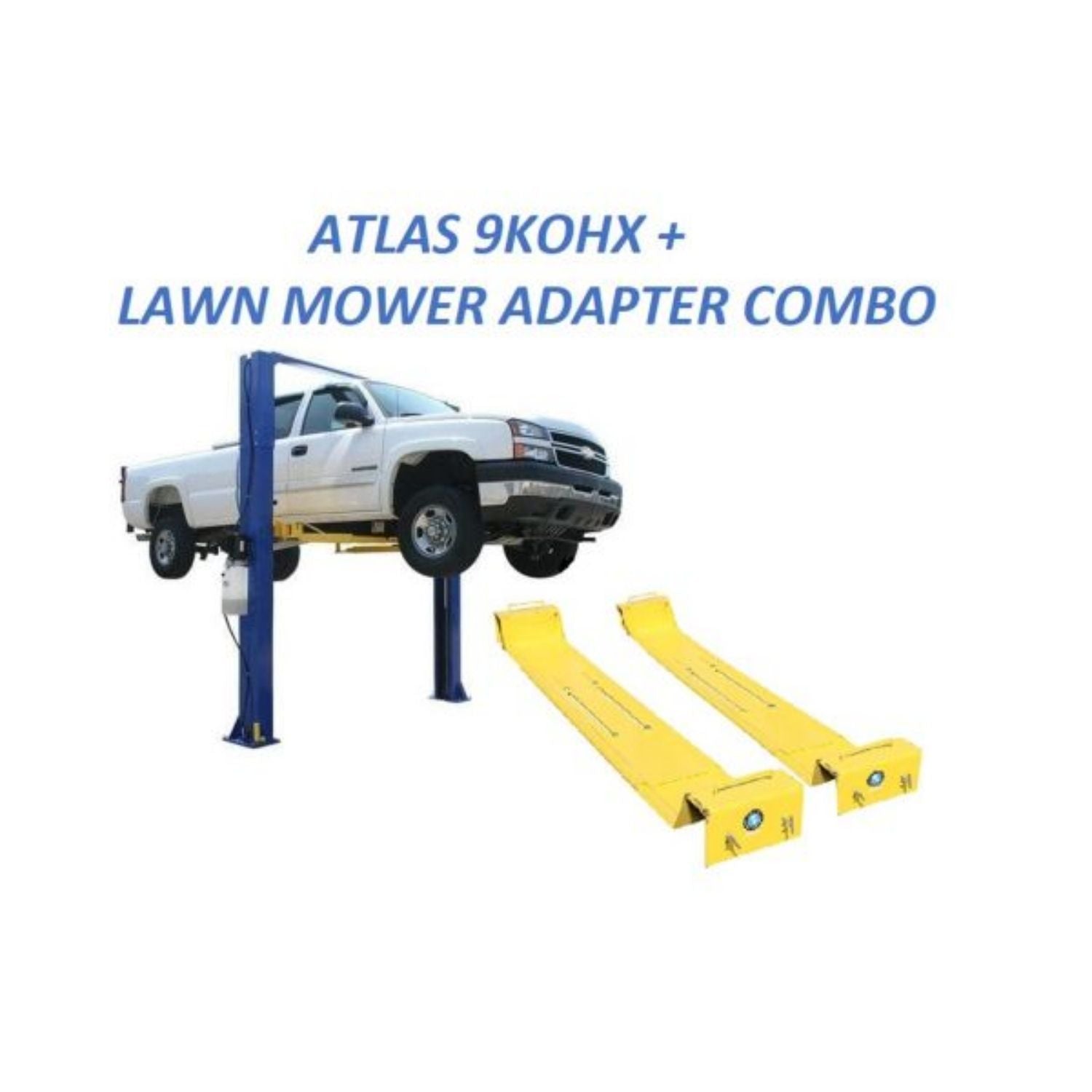

Atlas® 9KOHX Lift w/ Lawn Mower Adapter Combo #ATEXH-9KOHX-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® 9KOHX Lift w/ Lawn Mower Adapter Combo is a versatile lifting solution designed for automotive repair shops, homeowners, and equipment service facilities that need dependable lifting capability for both vehicles and lawn equipment. This combo package includes the Atlas® 9KOHX overhead two-post lift along with a lawn mower adapter system for servicing zero-turn mowers, lawn tractors, ATVs, and other outdoor power equipment.

  The Atlas® 9KOHX lift features a 9,000 lb lifting capacity, overhead design for improved floor clearance, dual hydraulic cylinders, and a single-point lock release system for efficient vehicle lifting operations. The included lawn mower adapter expands the lift’s functionality by allowing operators to safely raise lawn and garden equipment for maintenance, repairs, and blade servicing.

  Built for professional and residential applications, this combo package provides a durable and practical lifting solution for automotive and outdoor equipment service operations.

• FEATURES AND BENEFITS

  • Combo includes 9KOHX 9,000 lb. capacity lift and Lawn Mower Adapter
  • Overhead, Open-Floor design
  • Overall Height: 138" (11' 6") or 142" (11' 10")
  • Asymmetric/Symmetric Arms
  • Automatic Arm Restraints
  • Dual-Point Lock Release
  • Rubber Guards on Carriages
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System
  • Free 8 Piece Truck Adapter Set
  • Free set of Sliding Arm Adapters
  • Mounting Hardware Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEXH-9KOHX-COMBO-FPD
  Dimensions:	114" L × 72" W × 22" H
  Weight:	2050 lbs
  UPC:	810524026680
  Country of Origin:	CHN

  Atlas® 9KOHX Specifications

  Capacity:	9,000 LB.
  Overall Height:	138" (11' 6") or 142” (11' 10”)
  Overall Floor Width:	134 1/2" (11' 2 1/2")
  Outside Column to Outside Column:	124 7/8" (10' 4 7/8")
  Maximum Lift Height (Without Adapters):	74 1/2"
  Maximum Lift Height (With Adapters):	81"
  Minimum Arm Height:	4"
  Inside Column:	110” (9' 2”)
  Drive Thru:	100” (8' 4”) Symmetric / 90 1/2" (7' 6 1/2”) Asymmetric
  Column Size:	7 1/4" x 11"
  Column Thickness of Steel:	5mm
  Base Of Lift:	14 1/4" x 18"
  Motor/Electrical Requirement:	220 volt single (1) phase (A 30 amp breaker is recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)
  Shipping Weight:	1,450 LBS.
  Adapter Heights:	4 Each 1.5”, 5”
  Arm Hole/Adapter Peg Size:	1.5”
  Concrete Requirement:	Requires a minimum of 4" of concrete with a 3000 psi. rating

  The Atlas® LMA Specifications (VARY BY LIFT AND WHEELBASE)

  Capacity:	Up to 5,000 lbs
  Adjusts in Width:	8' to 11'
  Wheel Base:	32" to 90"
  Wheel Well Width:	12"
  Thickness of Steel:	3/16"
  Shipping Weight:	600 lbs.
  Will fit lift arms up to:	5 1/2" wide

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
