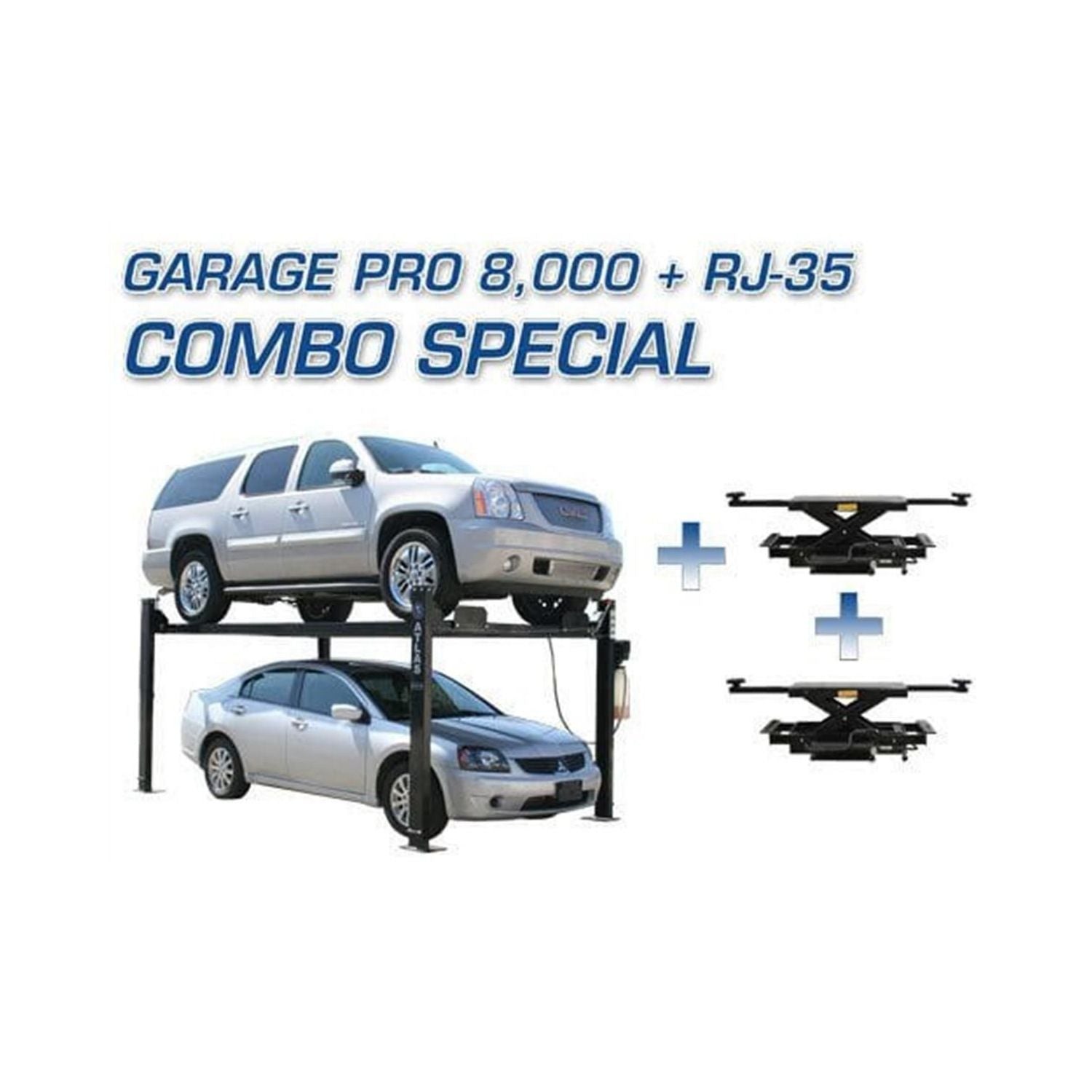

Atlas® Garage PRO8000 & RJ35 Lift Combo #ATEXH-PRO8-COMBO-FPD
Couldn't load pickup availability
Atlas Automotive Equipment Shipping
Equipment: Free shipping
Parts: Standard tiered rate
| Model / Part Number | ATEXH-PRO8-COMBO-FPD |
| Combo Includes | 1x Garage PRO8000 4-Post Lift (8,000 lbs) + 2x RJ35 Sliding Jacks (3,500 lbs each) |
| Lift Capacity | 8,000 lbs |
| Overall Column Height | 83" (6' 11") |
| Bay Width | 104 1/2" (8' 8 1/2") w/o motor |
| Warranty | 2-Yr Structural / 1-Yr Hydraulic (Lift, Parts Only) |
- 4" minimum reinforced slab (6" preferred for production bays)
- 6" preferred for production bays
- Must be fully cured before anchor installation
- 110V, 30-amp breaker required
- Have an electrician run a drop to the bay before install day
- Plan for 83" (6' 11") overall column height
- Floor width 104 1/2" (8' 8 1/2") w/o motor
- Measure to lowest obstruction, not peak
Atlas® Garage PRO8000 & RJ35 Lift Combo #ATEXH-PRO8-COMBO-FPD
Storing a vehicle on a standard 4-post lift is one thing — servicing it without a floor jack awkwardly wedged under the frame is another. The Atlas® Garage PRO8000 Combo pairs an 8,000 lb 4-post storage lift with two RJ35 sliding jacks, so wheel-free brake, tire, and suspension work is built into the same setup.
The lift runs on standard 110V power with a 30-amp breaker — no special 220V circuit required. Each RJ35 jack ships with its own truck adapter set. Call Alamo at (844) 480-6059 to confirm your bay's floor space and electrical before you order.
Who the Garage PRO8000 Combo Is Built For
- ✅ A collector storing a project vehicle who's been sliding a floor jack under the frame for brake work, wanting the wheels genuinely free of the runway instead
- ✅ A buyer without a 220V circuit in the garage yet who wants a real 4-post lift and jack setup running on the 110V outlet already there
- ✅ Someone who looked into buying an RJ35 jack on its own and discovered it isn't sold separately anywhere at Alamo — this combo is the only path to get one
- ✅ A home garage owner comparing this against the taller PRO8000EXT and confirming the standard 72-inch lifting height is enough clearance for their vehicle
- ✅ An enthusiast who wants a caster kit, jack tray, and drip trays included standard rather than sourcing shop organization accessories piecemeal afterward
What the Garage PRO8000 Combo Is NOT Built For
- ❌ Shops needing more than 8,000 lb capacity — the 412 or 414 combos step up to 12,000/14,000 lbs
- ❌ Shops needing extra-tall vehicle storage clearance — see the Garage PRO8000EXT Combo for a taller platform
- ❌ Applications needing alignment turntables — this is a storage/service lift, not an alignment lift
What Makes the Garage PRO8000 Combo Different
Heavy-Duty Steel Construction & Diamond-Plated Runways
Steel construction and textured diamond-plate decking improve durability and traction.
Single-Point Lock Release
One release point drops the lift's locks for controlled lowering.
Caster Kit With Polyurethane Wheels Included
The lift ships with a caster kit for relocating within the shop without disassembly.
Steel Approach Ramps, Jack Tray & Drip Trays Included
Ramps, a steel jack storage tray, and drip trays ship standard with the combo.
RJ35 Sliding Jacks Included
Each RJ35 jack ships with its own truck adapter set for wheel-free tire, brake, suspension, and wheel service.
- ✅ Collectors sliding a floor jack under a project vehicle for brake work
- ✅ 110V-only garages without a 220V circuit run yet
- ✅ Buyers who found RJ35 isn't sold on its own anywhere else
- ❌ Shops needing more than 8,000 lbs
- ❌ Taller-vehicle needs — see the PRO8000EXT Combo
- ❌ Alignment work — this is a storage/service lift
Buy the Combo vs. Buy Separately
| Line Item | Price |
|---|---|
| Garage PRO8000 4-Post Lift (8,000 lbs) — standalone | $3,799.00 |
| RJ35 Sliding Jack — standalone (each) | $1,149.00 |
| 2x RJ35 jacks if bought separately | $2,298.00 |
| Lift + 2 jacks bought separately, total | $6,097.00 |
| Garage PRO8000 & RJ35 Lift Combo — this listing | $5,999.00 |
Buying the Garage PRO8000 lift and two RJ35 jacks separately runs $6,097.00 versus $5,999.00 for this combo — a savings of roughly $98.00, plus one purchase instead of two. Call (844) 480-6059 and we will confirm current pricing before you order.
Full Specifications — Garage PRO8000 Combo
Garage PRO8000 4-Post Lift Specifications
| Model / Part Number | ATEXH-PRO8-COMBO-FPD |
| Brand | Atlas® Automotive Equipment |
| UPC | 810524027915 |
| Country of Origin | China |
| Capacity | 8,000 lbs |
| Lifting Height to Top of Runway | 72" (6') |
| Clearance Under Runways | 67" (5' 7") |
| Height of Columns | 83" (6' 11") |
| Overall Width (w/o motor) | 104 1/2" (8' 8 1/2") |
| Overall Width (w/ motor) | 115" (9' 7") |
| Overall Length w/ Approach Ramp | 206 3/4" (17' 2 3/4") |
| Approach Ramp | 37" (3' 1") |
| Runway Width | 21 1/2" w/ rails or 18 3/4" driving surface |
| Runway Length | 165 3/4" (13' 9 3/4") |
| Runway Thickness | 4 1/2" |
| Width Between Runways | 37" (3' 1") |
| Width Between Runway Rails | 31 1/2" (2' 7 1/2") |
| Outside Runway to Outside Runway | 74 5/8" (6' 2 5/8") |
| Clearance Between Columns | 94 1/2" (7' 10 1/2") |
| Length Between Columns | 157 1/2" (13' 1 1/2") |
| Maximum Wheel Base | 153 1/2" (12' 9 1/2") |
| Drive Thru | 80 1/2" (6' 8 1/2") |
| Motor / Electrical | 110V, 30-amp breaker required |
| Shipping Weight | 1,800 lbs |
RJ35 Sliding Jack Specifications (each)
| Model | Atlas® RJ35 Sliding Jack |
| Capacity | 3,500 lbs |
| Lower Extension Width (Between Runway) | 20 1/2" to 47" |
| Top Width (Arms Retracted & Extended) | 39 1/2" to 64 3/4" |
| Min. Pad Height Above Runway | 3 1/2" |
| Lift Pad Height Above Arm | 1 3/8" |
| Max Height Raised w/o Adapter | 11" |
| Max Height Raised w/ Adapters | 17 1/4" |
| Shipping Weight | 350 lbs |
| Adapter Heights | 2 each: 1 1/2", 5" |
| Arm Hole / Adapter Peg Size | 1 1/2" |
⚠️ Installation Requirements
- Ceiling/lift height: Plan for 83" (6' 11") overall column height; measure to the lowest obstruction.
- Electrical: 110V, 30-amp breaker required; consult an electrician for exact breaker sizing.
- Concrete: 4" minimum reinforced slab (6" preferred for production bays); fully cured before anchoring.
- Bay width: Confirm 104 1/2" (8' 8 1/2") w/o motor floor width clearance; measure before ordering.
- Hydraulic oil: Not restated in this combo's source listing — confirm oil type/quantity with Alamo before install.
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Atlas® Warranty — Garage PRO8000 Combo
Atlas® backs the Garage PRO8000 lift with a 2-year structural / 1-year hydraulic warranty (parts only), and the bundled RJ35 jacks under this combo's coverage.
| Component | Coverage Term |
|---|---|
| Structural welds & frame (lift) | 2 years |
| Hydraulic system (lift) | 2 years |
| Power unit / electrical (lift) | 1 year |
| Wear items — lift & jack (pads, hoses, seals) | 90 days |
Warranty service is coordinated through Alamo Equipment & Service — call (844) 480-6059 with any warranty question, and we handle it directly instead of routing you to a manufacturer hotline.
Coverage is subject to Atlas® warranty terms, conditions, and requirements.
Frequently Asked Questions — Atlas® Garage PRO8000 & RJ35 Lift Combo
Why Buy the Garage PRO8000 Combo from Alamo Equipment & Service?
- This combo is the only way to get RJ35 jacks from Alamo. The RJ35 sliding jack isn't sold standalone — this combo is the only way to add wheel-free service capability to your PRO8000 setup from us.
- We deliver and set it up. Our team sizes the Garage PRO8000 Combo to your bay and handles the physical install.
- We service it. When something needs attention after the sale, we're the same people you call — not a national warranty line.
- We help you pick the right unit. At 8,000 lbs lift capacity and $5,999.00, we'll confirm the Garage PRO8000 Combo genuinely matches your needs before you buy.
- We ship it free. Delivered to your shop, no hidden freight fees.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
