Atlas® PRO9000 9K lb. Extra WxHxL 4-Post Lift #ATEXH-PRO9000-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

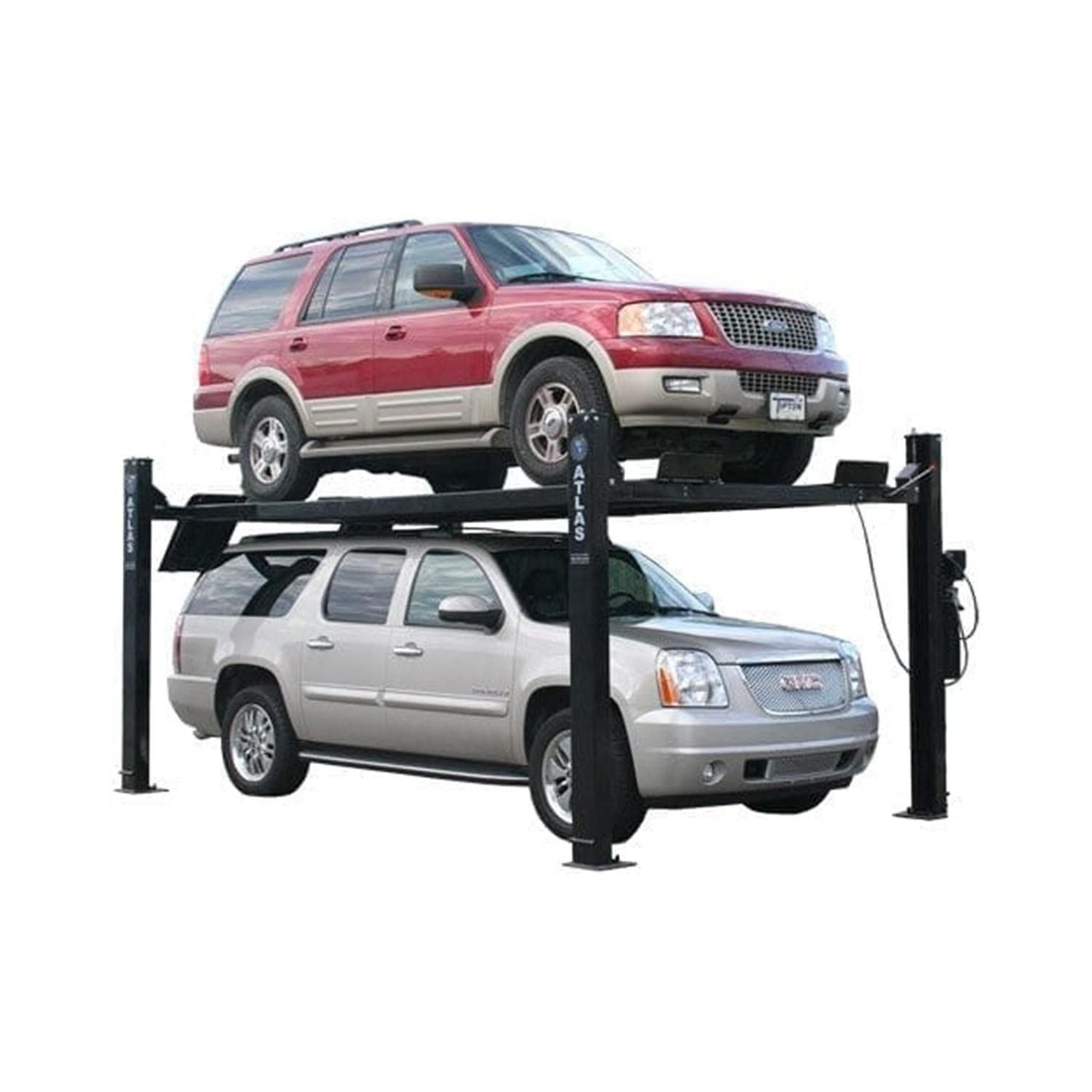

  The Atlas® Garage PRO9000 9,000 lb. Extra Wide/Tall/Long 4-Post Lift is designed for vehicle storage, maintenance, and service applications requiring additional size and lifting versatility. Featuring an extra-wide, extra-tall, and extra-long design, this heavy-duty 4-post lift accommodates larger vehicles such as trucks, SUVs, long-wheelbase vehicles, and specialty cars while maximizing garage storage space.

  The Garage PRO9000 features heavy-duty steel construction, diamond-plated runways, and a single-point lock release system for dependable lifting performance and safe operation. Ideal for automotive enthusiasts, collectors, home garages, and commercial shops, this lift provides reliable storage and maintenance capability for a wide range of vehicles. The FPD designation indicates freight prepaid shipping.

• FEATURES AND BENEFITS

  • 9,000 lb. Capacity
  • Free Standing/Portable Design
  • Heavy Duty
  • Extra Tall/Extra Wide/Extra Long

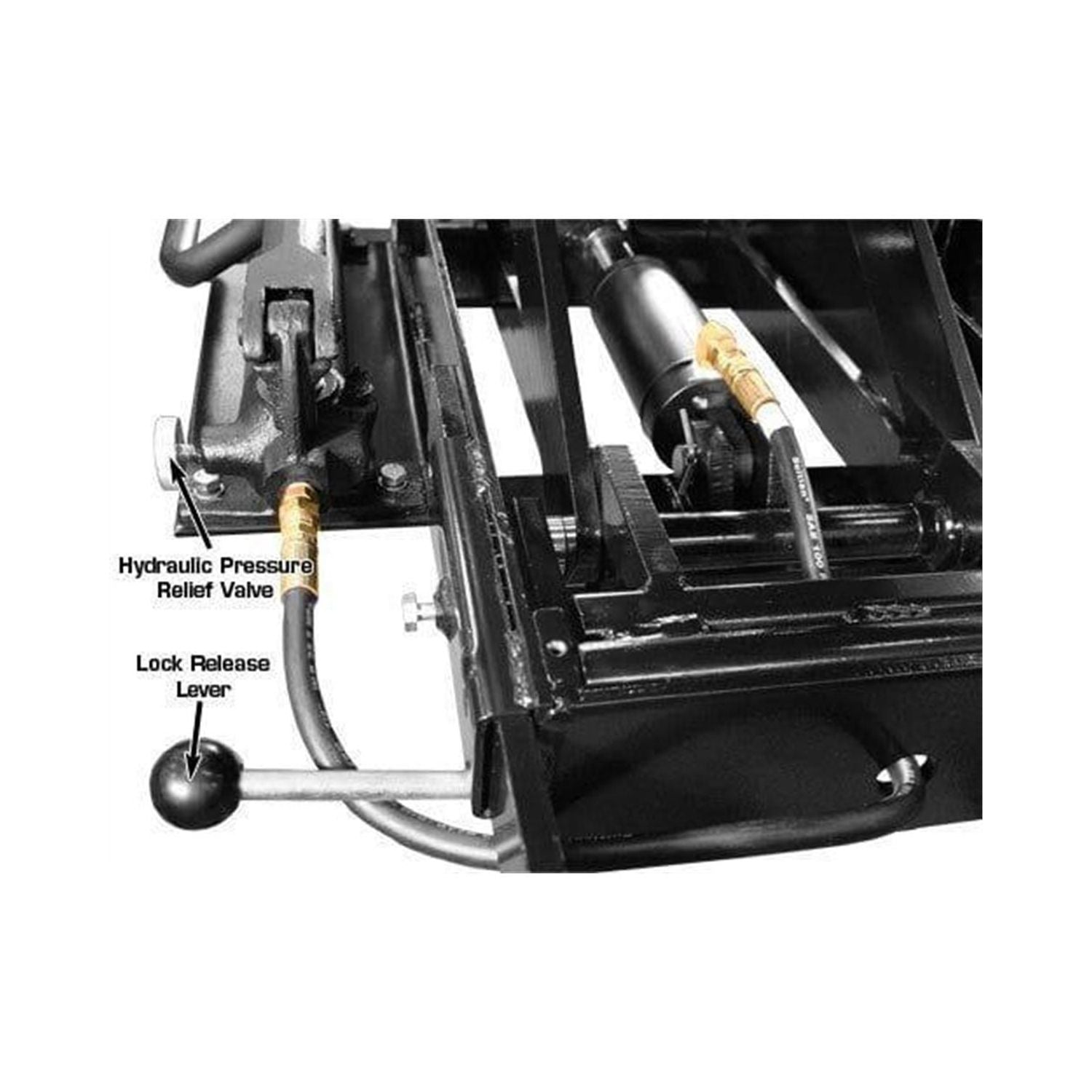

  • Single-Point Lock Release
  • Lock Ladder Design
  • Double Lock Safety System

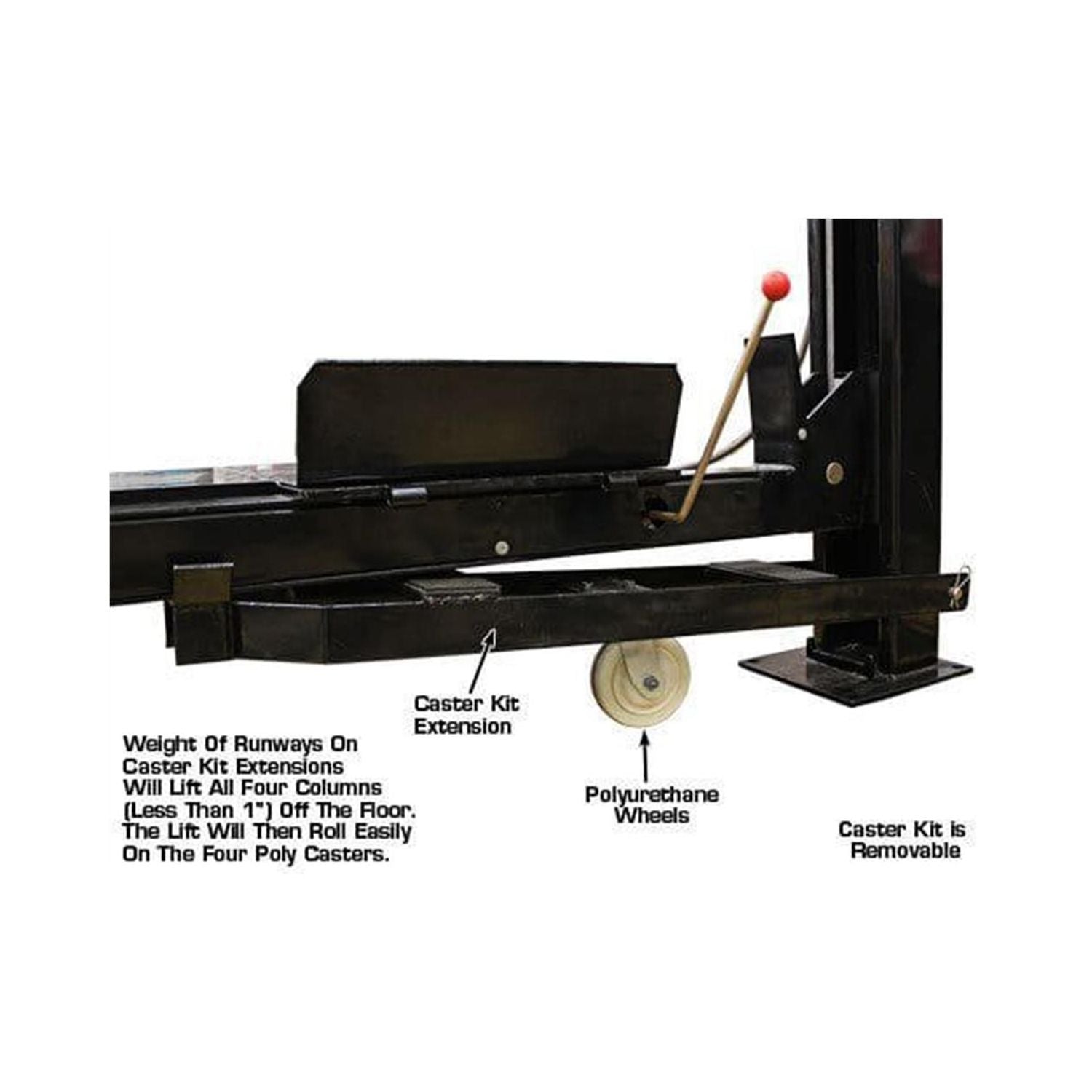

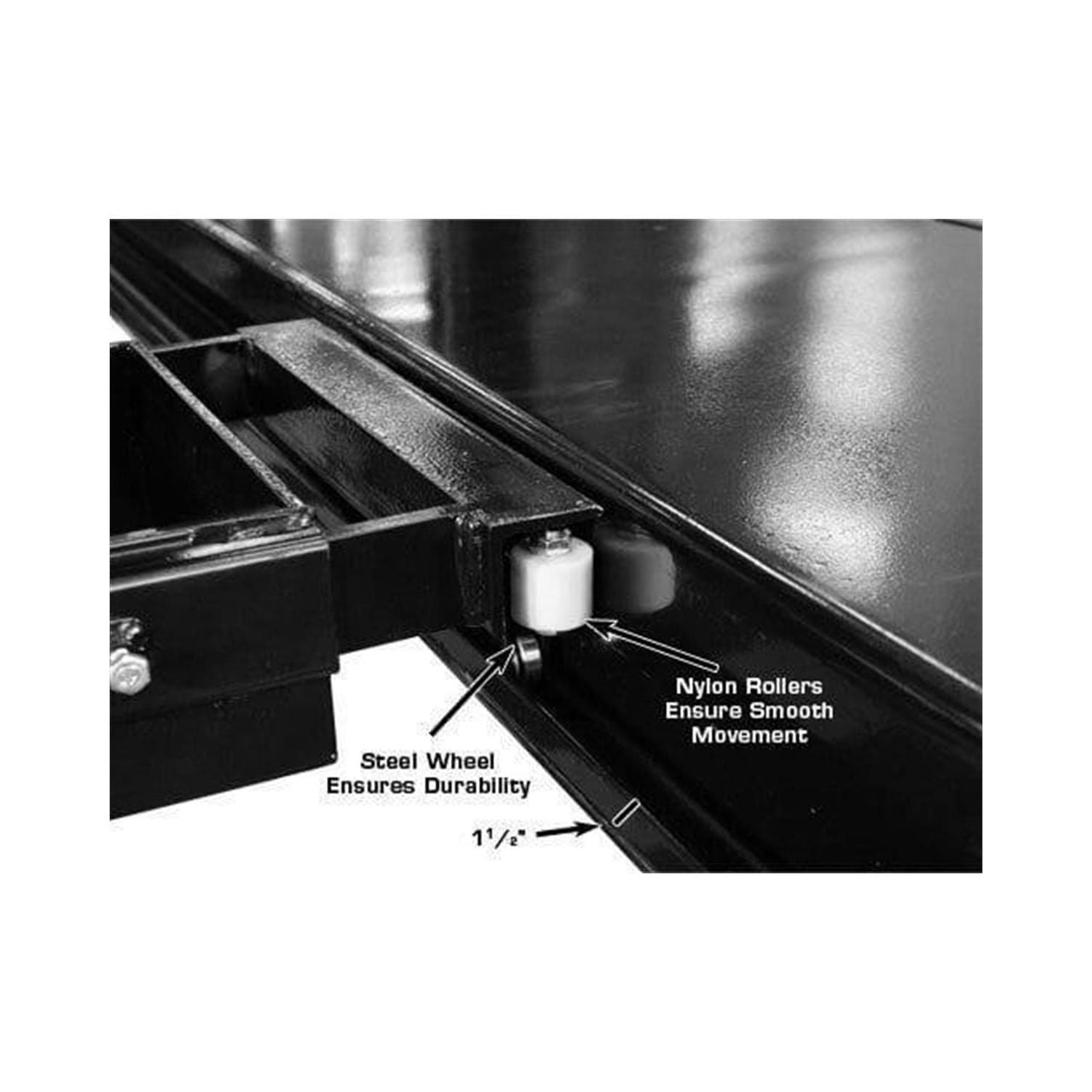

  • Caster Kit With Polyurethane Wheels Included

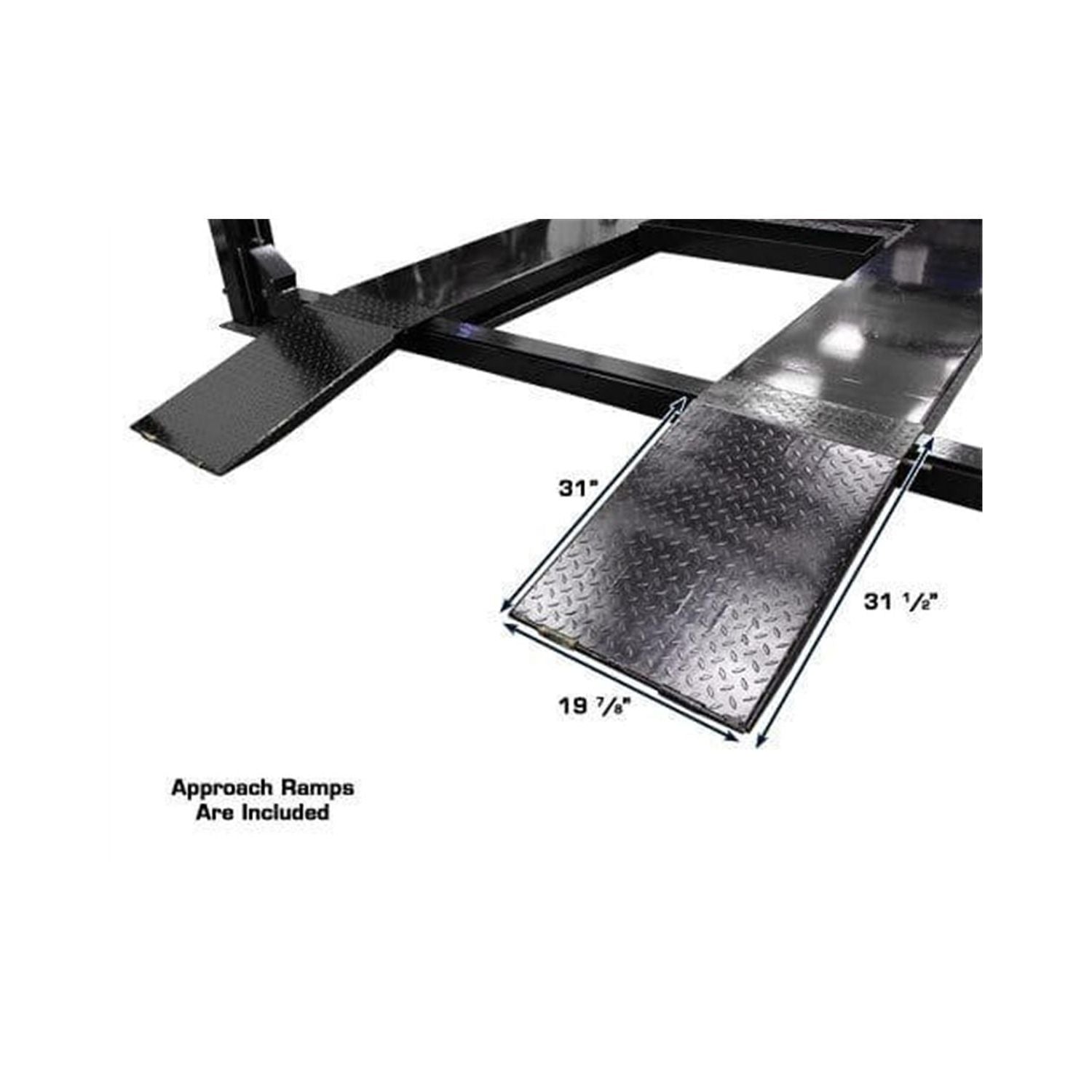

  • Steel Approach Ramps Included

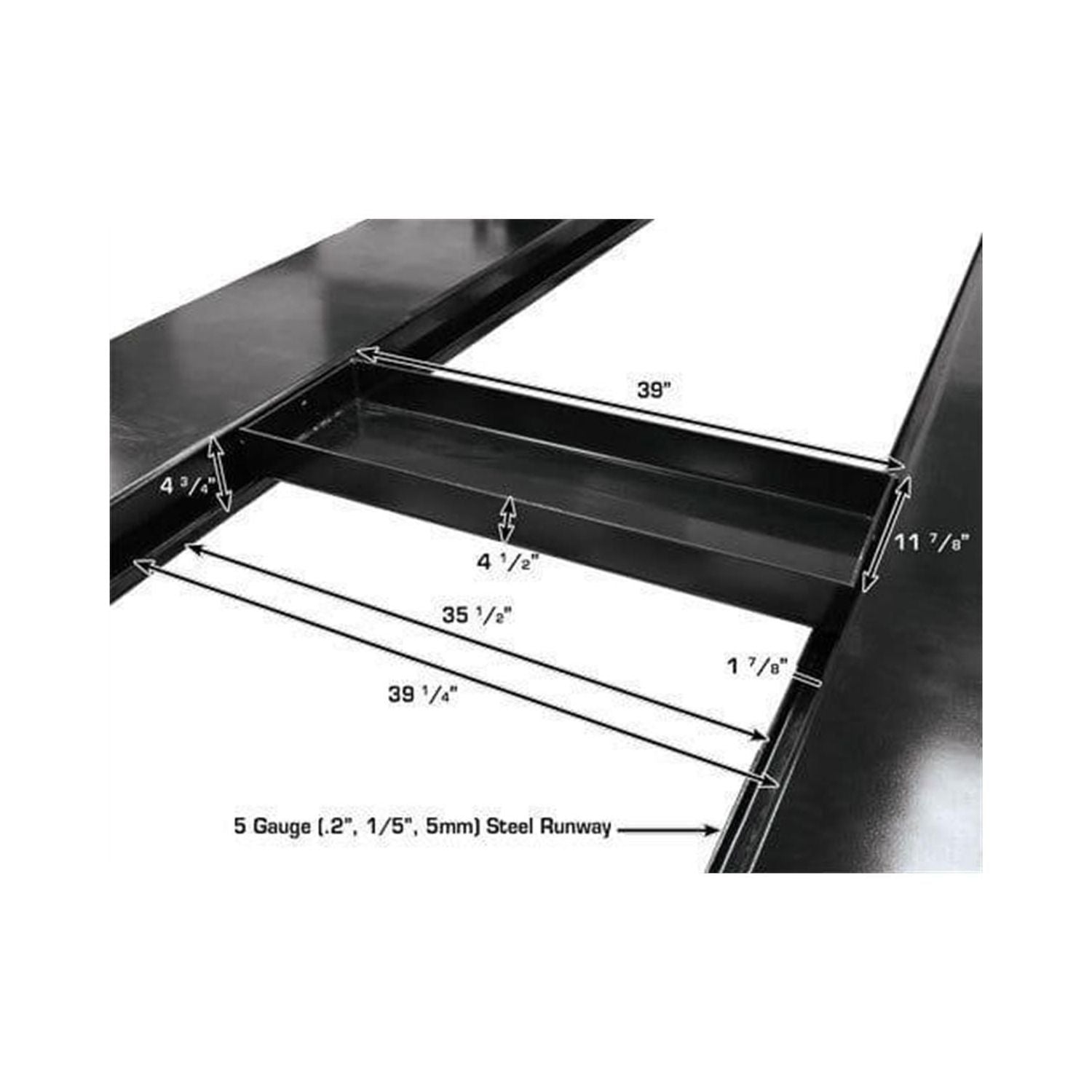

  • Steel Jack Tray Included
  • 4 Plastic Drip Trays Included
  • 2 Rubber Wheel Chocks Included
  • Perfect For Storing Or Working On Vehicles

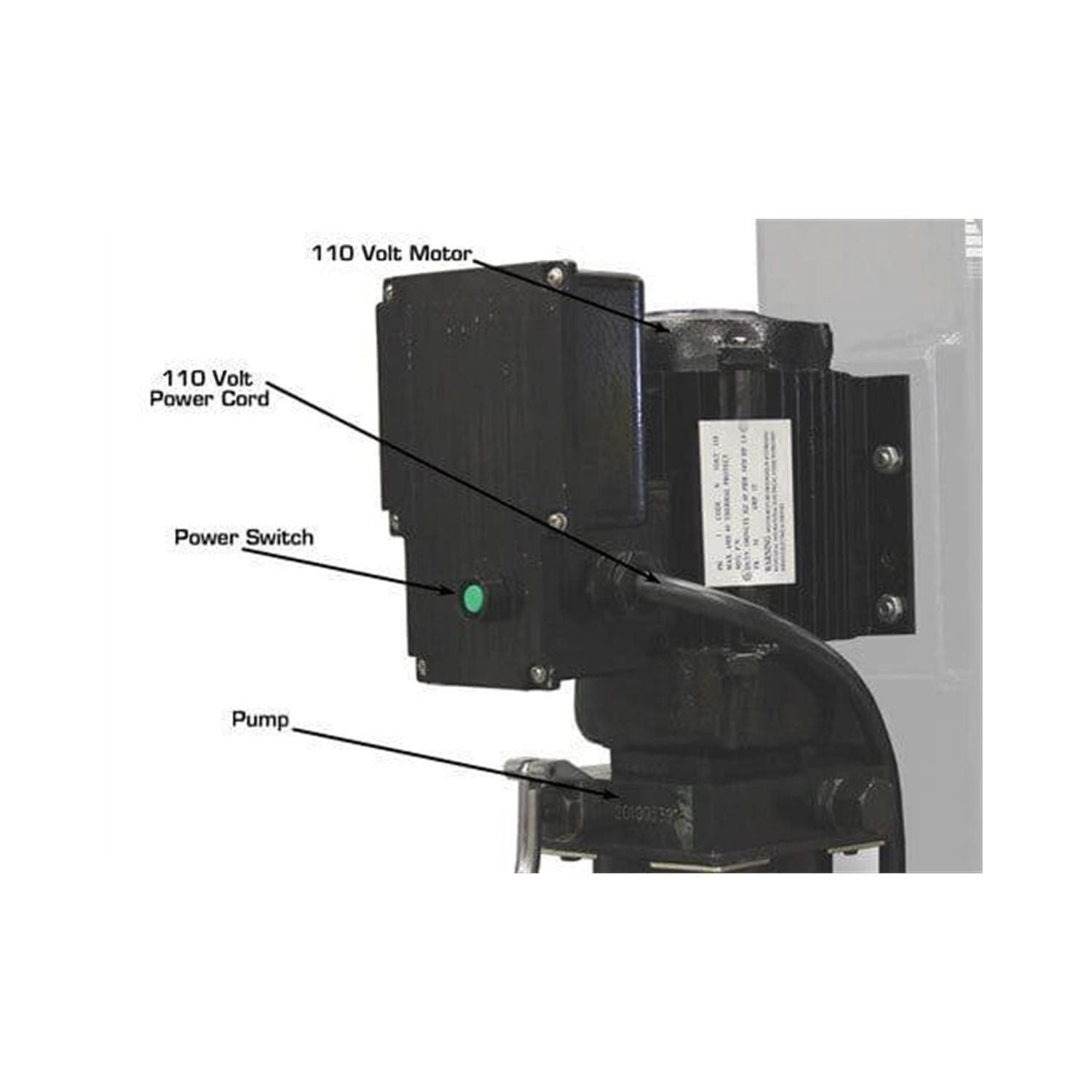

  • 110volt Electric Operation (30 AMP BREAKER REQUIRED)

  • 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEXH-PRO9000-FPD
  Dimensions:	203" L × 28" W × 22" H
  Weight:	2,300 lbs
  UPC:	810524027991
  Country of Origin:	CHN

  Atlas® Garage PRO9000 Specifications

  Capacity:	9,000 lb.

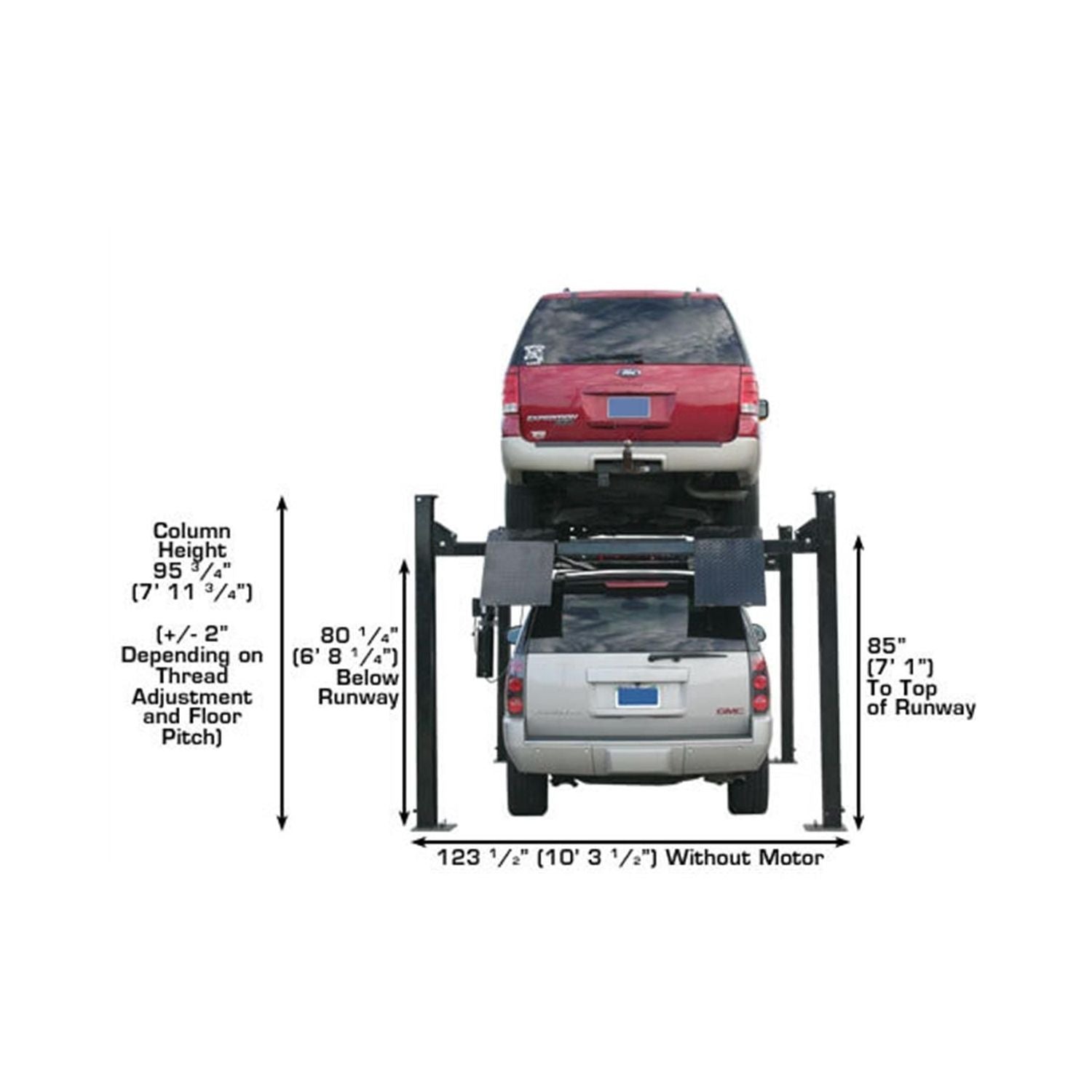

  Lifting Height To Top Of Runway:	85" (7' 1")

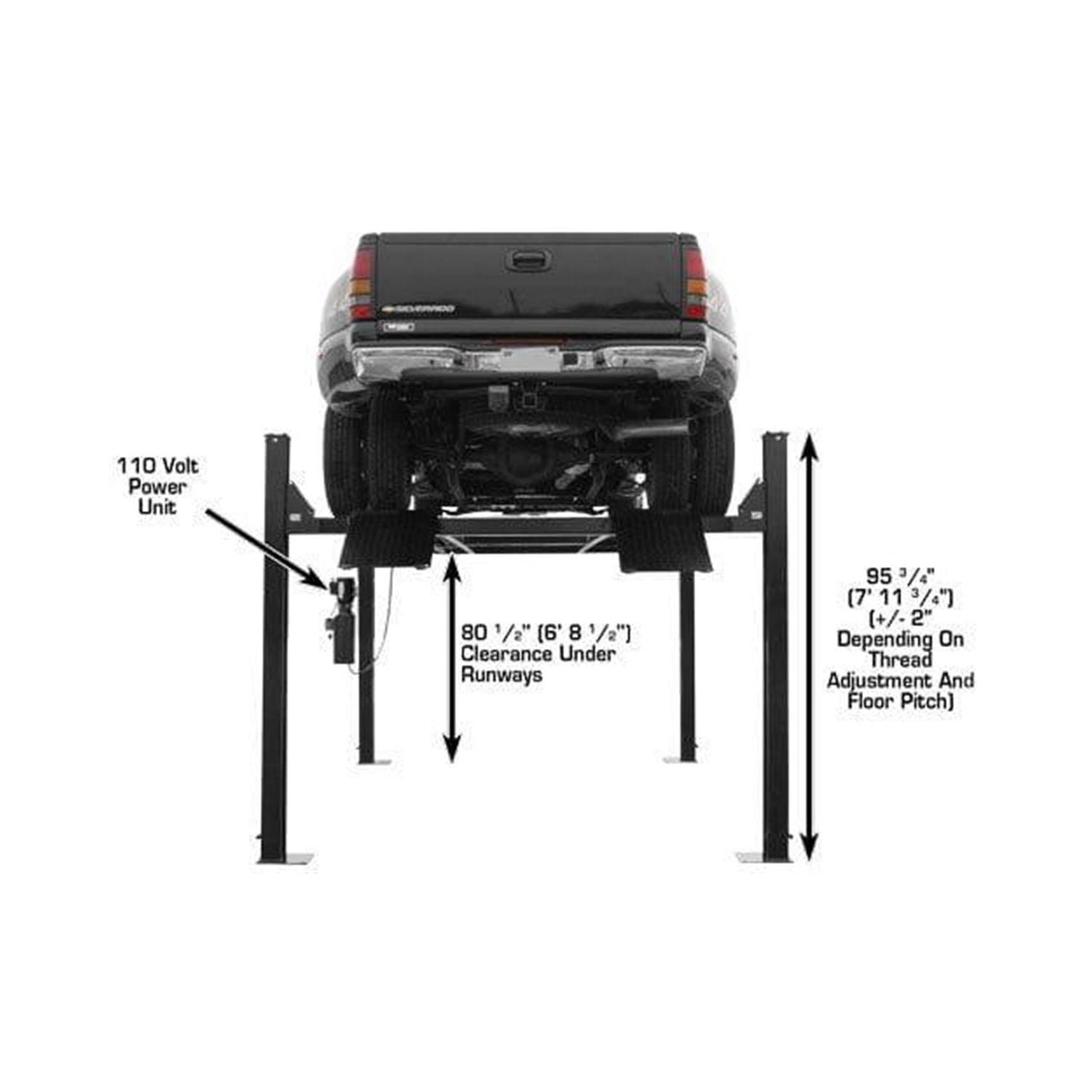

  Clearance Under Runways:	80 1/4" (6' 8 1/4")

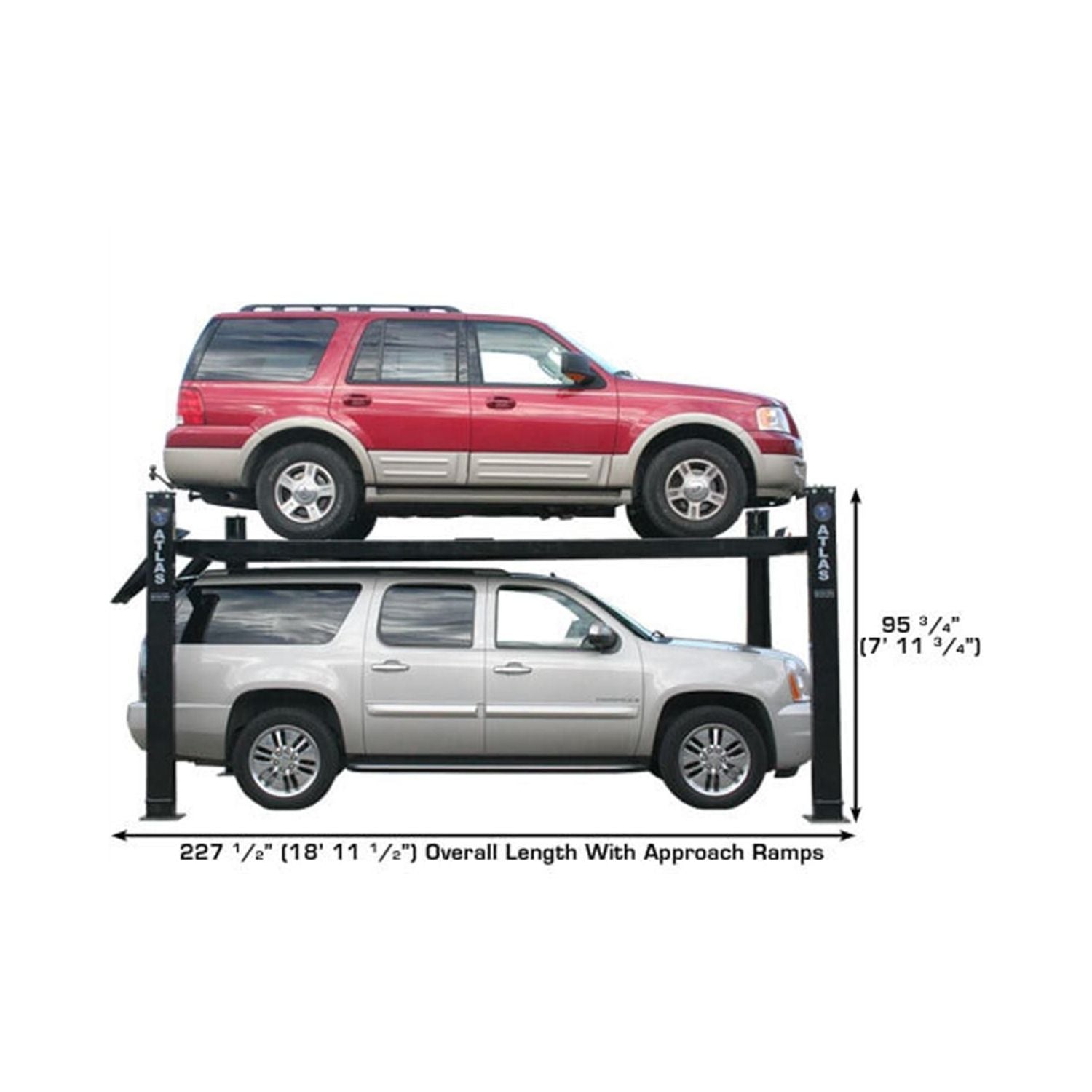

  Height Of Columns:	95 3/4" (7' 11 3/4")
  Overall Width (Without Motor):	123 1/2" (10' 3 1/2")

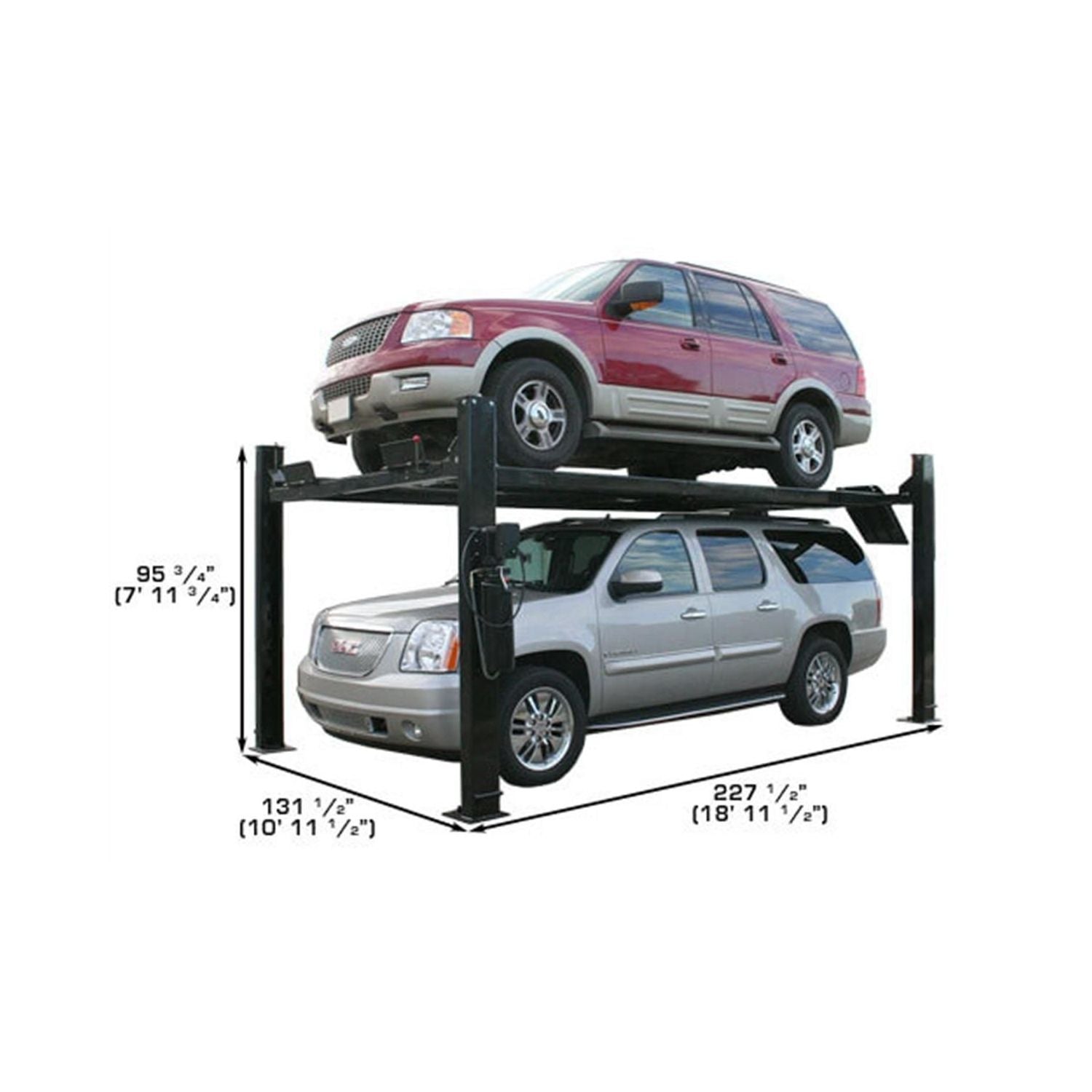

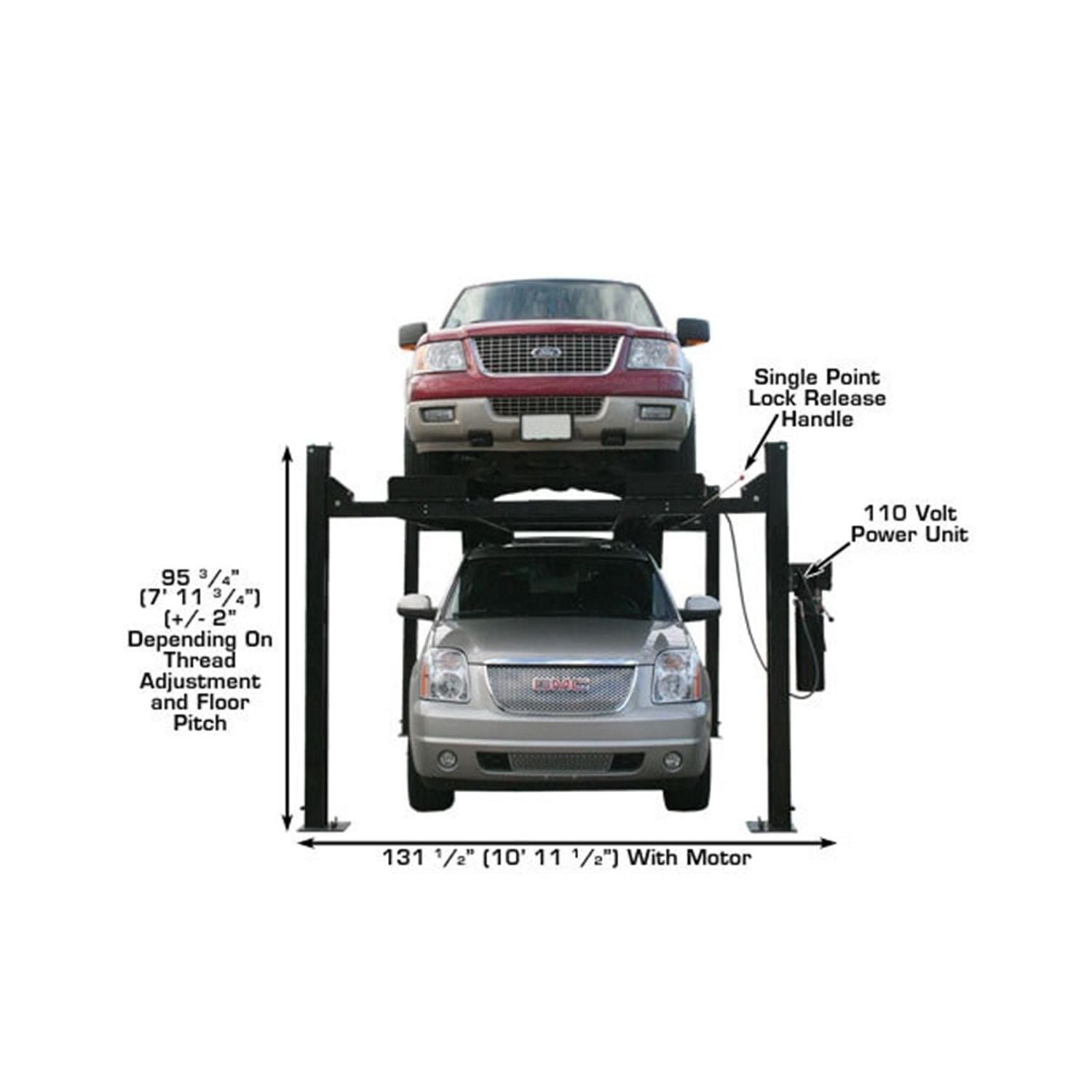

  Overall Width (With Motor):	131 1/2" (10' 11 1/2")

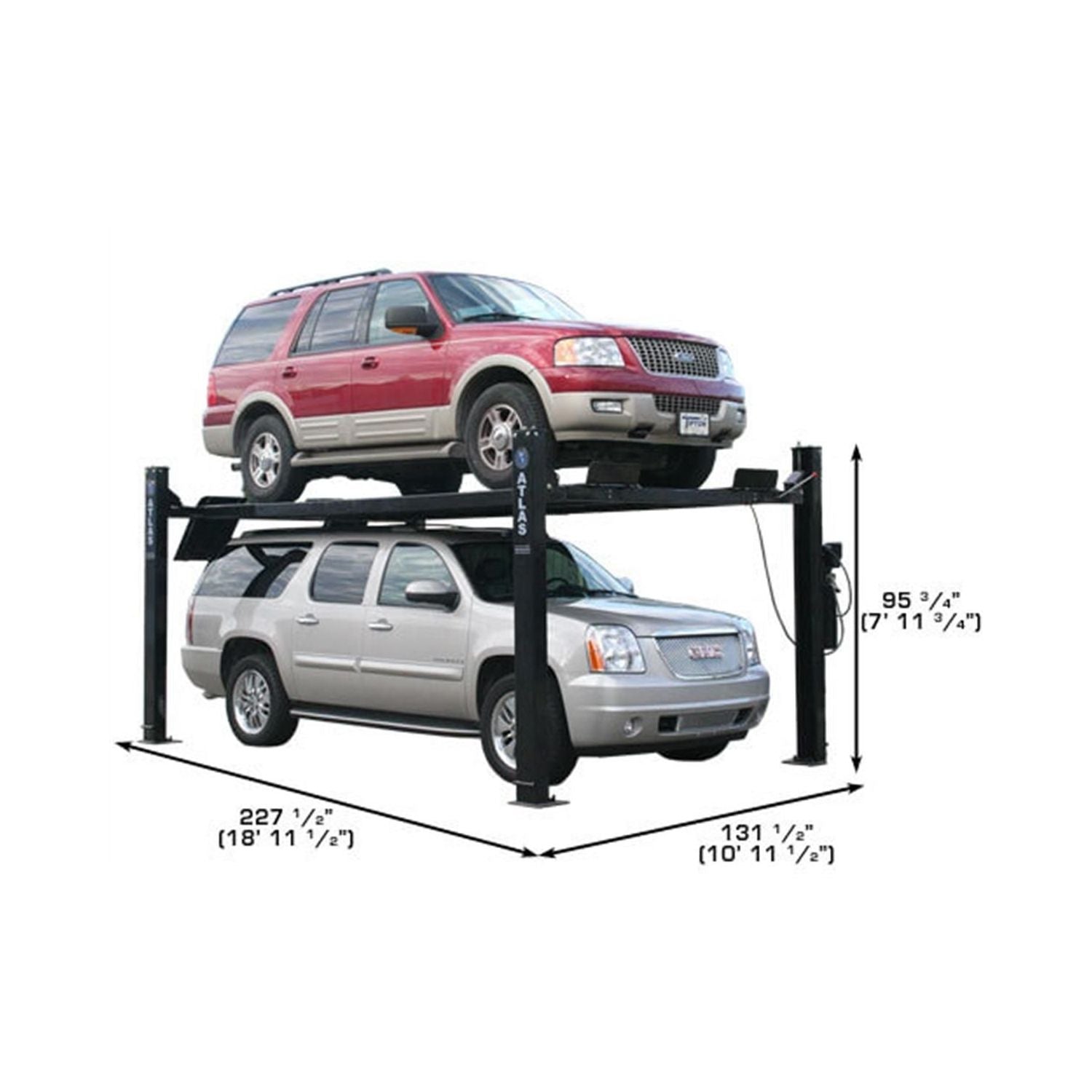

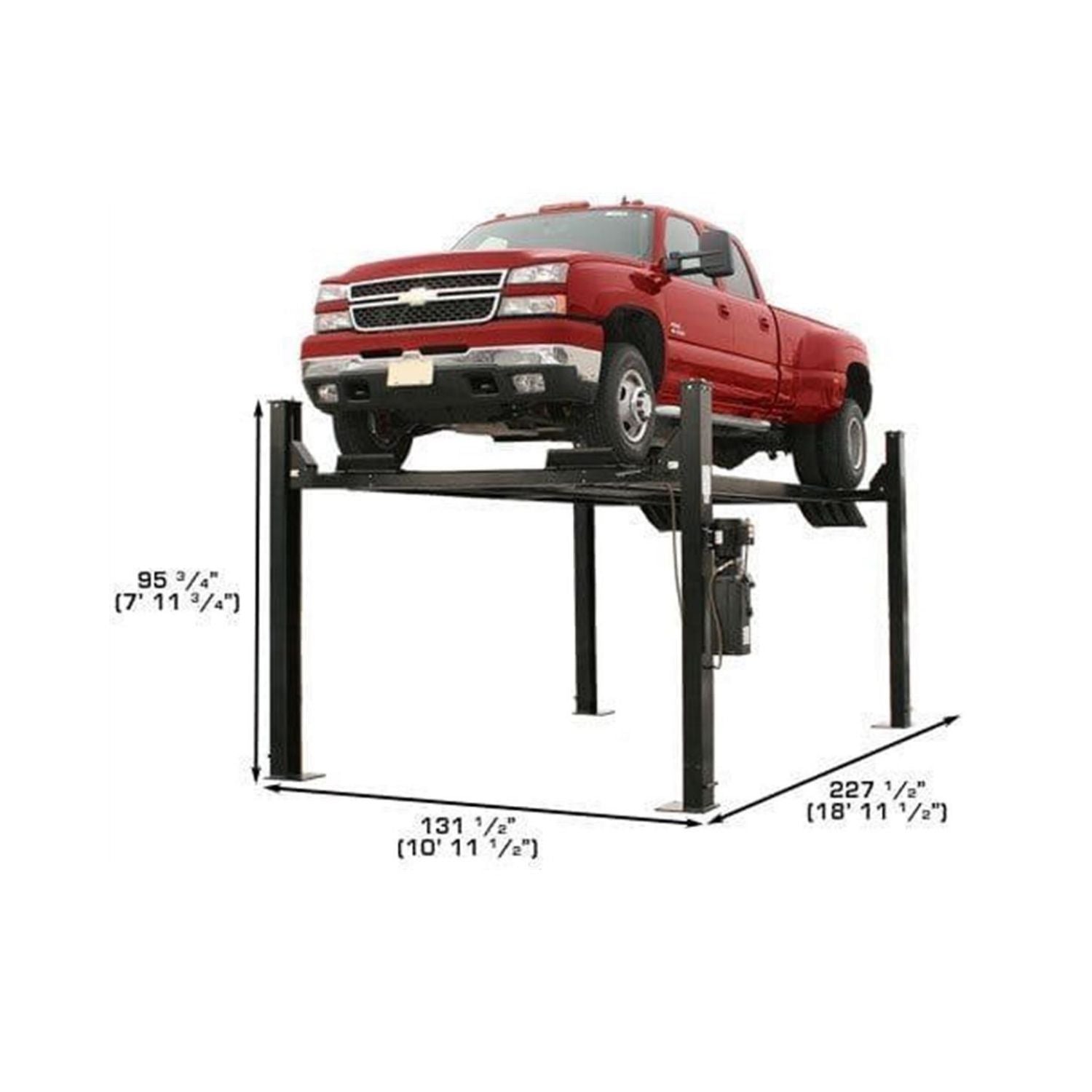

  Overall Length With Approach Ramp:	227 1/2" (18' 11 1/2")
  Approach Ramp:	31" (2' 7")
  Runway Width:	21 1/4" (w/ Rails) or 20" (Driving Surface)
  Runway Length:	199 1/2" (16' 7 1/2")
  Runway Thickness:	4 3/4"
  Width Between Runways:	39 1/4" (3' 3 1/4")
  Width Between Runway Rails:	35 1/2" (2' 11 1/2")
  Outside Runway To Outside Runway:	79" (6' 7")

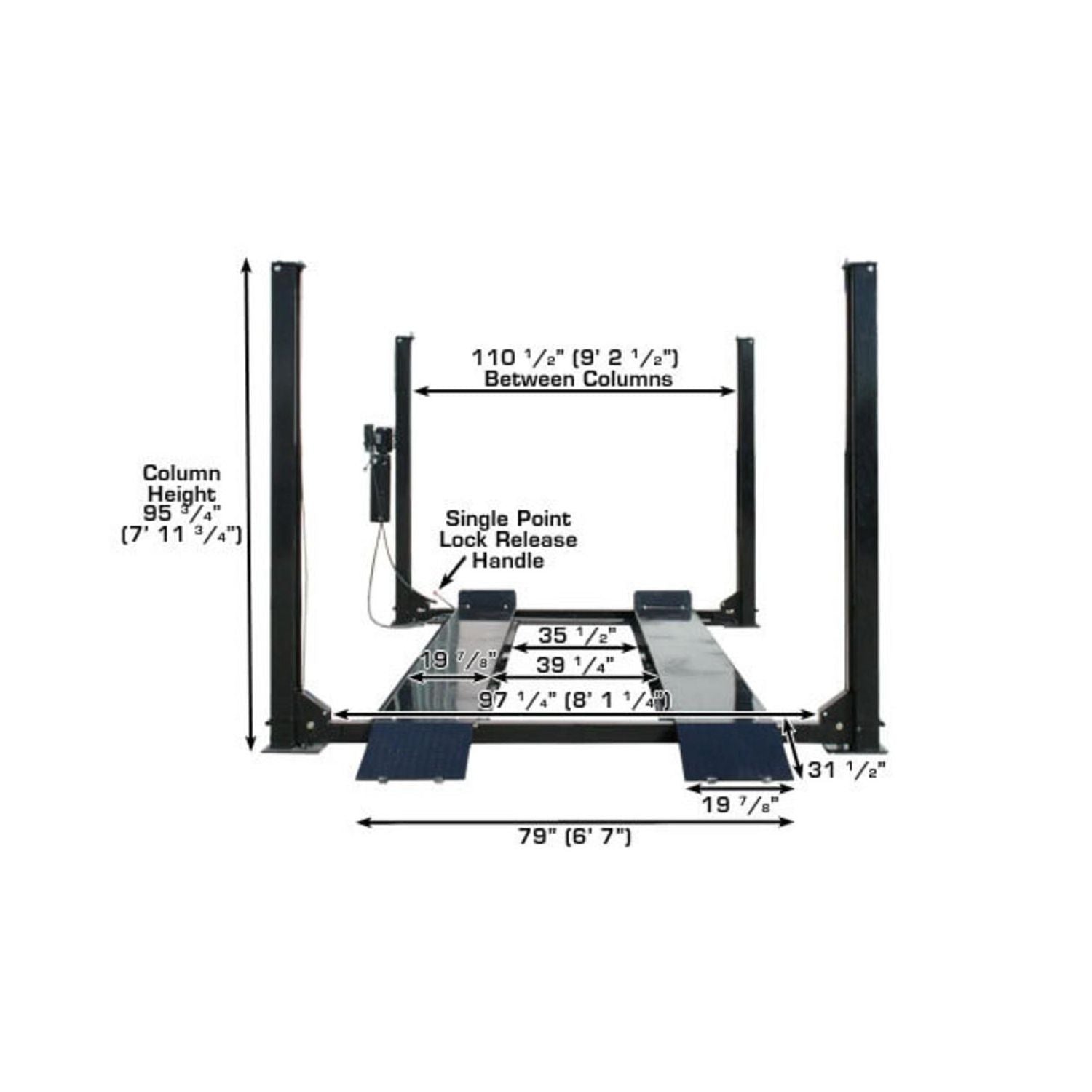

  Clearance Between Columns:	110 1/2" (9' 2 1/2")

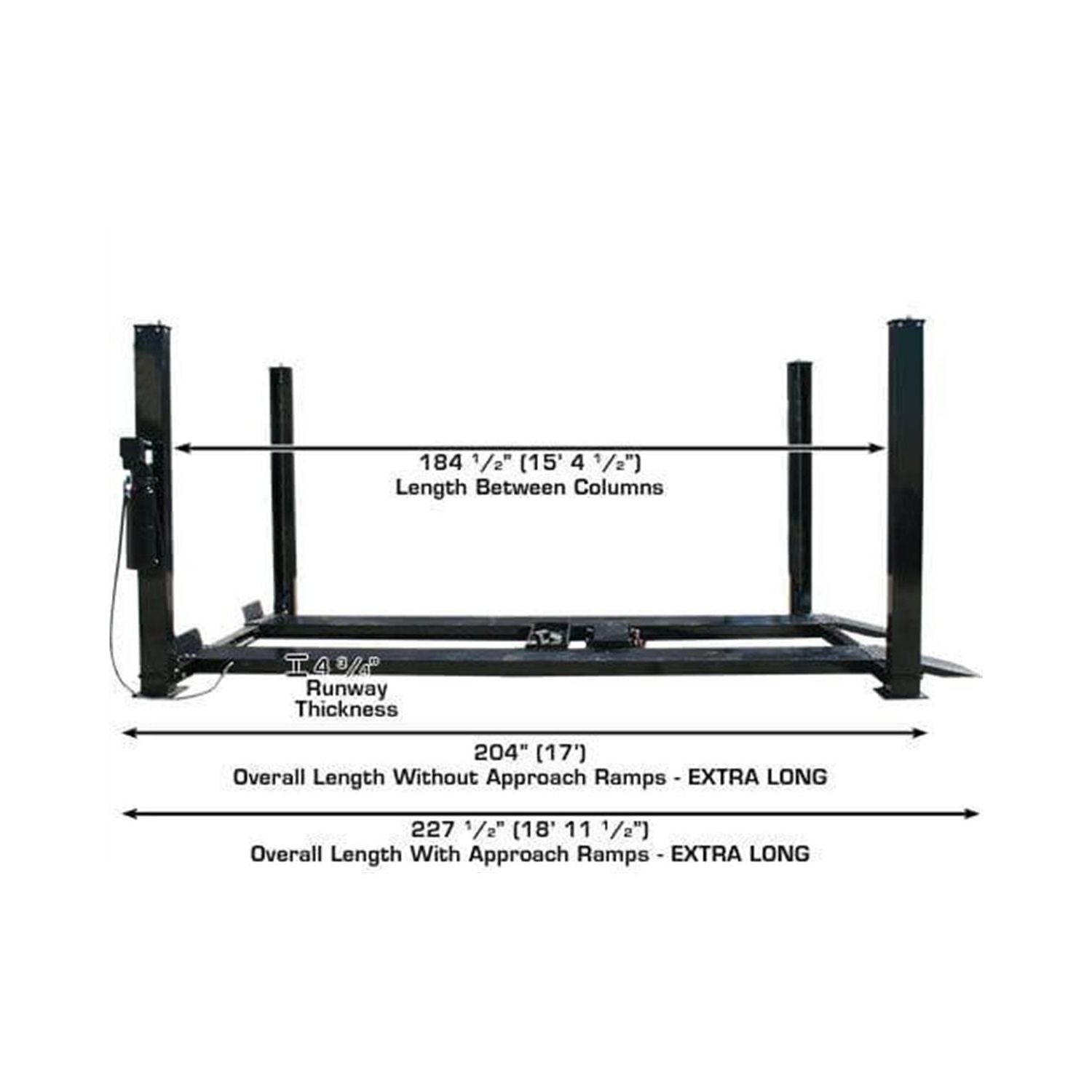

  Length Between Columns:	184 1/2" (15' 4 1/2")
  Maximum Wheel Base:	187" (15' 7")
  Drive Thru (Outside Of Tire To Outside Of Tire):	97 1/4" (8' 1 1/4")
  Motor/Electrical Requirement:	110 Volt, 30 AMP BREAKER REQUIRED

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
