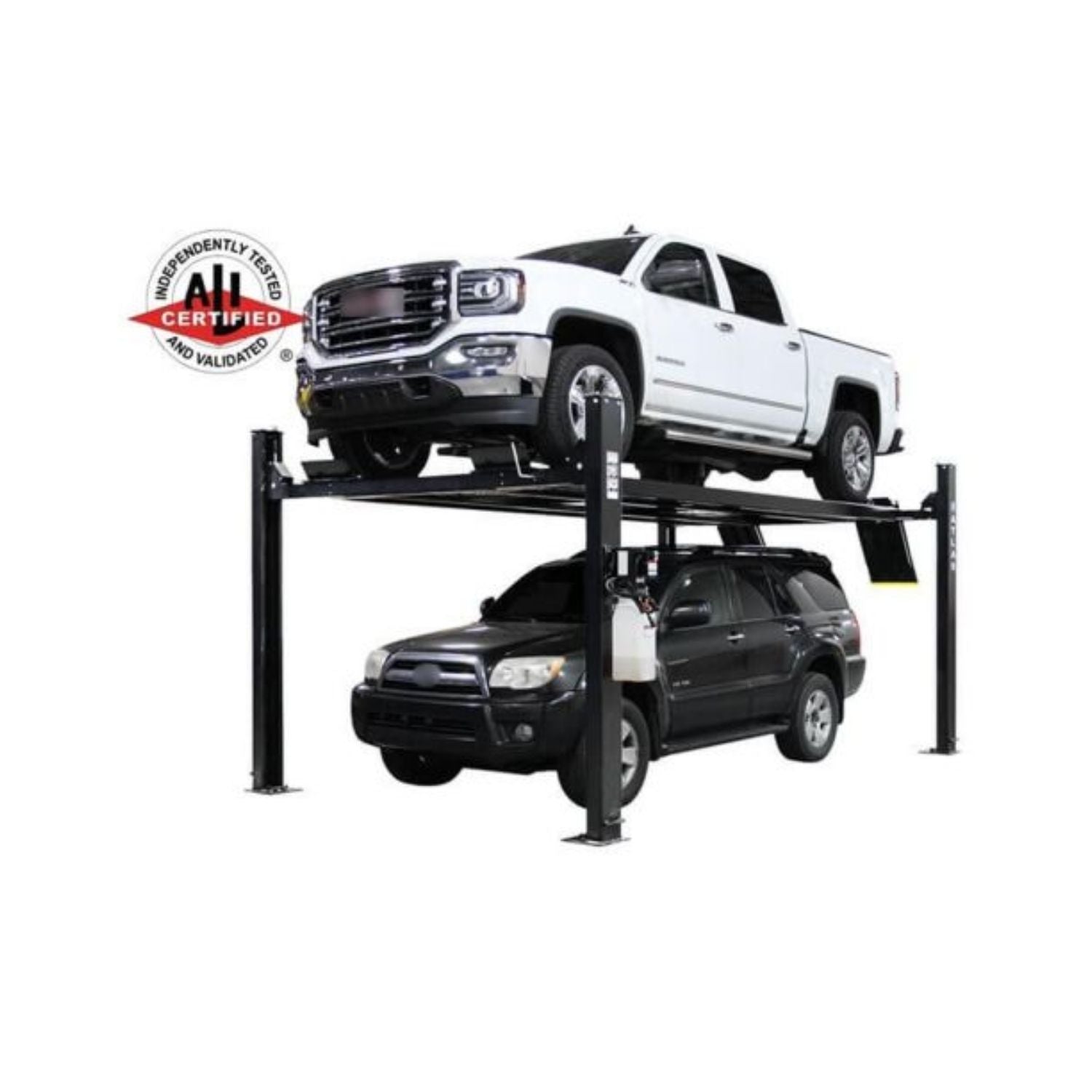

Atlas® APEX 9,000 lb Certified 4-Post Hobbyist Lift #ATEAPEX9-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® APEX Certified 9,000 lb 4-Post Hobbyist Lift is designed for home garages and light-duty service applications requiring enhanced safety, durability, and lifting capacity.

  As part of the APEX certified series, this lift meets higher quality and safety standards, giving users added confidence during operation. With a 9,000 lb capacity, it accommodates a wider range of vehicles including cars, SUVs, and light trucks.

  The 4-post design provides excellent stability, making it ideal for both vehicle storage and maintenance. Built for long-term performance, the APEX9 is a premium choice for enthusiasts who want professional-grade equipment in their garage.

• FEATURES AND BENEFITS

  • ALI Certified Lift
  • Free Standing/Portable Design
  • Heavy Duty
  • Extra Tall, Extra Wide & Extra Long
  • Powder Coat Finish
  • Diamond Plated Runways
  • Single Point Lock Release
  • Lock Ladder Design
  • Double Lock Safety System
  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • Four Plastic Drip Trays Included
  • Two Wheel Chocks Included
  • Caster Kit with Polyurethane wheels Included
  • Anchor Bolts Optional (Sold Separately)
  • Perfect for Storage or Working on Vehicles
  • 110volt Electric Operation (Requires 30amp Breaker)

  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEAPEX9-FPD
  Dimensions:	204" L × 28" W × 22" H
  Capacity:	9,000 lb.
  Lifting Height To Top of Runway:	86" (7' 2")
  Clearance Under Runways:	81 1/4" (6' 9 1/4")
  Height of Columns:	99" (8' 3")
  Overall Width (Without Motor or Casters):	121 7/8" (10' 1 7/8")
  Overall Width (With Motor):	133 7/8" (11' 1 7/8")
  Overall Length without Approach Ramps (Including Lock Release Bar):	204" (17')
  Overall Length with Approach Ramps:	227 1/2" (18' 11 1/2")
  Approach Ramps:	31 1/2"
  Runway Width:	20 1/8"
  Runway Rail Width:	2"
  Runway Length:	196 1/2" (16' 4 1/2")
  Runway Thickness:	4 3/4"
  Width Between Runways:	38 7/8" (3' 2 7/8")
  Width Between Runway Rails:	34 3/4" (2' 10 3/4")
  Outside Runway to Outside Runway:	79" (6' 7")
  Clearance Between Columns:	108 1/8" (9' 1/8")
  Length Between Columns:	184 1/4" (15' 4 1/4")
  Maximum Wheel Base:	184" (15' 4")
  Drive Thru (Outside of tire to outside of tire):	98 5/8" (8' 2 5/8")
  Motor/Electrical Requirement:	110 Volt, 30 AMP breaker required
  UPC:	810524020169
  Country of Origin:	CHN
  Shipping Weight:	2,975 lbs

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
