Atlas® Platinum PVL14 4-Post Lift + RJ7 Rolling Jacks ALI Cert Combo #ATEAP-PVL14-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

  The Atlas® Platinum PVL14 + RJ7 Combo is a premium commercial-grade lifting package designed for professional automotive shops, fleet facilities, and heavy-duty service environments requiring both drive-on lifting and wheel-free service capability.

  This package combines the ALI-certified Atlas Platinum PVL14 four-post lift with two Atlas Platinum RJ7000 rolling bridge jacks, creating a versatile service system capable of handling vehicle storage, suspension work, brake service, tire service, and alignment-related operations.

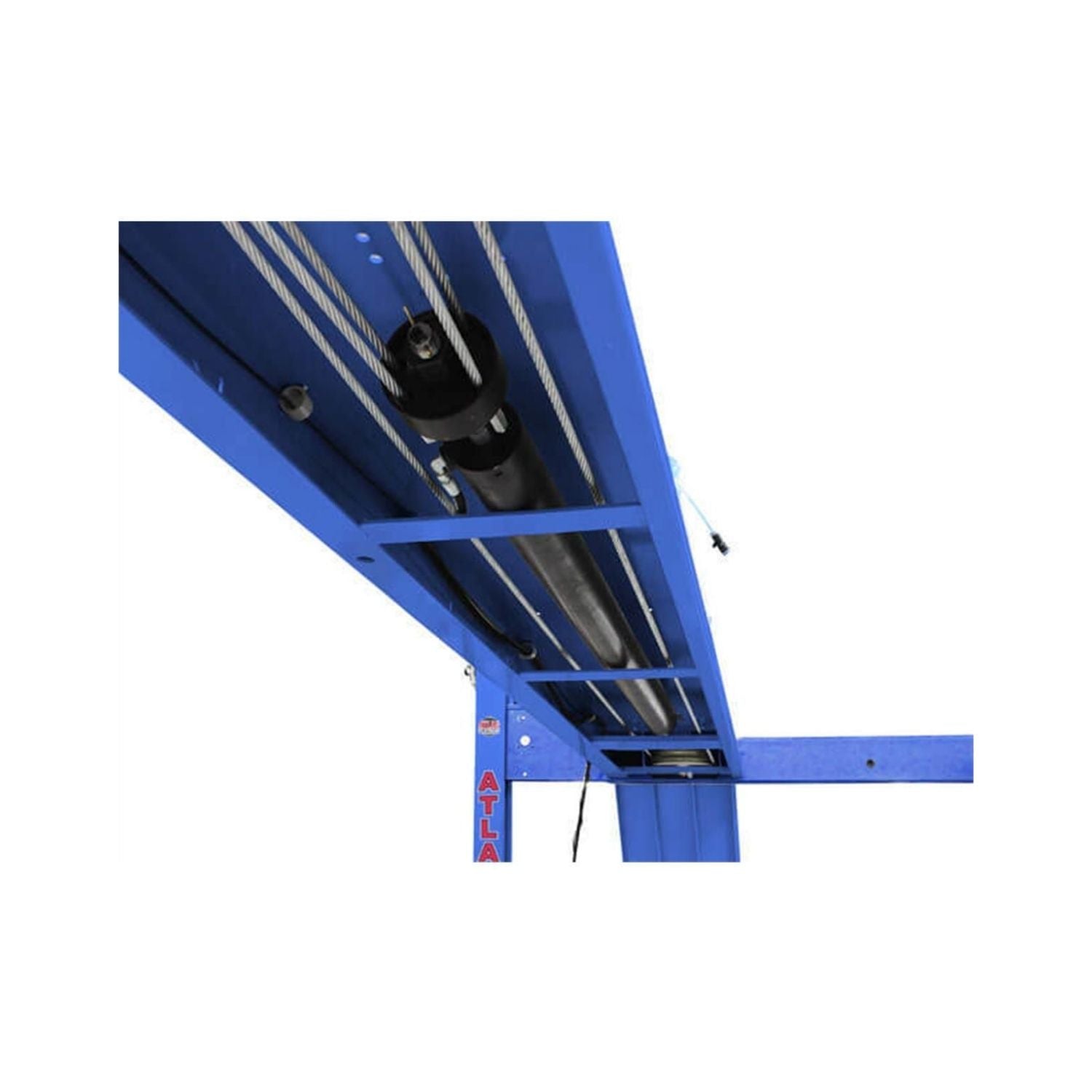

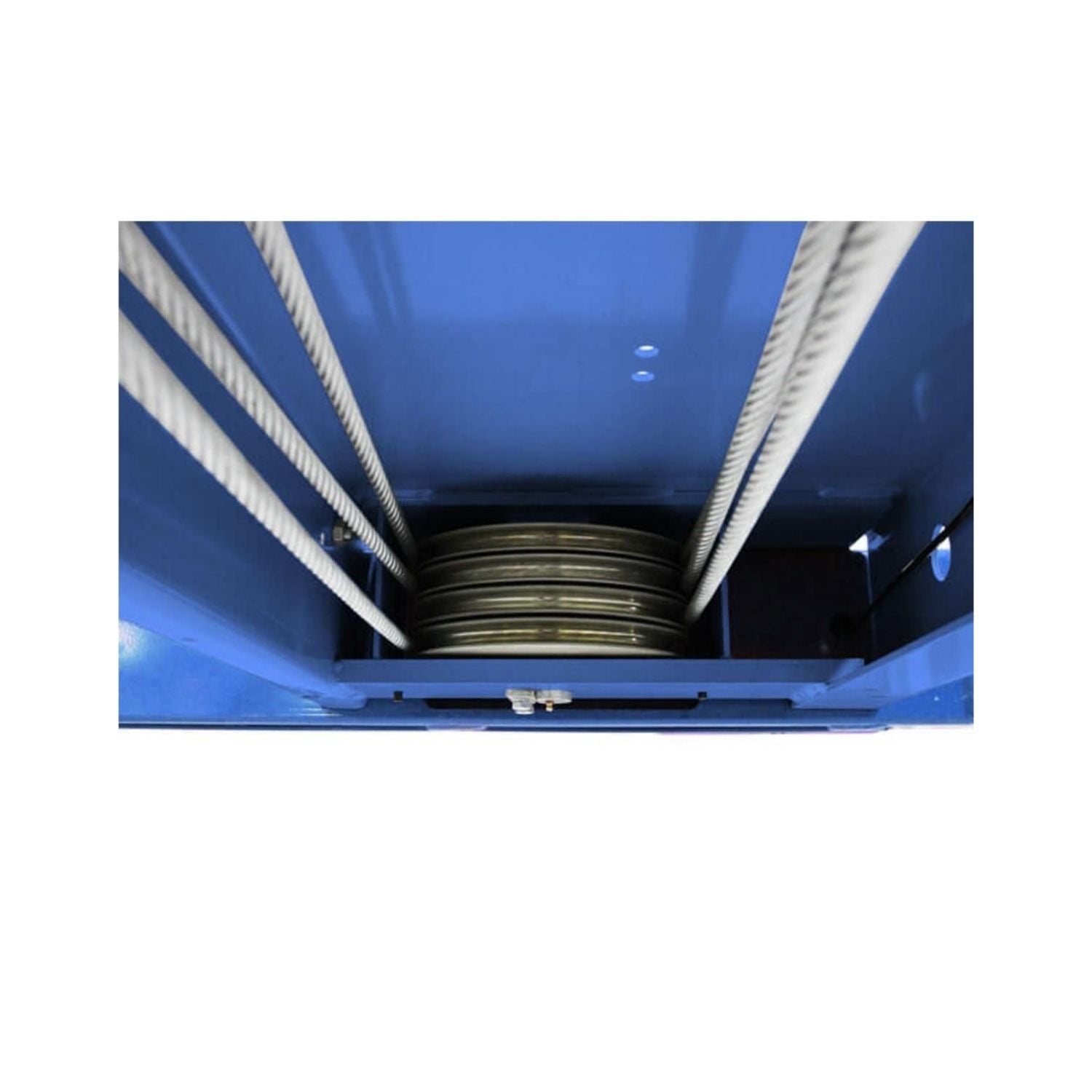

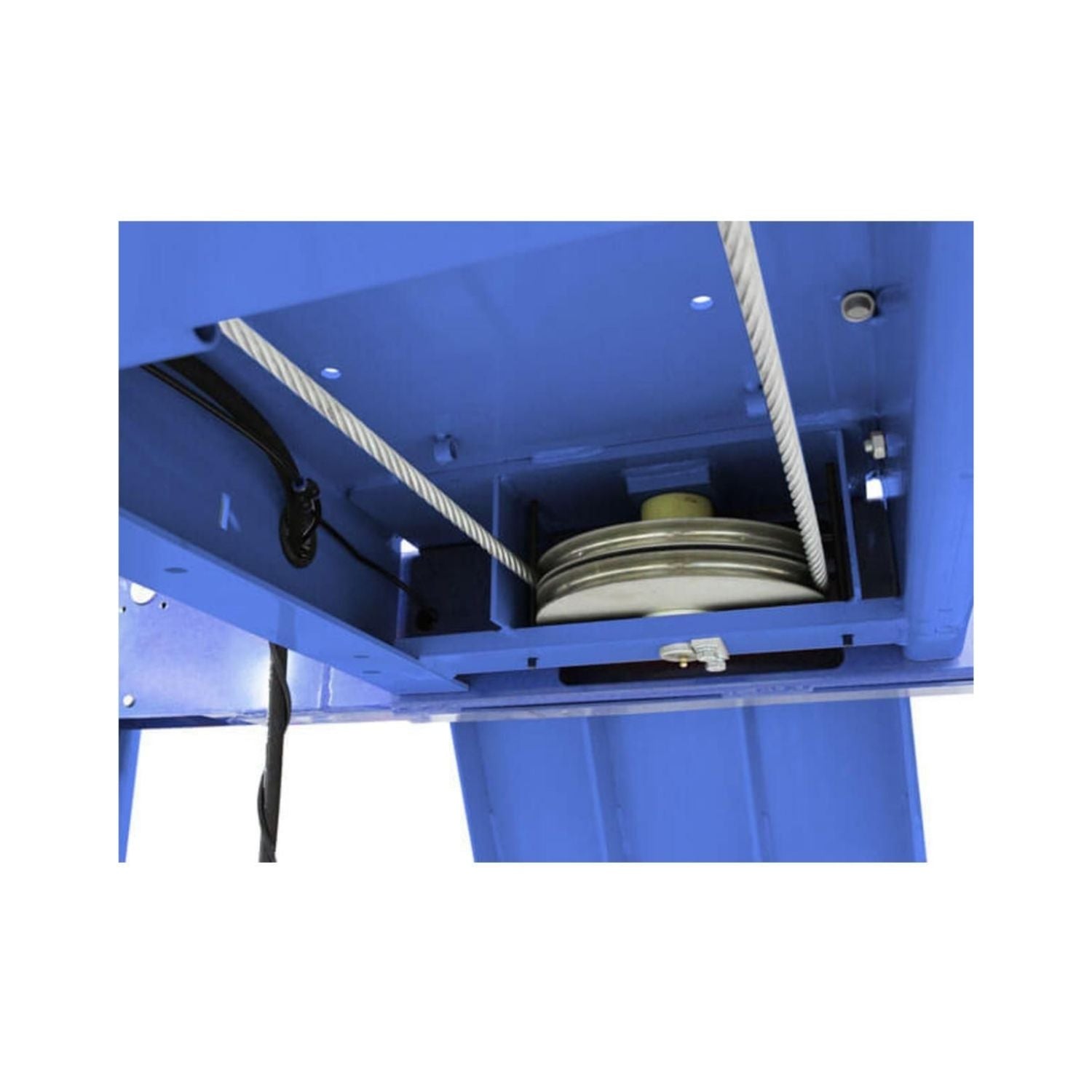

  The PVL14 features a heavy-duty cable lifting system, commercial-grade runways, and integrated rolling jack tracks that allow the included RJ7 bridge jacks to raise the wheels off the runways for complete wheel and suspension access. Unlike older exposed-cylinder chain-style lifts, the PVL14 utilizes a cleaner hidden-cylinder lifting design that improves leveling accuracy and reduces the risk of vehicle door damage.

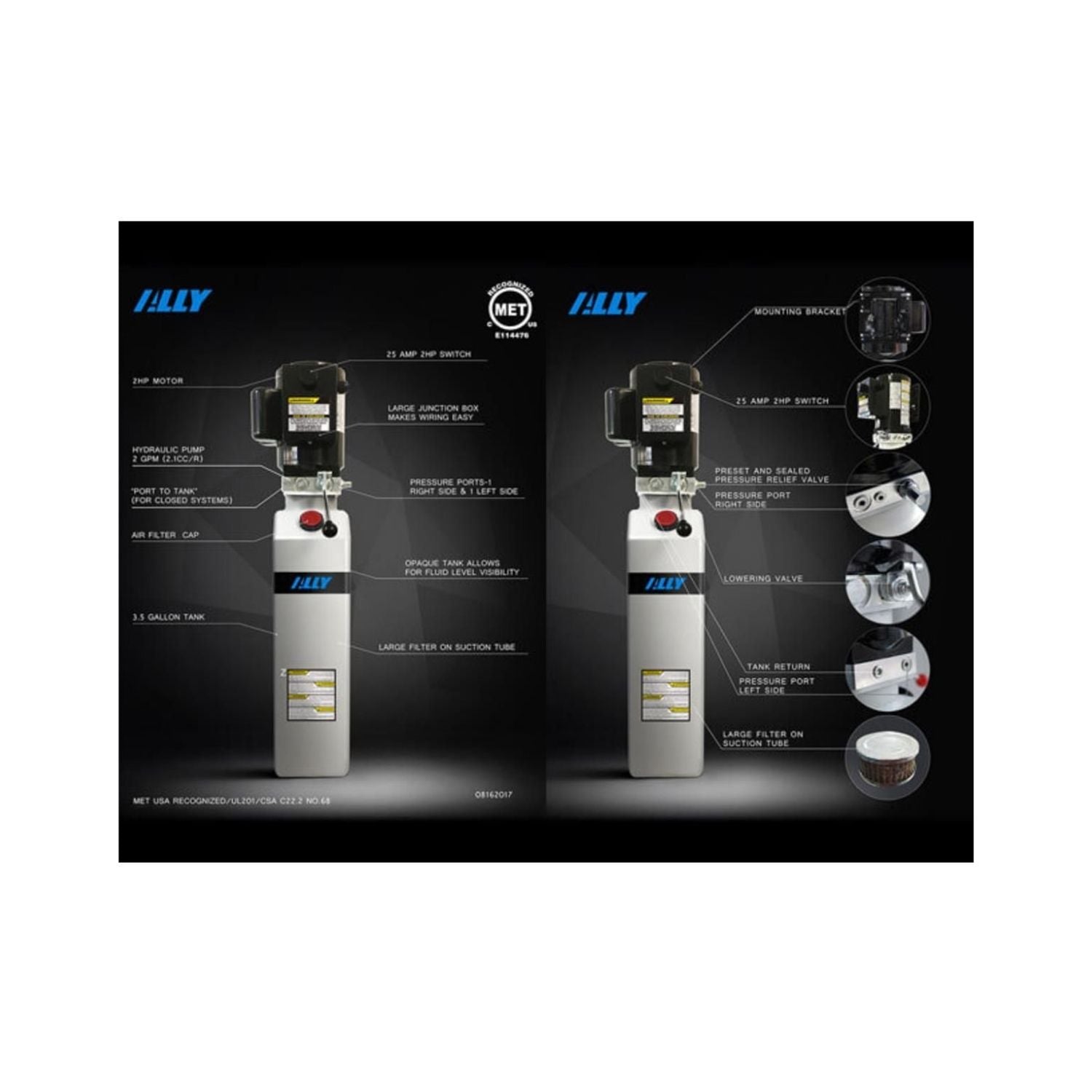

  Powered by the premium ALLY Hydraulic AL2650 power unit, certified by MET Laboratories for U.S. and Canadian electrical compliance, the PVL14 is engineered for continuous commercial use and long-term reliability.

• FEATURES AND BENEFITS

  • ALI Certified Combo includes PVL14 14,000 lb. lift & two RJ7000 rolling jacks
  • Heavy Duty, Commercial Grade
  • Lift is Extra Tall, Extra Wide & Extra Long
  • Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Mounting Hardware Included
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® ATTD-414 Specifications

  Brand:	Atlas® Equipment Platinum
  Part Number:	ATEAP-PVL14-COMBO-FPD
  UPC:	810524028950
  Country of Origin:	CHN
  Capacity:	14,000 lb.
  Lifting Height:	80" (6' 8")
  Overall Width Of Columns (Without Motor):	130 7/8" (10' 10 7/8")
  Overall Width Of Columns (With Motor):	138 7/8" (11' 6 7/8")
  Overall Length With Approach Ramp:	255" (21' 3")
  Length Between Columns:	197 1/4" (16' 5 1/4")
  Runway Length:	208 5/8" (17' 4 5/8")
  Runway Width:	20"
  Thickness Of Runway:	8 3/4"
  Width Between Runways:	46 7/8" (w/ Rail 44 3/8")
  Outside Runway To Outside Runway:	86 7/8" (7' 2 7/8")
  Clearance Under Runways:	71 1/4" (5' 11 1/4")
  Clearance Between Columns:	116" (9' 8")

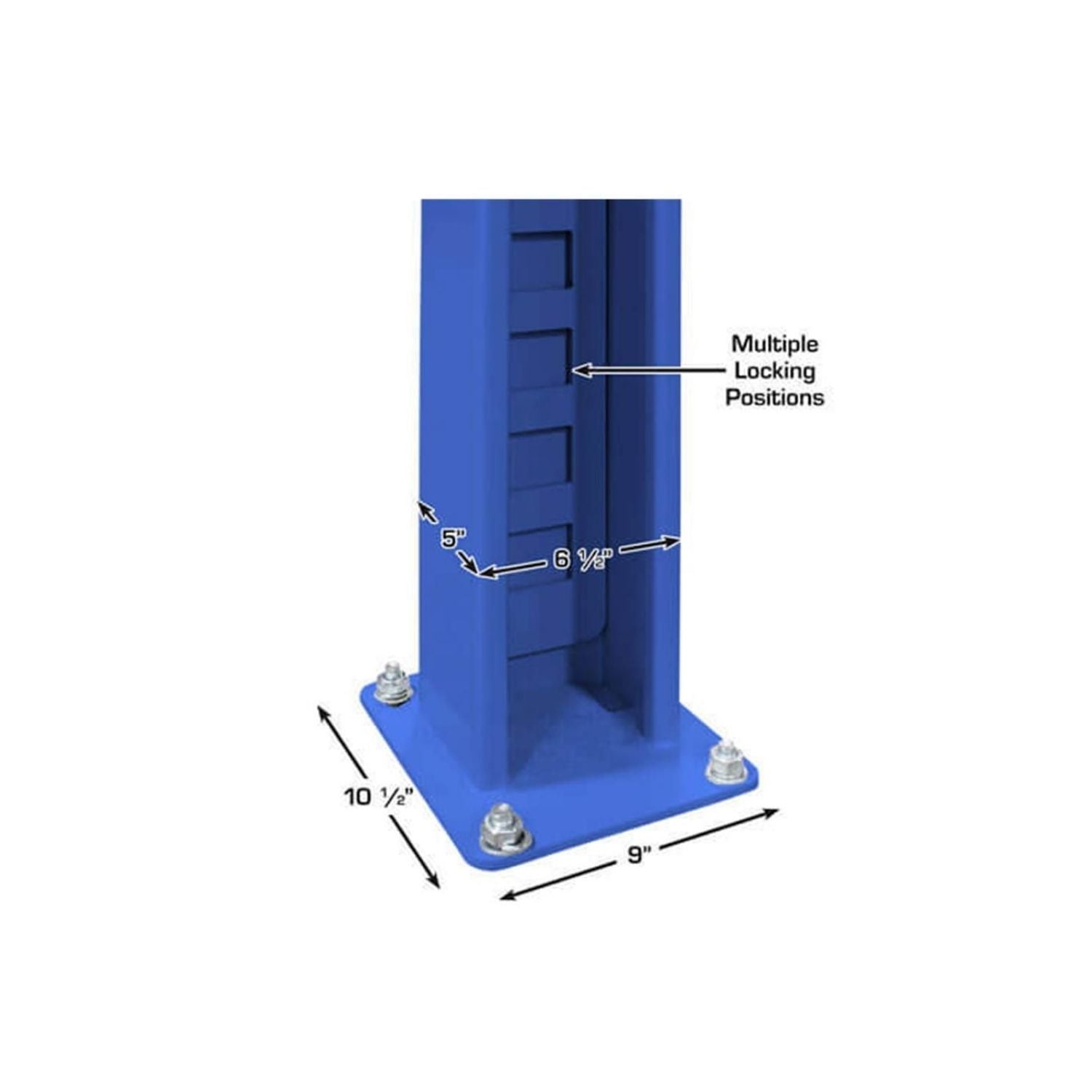

  Height Of Columns:	91 1/8" (7' 7 1/8")
  Maximum Wheel Base:	197" (16' 5")
  Drive Thru:	102 1/8" (8' 6 1/8")
  Air Requirement:	85-115 PSI (External air supply required)
  Motor/Electrical Requirement:	220 volt single (1) phase (A 30 amp breaker is recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (Not included)
  Shipping Weight:	3,100 lbs.
  Minimum Concrete Requirement:	6" of concrete with a 3,000 PSI rating

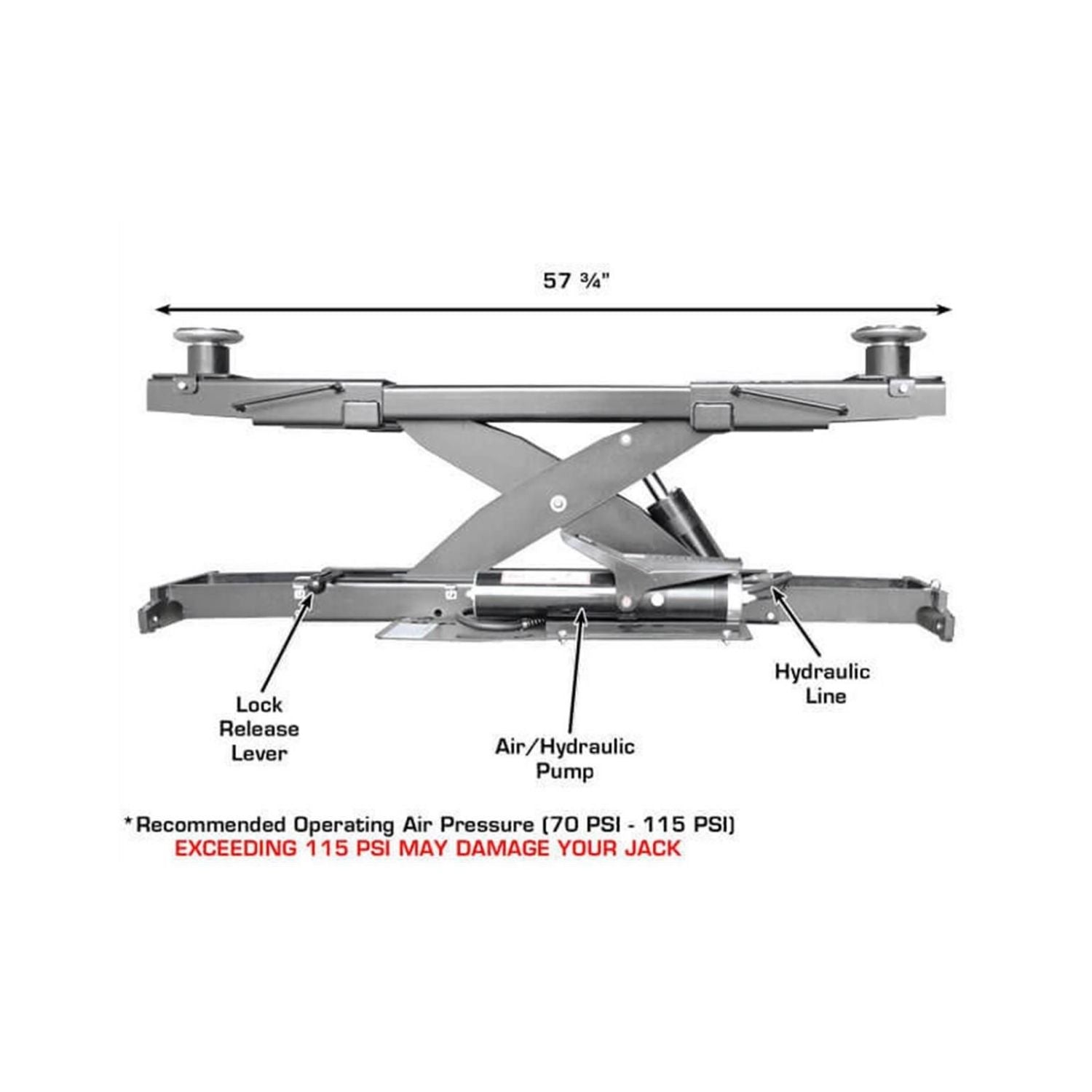

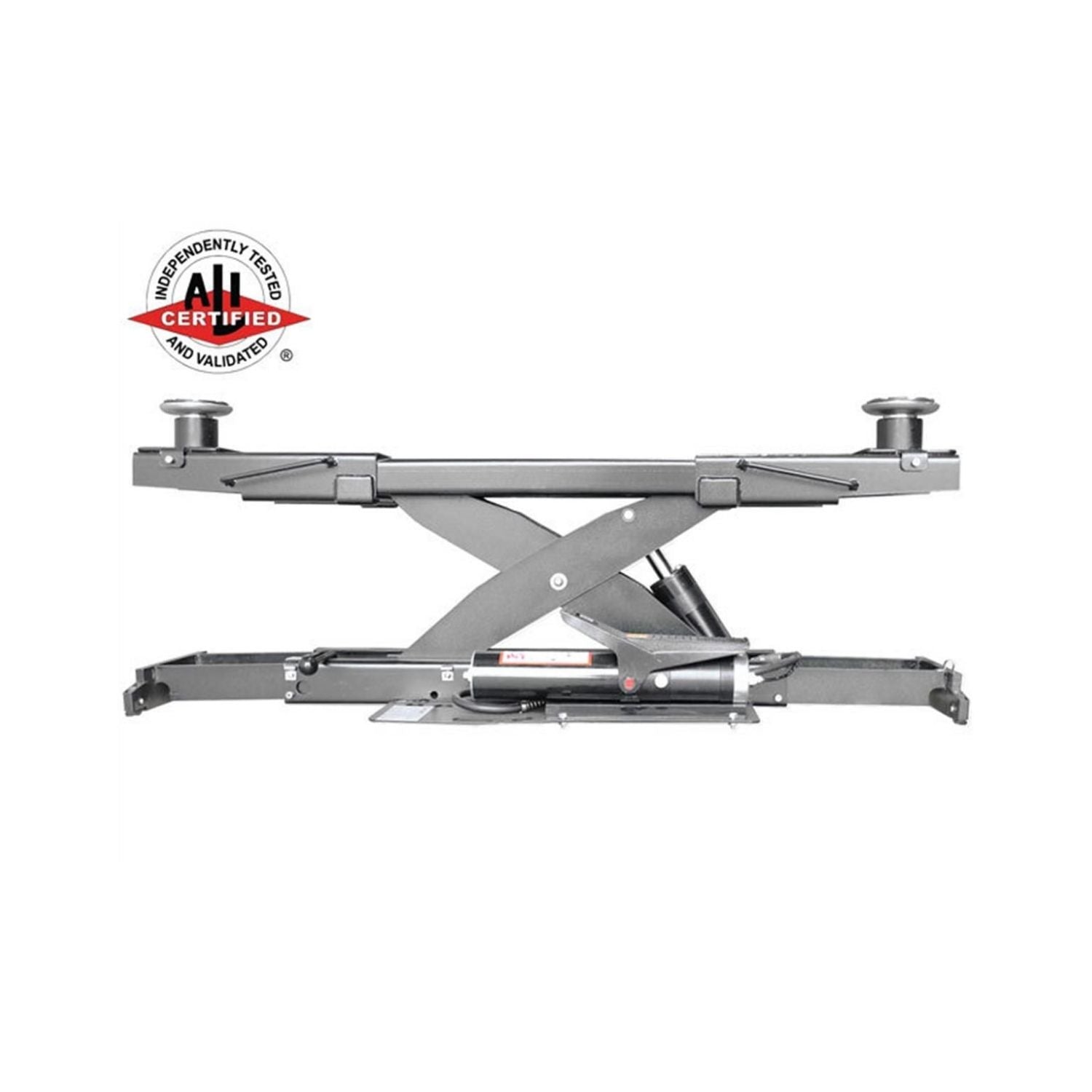

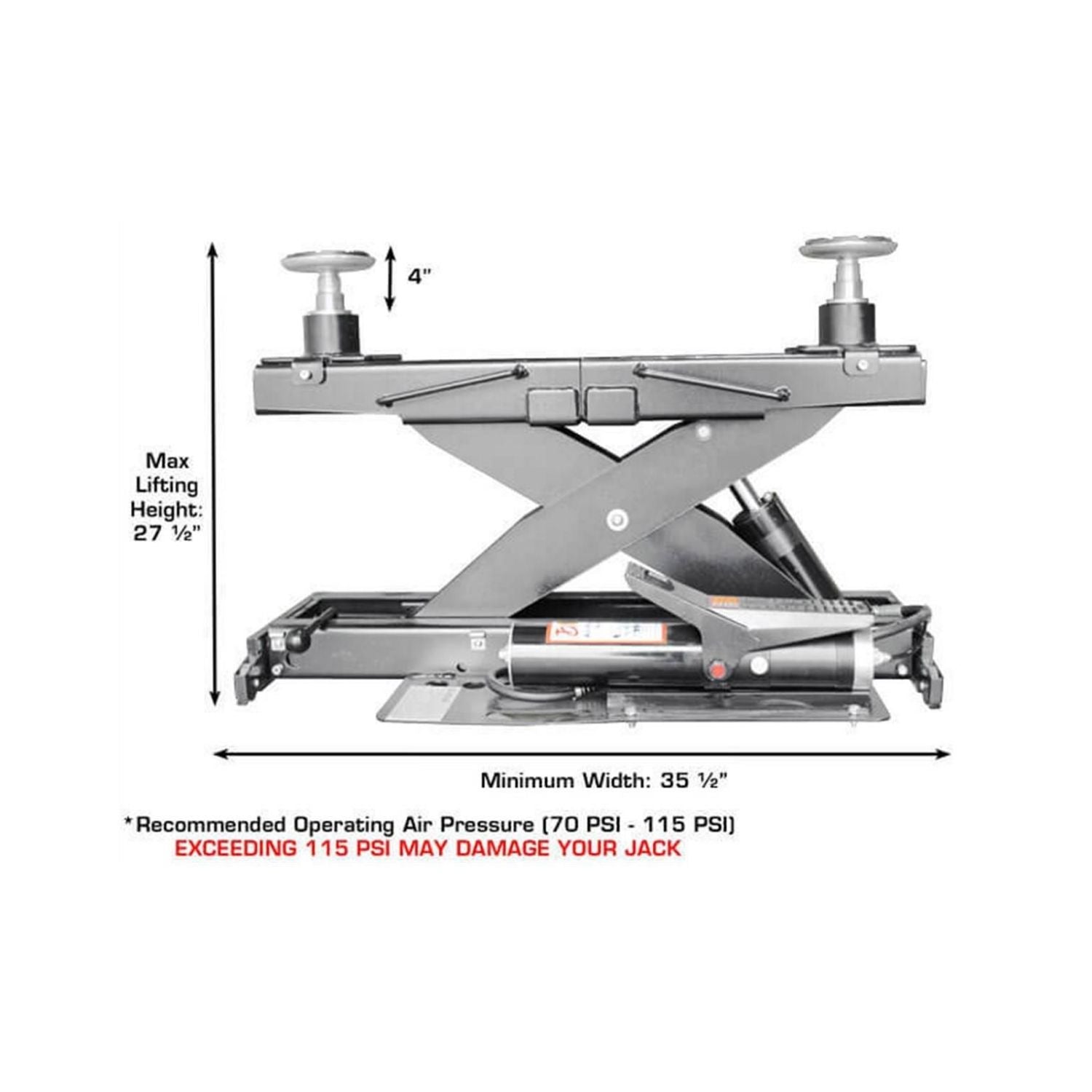

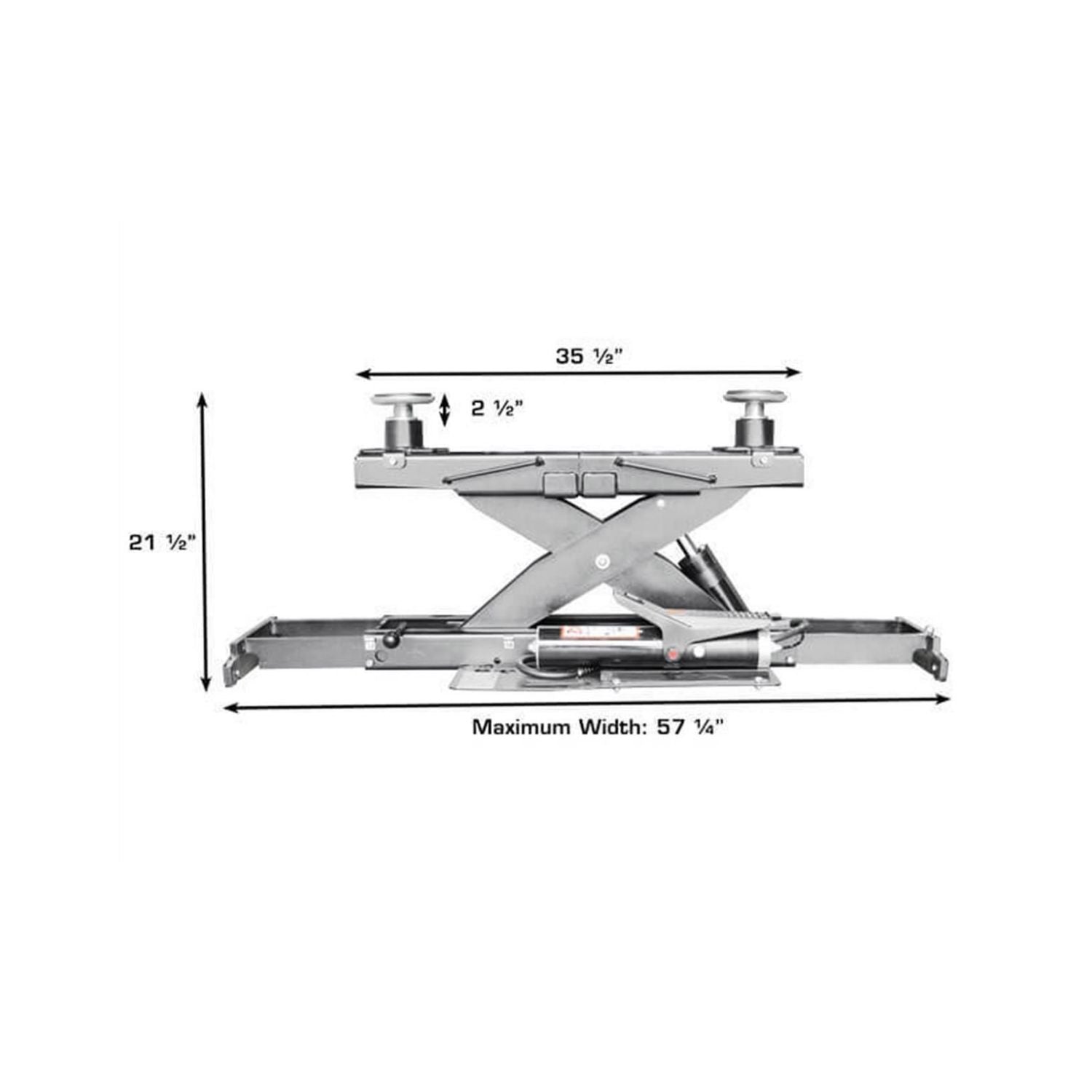

  Atlas® Platinum RJ7000 Specifications

  Minimum Width:	36"
  Maximum Width:	45 1/2"
  Distance Between Runway Capability:	36" - 45"
  Minimum Lifting Height:	12 1/2"
  Maximum Lifting Height (w/ Adapters):	27 1/2"
  Double Screw-Up Adapter Pad:	1 1/2" - 4"
  Air Requirement:	70-115 PSI
  Shipping Weight:	390 lbs.

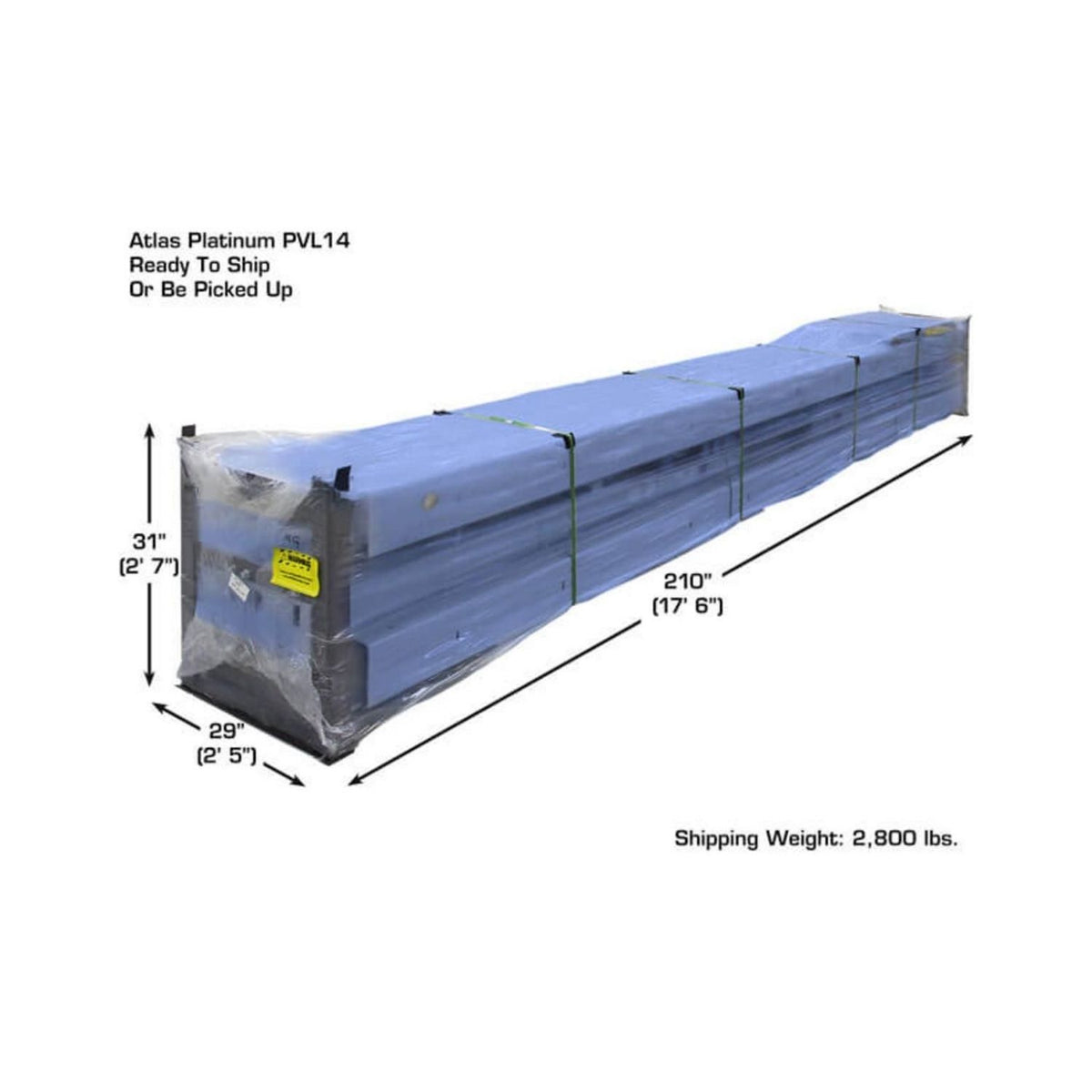

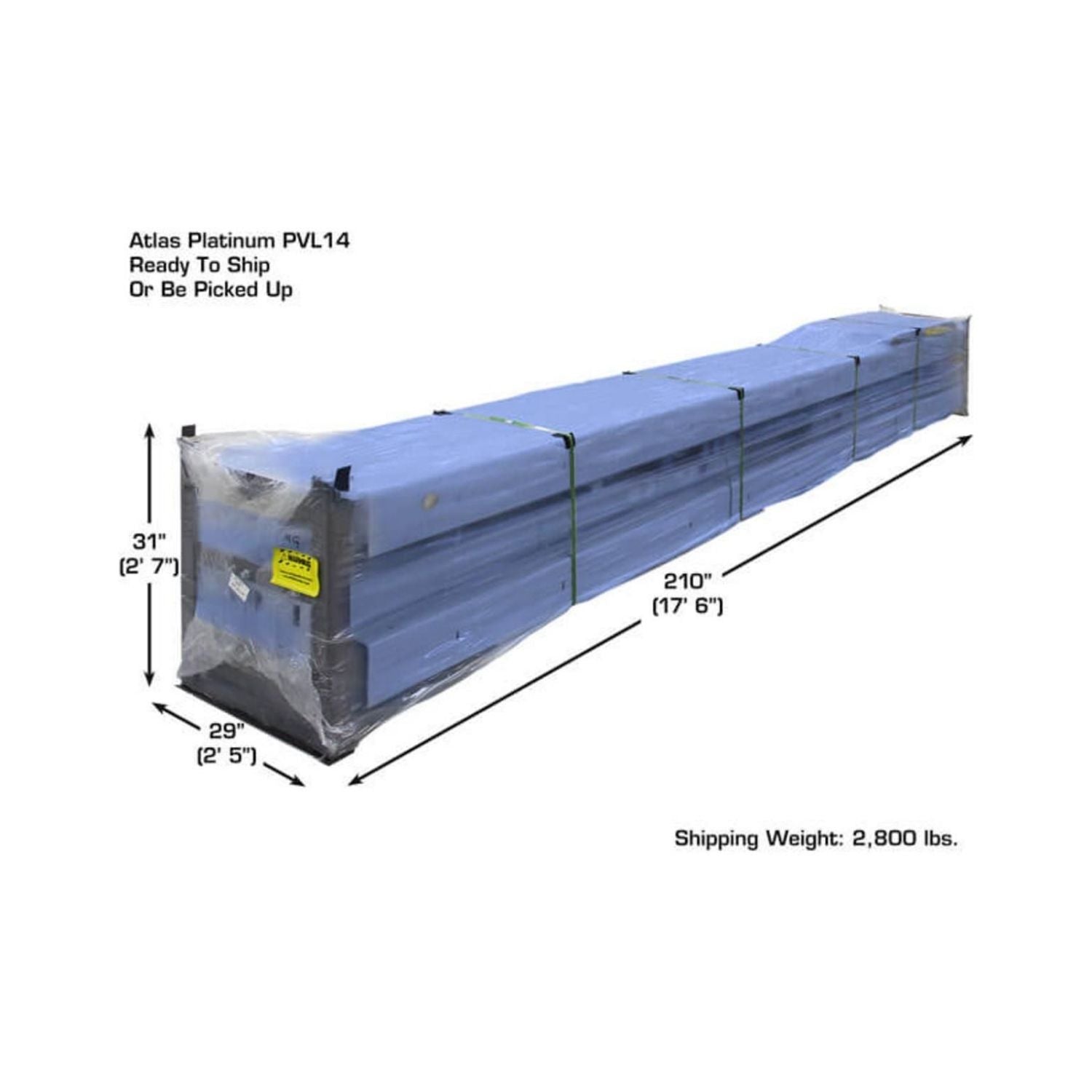

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
