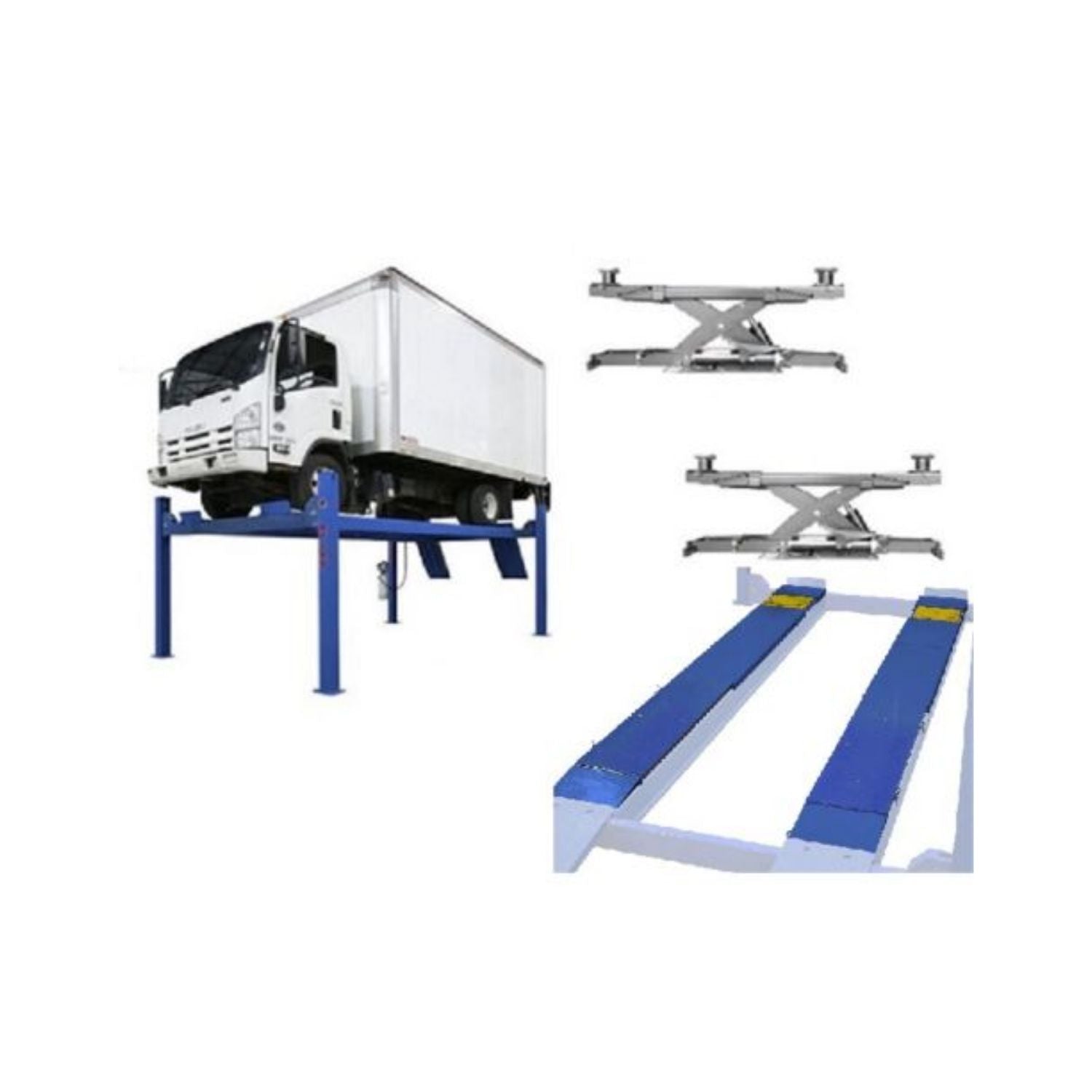

Atlas® Platinum PVL14 Align, ALIKIT & RJ7 Jacks #ATEAP-PVL14-COMBO2-FPD
Couldn't load pickup availability
-
DESCRIPTION
The Atlas® Platinum PVL14 Complete Alignment Combo is a premium commercial-grade alignment and service package designed for professional automotive repair facilities, alignment shops, fleet service centers, and high-volume commercial operations.
This complete system combines the ALI-certified Atlas Platinum PVL14 four-post lift, the Atlas Platinum Alignment Kit (ALIKIT), and dual RJ7 rolling bridge jacks, creating a fully capable wheel alignment and wheel-free service workstation.
The included alignment kit adds precision turntables, slip plates, ramps, and spacers for professional alignment capability, while the dual RJ7 rolling bridge jacks allow technicians to raise the wheels off the runways for brake, suspension, tire, and steering service work.
Built around the heavy-duty PVL14 platform, this lift uses a high-strength cable lifting system with an oversized under-runway hydraulic cylinder powered by the premium ALLY Hydraulic AL2650 power unit, certified by MET Laboratories for electrical compliance in the U.S. and Canada. Unlike older exposed-cylinder chain-drive lifts, the PVL14’s hidden-cylinder design improves leveling performance and helps reduce accidental vehicle door damage.
This combo package is ideal for shops that want:
- professional alignment capability
- wheel-free repair functionality
- heavy-duty lifting capacity
- multi-purpose commercial service flexibility
-
FEATURES AND BENEFITS
- ALI Certified Combo includes PVL14 14,000 lb. lift, Alignment Kit, & two RJ7000 rolling jacks
- Heavy Duty, Commercial Grade
- Lift is Extra Tall, Extra Wide & Extra Long
- Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Mounting Hardware Included
- Alignment Kit Includes Spacers, Ramps, Slip Plates, and Turntables
- Alignment Kit Bolts on Runways
-
SPECIFICATIONS
Atlas® Platinum PVL14 Specifications
Brand: Atlas® Equipment Platinum Part Number: ATEAP-PVL14-COMBO2-FPD UPC: 810524020343 Country of Origin: CHN Capacity: 14,000 lb. Lifting Height: 76 1/2" (6' 4 1/2") Overall Width Of Columns (Without Motor): 131 3/4" (10' 11 3/4") Overall Width Of Columns (With Motor): 140 1/2" (11' 8 1/2") Overall Length With Approach Ramp: 251 1/2" (20' 11 1/2") Length Between Columns: 196" (16' 4") Runway Length: 205 1/2" (17' 1 1/2") Runway Width: 20" Thickness Of Runway: 7" Width Between Runways: 42 3/4" (w/ Rail 39 1/4") Outside Runway To Outside Runway: 83 1/8" (6' 11 1/8") Clearance Under Runways: 69 1/2" (5' 9 1/2") Clearance Between Columns: 116 3/8" (9' 8 3/8") Height Of Columns: 92 1/2" (7' 8 1/2") Maximum Wheel Base: 195" (16' 3") Drive Thru: 94 1/2" (7' 10 1/2") Air Requirement: 85-115 PSI (External air supply required) Motor/Electrical Requirement: 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement: 3-5 Gallons AW32/AW46 (Not included) Shipping Weight: 2,800 lbs. Minimum Concrete Requirement: 6" of concrete with a 3,000 PSI rating Atlas® Platinum RJ7000 Specifications
Minimum Width: 36" Maximum Width: 45 1/2" Distance Between Runway Capability: 36" - 45" Minimum Lifting Height: 12 1/2" Maximum Lifting Height (w/ Adapters): 27 1/2" Double Screw-Up Adapter Pad: 1 1/2" - 4" Air Requirement: 70-115 PSI Shipping Weight: 390 lbs.
