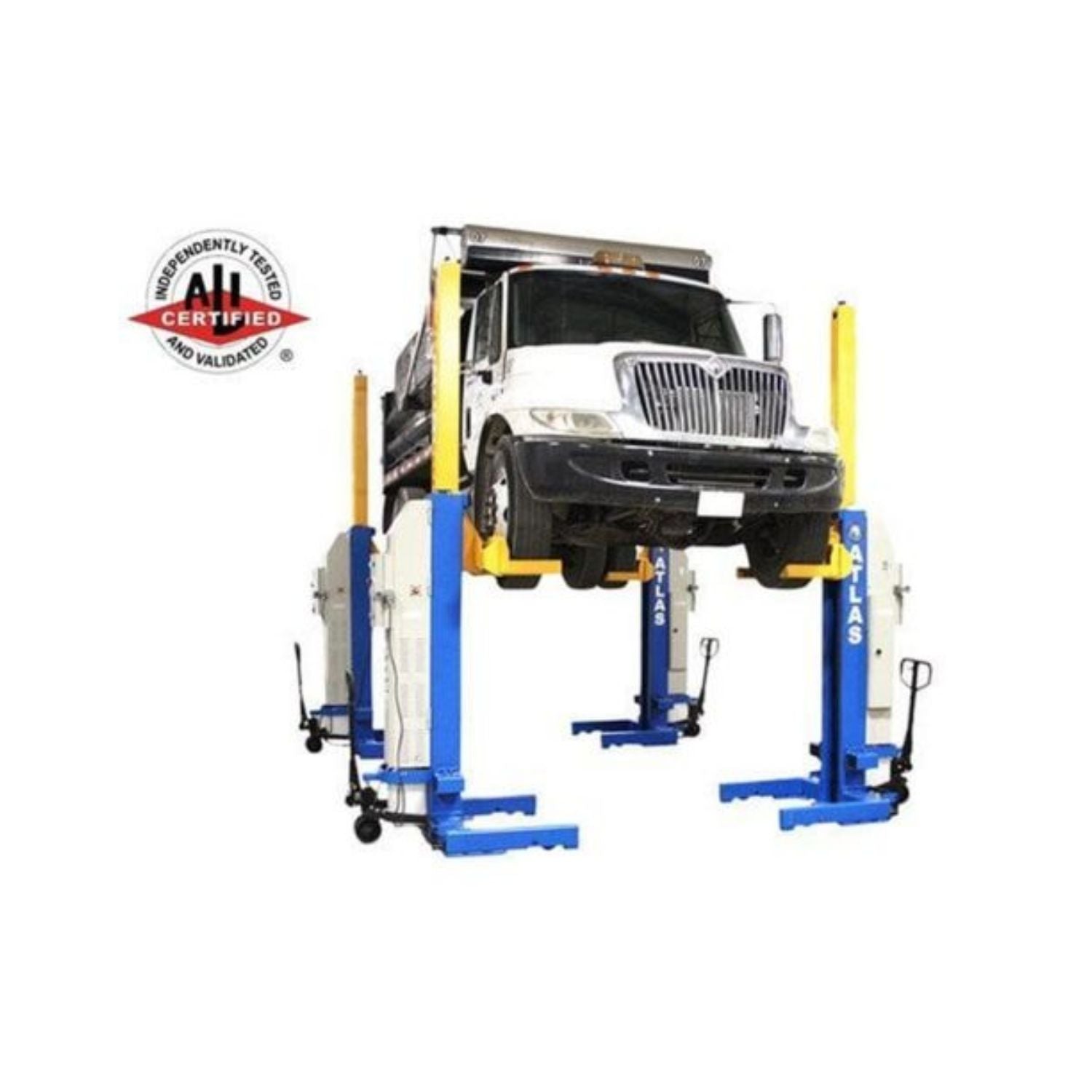

Atlas® 74,000 lb Battery Mobile Column Lift – ALI Cert. #ATEML-4034BC
Couldn't load pickup availability
| Model / Part Number | ATEML-4034BC |
| Capacity | 74,000 lbs (4-column system) |
| ALI/ETL Certified | Yes — ALI Certified |
| Lift Type | Battery-powered mobile column lift system, ALI certified |
| Lifting Configuration | 4-column system, 18,500 lb capacity per column, expandable to 6 or 8 columns |
| Minimum Ceiling Height | 13' |
| Overall Height | 145" (12' 1") per column |
| Overall Width | 43 1/2" (3' 7 1/2") per column |
| Drive-Thru Clearance | N/A — mobile column, no fixed runway |
| Rise Height | 67" (5' 7") max lifting height per column, 88 1/2" resting height |
| Motor / Electrical | 2.2 kW 24V DC motor with two batteries per column, rechargeable on 110V single-phase |
- Level concrete surface, minimum 6" thick, indoor or outdoor use
- Verify with Alamo before ordering
- 2.2 kW 24V DC motor with two batteries per column, rechargeable on 110V single-phase
- Have an electrician confirm your circuit before install day
- Plan for 145" (12' 1") per column overall lift height
- Measure to lowest obstruction, not peak
Atlas ATEML-4034BC — 74,000 lbs (4-column system) Battery-powered mobile column lift system, ALI certified
Fleet operations running larger single-axle trucks and buses hit a ceiling fast when their mobile column lift maxes out just under 17,000 lbs per column — that’s the point where a shop starts turning away heavier service work or risking an overloaded lift. A 4-column system with more headroom per column solves that without forcing a jump straight to a 6- or 8-column setup.
The ATEML-4034BC delivers 18,500 lb-per-column capacity across a battery-powered 4-column system, giving fleet shops extra per-column margin for heavier trucks and buses while keeping the compact 4-column footprint. Call Alamo at (844) 480-6059 for details on fit, install, and pricing.
Who the ATEML-4034BC Is Built For
- The fleet shop that keeps hitting the 16,500 lb per-column ceiling on the 4030BC and needs that extra 2,000 lbs of margin per column for its heaviest single-axle trucks and buses
- Municipal and industrial repair facilities that would rather pay for per-column capacity than add a 5th or 6th column to reach the same total lifting power
- Shops running a mixed fleet where some vehicles are right at the edge of a 4-column system’s rating and a safety margin matters
- Operations planning to expand to 6 or 8 columns eventually, but that need the higher 18,500 lb per-column rating carried through the whole expansion
- Facilities that want cordless battery mobility without sacrificing the per-column capacity a heavier fleet demands
- Buyers cross-shopping the 4030BC who have confirmed their vehicle weights actually need the extra per-column headroom before paying for it
What the ATEML-4034BC Is NOT Built For
- ❌ Passenger car and light-truck shops — this is heavy-duty commercial/fleet equipment
- ❌ Facilities without at least 13' of ceiling clearance and a 6"-thick level concrete floor
Questions about fit or capacity? Call Alamo at (844) 480-6059.
What Makes the ATEML-4034BC Different
74,000 lbs Total, 18,500 lbs Per Column — Extra Margin Where It Counts
The 4034BC carries 2,000 more pounds per column than the 4030BC — the difference between a lift that’s comfortable on your heaviest single-axle trucks and one that’s right at its limit. If your fleet regularly runs vehicles near 16,500 lbs per axle position, this extra headroom is the reason to step up.
Same 4-Column Footprint, Higher Per-Column Rating
You get the extra capacity without adding a 5th or 6th column — the 4034BC still expands to 6 or 8 columns later if your fleet size grows, but the per-column upgrade solves the weight problem today.
Battery Power Scales With Heavier-Duty Use
The same 2.2 kW, 24V DC motor and dual-battery-per-column design deliver the higher rating without adding cords or fixed power infrastructure — recharge on standard 110V single-phase between shifts.
Atlas Backs the Build, Alamo Backs You
The 2-year limited parts warranty covers the columns; Alamo covers the relationship. Call (844) 480-6059 for service or claims and reach the same team that installed your system.
A Footprint That Moves Where the Work Is
At 43 1/2" per column with no fixed runway, the 4034BC’s columns go wherever the vehicle is parked. Confirm your bay layout with Alamo before ordering.
- ✅ Heavy fleet service centers running larger trucks and buses that need more than 16,500 lbs per column
- ✅ Municipal and industrial repair facilities wanting extra per-column headroom without adding more columns
- ✅ Shops planning to expand to a 6- or 8-column system as volume grows
- ❌ Passenger car and light-truck shops — this is heavy-duty commercial/fleet equipment
- ❌ Facilities without at least 13' of ceiling clearance and a 6"-thick level concrete floor
ATEML-4034BC vs. Atlas® 66,000 lb Battery Mobile Column Lift (ATEML-4030BC) — Which Lift Is Right for Your Shop?
| Decision Point | ATEML-4034BC | Atlas® 66,000 lb Battery Mobile Column Lift (ATEML-4030BC) |
|---|---|---|
| Capacity per column | 18,500 lbs (74,000 lb total, 4 columns) | 16,500 lbs (66,000 lb total, 4 columns) |
| Best fit | Heavier fleet vehicles needing more capacity per column | Standard fleet trucks and buses |
Choose the ATEML-4034BC when your fleet runs heavier vehicles needing more capacity per column. Choose the ATEML-4030BC for standard fleet truck and bus service at a lower entry price. Both stay inside Alamo’s catalog — call (844) 480-6059.
Full Specifications — ATEML-4034BC
| Model / Part Number | ATEML-4034BC |
| Capacity | 74,000 lbs (4-column system) |

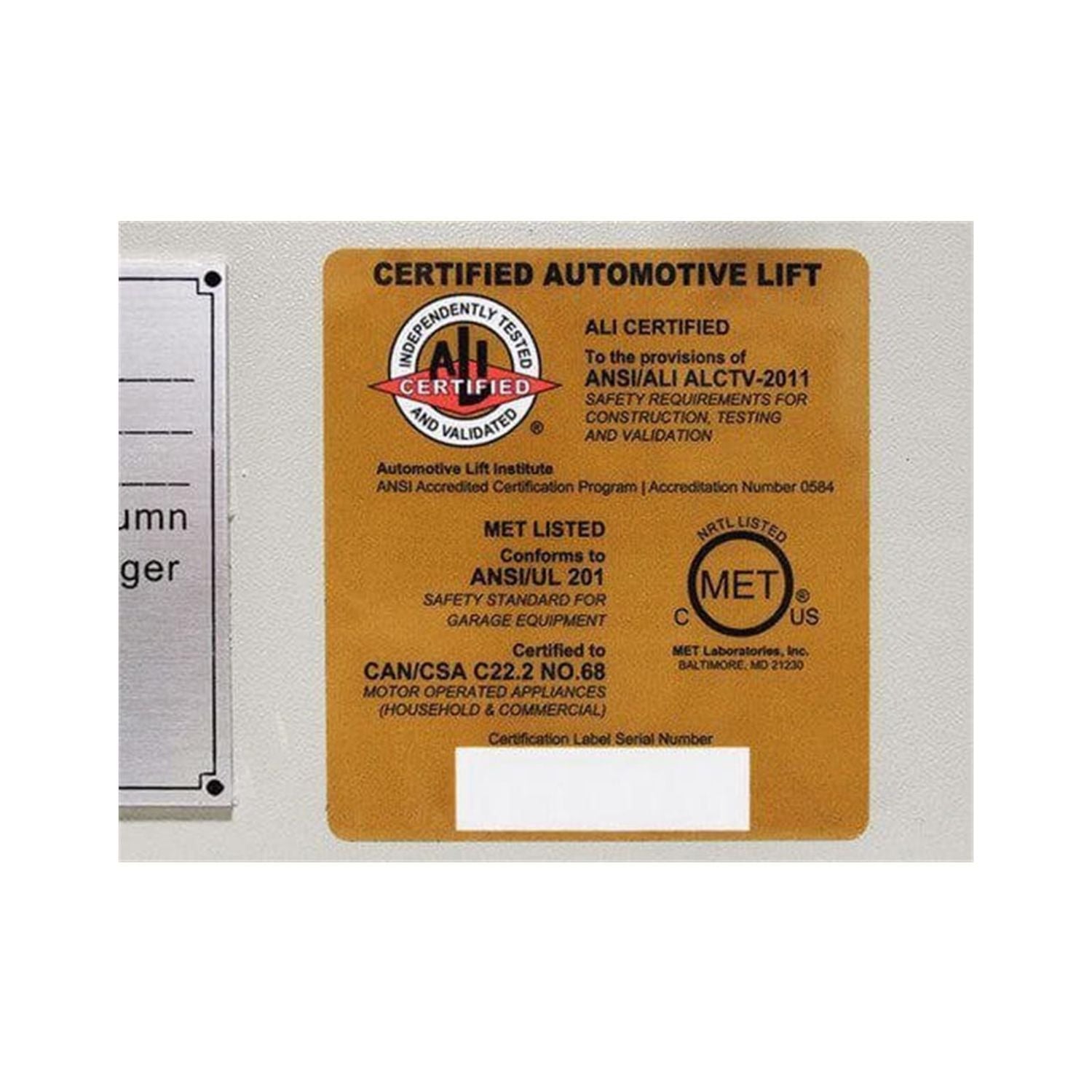

| ALI/ETL Certified | Yes — ALI Certified |
| Lift Type | Battery-powered mobile column lift system, ALI certified |
| Lifting Configuration | 4-column system, 18,500 lb capacity per column, expandable to 6 or 8 columns |
| Minimum Ceiling Height | 13' |
| Overall Height | 145" (12' 1") per column |
| Overall Width | 43 1/2" (3' 7 1/2") per column |
| Drive-Thru Clearance | N/A — mobile column, no fixed runway |
| Rise Height | 67" (5' 7") max lifting height per column, 88 1/2" resting height |
| Motor / Electrical | 2.2 kW 24V DC motor with two batteries per column, rechargeable on 110V single-phase |
| Concrete / Floor Requirement | Level concrete surface, minimum 6" thick, indoor or outdoor use |
| Warranty | 2-year limited — parts only |
| Column Width | 13 1/4" |
| Length | 55 1/2" (4' 7 1/2") |
| Max Tire Diameter | 44" |
| Min Tire Diameter | 19" |
| Expansion Capacity | 4 columns (74,000 lb) / 6 columns (111,000 lb) / 8 columns (148,000 lb) |
| Shipping Weight (4 columns) | 6,800 lbs each |
⚠️ Installation Requirements
- Ceiling height: Plan for 145" (12' 1") per column overall lift height; measure to the lowest obstruction.
- Electrical: 2.2 kW 24V DC motor with two batteries per column, rechargeable on 110V single-phase; consult an electrician for exact breaker sizing.
- Floor / Concrete: Level concrete surface, minimum 6" thick, indoor or outdoor use.
- Bay width: Confirm 43 1/2" (3' 7 1/2") per column floor width clearance; measure before ordering.
- Surface anchoring: Anchor per manufacturer specification where applicable — do not skip anchoring on production bays.
- Installation: Alamo installs every lift we sell. Call (844) 480-6059 to schedule.
Atlas Warranty — ATEML-4034BC
Atlas backs the ATEML-4034BC with its published warranty terms for this model — verified from Atlas’s own product documentation (manufacturer-web source). Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the ATEML-4034BC and should not be assumed to apply to other Atlas models.
| Component | Coverage Term |
|---|---|
| Parts (all components) | 2 years from date of invoice (registration required — call MIT Automobile at 626-636-7674 to activate) |
| Labor / normal wear / consumables | Not covered |
Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
❓ Frequently Asked Questions — ATEML-4034BC
What's the difference between the ATEML-4034BC and the ATEML-4030BC?
Both are 4-column mobile lift systems with the same physical footprint; the 4034BC has a higher per-column capacity (18,500 lbs vs 16,500 lbs), giving 74,000 lbs total vs 66,000 lbs.
Can this system be expanded later?
Yes — the same column design scales from 4 columns (74,000 lbs) to 6 columns (111,000 lbs) or 8 columns (148,000 lbs).
Is this lift cordless?
Yes, it's battery powered with two batteries per column, rechargeable on standard 110V single-phase power.
Does the warranty require registration?
Yes — the 2-year parts warranty requires registering the lift with MIT Automobile (626-636-7674) before it becomes effective.
Why Buy the ATEML-4034BC from Alamo Equipment & Service?
- We install it. A 4-column battery system needs correct pairing and calibration across every column — our crew sets up the ATEML-4034BC so all 4 columns lift in sync from day one.
- We service it. Battery packs, hydraulics, and column electronics all need real service knowledge — call (844) 480-6059 and reach the team that installed your ATEML-4034BC, not a manufacturer hotline.
- We size it with you. At 145" per column and 74,000 lbs total across 4 columns, confirm your bay layout and vehicle weights with Alamo before ordering — especially if you’re deciding between the 4034BC and the lower-cost 4030BC.
- Free shipping. The ATEML-4034BC ships free to all 48 contiguous states — no freight surprise on your invoice.
- Expert comparison help. Not sure if you actually need the 4034BC’s extra 2,000 lbs of per-column headroom over the 4030BC? Call (844) 480-6059 and we’ll match the system to your actual fleet weights.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner.
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(844) 480-6059. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
