Atlas® TC303 & WBT210 Combo Package #ATETTCWB-COMBO3-FPD
Couldn't load pickup availability
-
DESCRIPTION

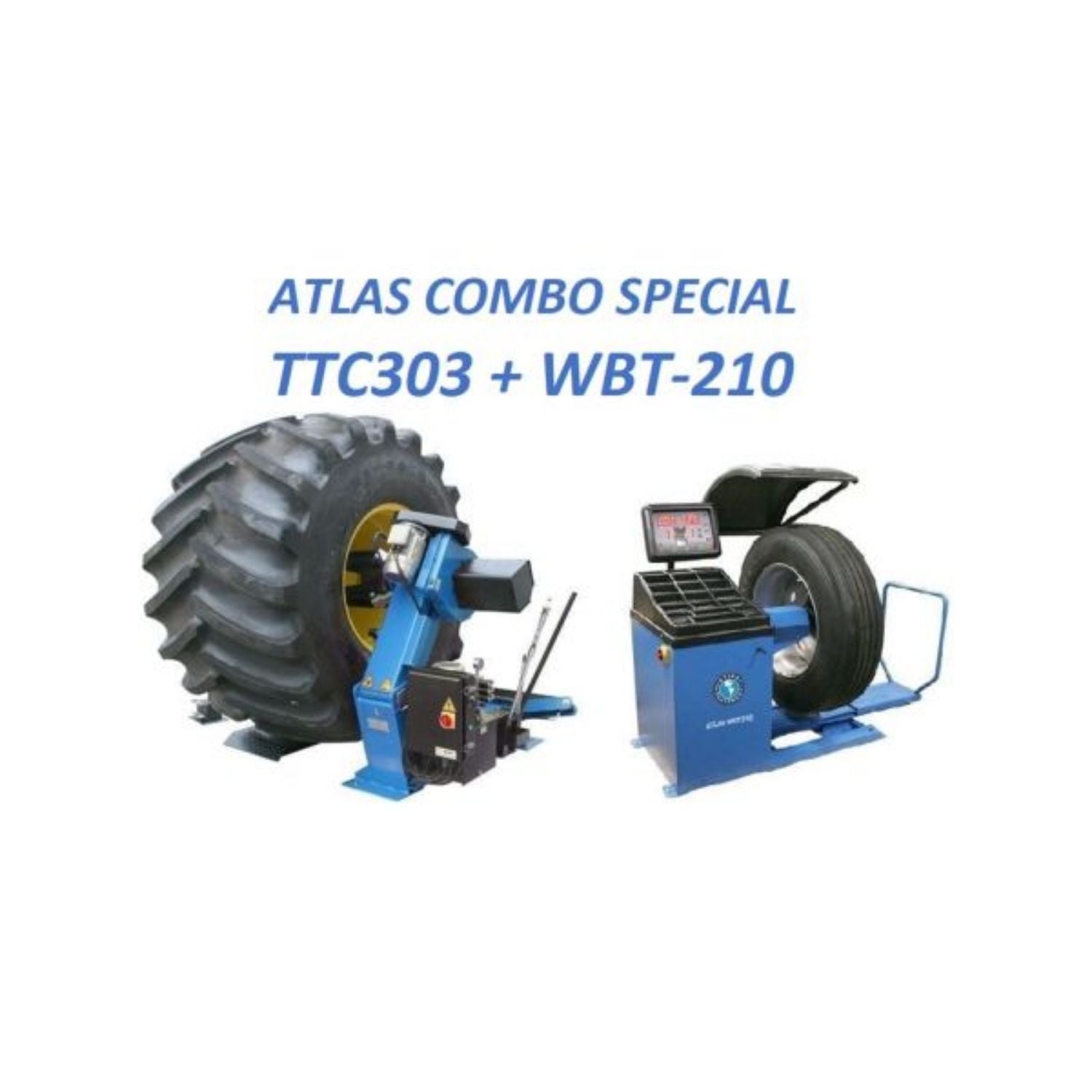

The Atlas® TC303 & WBT210 Combo Package is an extreme-duty tire service solution designed for commercial truck shops, fleet maintenance facilities, agricultural operations, mining applications, and industrial tire service centers. This combo package includes the Atlas® TC303 super-duty truck tire changer and the Atlas® WBT210 computerized heavy-duty wheel balancer for handling oversized commercial wheel assemblies with efficiency and precision.
The TC303 tire changer is engineered to accommodate massive wheel and tire assemblies with rim capacities up to 56 inches and tire diameters exceeding 90 inches. It features an electric/hydraulic self-centering four-jaw chuck, heavy-duty bead breaker system, and mobile wired control unit for demanding tire service applications. The WBT210 wheel balancer offers computerized balancing with static and dynamic balancing modes, rapid optimization, self-diagnosis, and self-calibration for accurate balancing of passenger, truck, agricultural, and fleet wheels.
Built for high-volume commercial use, this combo package delivers dependable performance for shops servicing everything from passenger vehicles to large commercial trucks and heavy equipment.
-
FEATURES AND BENEFITS
Atlas® TC303 Heavy Duty Truck Tire Changer
- Handles rims from 14" to 56" and tire diameters in excess of 90"
- Accommodates tires with a max width of up to 42"
- Bead Breaker
- Mount/Demount Head
- Electric/Hydraulic Self-Centering Four Jaw Chuck
- 5 different rim locking positions
- Wired Mobile Control Unit
- Heavy Duty Tire Tool Included
- Rim Clamps for Steel and Alloy Wheels Included
- Alloy Rim Adapter Set w/ Plastic Inserts Included
Atlas® WBT210 Heavy Duty Spin Balancer
- Cone sets for car and light truck tires included
- Cone and spacer set for truck, bus, or implement tires included
- Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
- Pneumatic wheel lift (external air supply required - NOT INCLUDED)
- Automatic start/stop when hood is lowered/raised
- Static and dynamic balancing modes
- Rapid optimization (OPT)
- Self-Diagnosing and Calibrating
- Exceptional stability in reading the unbalance between planes
- Display in grams or ounces, and in mm or inches
- Wheel Weight Pliers & Wheel Width Caliper Included
- Both Machines 1 Year Parts Only Warranty
- This part number FREIGHT PREPAID
-
SPECIFICATIONS
Brand: Atlas® Automotive Equipment Part Number: ATETTCWB-COMBO3-FPD Dimensions: 146" L × 94" W × 72" H Weight: 2525 lbs UPC: 810524028707 Country of Origin: CHN Atlas® TTC303 Specifications
Max Tire Diameter: 90 1/2" (7' 6 1/2") Max Tire Width: 42" Rim Clamping Range: 14" - 46" Rim Clamping Range w/ Extensions: 47" - 56" Max Wheel Weight: 3300 lbs Clamping Power: 13173 lbs Operating Pressure: 0 - 1885 psi Acoustic Pressure: <70dBA Bead Breaker Force: 5930 lbs Tool Arm Positioning: Manual Tool Head Positioning: Manual Construction: Single Piece Frame w/ Solid Floor-Plate Hydraulic Motor Power: 2HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required Chuck Motor Power: 2HP 220v +/- 5% (209-231 volts) 1phase, 30 amp breaker required Shipping Weight: 1800 lbs Atlas® WBT-210 Specifications
Max Tire Diameter: 47" Rim Sizes (Cars And Light Trucks): 10"-32" Rim Width: 1 1/2"-20" Shaft Size: 40mm Max. Wheel Weight: 440 lbs. Balancing Speed: 150 rpm Car-Light Truck Mode/90 rpm Truck Mode Data Entry: All Dimensions Manual
Shipping Information:
Customers may pick up their lift at the nearest freight terminal at no additional cost.
You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.
To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.
Atlas Warranty Information
- 5-Year Structural Warranty
- 2-Year Hydraulic-Power Warranty
