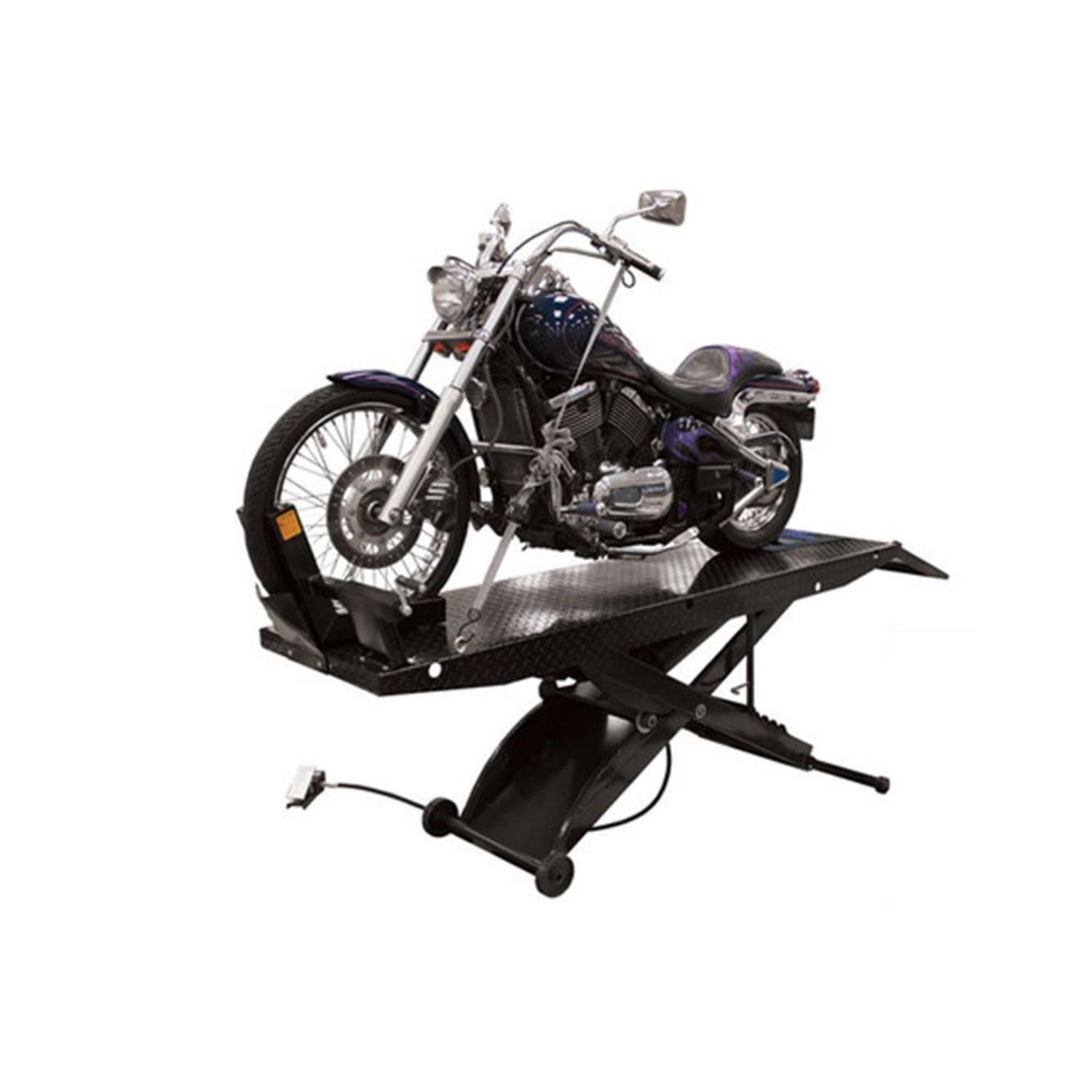

Atlas® 1,000 lb Motorcycle Lift with Roller Plate #ATEHT-ACL-FPD

Atlas ACL — 1,000 lbs Air-operated motorcycle/powersports lift with roller plate

Pulling a wheel for tire service usually means fighting a bike off a stand, then fighting it back on. The Atlas ACL is built around that exact job — a 1,000 lb air-operated lift with a removable roller plate that lets you slide the wheel out without disturbing the rest of the bike. Call Alamo at (844) 480-6059 for fit and install details before you order.

Who the ACL Is Built For

• Shops doing frequent tire and wheel service where pulling the roller plate speeds up every wheel-off job instead of fighting the bike free of a fixed table
• Bays with an existing compressed air line ready for a foot-pedal, air-operated lift instead of hand-cranking a mechanical table
• Detailing and general service operations working on motorcycles, ATVs, and smaller powersports units that need a stable, hands-free platform
• Techs who service multiple bikes a day and need the front wheel vise to hold the bike upright the instant it rolls on, freeing both hands for the actual work
• Shops wanting one lift that handles routine maintenance and wheel-intensive jobs equally well without swapping tools mid-job

What the ACL Is NOT Built For

• ❌ Shops without a compressed air line — the ACL is air-operated only
• ❌ Full-size touring motorcycles needing the longer CycleLift table

Questions about fit or capacity? Call Alamo at (844) 480-6059.

What Makes the ACL Different

1,000 lbs Rated Capacity Built for Real Shop Volume

The ACL is rated for 1,000 lbs as an air-operated motorcycle/powersports lift, with a rise height of 33" (2' 9") full lift height. That gives you standing room to work underneath and around the bike through tire changes, chain adjustments, and general maintenance without kneeling on the floor.

Removable Roller Plate for Fast Wheel-Off Work

The front wheel vise locks the bike in place, and the removable roller plate underneath lets you slide the front wheel free for tire mounting, balancing, or brake work without wrestling the bike or disturbing the clamp. It is the detail that separates a wheel-service lift from a general-purpose table.

Air-Operated — No Electrical Install to Schedule

Running on 90-100 PSI shop air means there is no electric motor, no breaker to size, and no electrician to schedule. Confirm your floor requirement is a standard shop floor with no special concrete needed, and the ACL's foot-pedal operation is ready to run the day it lands.

Atlas Reliability, Alamo Warranty Support

The ACL is covered by Atlas's 1-year parts-only warranty, and every claim runs through Alamo directly. Call (844) 480-6059 and we handle the paperwork and the fix — you are never stuck explaining your problem to a call center.

A Footprint That Fits a Working Bay

A 24" table width and 14" lowered height keep the ACL compact when it is parked, with a removable approach ramp giving a 20" drive-on clearance. Check these numbers against your bay layout, and call us if anything is close before you order.

Full Specifications — ACL

Atlas Warranty — ACL

Atlas backs the ACL with its published warranty terms for this model — verified from Atlas’s own product documentation (manufacturer-web source). Coverage varies by model in the Atlas standard car lift line; the terms below are specific to the ACL and should not be assumed to apply to other Atlas models.

Warranty service is through Alamo Equipment & Service. When you buy from us, you are not waiting on a manufacturer hotline — call (844) 480-6059 and we handle it.
