Atlas 12,000 lb 412 4-Post Lift & RJ6 Combo #ATEATTD-412-COMBO-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS

• DESCRIPTION

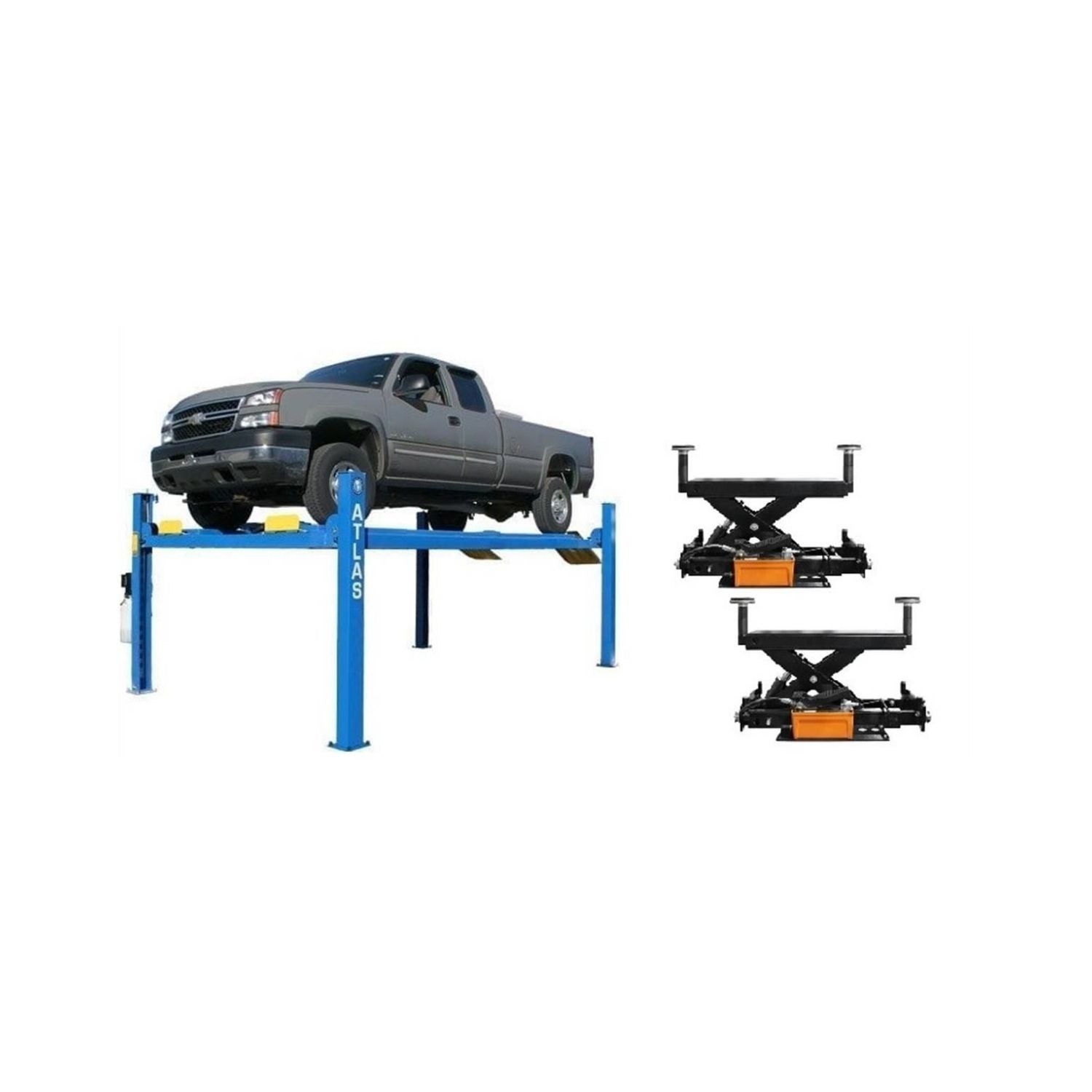

  The Atlas Commercial 412 Lift and RJ6 Combo is a heavy-duty solution designed for professional vehicle lifting and service applications.

  This package includes the 12,000 lb capacity 4-post lift paired with an RJ6 rolling jack, allowing technicians to perform wheel-free service such as brake, suspension, and tire work. The combination provides both stable lifting and added service versatility for commercial shop environments.

• FEATURES AND BENEFITS

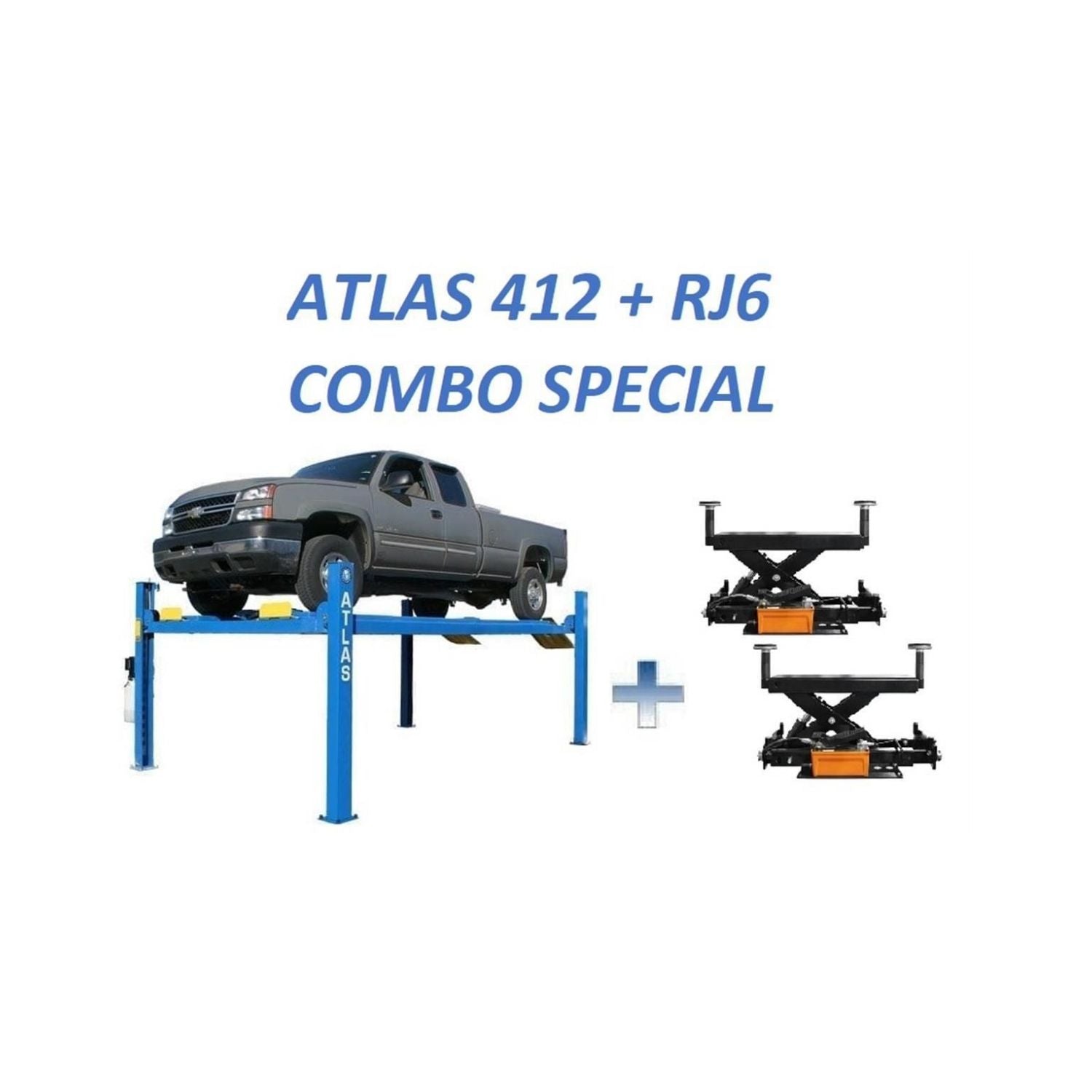

  • Combo Package includes 412 12,000 lb. Capacity lift & two RJ6 rolling jacks
  • Heavy Duty, Commercial Grade
  • Lift is Extra Tall, Extra Wide & Extra Long

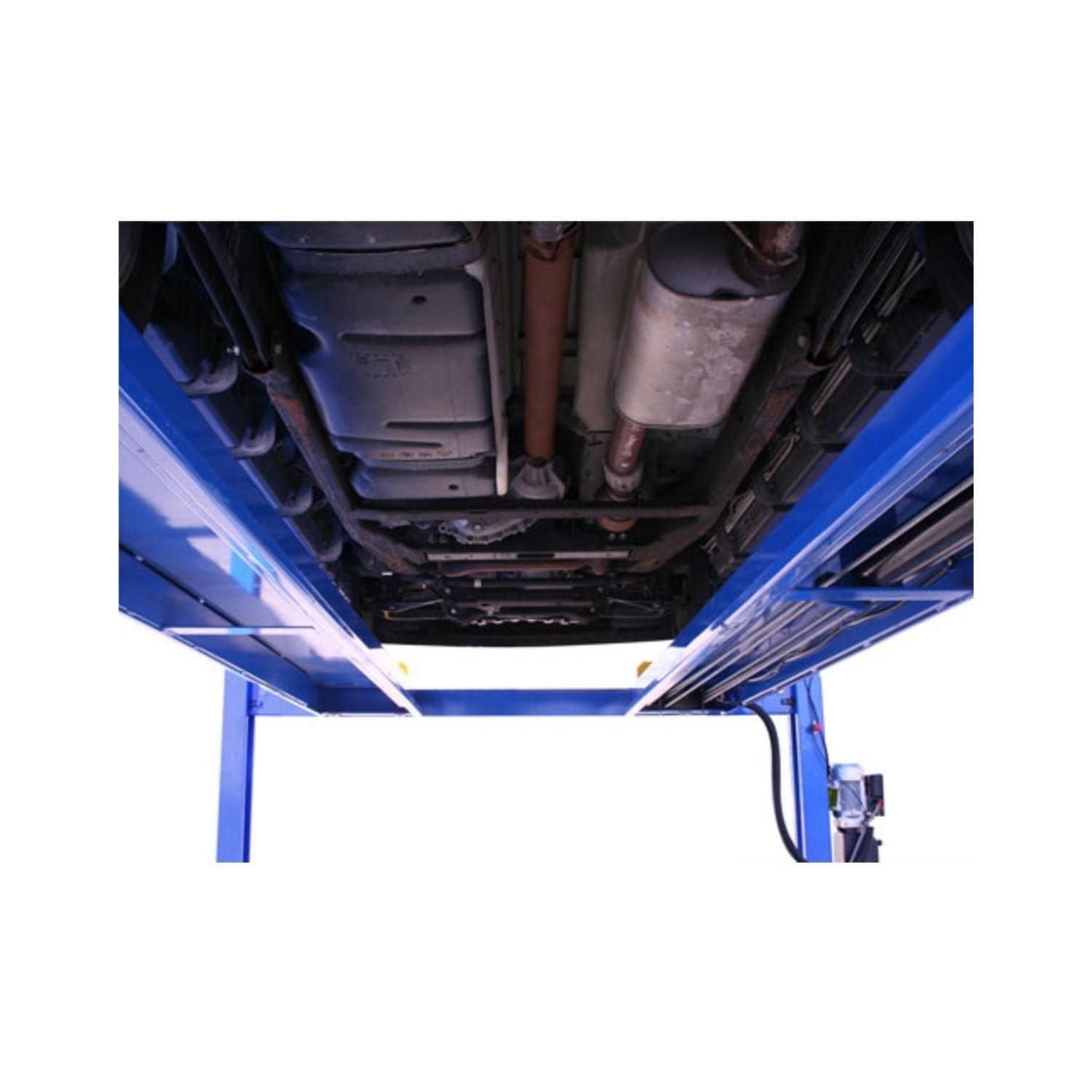

  • Lift has Diamond Plated Runways

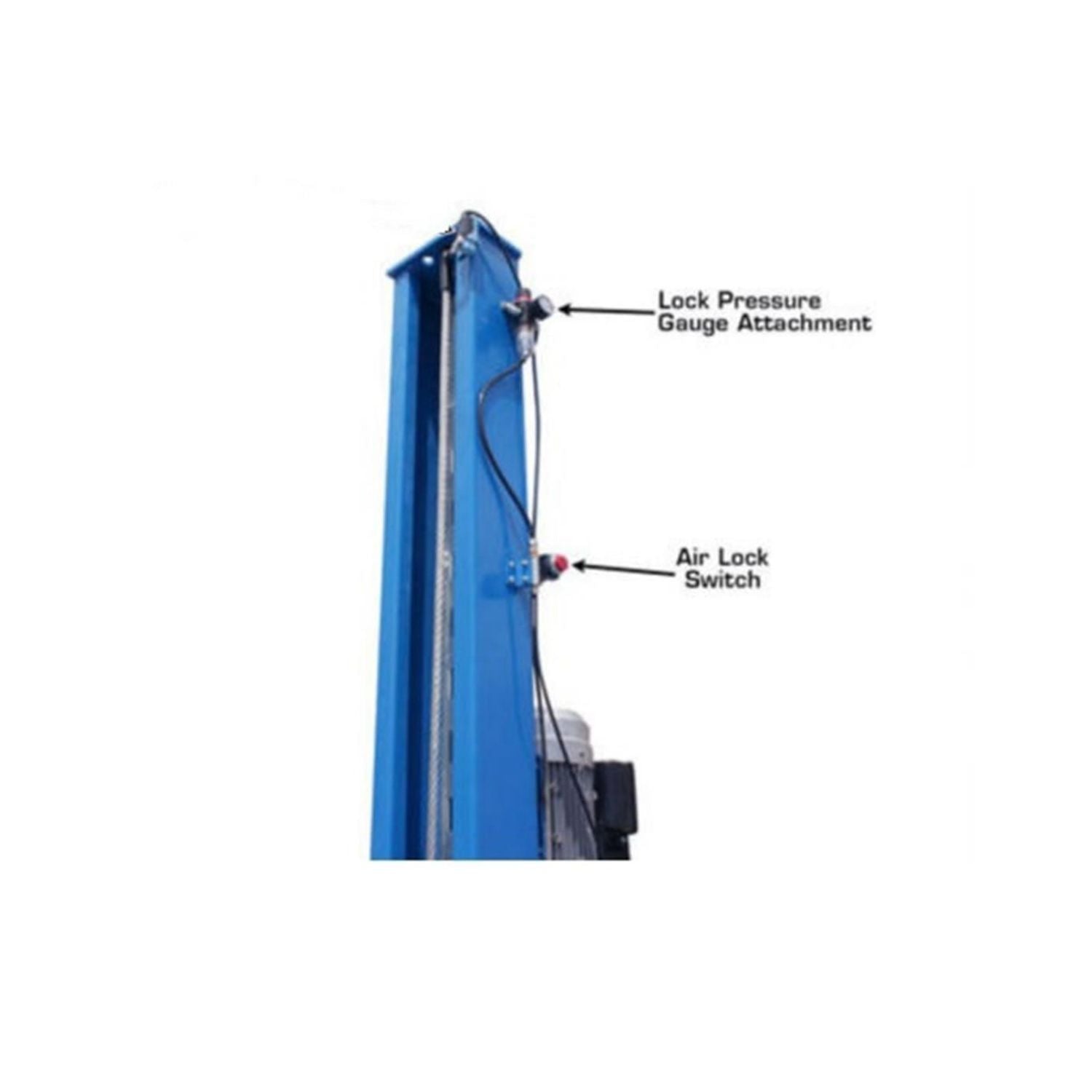

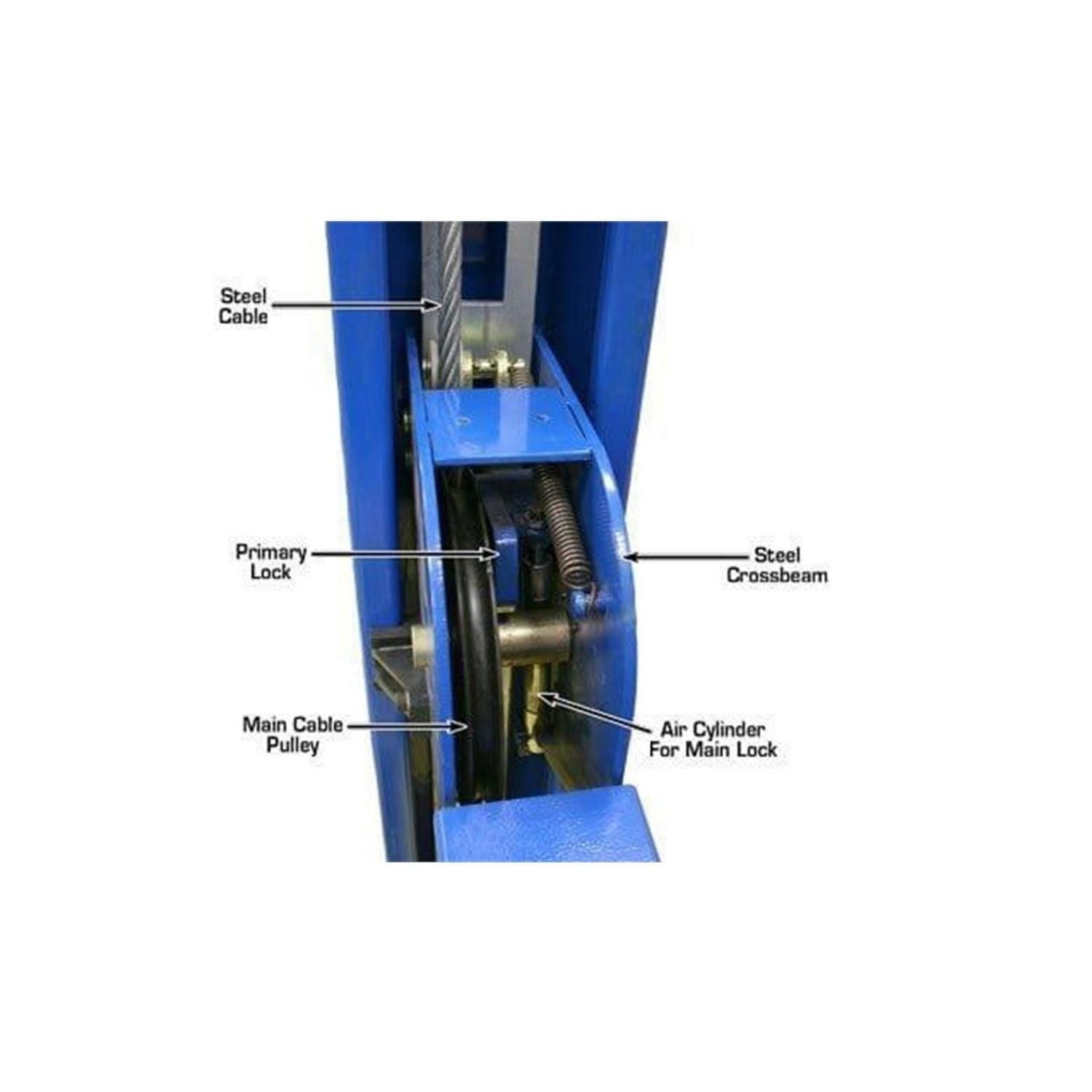

  • Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

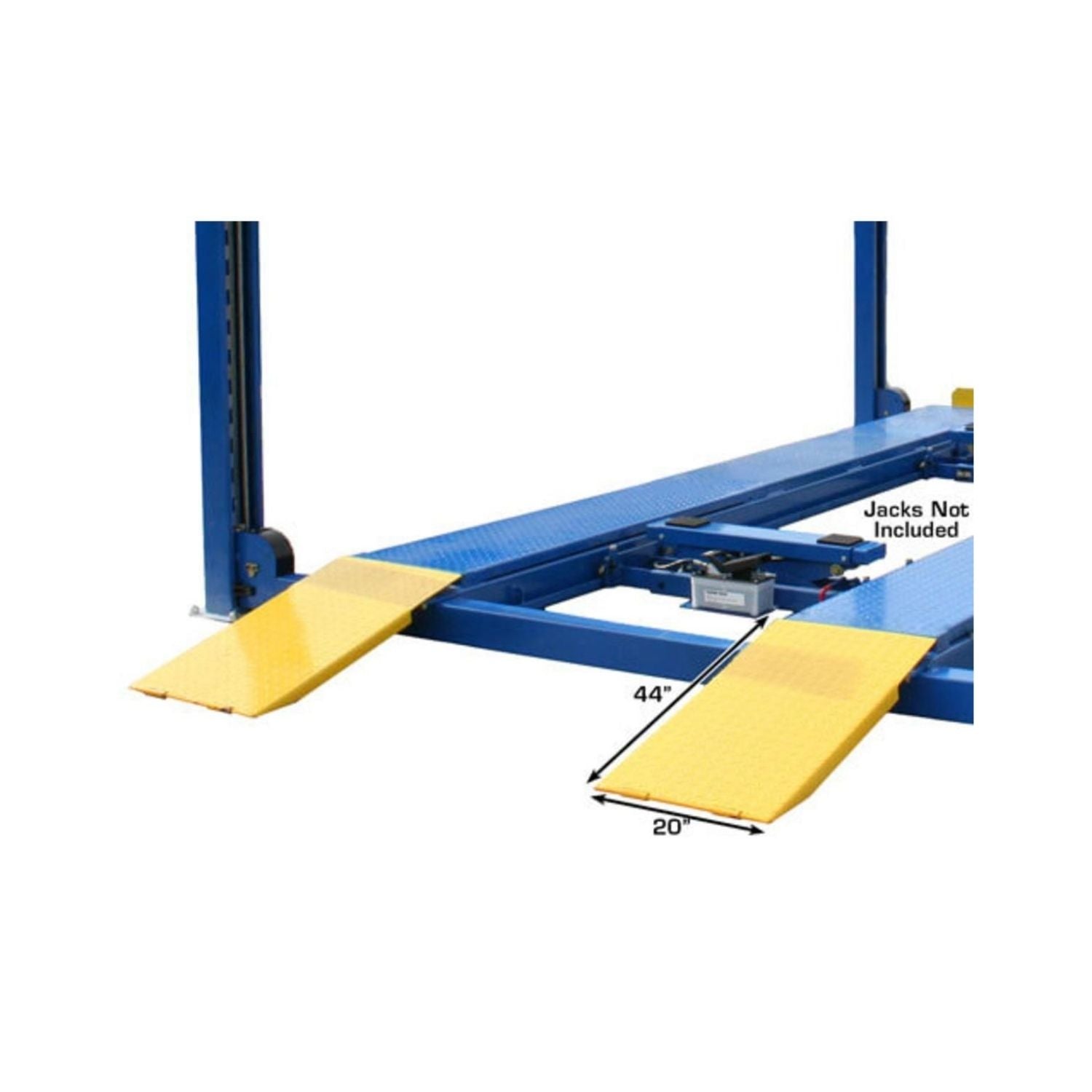

  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)

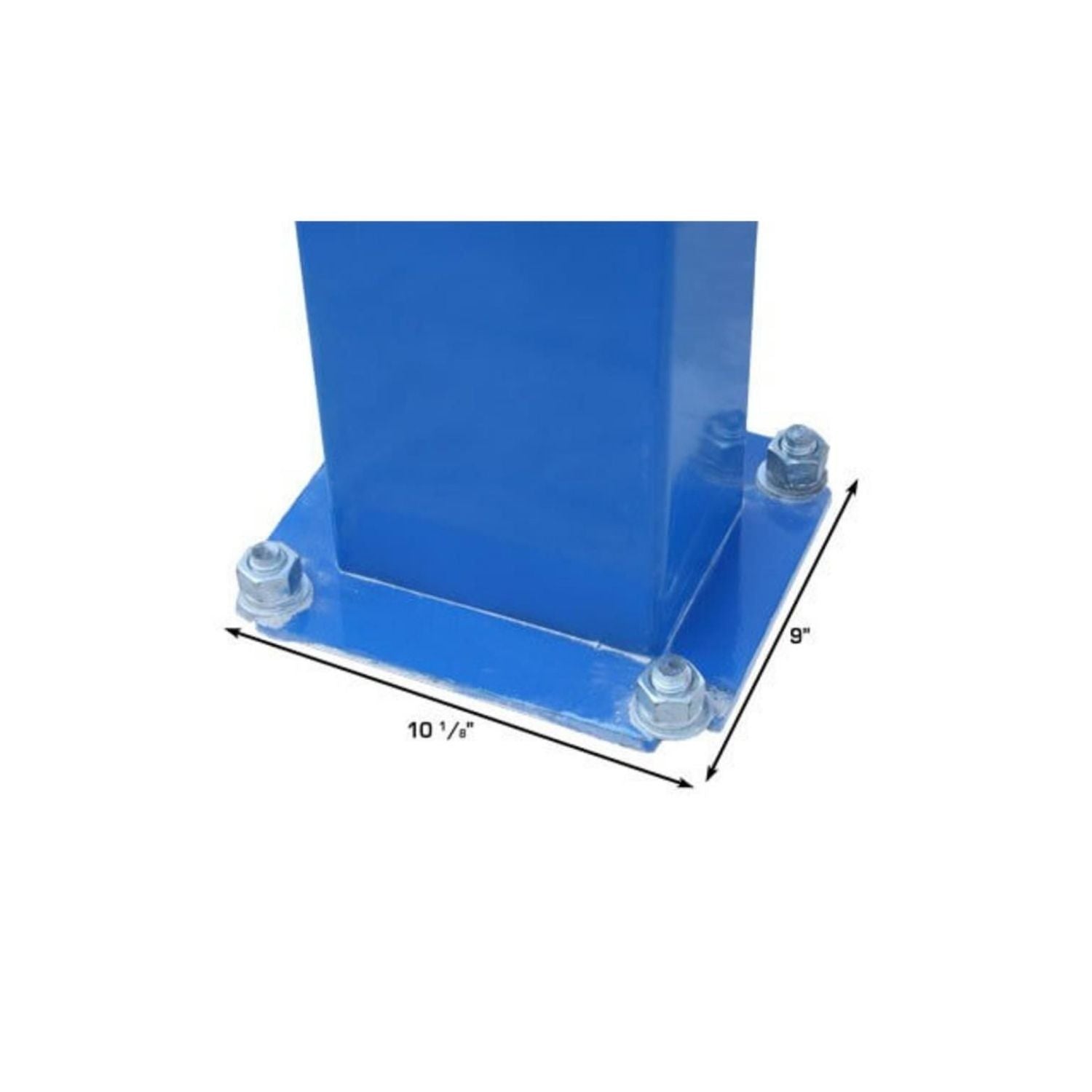

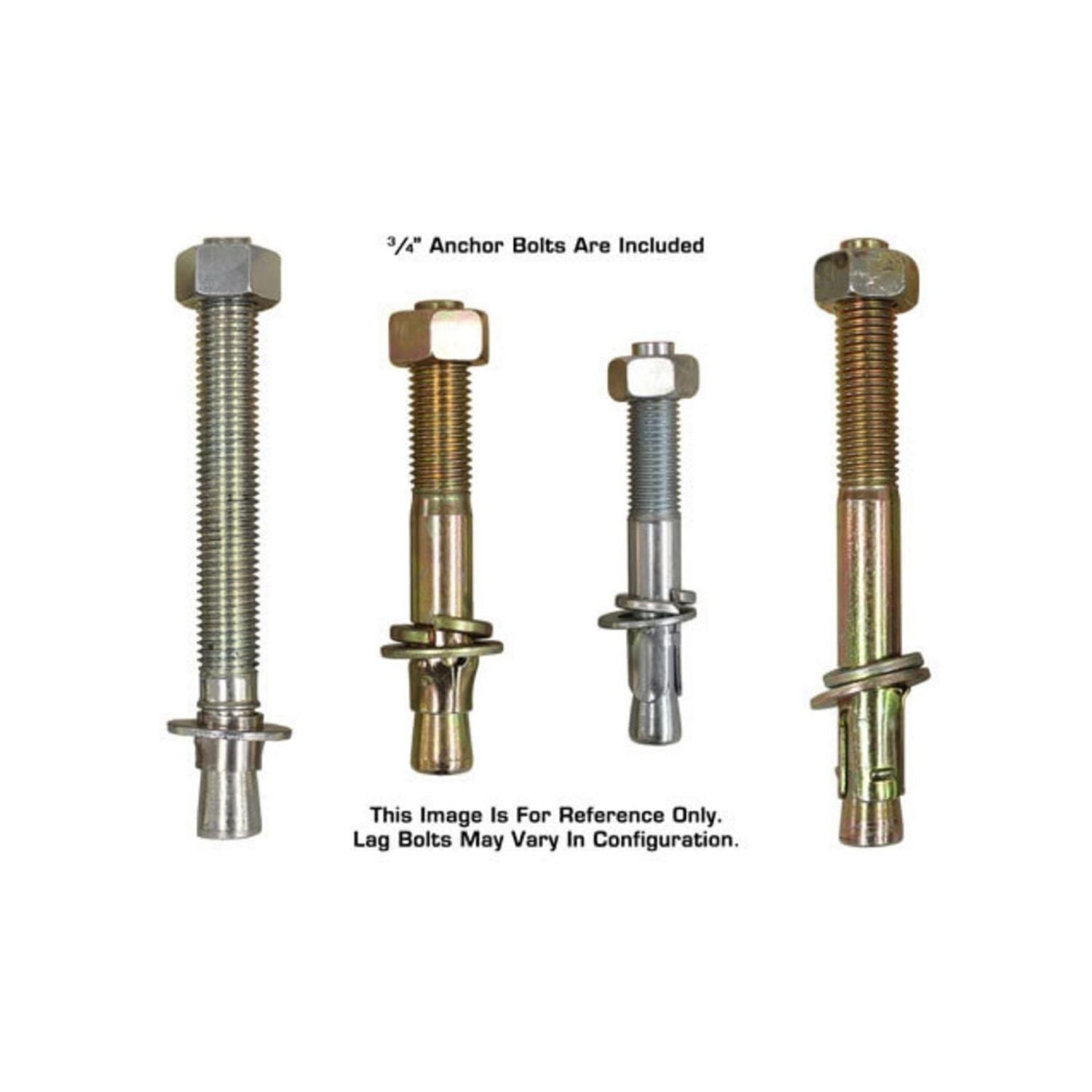

  • Mounting Hardware Included
  • Jacks are Air Over Hydraulic operated
  • Truck Adapter Set for each Jack Included
  • This part number FREIGHT PREPAID


• SPECIFICATIONS

  Atlas® ATTD-412 Specifications

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-412-COMBO-FPD
  Dimensions:	205" L × 64" W × 32" H
  Weight:	3600 lbs
  UPC:	810524028912
  Country of Origin:	CHN
  Capacity:	12,000 lbs
  Lifting Height:	77 3/4" (6' 5 3/4")
  Overall Width Of Columns (Without Motor):	126 1/4" (10' 6 1/4")
  Overall Width Of Columns (With Motor):	135 1/4" (11' 3 1/4")
  Overall Length With Approach Ramp:	236 1/2" (19' 8 1/2")
  Length Between Columns:	183 1/4" (15' 3 1/4")
  Runway Length:	194 1/2" (16' 2 1/2")
  Runway Width:	20"
  Thickness Of Runway:	7 1/2"
  Width Between Runways:	43 1/4" w/ Rail 39 3/4"
  Outside Runway To Outside Runway:	83 1/4" (6' 11 1/4")
  Clearance Under Runways:	70 1/4" (5' 10 1/4")
  Clearance Between Columns:	112 5/8" (9' 4 5/8")
  Height Of Columns:	89 3/4" (7' 5 3/4")
  Maximum Wheel Base:	185" (15' 5")
  Drive Thru:	98" (8' 2")
  Air Requirement:	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
  Motor/Electrical Requirement:	220 volt single (1) phase (A 30 amp breaker is recommended)
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)
  Shipping Weight:	2,800 lbs

  Atlas® RJ6BK Specifications

  Capacity:	6,000 lbs
  Minimum Width:	35"
  Maximum Width:	55"
  Distance Between Runway Capability:	32" - 52"
  Minimum Lifting Height:	8 1/4"
  Maximum Lifting Height (w/ Adapters):	21"
  Air Requirement:	70-115 PSI
  Shipping Weight:	350 lbs
  Adapter Heights:	2 Each 2", 3"
  Arm Hole/Adapter Peg Size:	1 1/2"

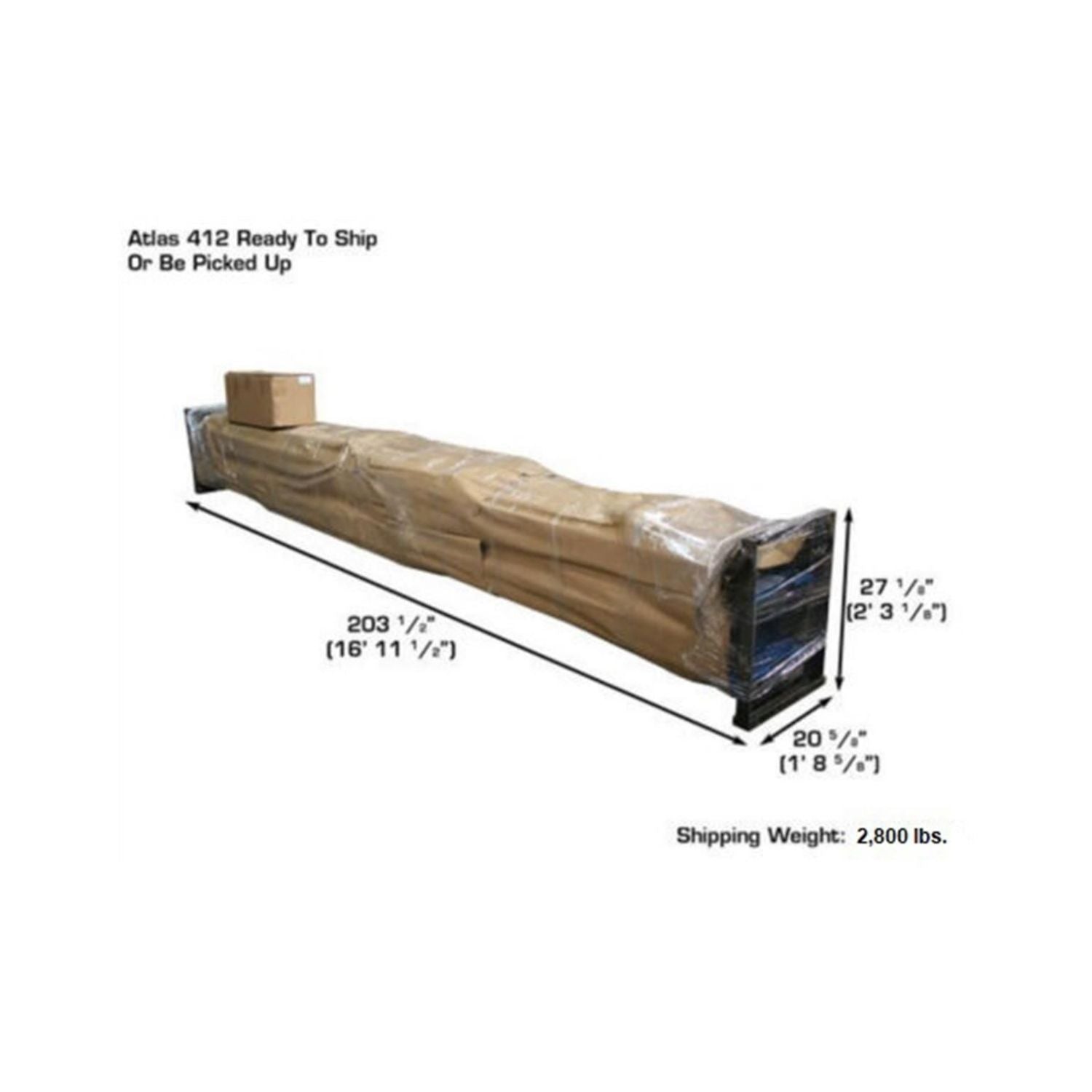

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
