Atlas® 14,000 lb Heavy-Duty 4-Post Lift #ATEATTD-414-FPD

• DESCRIPTION
• FEATURES AND BENEFITS
• SPECIFICATIONS
• DOCUMENTS

• DESCRIPTION

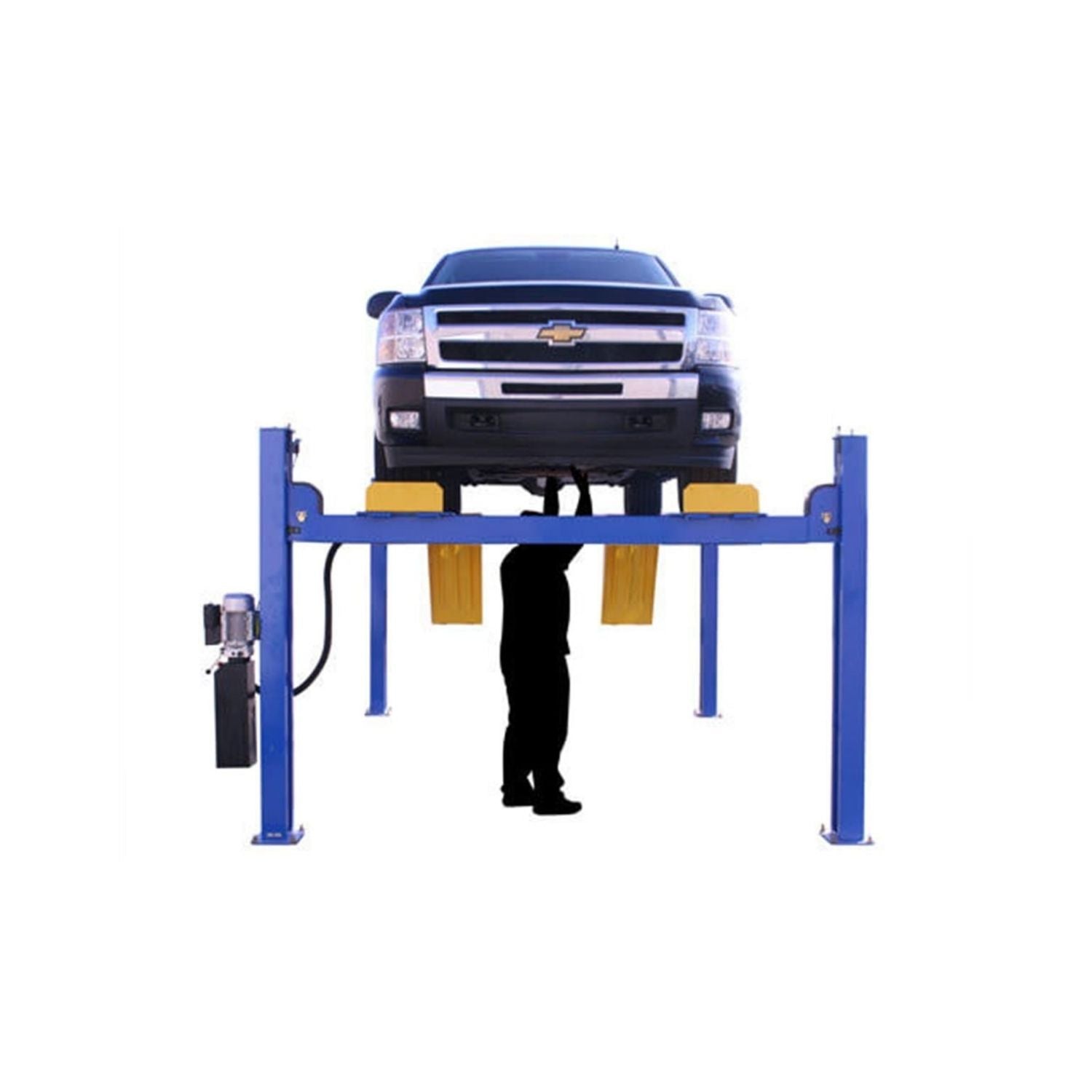

  The Atlas 14,000 lb Heavy-Duty 4-Post Lift is built for demanding commercial applications, offering increased lifting capacity for larger vehicles.

  With a 14,000 lb rating, this lift is ideal for servicing heavy-duty trucks, vans, and fleet vehicles. Its reinforced 4-post design provides exceptional stability, making it suitable for both vehicle storage and maintenance tasks.

  Designed for durability and long-term performance, the Atlas 414 is a dependable solution for professional shops requiring high-capacity lifting capability.

• FEATURES AND BENEFITS

  • 14,000 lb. Capacity
  • Heavy Duty, Commercial Grade
  • Extra Tall, Extra Wide & Extra Long

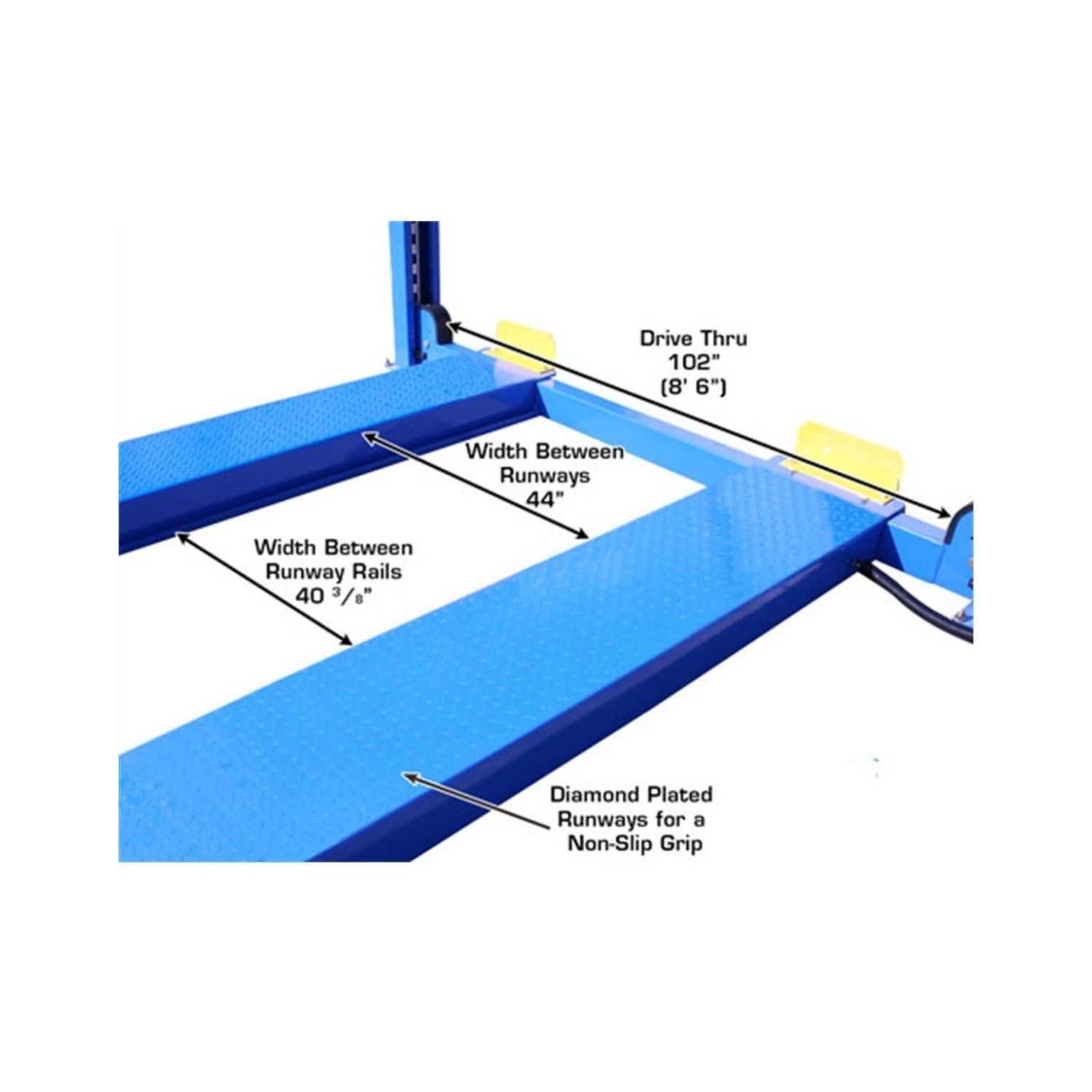

  • Diamond Plated Runways

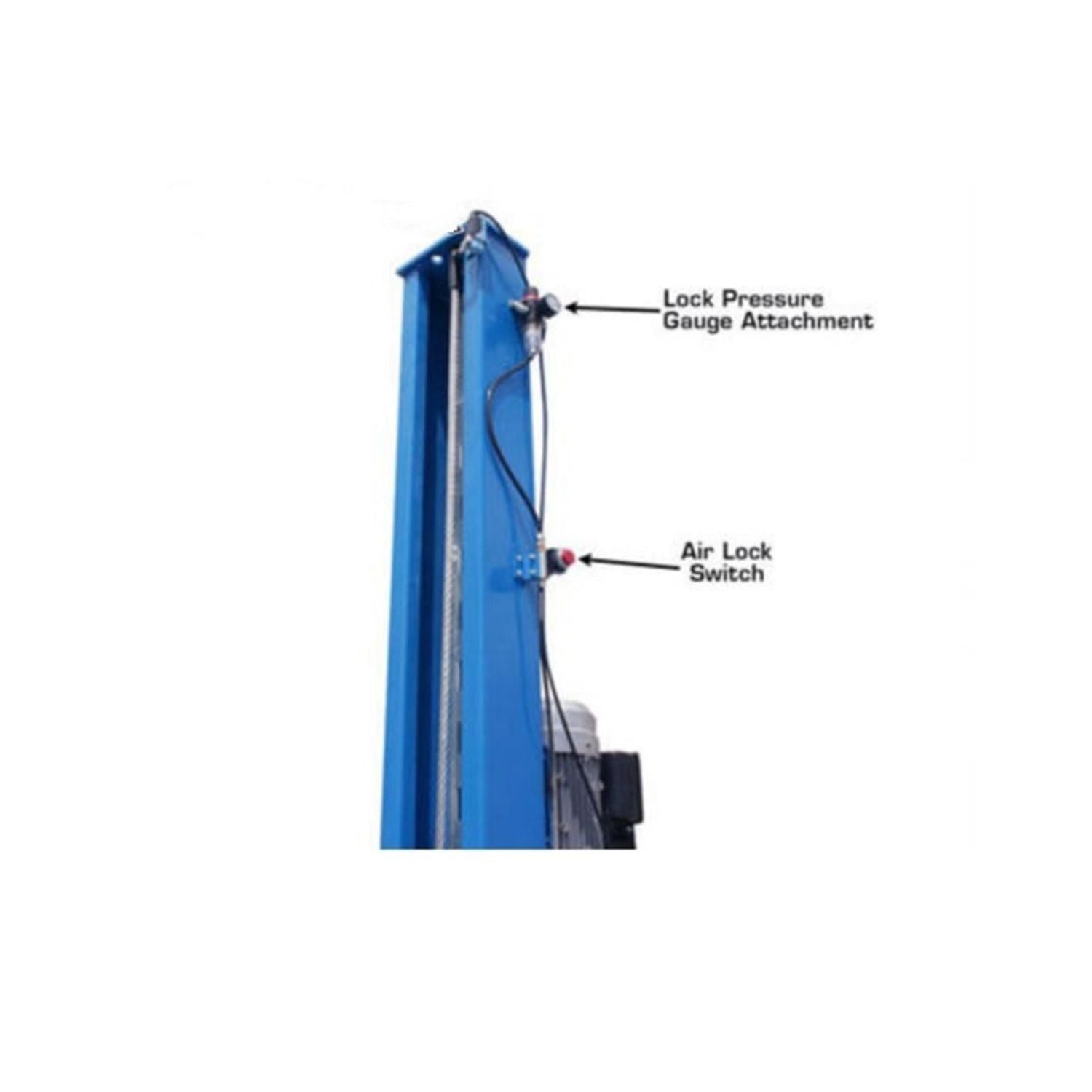

  • Air Operated Single Point Lock Release (External Air Supply Required)

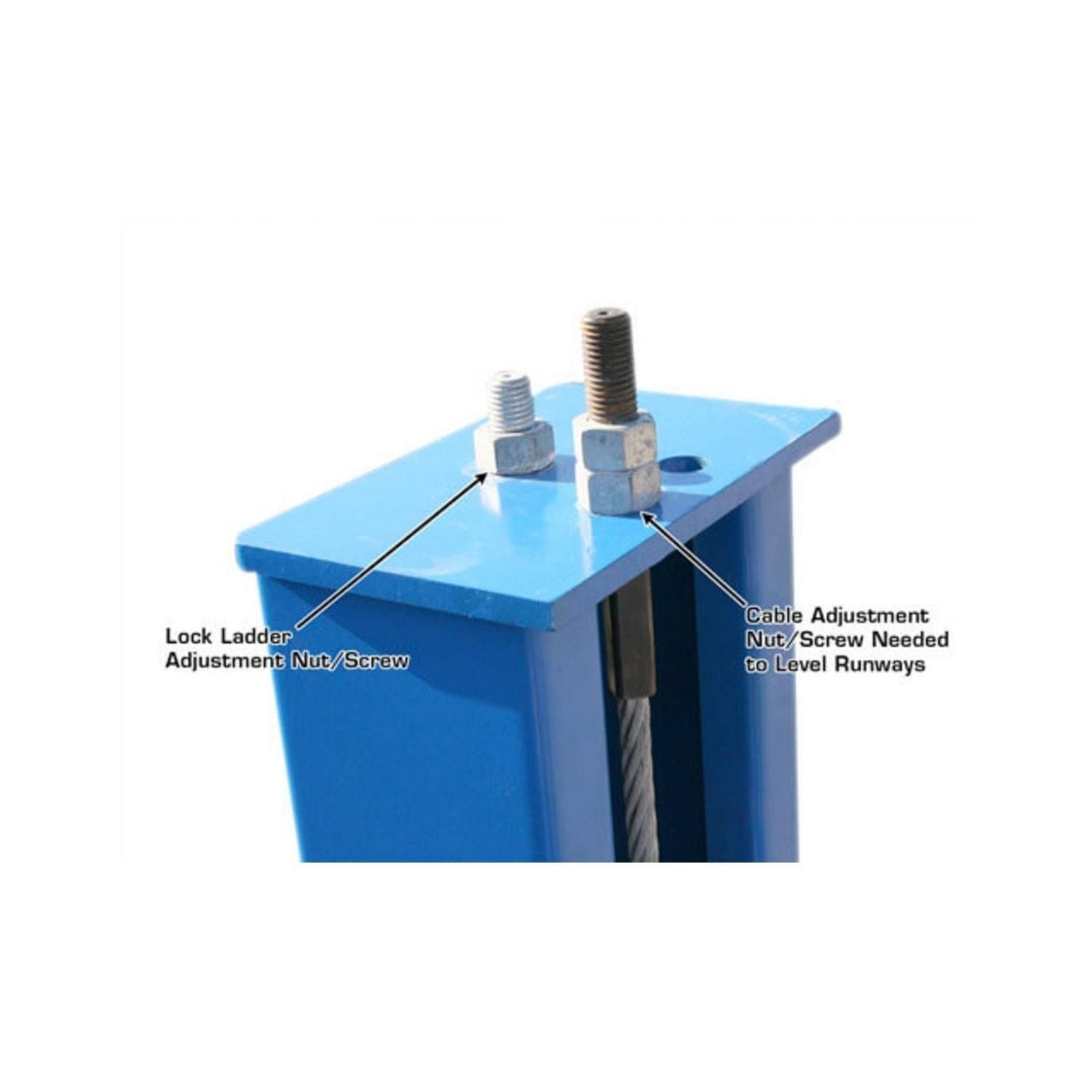

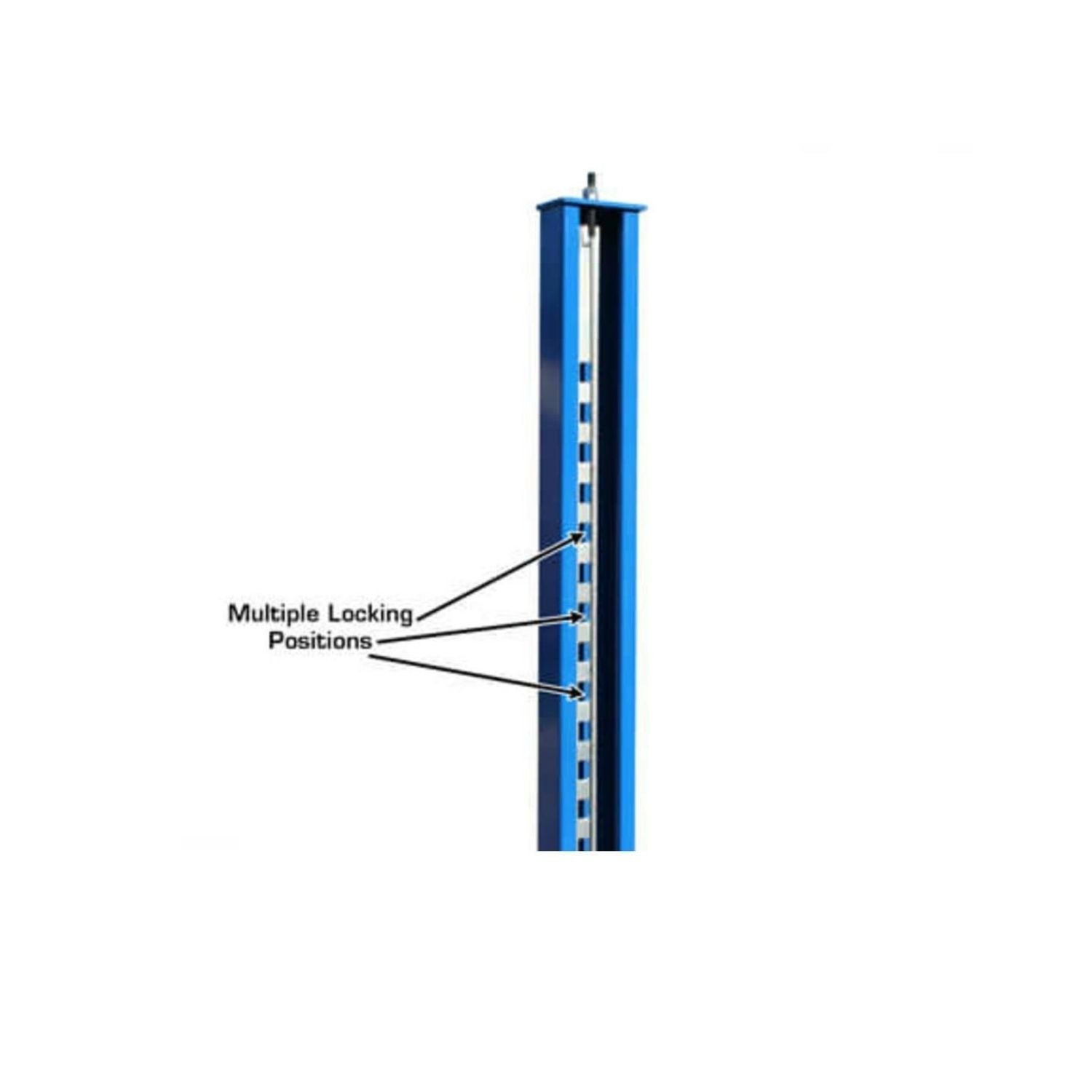

  • Lock Ladder Design
  • Double Lock Safety System
  • Powder Coat Finish
  • Steel Approach Ramps Included
  • Additional Drive off Ramps Available (Sold Separately)
  • Runway Extensions Available (Sold Separately)
  • Mounting Hardware Included
  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)
  • Shipping Weight: 3,100 lbs.
  • 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only


• SPECIFICATIONS

  Brand:	Atlas® Automotive Equipment
  Part Number:	ATEATTD-414-FPD

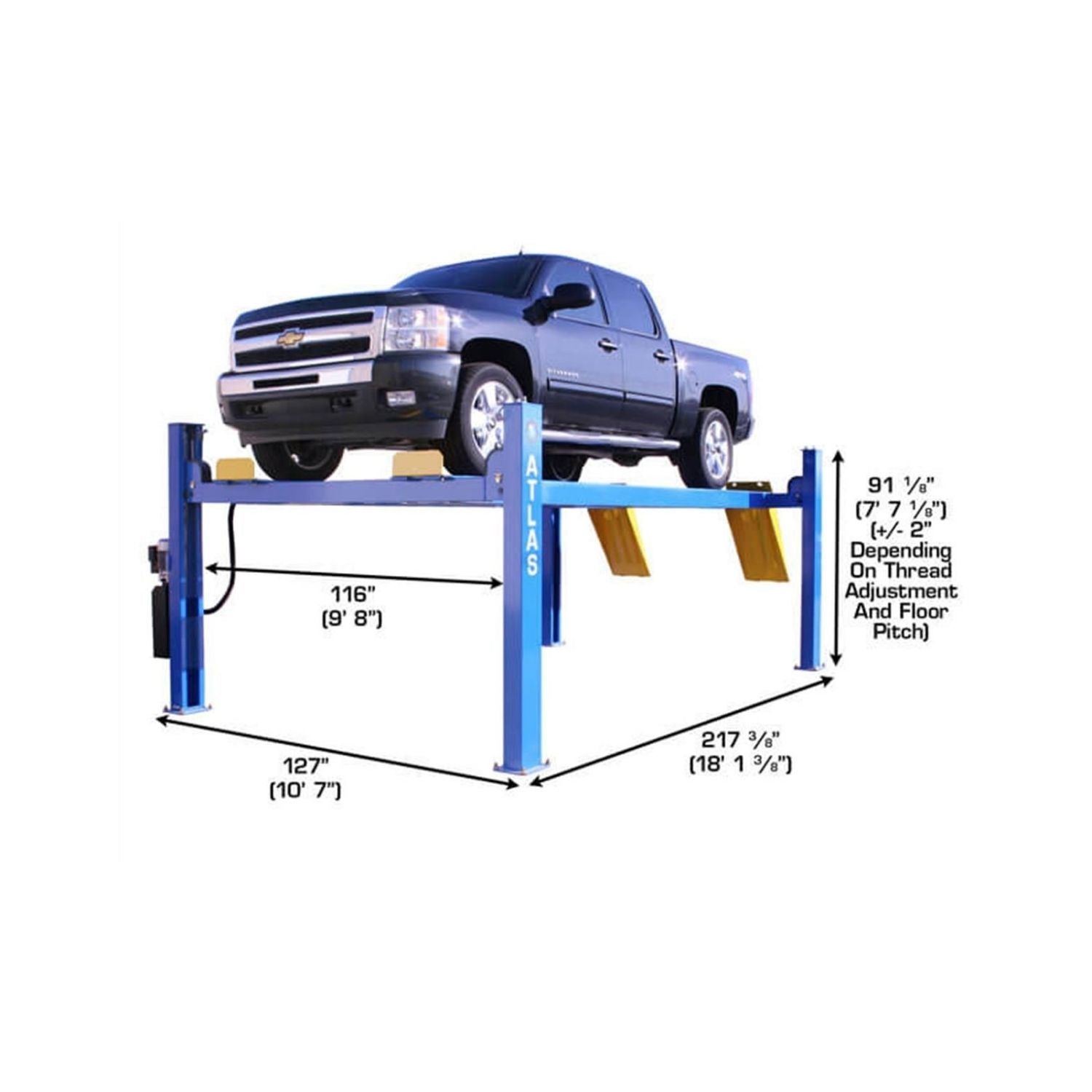

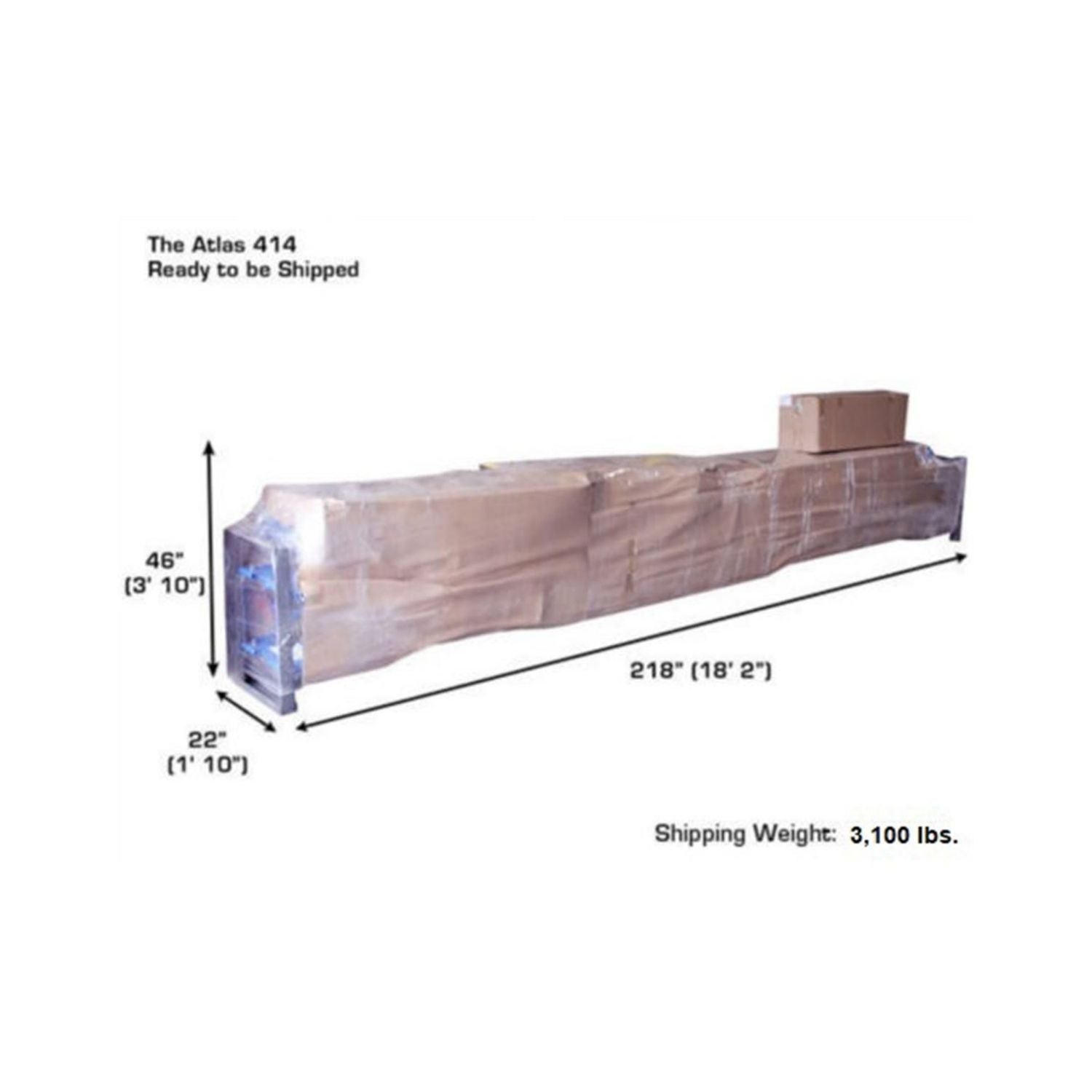

  Dimensions:	218" L × 46" W × 22" H
  UPC:	810524028790
  Country of Origin:	CHN
  Capacity:	14,000 lb.
  Lifting Height:	80" (6' 8")

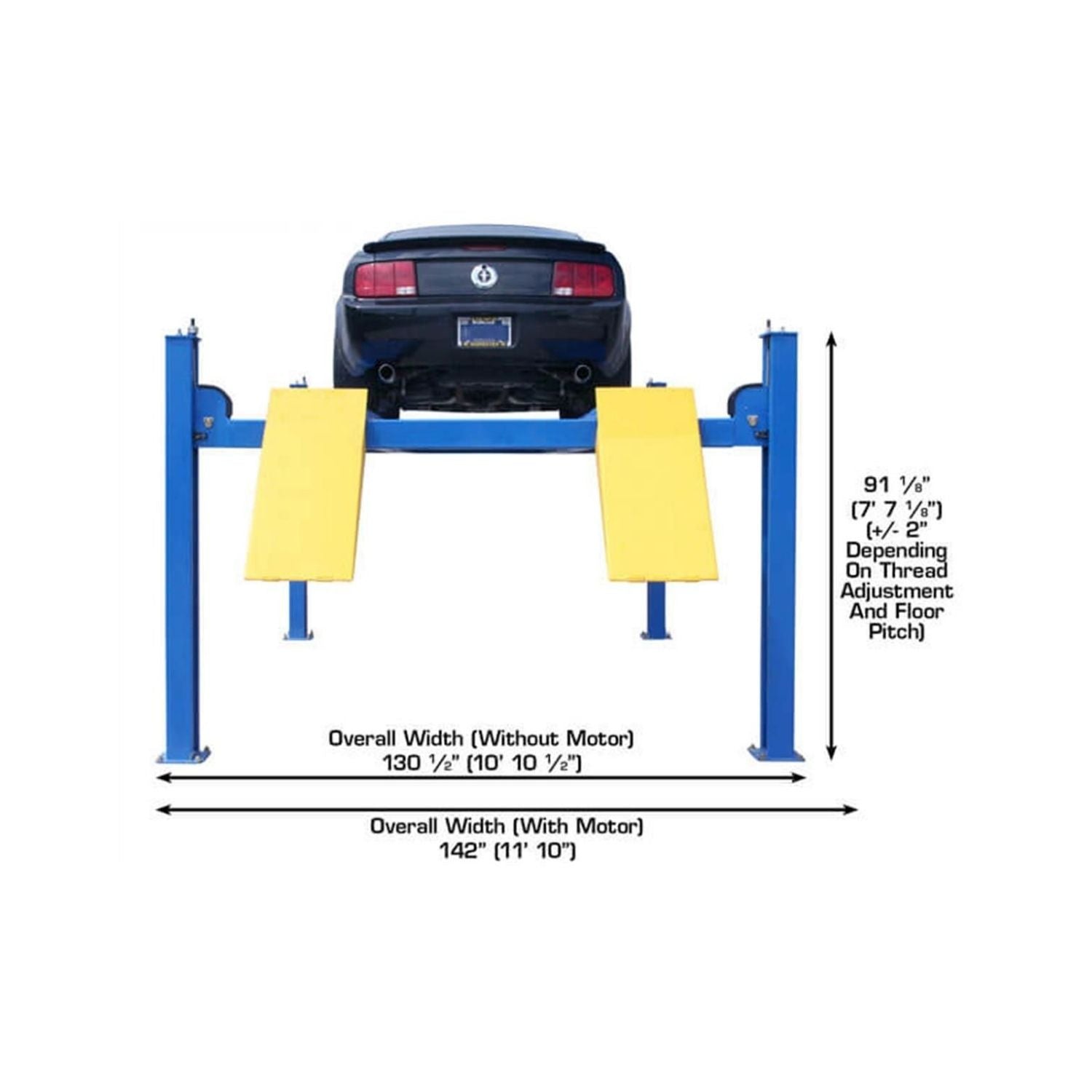

  Overall Width Of Columns (Without Motor):	130 7/8" (10' 10 7/8")
  Overall Width Of Columns (With Motor):	138 7/8" (11' 6 7/8")

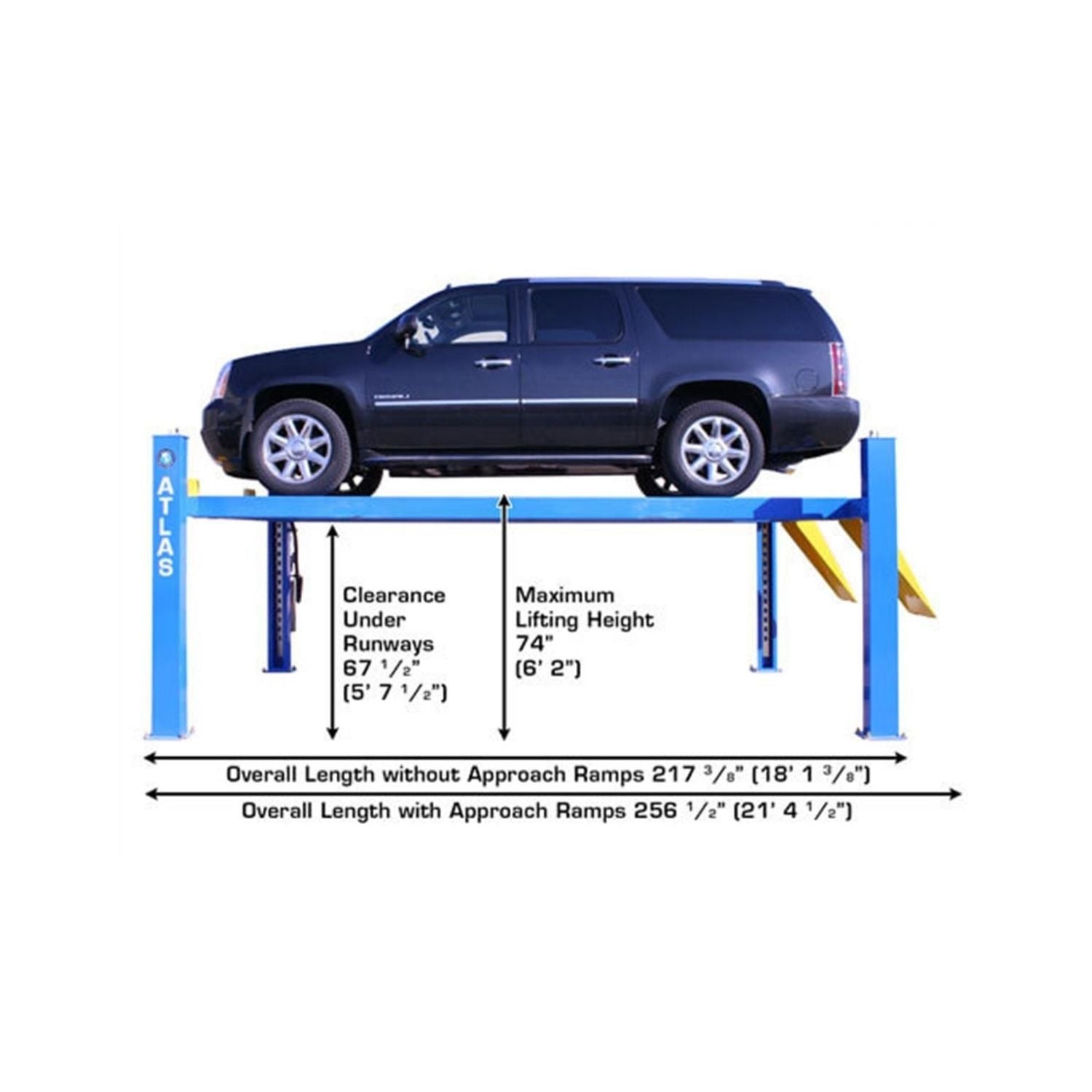

  Overall Length With Approach Ramp:	255" (21' 3")
  Length Between Columns:	197 1/4" (16' 5 1/4")
  Runway Length:	208 5/8" (17' 4 5/8")
  Runway Width:	20"
  Thickness Of Runway:	8 3/4"
  Width Between Runways:	46 7/8" (w/ Rail 44 3/8")
  Outside Runway To Outside Runway:	86 7/8" (7' 2 7/8")
  Clearance Under Runways:	71 1/4" (5' 11 1/4")

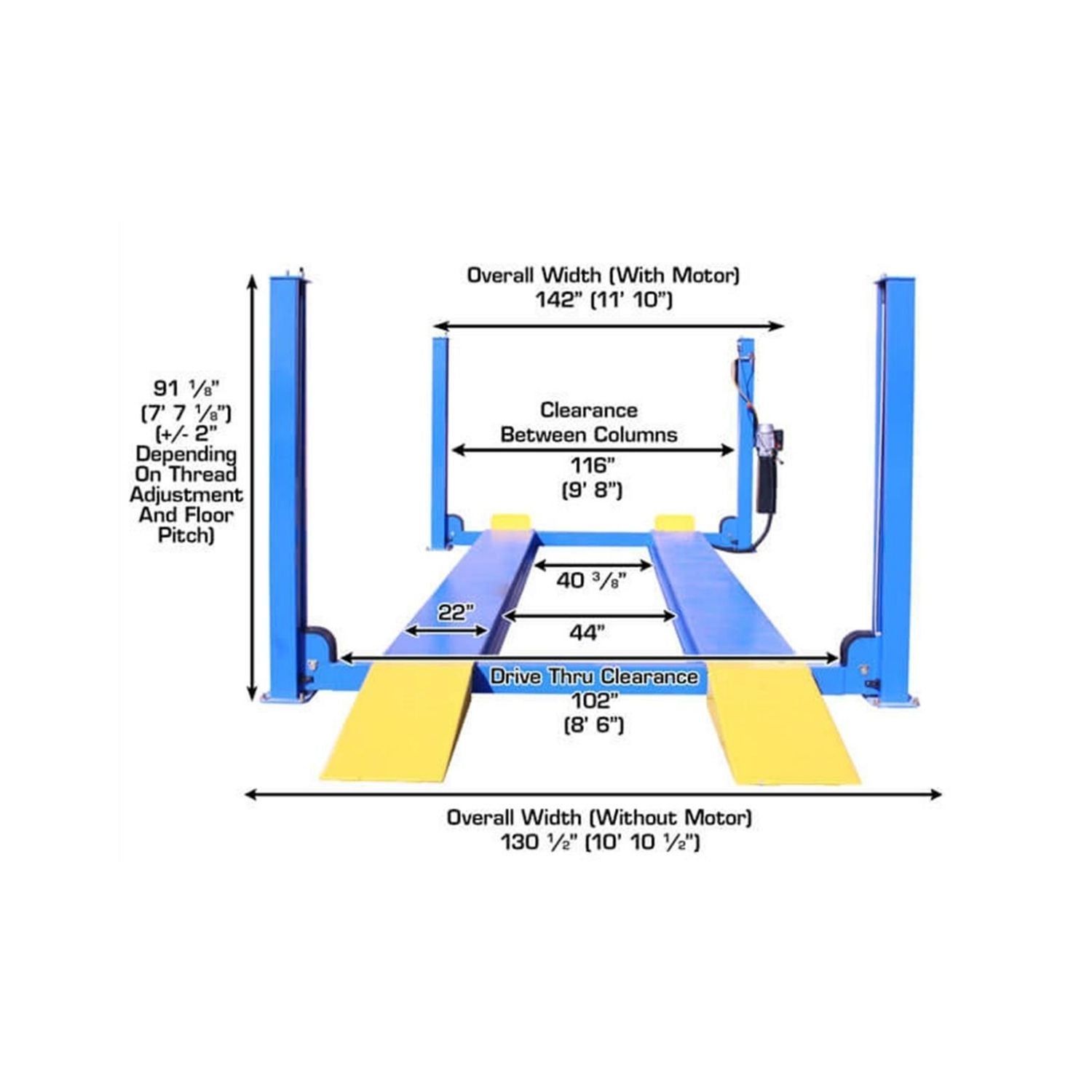

  Clearance Between Columns:	116" (9' 8")
  Height Of Columns:	91 1/8" (7' 7 1/8")
  Maximum Wheel Base:	197" (16' 5")
  Drive Thru:	102 1/8" (8' 6 1/8")
  Air Requirement:	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)

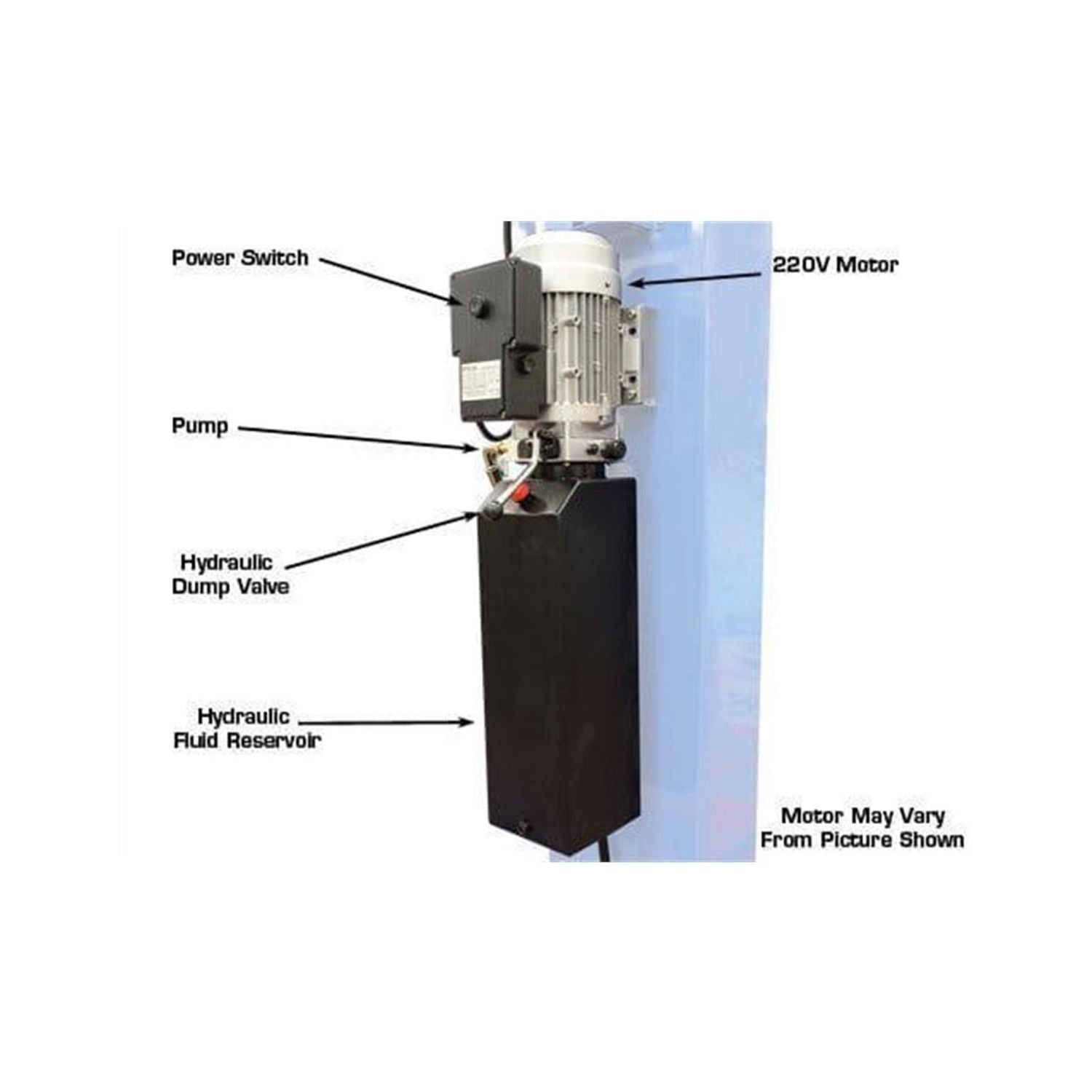

  Motor/Electrical Requirement:	220 volt single (1) phase. A 30 amp breaker is recommended
  Oil Requirement:	3-5 Gallons AW32/AW46 (NOT INCLUDED)
  Shipping Weight:	3,100 LBS.
  Concrete Requirement:	Requires a minimum of 6" of concrete with a 3000 psi rating

• DOCUMENTS

  • Atlas ATTD-414 Manual
  • Atlas 414 Cylinder Bleeding Procedure (Do this immediately after installation)

Shipping Information:

Customers may pick up their lift at the nearest freight terminal at no additional cost.

You will need to provide your own trailer. Terminal staff will safely load the lift onto your trailer. The RECEIVER/CUSTOMER is solely responsible for properly securing the load for transport.

To schedule a pickup, contact us at info@alamoequipment.com or
(817) 865-3707. Please include the lift model and your zip code so we can direct you to the appropriate terminal.

Atlas Warranty Information

• 5-Year Structural Warranty

• 2-Year Hydraulic-Power Warranty
