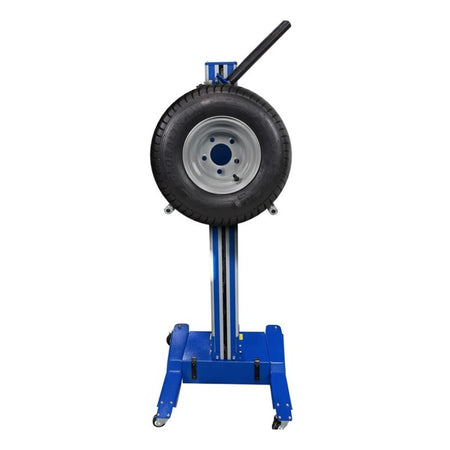

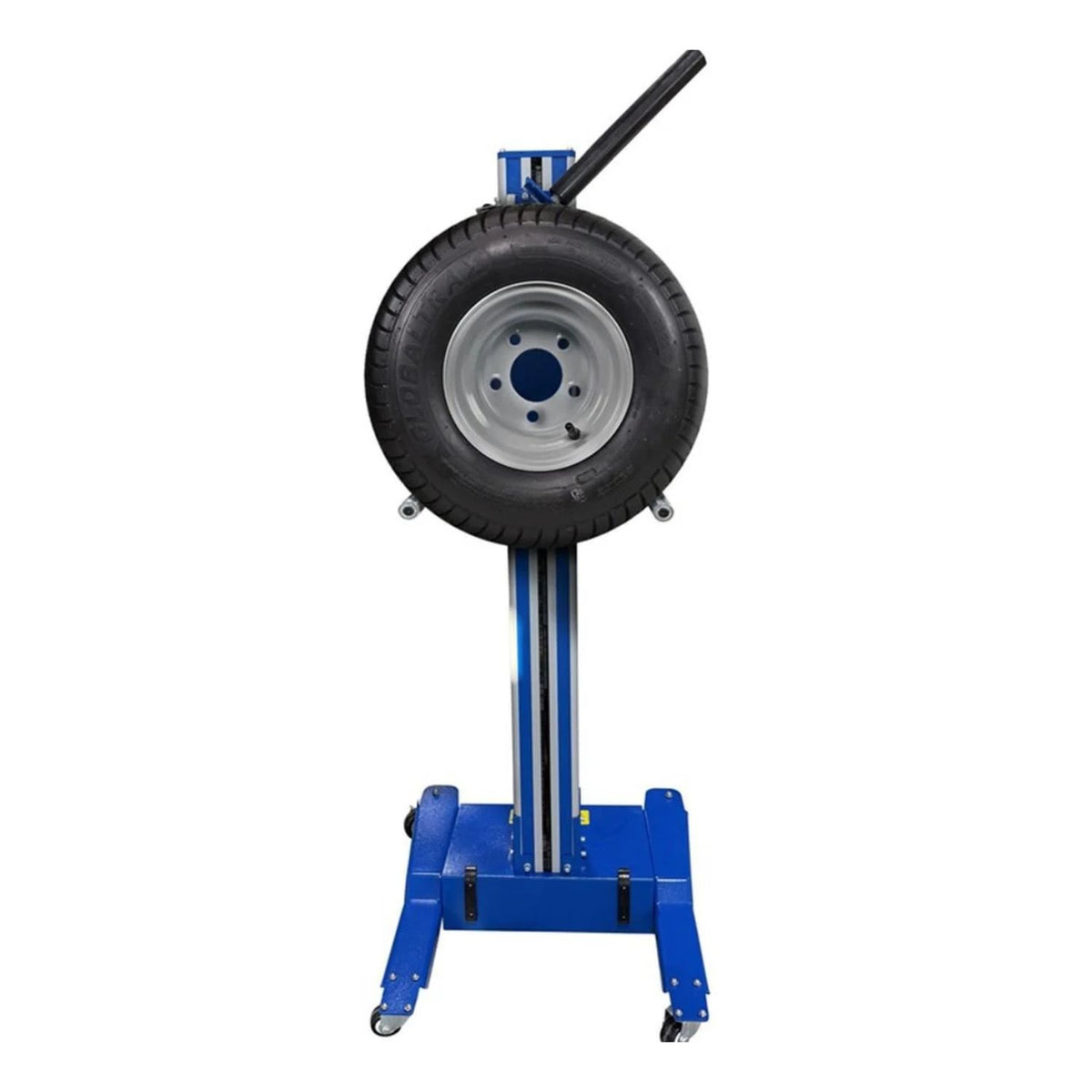

Atlas® HD Portable Battery Wheel Lift #ATEHTWL200T-FPD
Couldn't load pickup availability
| Capacity | 220 lbs |
| Power | 24V battery / 110V recharge |
| Lift Range | 4" – 45 1/4" |
| Cycles per Charge | 300 |
| Base | 28" W × 29" D |
| Warranty | 90 days parts |

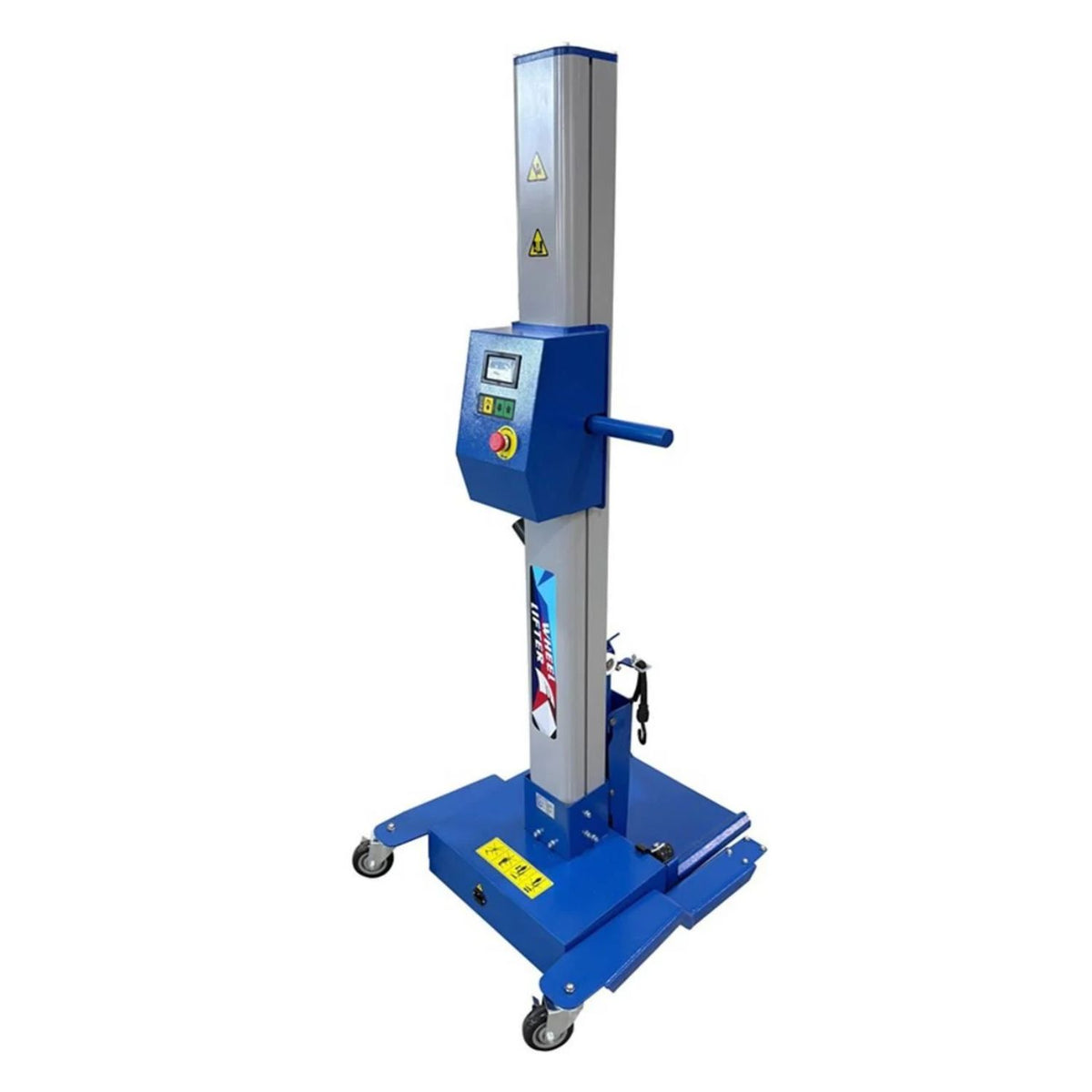

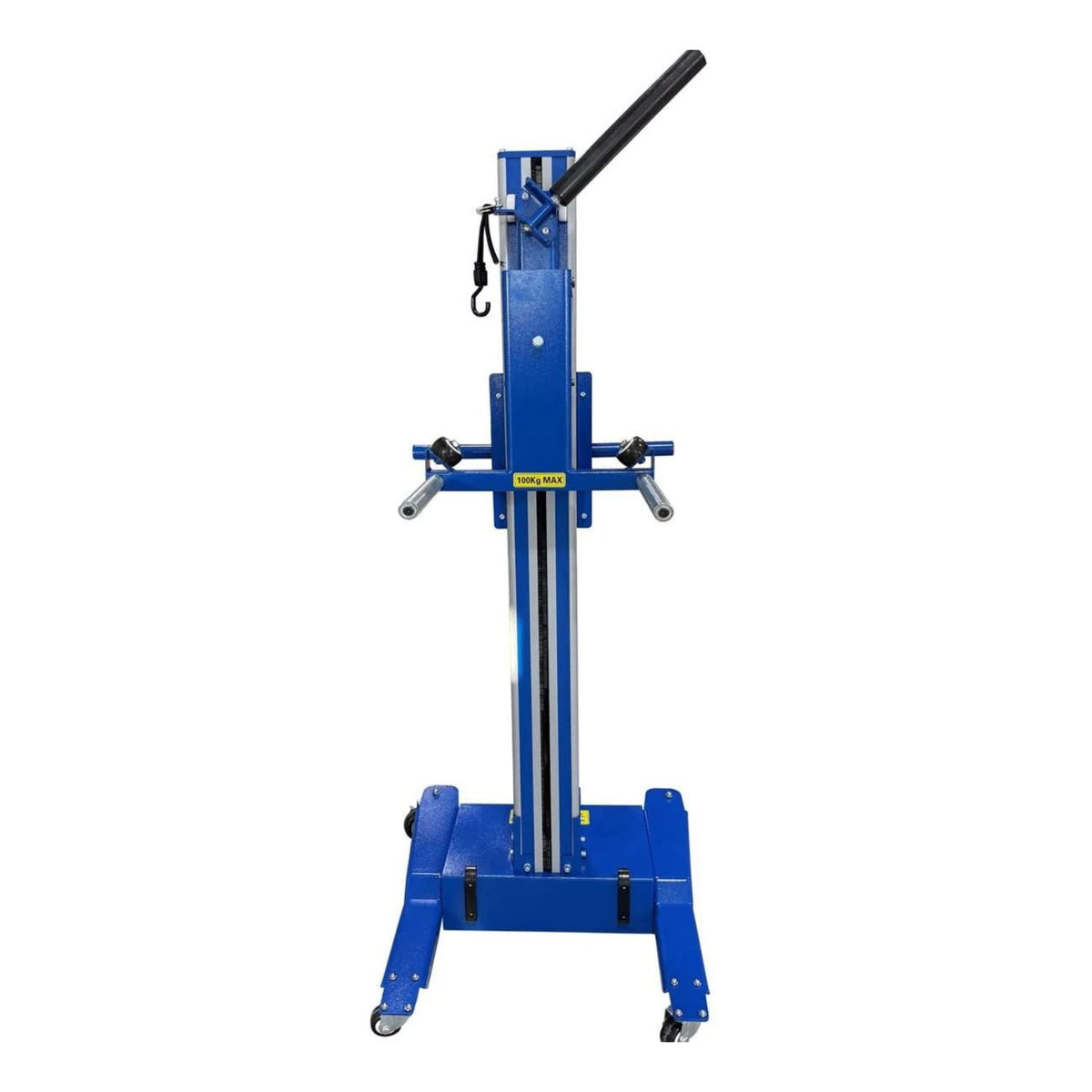

Atlas WL200T — HD Portable Battery Wheel Lift
Truck and bus wheels don't get lighter because the tech's back is sore — a loaded 22.5-inch truck wheel can clear 130 pounds, and techs muscle them onto balancer shafts all day. The Atlas WL200T is the battery-powered answer: a portable wheel lift rated at 220 lbs, lifting 4 to 45 1/4 inches on one-touch control, with 300 cycles per charge.
Four swivel casters roll it to the vehicle (or the balancer, or the changer), roller arms re-position the wheel, and a built-in tie-down holds it — the tool that removes lifting from the tire bay's injury list.
Who the Atlas WL200T HD Wheel Lift Is Built For
- Truck and bus tire bays — 220 lbs of capacity takes the heaviest wheels on the lot, and the off-set arm reaches wheels on vehicles raised on 2-post or scissor lifts.
- Techs loading balancer shafts and changer turntables — the WL200T lifts the wheel to shaft height and rolls it on, instead of the tech dead-lifting it.
- High-volume tire shops — 300 cycles per charge covers a full shift, and the 110V recharge cord (included) tops it off overnight.
- Bays that value repeatability — one-touch control, a battery level indicator, and up to 4 saved height settings for the positions the shop uses every day.
- Shops without spare air drops — it's battery powered, so it goes wherever the wheels are, air or no air.
What the Atlas WL200T HD Wheel Lift Is NOT Built For
This is not a vehicle lift — it moves wheels, not cars, and 220 lbs is its ceiling. It's not for shops needing mm-free readouts only... note the display shows travel distance in millimeters only. It requires a 110V outlet for charging (external power required).
Important sizing note: confirm 220 lb capacity against your heaviest wheels, plan a 110V charging location, and note the display reads travel distance in millimeters only before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas WL200T HD Wheel Lift Different
220 lbs of battery-powered lift
24V battery operation with a 110V recharge cord included — 300 cycles per charge, no air drops, no cords on the floor while working.
- 220 lb capacity
- 300 cycles per charge
- 110V recharge cord included
Built to reach the work
Lifts 4"–45 1/4" with roller arms for re-positioning, four swivel casters, and a built-in tie-down — the wheel goes where the tech needs it, not where it landed.
Repeatable by design
One-touch control, battery level indicator, and up to 4 programmable saved height settings — the same lift-to-height every time, on the positions the shop actually uses.
Best For
- Truck & bus tire bays
- Loading balancers / changers
- High-volume tire shops
- Shops without spare air drops
Not Ideal For
- Vehicle lifting
- Wheels over 220 lbs
- Metric-averse readouts (display is mm only)
The Atlas wheel-lift line — which one fits the bay?
| Spec | WL200T (HD Battery) | WL200 (Battery) | LM130S (Pneumatic) |
|---|---|---|---|
| Capacity | 220 lbs | 145 lbs | 165 lbs |
| Power | 24V battery / 110V recharge | 24V battery / 110V recharge | Shop air 116–145 PSI |
| Lift range | 4"–45 1/4" | 2"–47" | 4 1/2"–44 1/2" |
| Cycles | 300 per charge | 200 per charge | Unlimited (air) |
| Best for | Truck/bus wheels | Off-set lug access | Air-equipped bays |
Battery for portability and HD capacity (WL200T), battery for off-set access (WL200), pneumatic for shops already plumbed (LM130S).
Full Specifications - Atlas WL200T HD Wheel Lift
| Lift capacity | 220 lbs |
| Power supply | 24V battery operated / 110V recharge (external power supply required for charging; rechargeable, 110V cord included) |
| Lowered height | 4" |
| Raised height | 45 1/4" |
| Base dimensions | 28" wide x 29" deep |
| Column height | 70" |
| Carriage height fully raised | 75 1/2" |
| Cycles per charge | 300 |

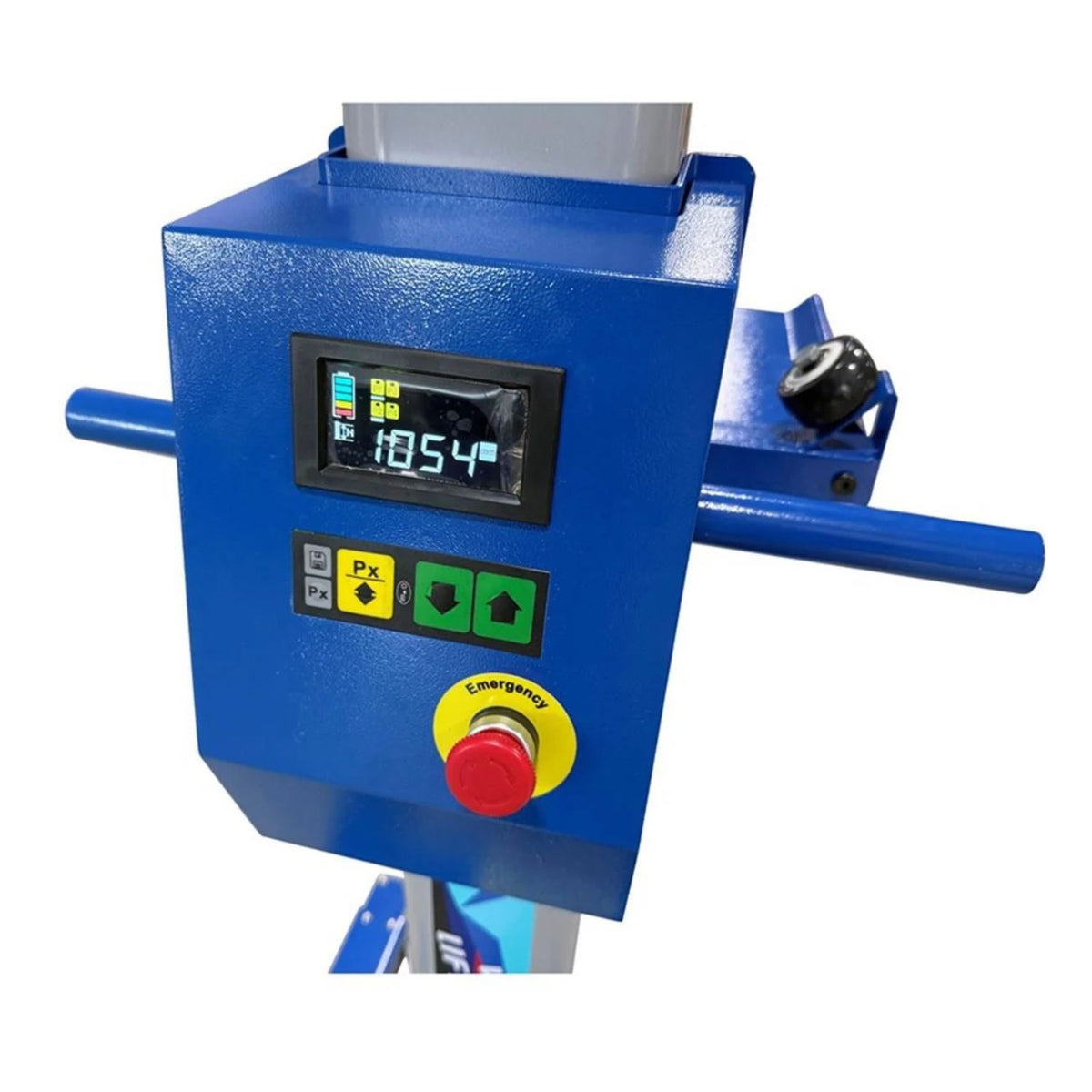

| Operation | One-touch control; battery level indicator; programmable up to 4 saved height settings; displays travel distance (ONLY IN MM) |

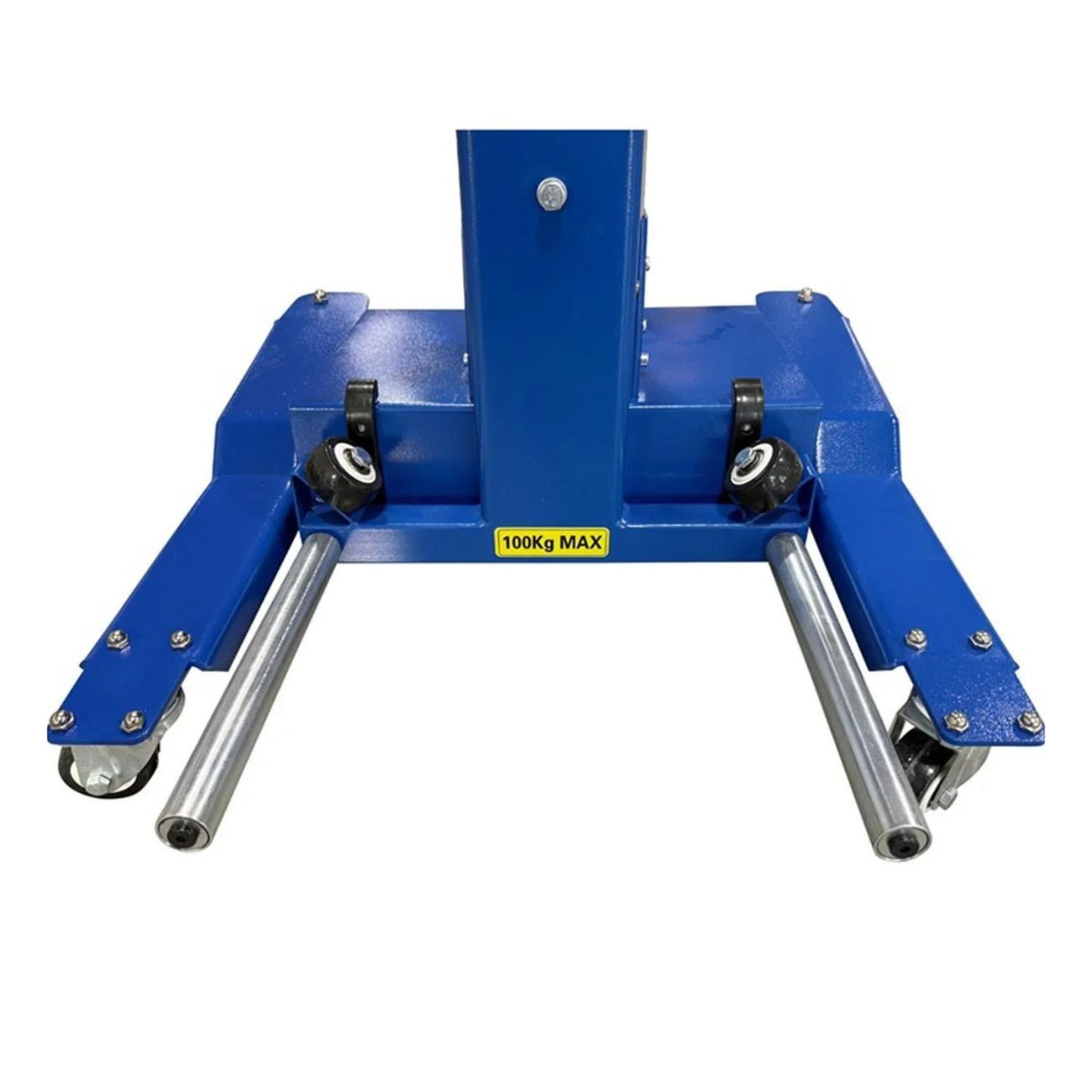

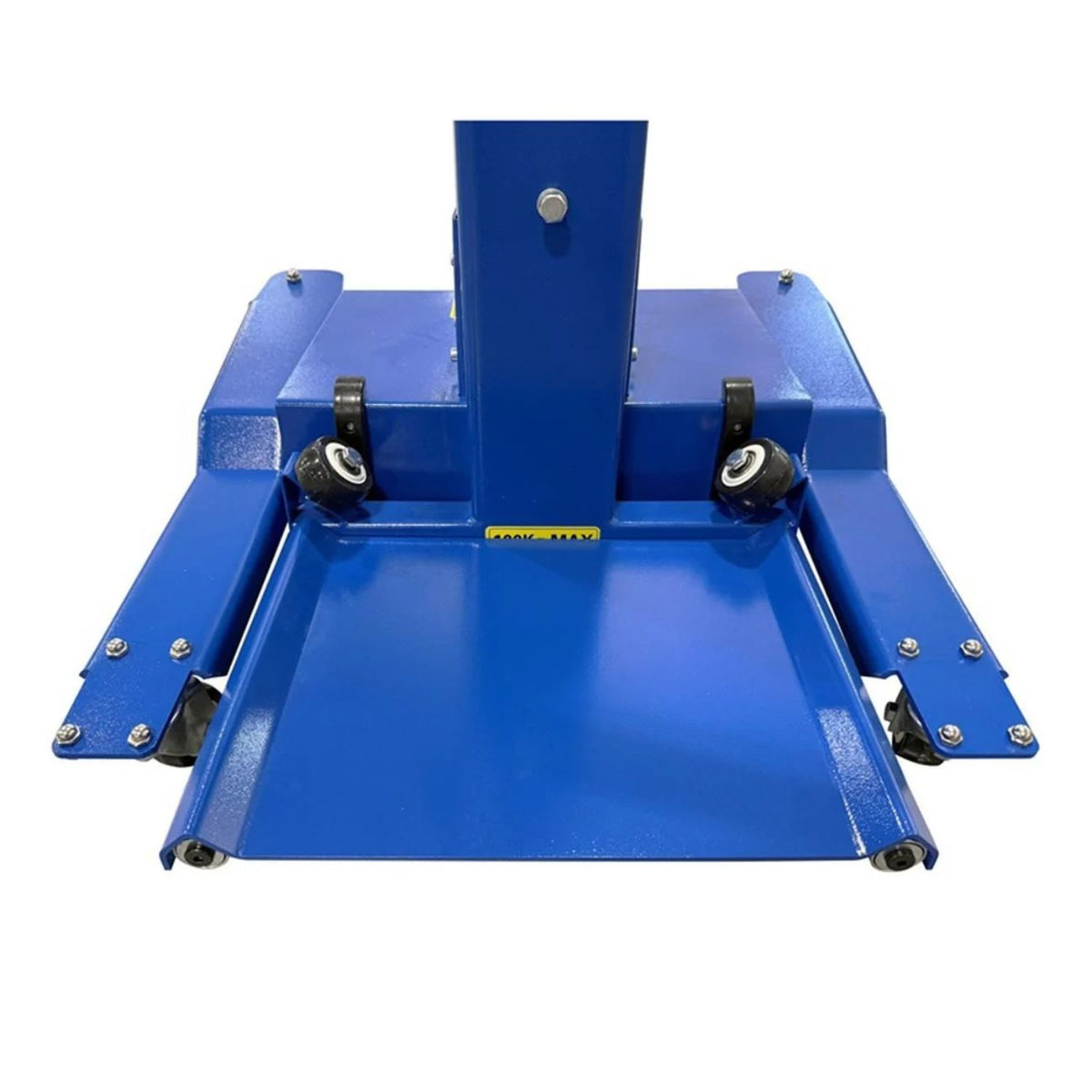

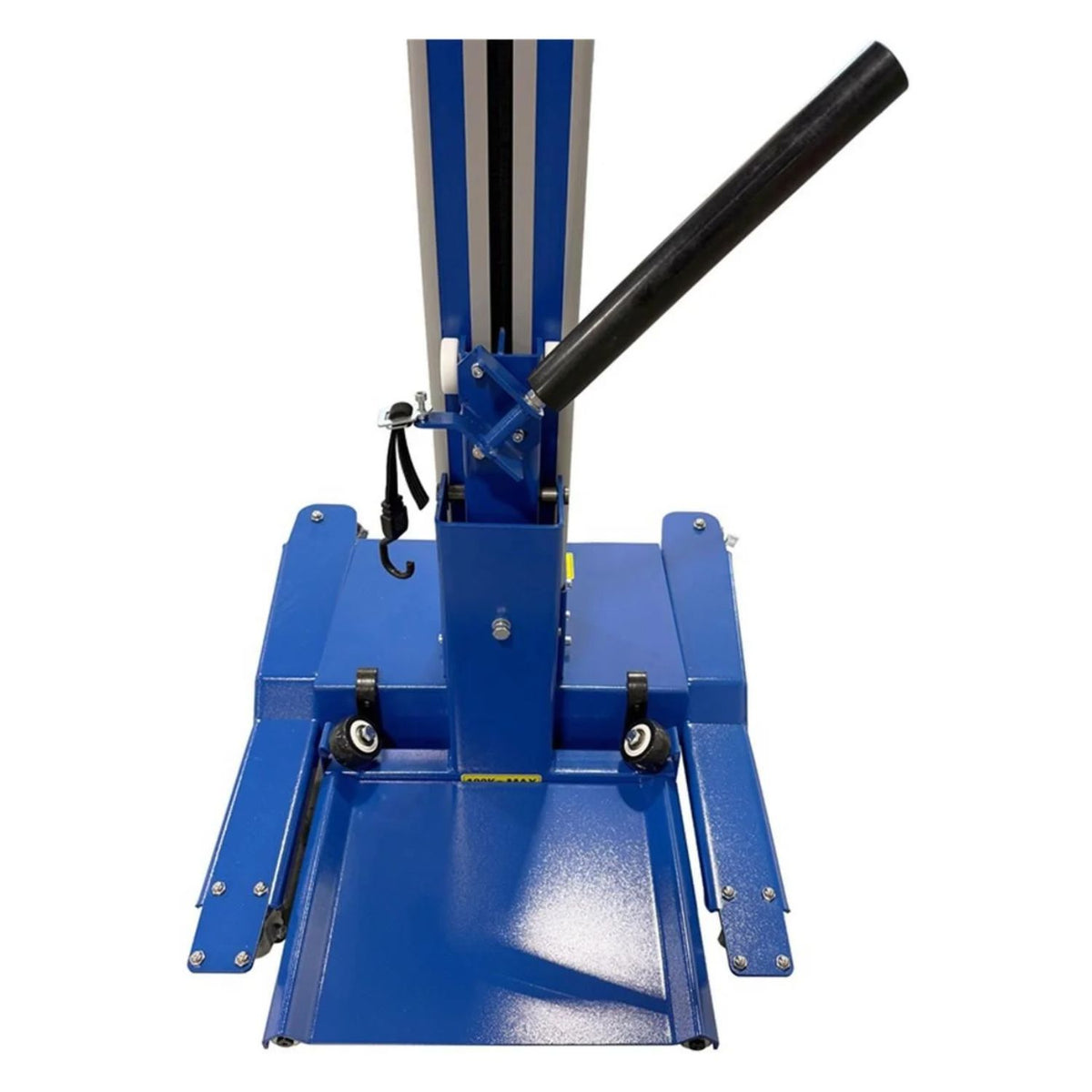

| Portability | Four swivel casters; roller arms for re-positioning; built-in tie down; steel plate for roller arms included |
| Application | Truck and bus wheels; move wheels onto balancer shafts, tire changer turntables, or remove/install tires from vehicles raised on 2-post or scissor lifts |
| Shipping weight | 250 lbs |
⚠️ Installation Requirements

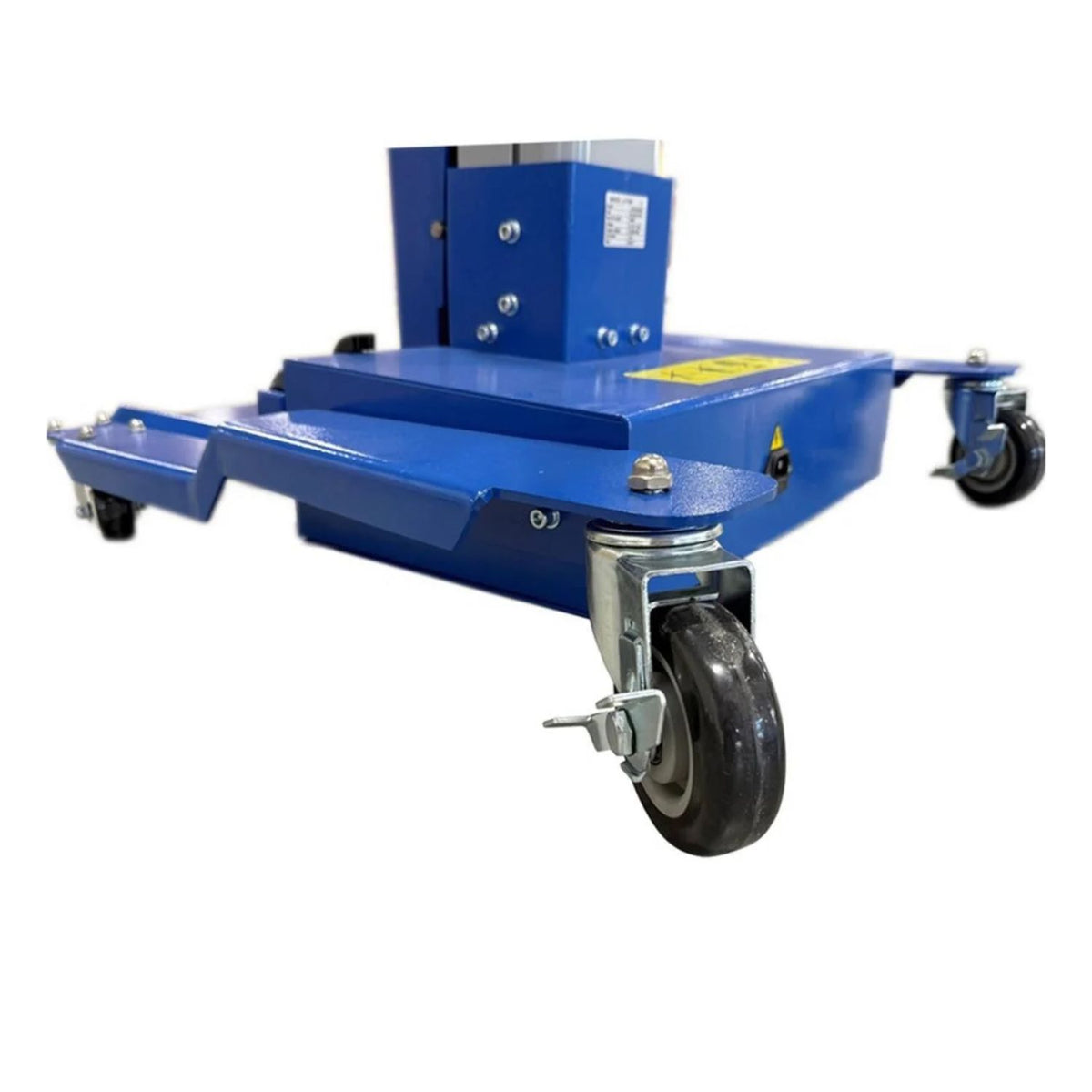

- Rolls on four swivel casters — no installation; position it where the wheels are
- Charging: 110V outlet with the included recharge cord (external power required for charging)
- 24V battery operation — no air supply needed at the point of use
- Display note: travel distance reads in millimeters only
- Alamo delivers it — and services what we sell
Atlas® Automotive Equipment Warranty - Atlas WL200T HD Wheel Lift
Atlas covers its wheel lifts with a 90-day parts warranty — short coverage on a hard-working tool, so buy it from a shop that services what it sells.
| Component | Coverage Term |
|---|---|
| Parts | 90 days (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas WL200T HD Wheel Lift
How long does the battery last?
Up to 300 lift cycles per charge — a full shift in most tire bays — and the included 110V cord recharges it overnight.
Will it handle truck wheels?
Yes — it's the HD model, rated at 220 lbs for truck and bus wheels, with roller arms to reposition them on balancer shafts and changer turntables.
Does it need shop air?
No — it's battery powered (24V) with a 110V recharge. It works wherever the wheels are, including bays without air drops.
Anything quirky I should know?
One honest note: the travel-distance display reads in millimeters only — metric-minded techs won't notice; everyone else adapts in a day.
Why Buy the Atlas WL200T HD Wheel Lift from Alamo Equipment & Service?
- We sell what fits. Tell us your heaviest wheel and your balancer shaft height — we'll confirm the WL200T is the right model before you order.

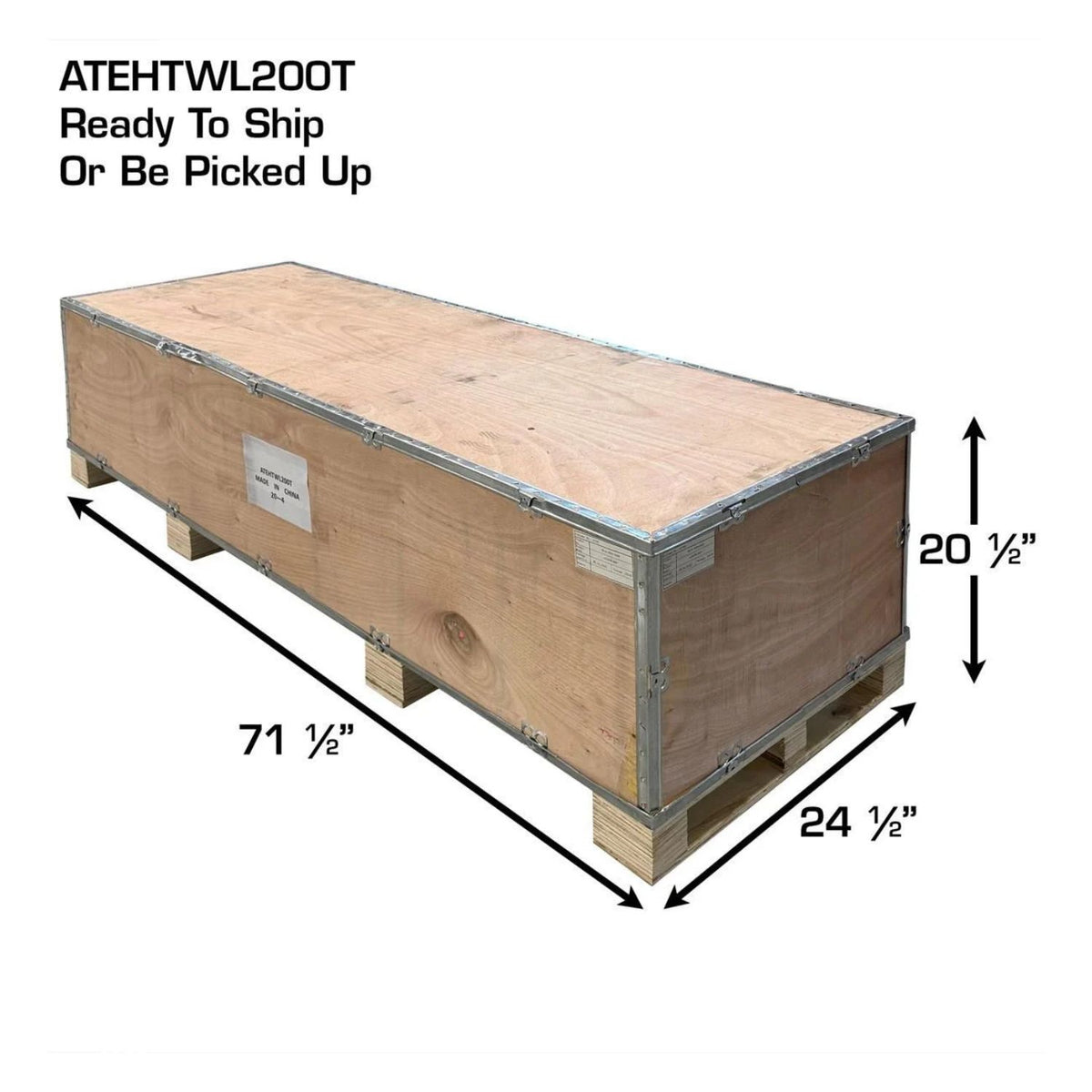

- We deliver it. 250 lbs arrives by freight, coordinated by us.
- We service it. Battery, hydraulics, and casters — we stand behind the wheel lifts we sell.
- We know the line. WL200T vs WL200 vs LM130S is a capacity-and-power question — call and get the straight comparison.
- Injury math. One avoided workers' comp claim pays for the tool — we'll say what your techs already know.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
