Atlas® Portable Pneumatic Off-Set Wheel Lift #ATEHTLM130S-FPD
Couldn't load pickup availability
| Capacity | 165 lbs |
| Operation | Air-operated (shop air required) |
| Air Required | 116–145 PSI |
| Lift Range | 4 1/2" – 44 1/2" |
| Castors | 3" swivel poly, rear locking |
| Warranty | 90 days parts |
Atlas LM130S — Portable Pneumatic Off-Set Wheel Lift
A tire shop already plumbed with air shouldn't buy a battery tool it doesn't need. The Atlas LM130S is the pneumatic wheel lift for air-equipped bays: 165 lbs of capacity, off-set column for lug access, 4 1/2 to 44 1/2 inches of lift on 116–145 PSI shop air — no batteries to cycle out, no charging cord to lose.

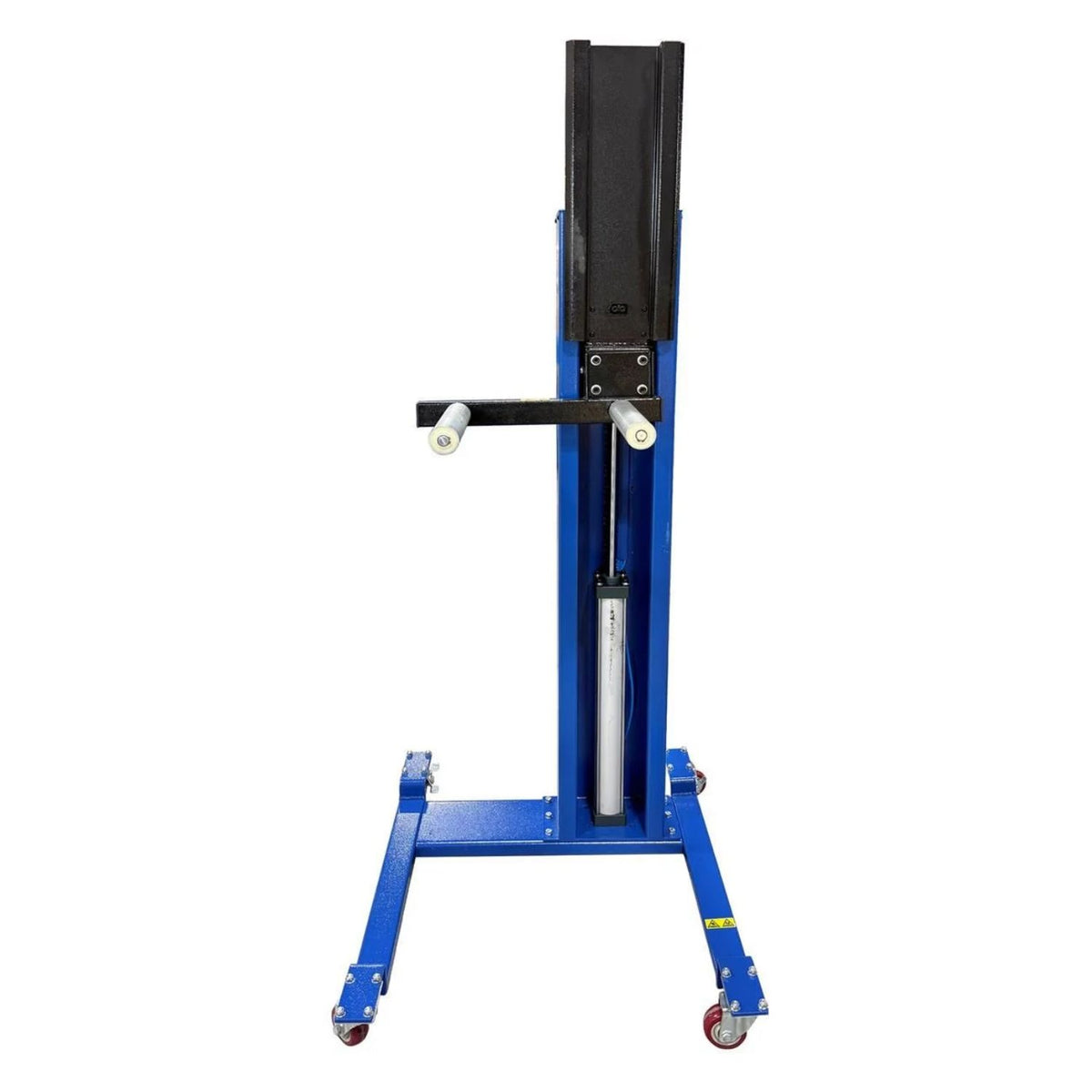

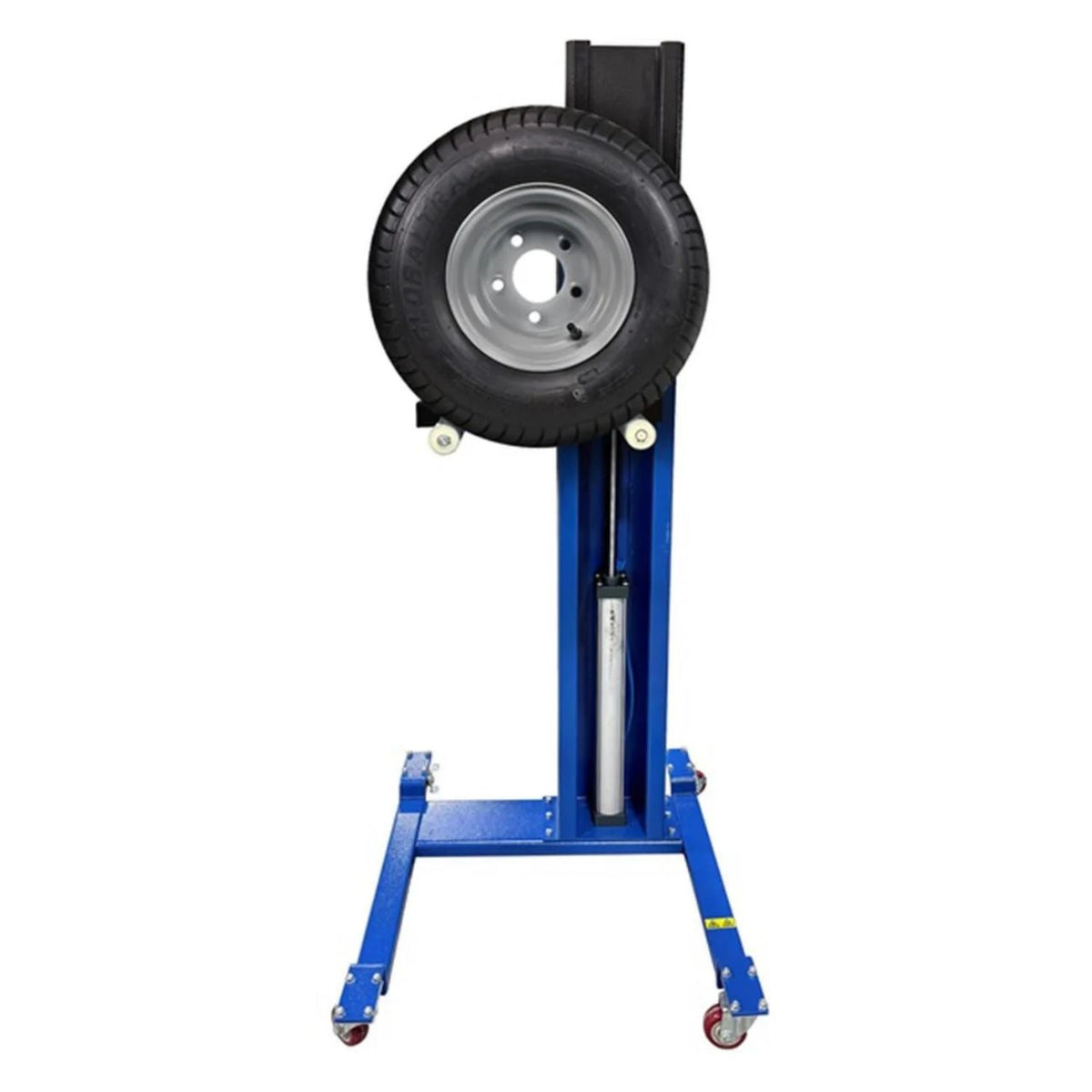

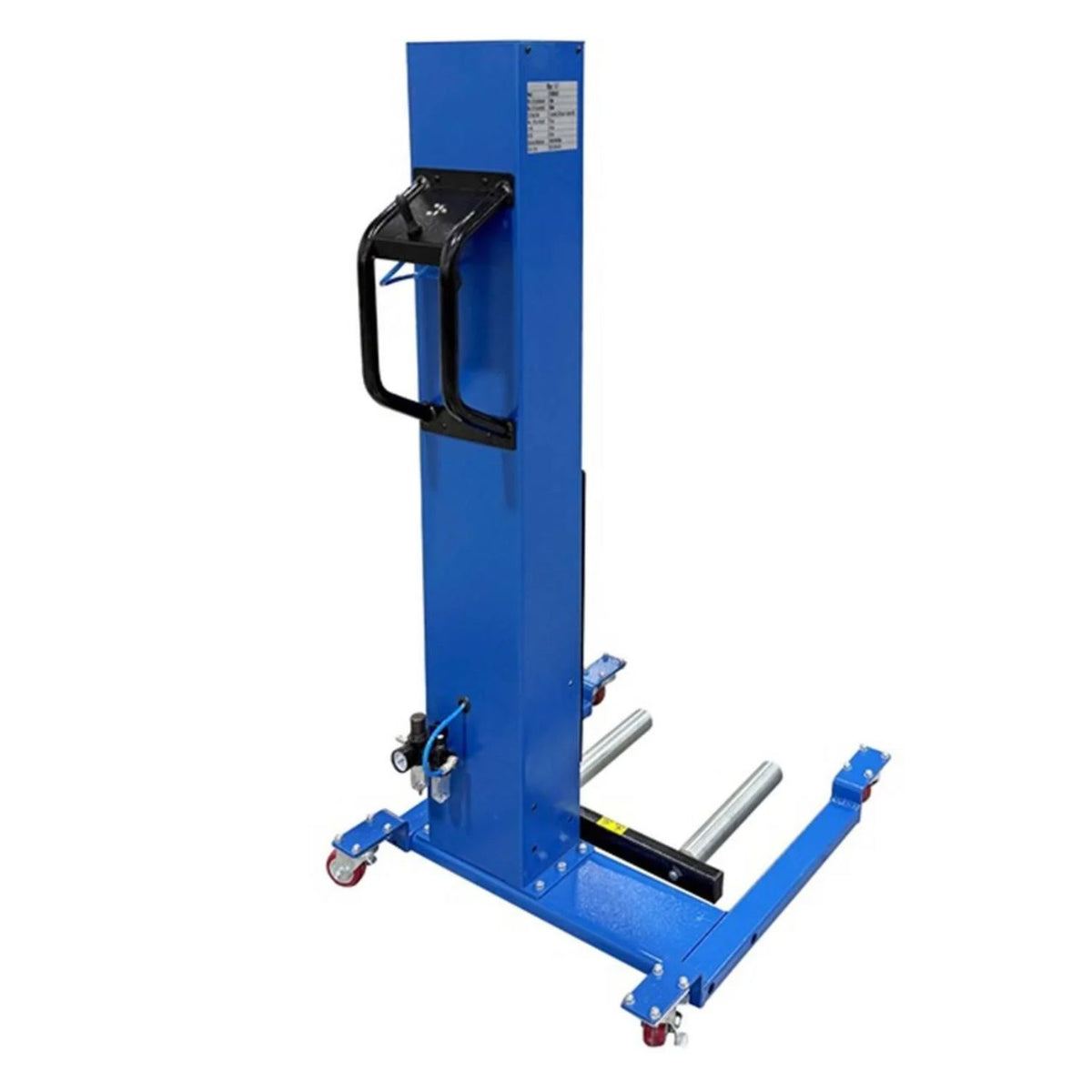

Roller arms move the wheel into position, 3-inch swivel poly casters (rear locking) roll the lift to the vehicle, and the same off-set design that defines the Atlas wheel-lift line keeps the tool out of the fastener line.
Who the Atlas LM130S Is Built For
- Air-equipped tire bays — the LM130S runs on the shop air that's already there (116–145 PSI), with no battery to charge, cycle-manage, or replace.
- Techs who want lug-nut access — the off-set column keeps the lift structure out of the fastener line, same as the battery models.
- Bays lifting car and light-truck wheels — 165 lbs of capacity between the WL200's 145 and the WL200T's 220, sized for the middle of the passenger fleet.
- Shops that move the tool around — 3" swivel poly casters with rear locking roll it between bays and hold it still at the vehicle.
- Buyers who value simplicity — pneumatic operation means the tool works for exactly as long as the compressor does.
What the Atlas LM130S Is NOT Built For
This is not for bays without compressed air — it's pneumatic, full stop, and 116–145 PSI is its range. It's not for truck/bus wheels (the WL200T at 220 lbs is the HD tool), and it's not for vehicle lifting.
Important sizing note: confirm 165 lb capacity against your heaviest wheels and verify your shop air delivers 116–145 PSI at the drop before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas LM130S Different
Pneumatic — the air-shop's wheel lift

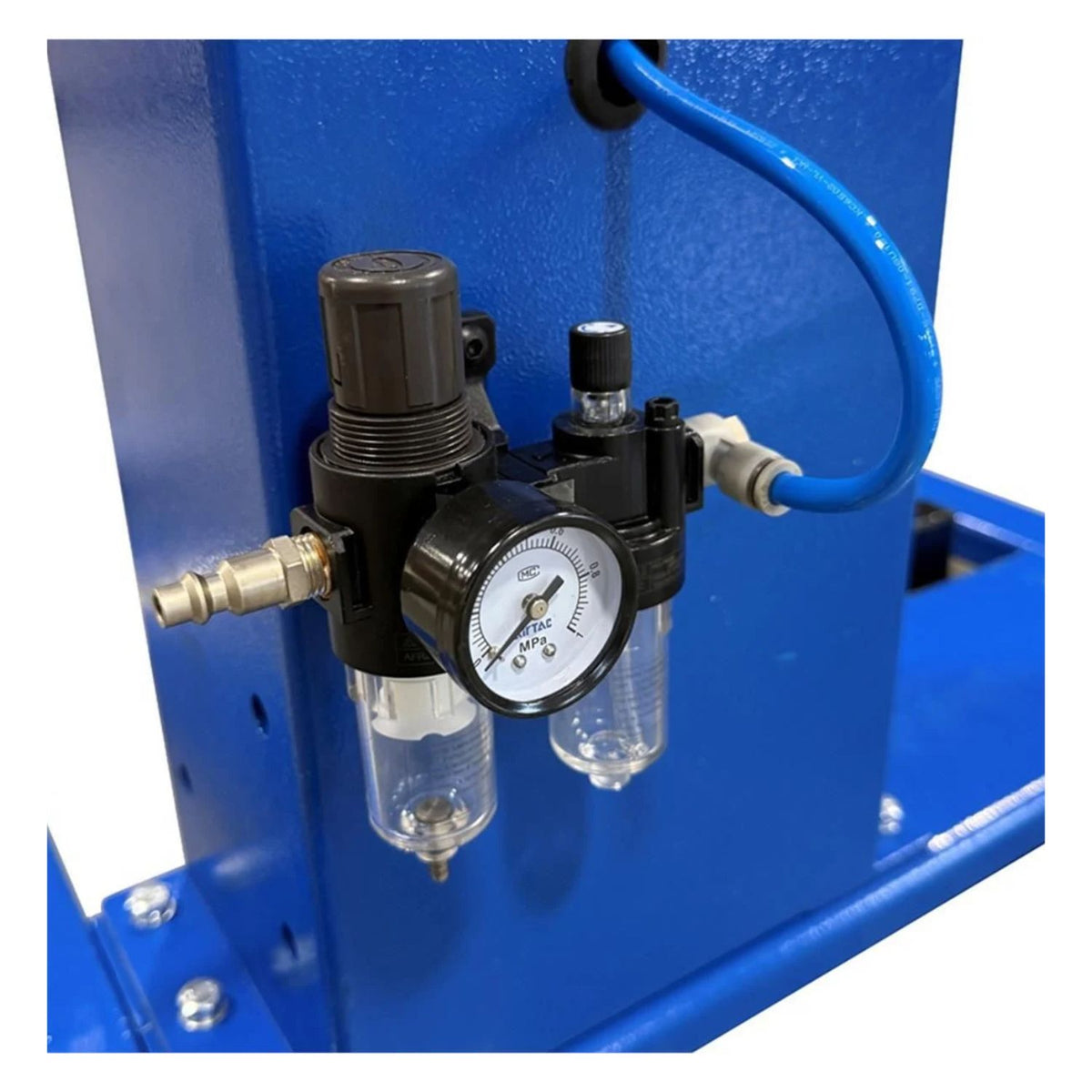

116–145 PSI shop air does the lifting — no batteries, no charging, no cycle-count management; it works as long as the compressor runs.
Off-set column, same as the line
The offset design moves the lift structure away from the lug nuts — the tech works the fasteners, not around the tool.
Moves and holds
3" swivel poly casters roll it between bays (rear casters lock), and roller arms re-position the wheel into working alignment.
Best For
- Air-equipped tire bays
- Off-set lug access
- Car/light-truck wheels
- No-battery simplicity
Not Ideal For
- Bays without compressed air
- Truck/bus wheels (see WL200T)
- Vehicle lifting
The Atlas wheel-lift line — which one fits the bay?
| Spec | LM130S (Pneumatic) | WL200 (Battery) | WL200T (HD Battery) |
|---|---|---|---|
| Capacity | 165 lbs | 145 lbs | 220 lbs |
| Power | Shop air 116–145 PSI | 24V battery / 110V recharge | 24V battery / 110V recharge |
| Lift range | 4 1/2"–44 1/2" | 2"–47" | 4"–45 1/4" |
| Cycles | Unlimited (air) | 200 per charge | 300 per charge |
| Best for | Air-plumbed bays | Off-set, no air needed | Truck/bus wheels |
If the air is already plumbed, the LM130S is the simplest tool in the line; if it isn't, the battery models don't miss it.
Full Specifications - Atlas LM130S
| Capacity | 165 lbs |
| Operation | Air-operated (external air supply required) |
| Air requirement | 116–145 PSI |
| Lifting height | 4 1/2" to 44 1/2" |
| Column | Offset column |
| Castors | 3" swivel poly casters, rear locking |
| Features | Roller arms; easily move and position wheels |

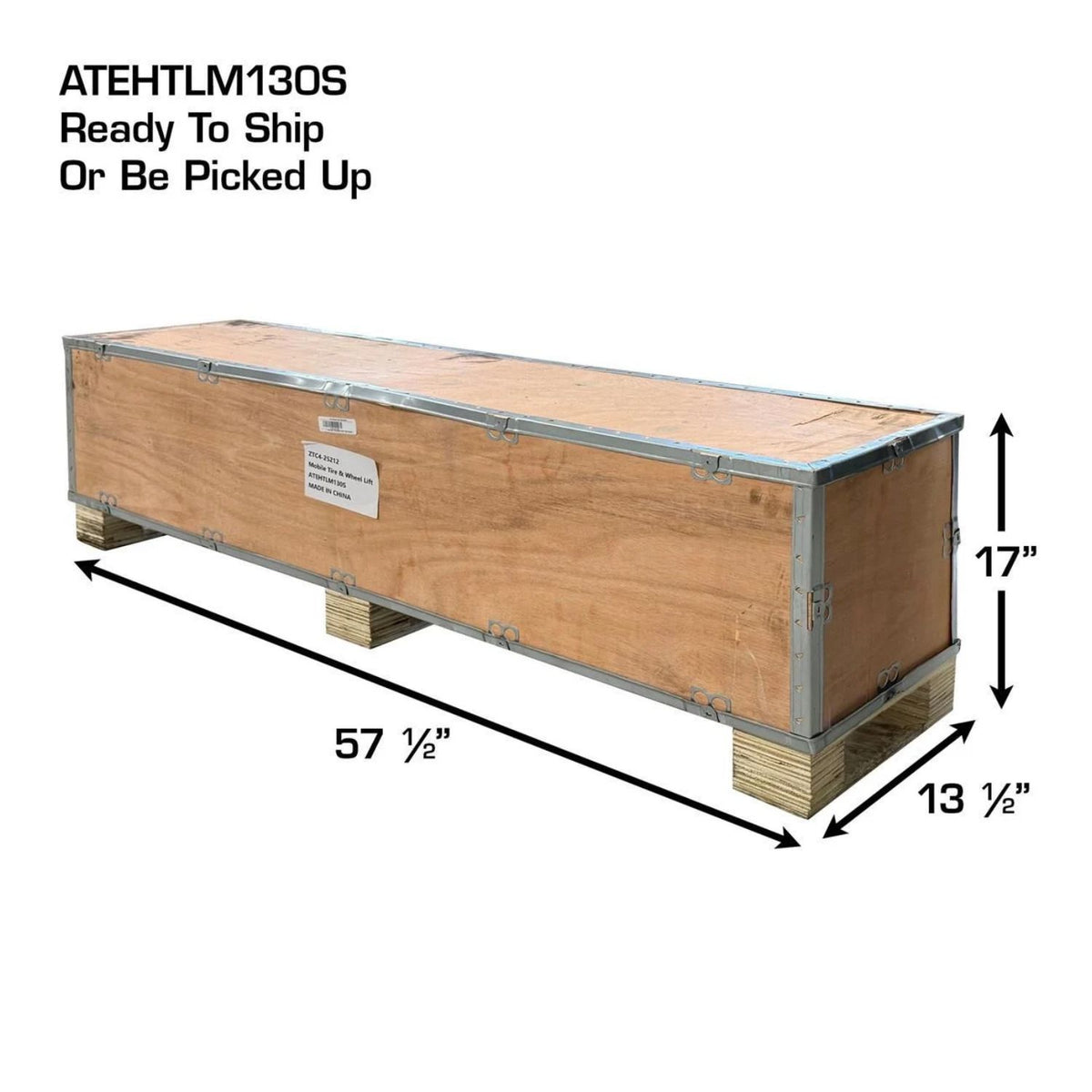

| Shipping dimensions | 57 1/2" x 13 1/2" x 17" |
| Shipping weight | 180 lbs |
⚠️ Installation Requirements
- Rolls on 3" swivel poly casters (rear locking) — no installation
- Air: 116–145 PSI external supply required — verify the drop before ordering
- Roller arms re-position the wheel; built to move wheels between floor, balancer, and vehicle
- Alamo delivers it — and services what we sell
Atlas® Automotive Equipment Warranty - Atlas LM130S
Atlas covers its wheel lifts with a 90-day parts warranty — buy it from a shop that services what it sells.
| Component | Coverage Term |
|---|---|
| Parts | 90 days (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas LM130S
Does the LM130S need batteries?
No — it's pneumatic, running on 116–145 PSI shop air. If your bays don't have compressed air, the battery-powered WL200 or WL200T is the pick.
Will it handle truck wheels?
It covers car and light-truck wheels at 165 lbs; for truck and bus wheels, the WL200T (220 lbs, HD) is the right tool.
What does the off-set column do?
It moves the lift structure out of the lug-nut line — straight access to the fasteners instead of working around the tool.
How does it move around the shop?
On 3" swivel poly casters with rear locking — roll it to the vehicle, lock it, and work.
Why Buy the Atlas LM130S from Alamo Equipment & Service?
- We sell what fits. Air pressure, wheel weights, working heights — we confirm the LM130S is the right model before you order.
- We deliver it. 180 lbs ships freight, coordinated by us.
- We service it. Pneumatics and casters — we service the tools we sell.
- We know the line. Pneumatic vs battery, 145 vs 165 vs 220 lbs — one call gets the honest pick.
- Injury math. The tool that ends the dead-lift pays for itself in the first week.
A shop buying from a pure e-commerce retailer gets a box. A shop buying from Alamo gets a partner. Call (817) 865-3707 or email our team.
Equipment ships free — delivered to your business, no freight charges. Parts & accessories ship at standard parcel rates unless the item description says otherwise.
