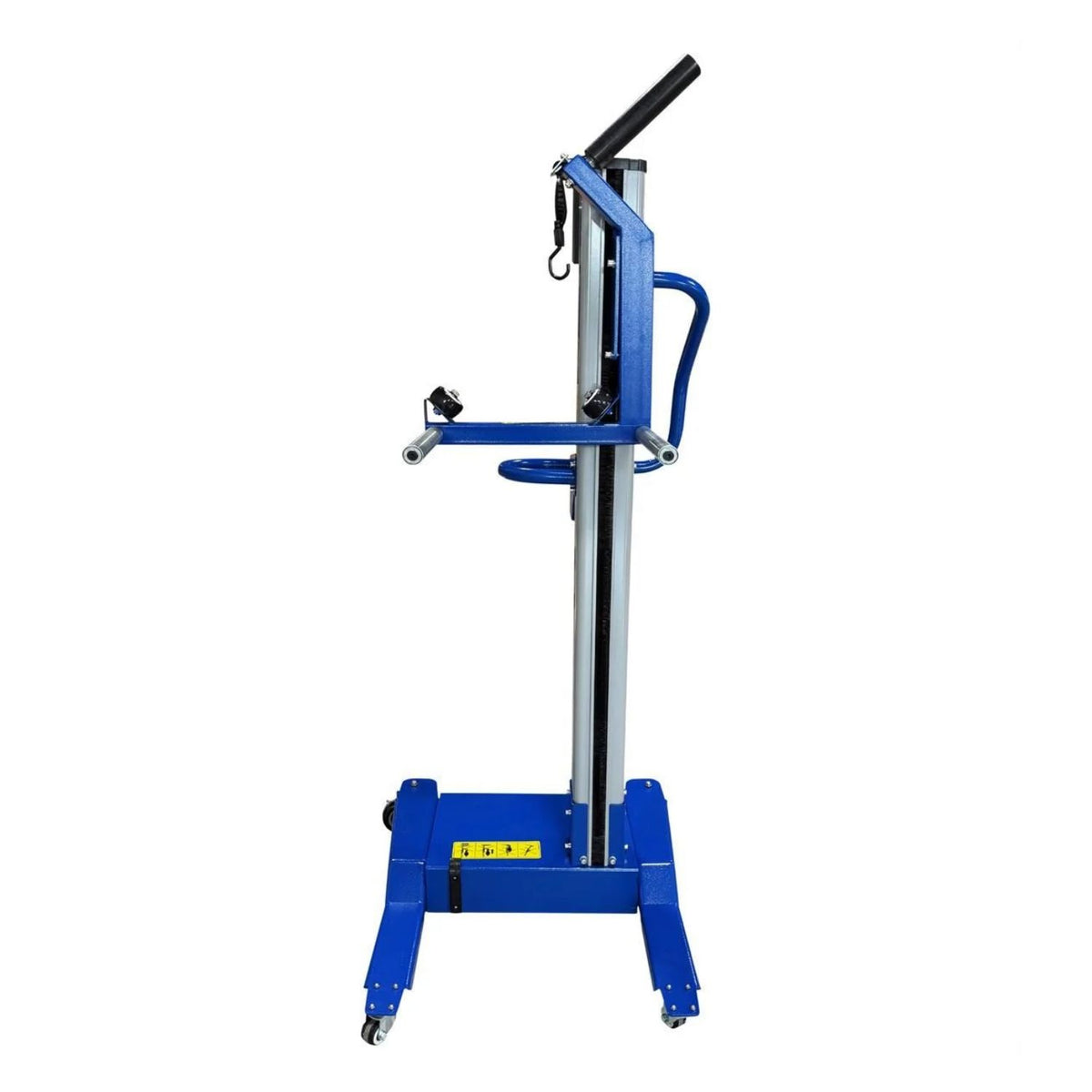

Atlas® Portable Battery Off-Set Wheel Lift #ATEHTWL200-FPD
Couldn't load pickup availability
| Capacity | 145 lbs |
| Power | 24V battery / 110V recharge |
| Lift Range | 2" – 47" |
| Cycles per Charge | 200 |
| Base | 27" W × 30" D |
| Warranty | 90 days parts |

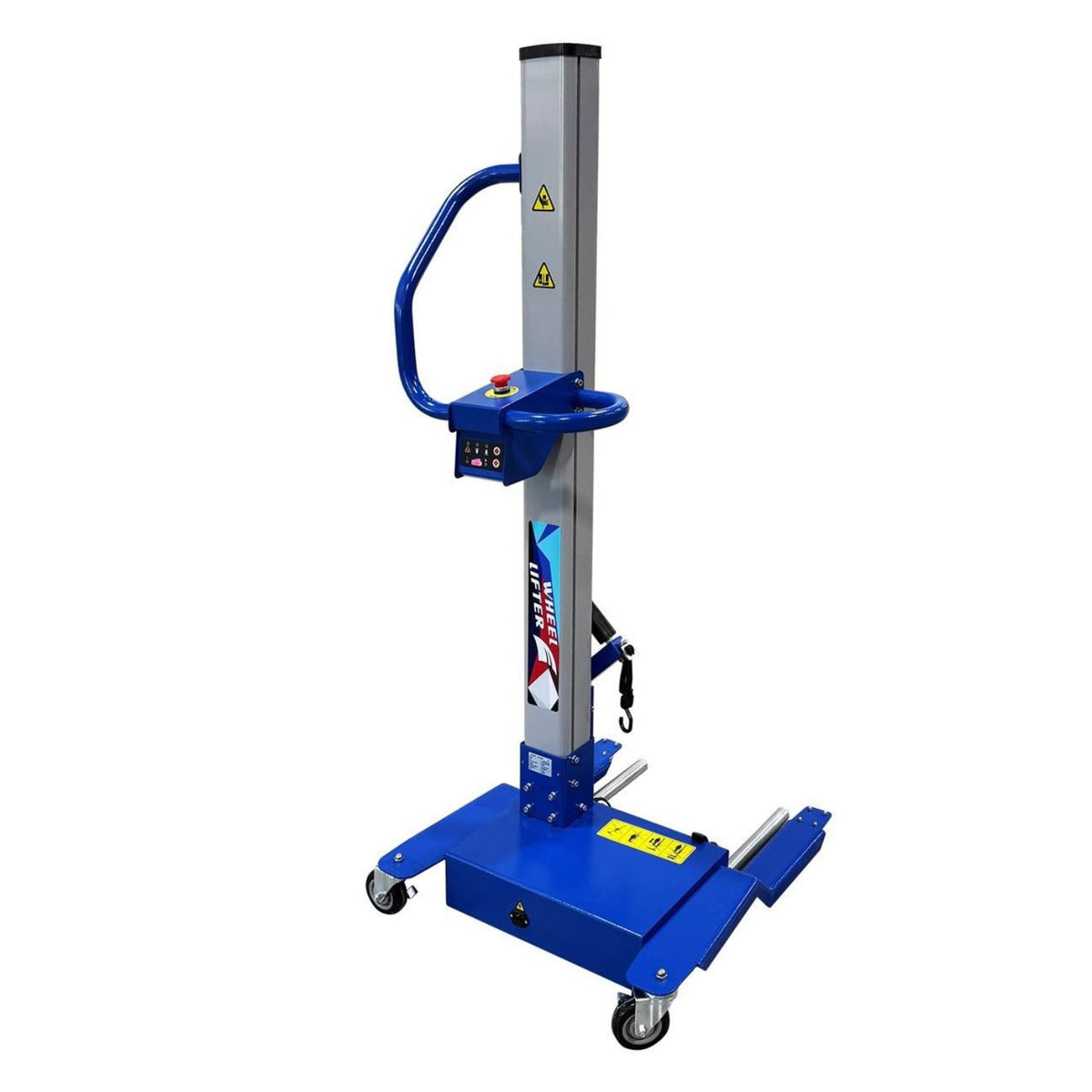

Atlas WL200 — Portable Battery Off-Set Wheel Lift
The lift is in the way of the lug nuts — that's the whole problem with wheel tools that lift straight up. The Atlas WL200 is the off-set answer: a 145 lb battery-powered wheel lift whose offset column moves the lift structure out of the fastener line, so the tech works the wheel, not around the tool.

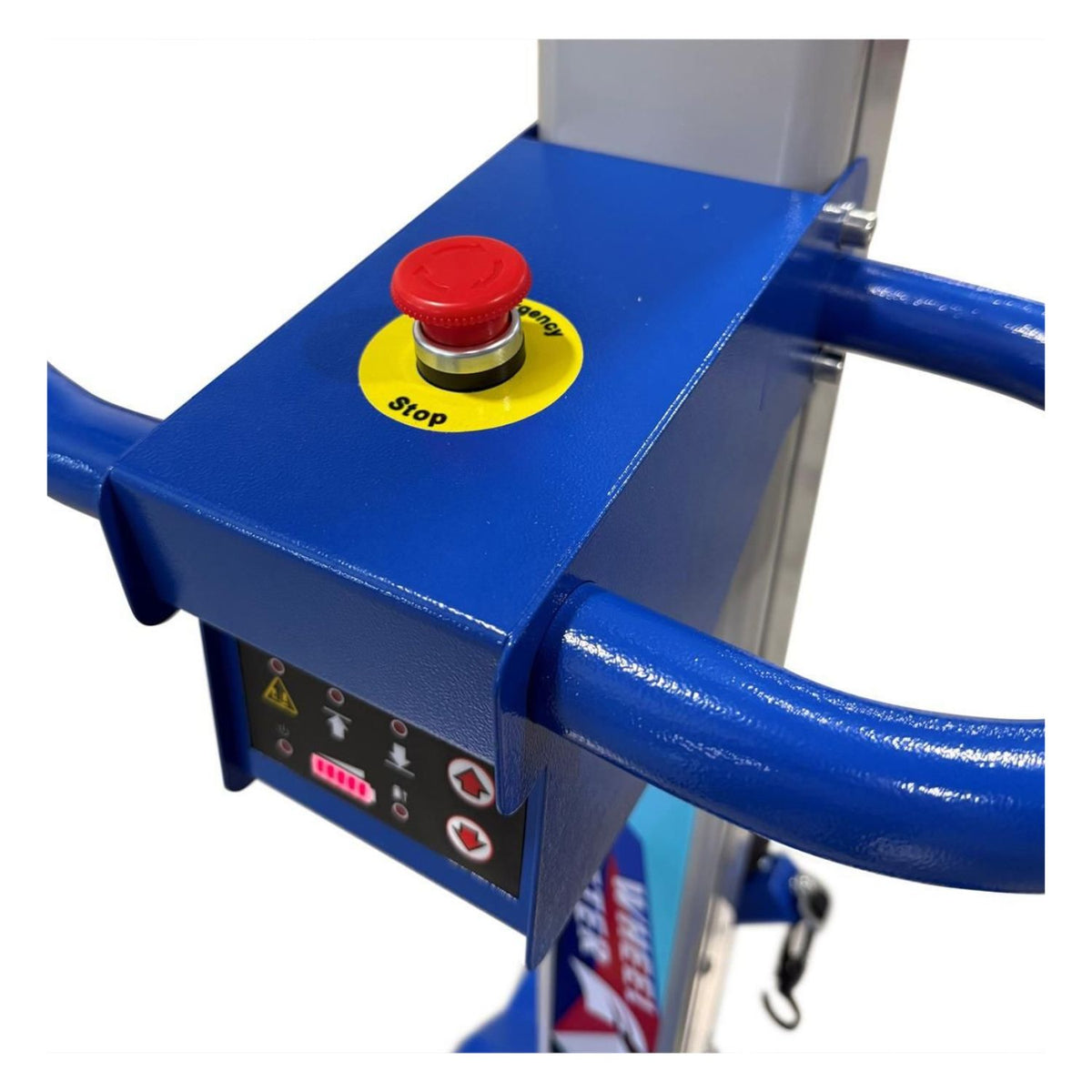

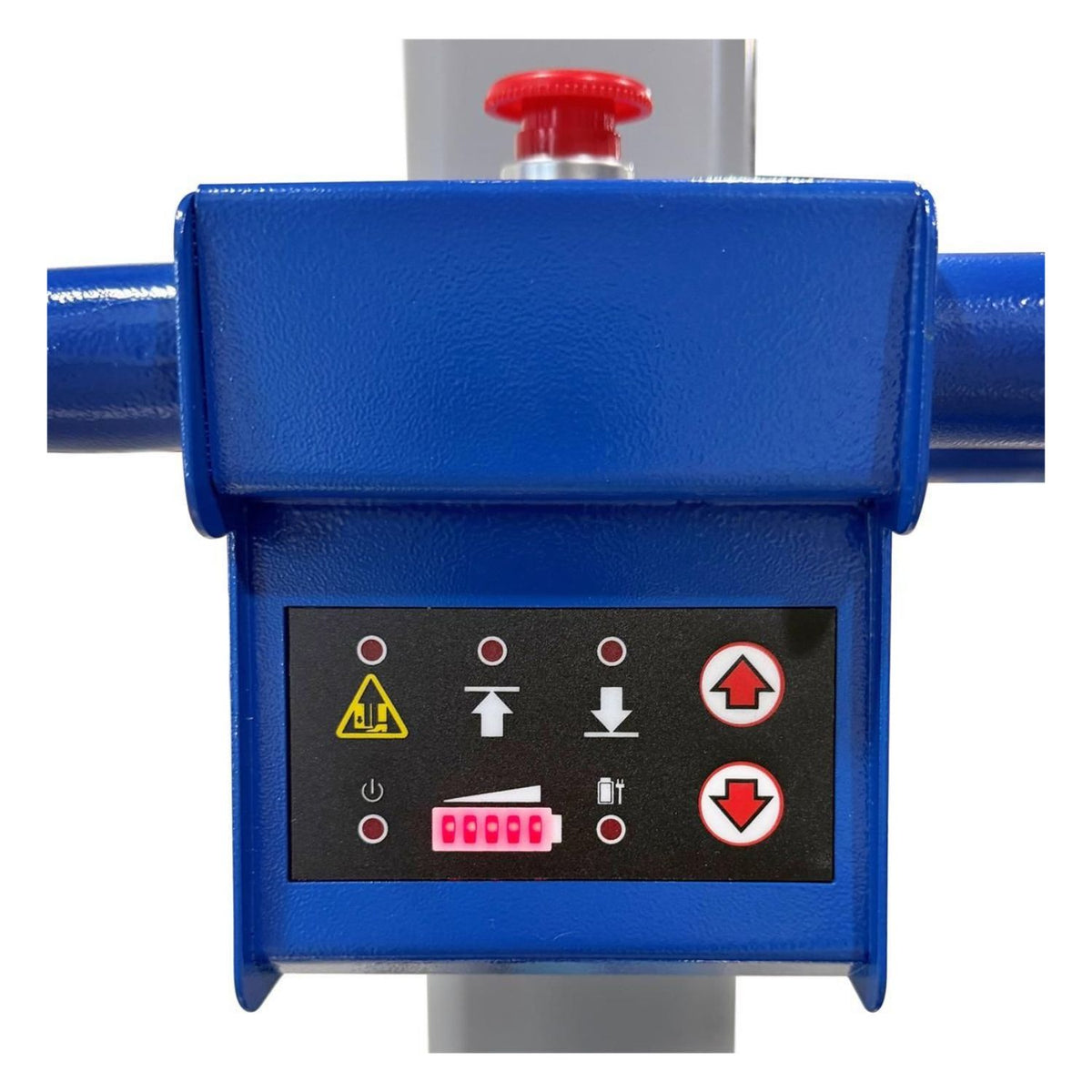

It starts at 2 inches (low-profile), reaches 47 inches, and runs 200 cycles per charge on a 110V overnight recharge, and carries the same one-touch operation, battery indicator, and roller-arm re-positioning as the HD model — sized for car and light-truck wheels.
Who the Atlas WL200 Is Built For
- Passenger tire bays — 145 lbs covers standard car and light-truck wheels, and the off-set column keeps the lug pattern unobstructed for the tech.
- Techs doing wheel work at low clearance — the 2" lowered height and low-profile design slide under work that starts low.
- Bays without air drops — battery powered (24V) with a 110V recharge cord included; it works wherever the wheels are.
- Shops that position wheels repeatedly — roller arms re-position the wheel on the carriage, and the built-in tie-down holds it during the move.
- Buyers comparing the HD model — WL200T takes the truck wheels (220 lbs); the WL200 is the lighter, lower-profile car-bay tool.
What the Atlas WL200 Is NOT Built For
This is not the truck-wheel tool — 145 lbs is its ceiling, and bus/22.5-inch truck wheels belong on the WL200T. It's not for vehicle lifting, and it needs a 110V outlet for charging (external power required).
Important sizing note: confirm 145 lb capacity against your heaviest wheels, plan a 110V charging location, and verify the working-height needs (47" max) before purchase. Questions on fit? Call (817) 865-3707 before ordering — we confirm compatibility, not guesses.
What Makes the Atlas WL200 Different

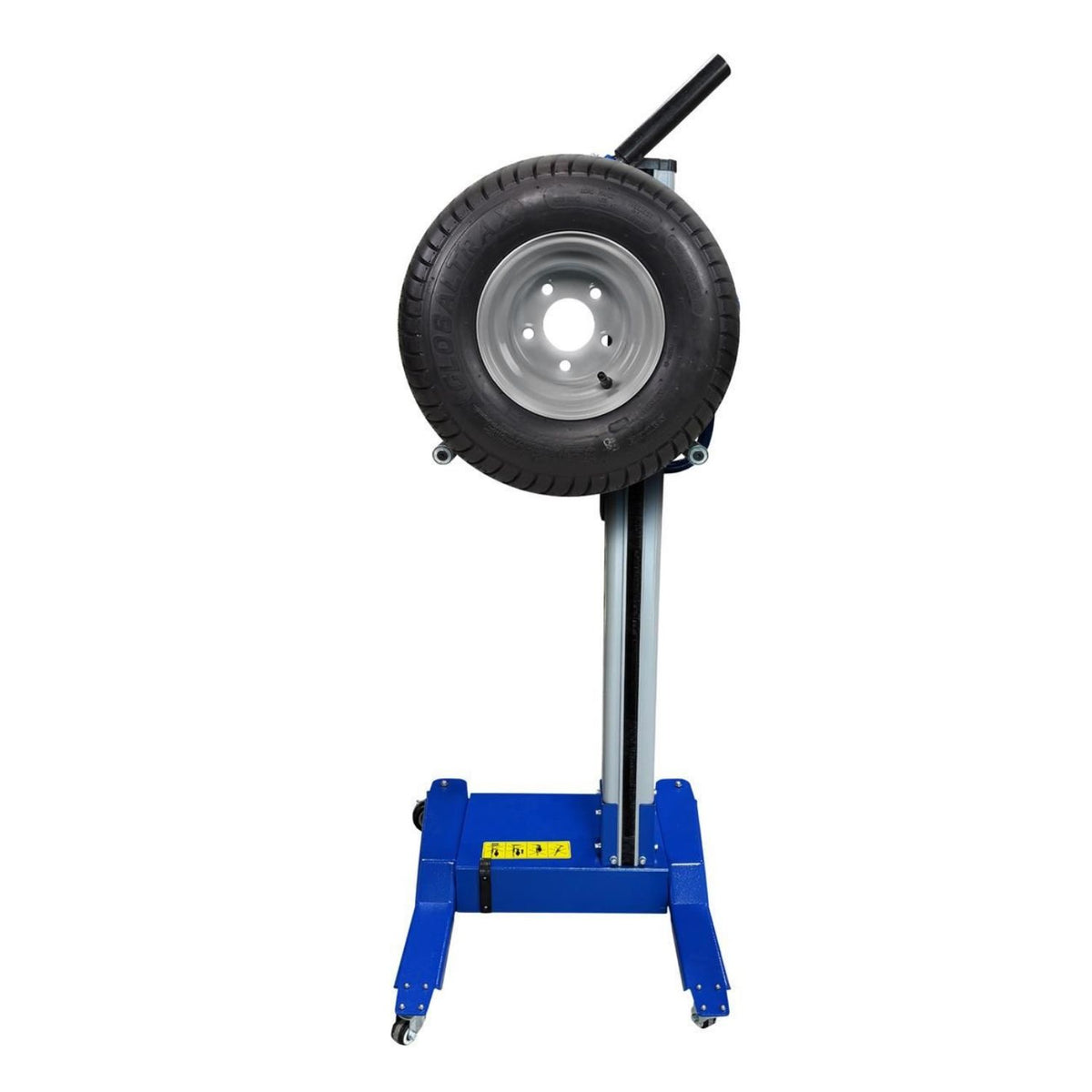

Off-set column — the point of the tool
The offset design moves the lift structure out of the lug-nut line — the tech gets a straight shot at the fasteners instead of working around the tool.
- Offset column
- Low-profile design
- 2" lowered height
Battery powered, 200 cycles per charge
24V battery with a 110V recharge cord included — a full shift of car wheels without a cord on the floor.
Lifts 2" to 47"

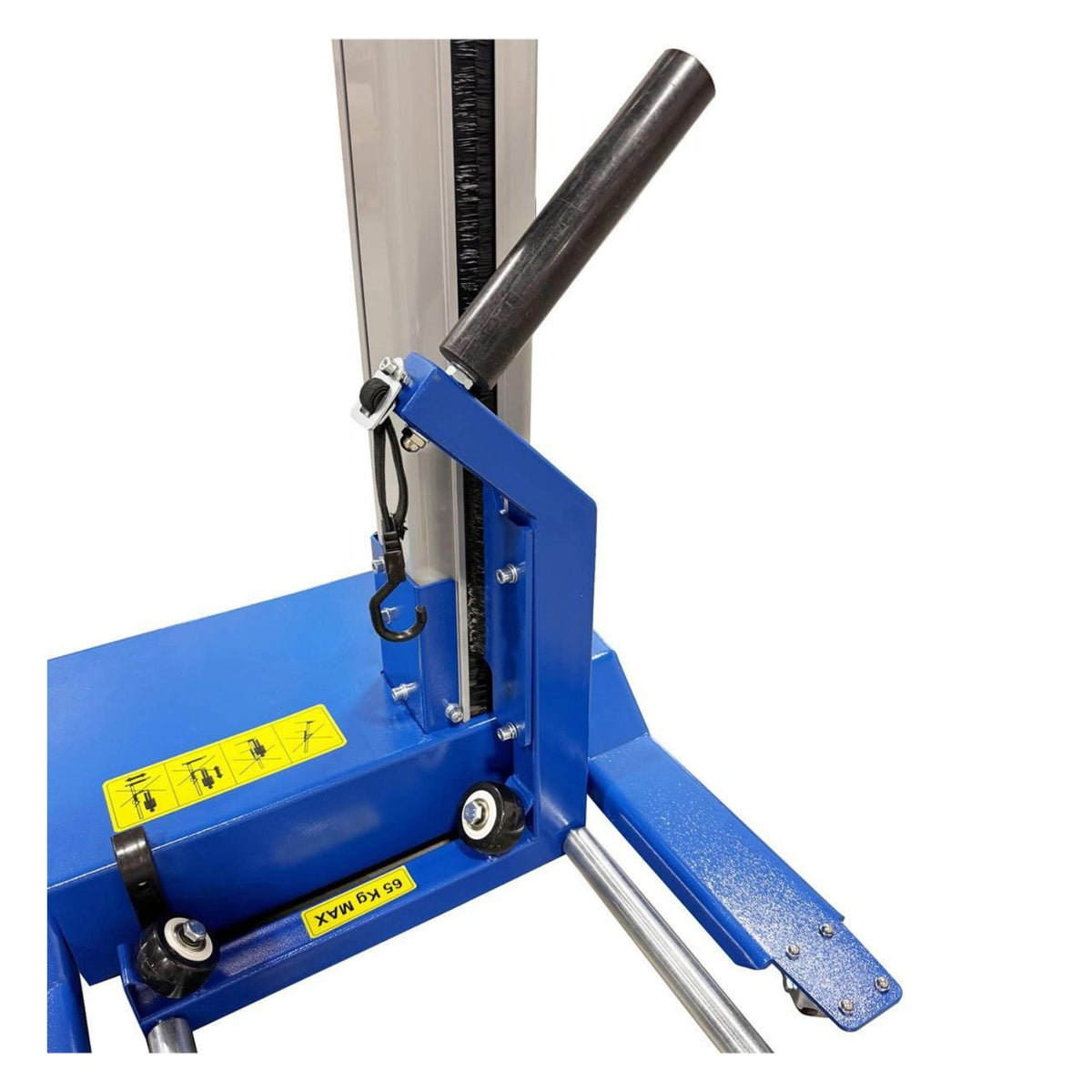

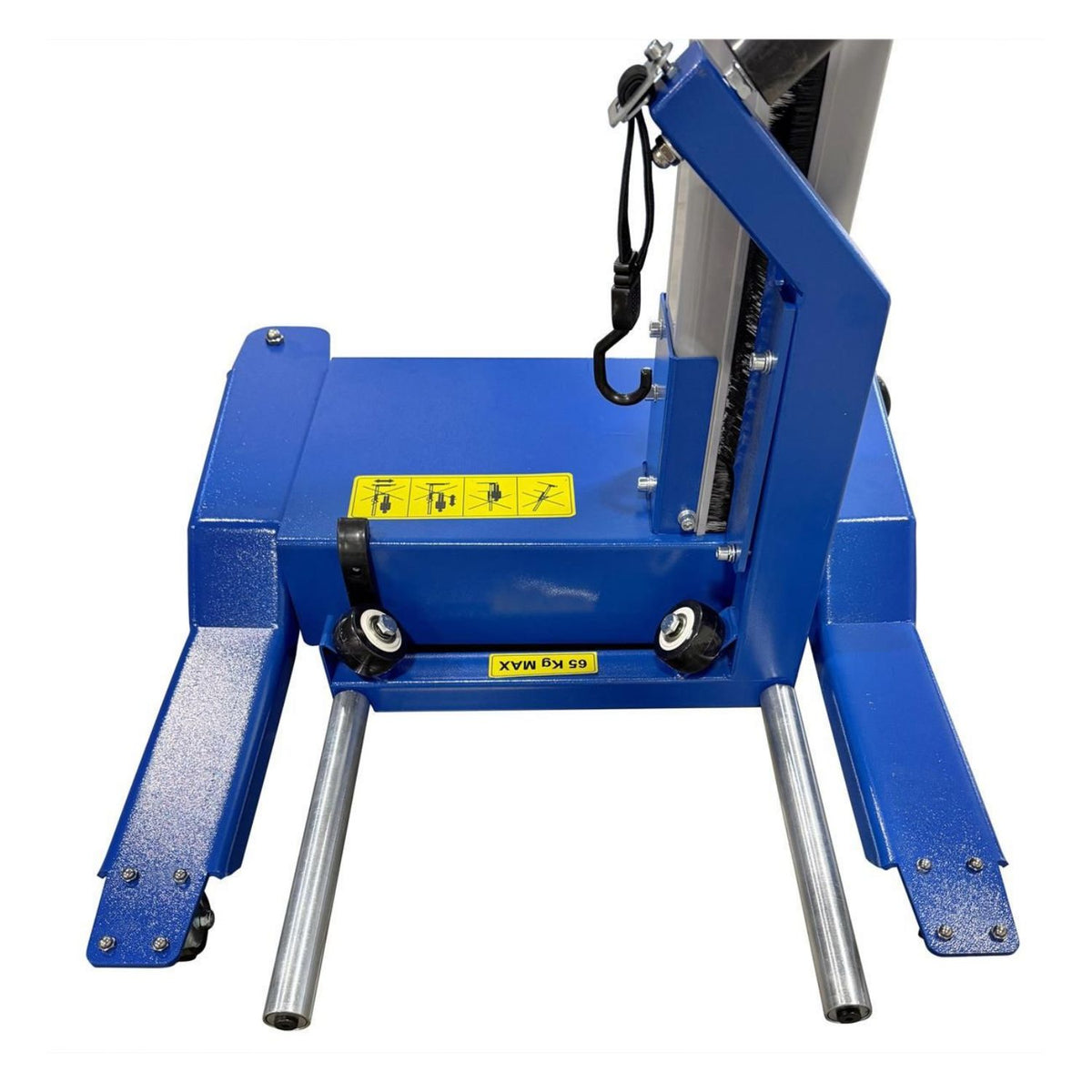

From under-the-vehicle low to balancer-shaft height, on one-touch operation with roller-arm re-positioning and a built-in tie-down.
Best For
- Passenger tire bays
- Off-set lug access
- Low-clearance starts
- Bays without air drops
Not Ideal For
- Truck/bus wheels (see WL200T)
- Vehicle lifting
- Wheels over 145 lbs
The Atlas wheel-lift line — which one fits the bay?
| Spec | WL200 (Battery, Off-Set) | WL200T (HD Battery) | LM130S (Pneumatic) |
|---|---|---|---|
| Capacity | 145 lbs | 220 lbs | 165 lbs |
| Power | 24V battery / 110V recharge | 24V battery / 110V recharge | Shop air 116–145 PSI |
| Lift range | 2"–47" | 4"–45 1/4" | 4 1/2"–44 1/2" |
| Cycles | 200 per charge | 300 per charge | Unlimited (air) |
| Best for | Car/light-truck wheels | Truck/bus wheels | Air-equipped bays |
Same battery platform as the WL200T at car-bay capacity — or the pneumatic LM130S if the shop air is already there.
Full Specifications - Atlas WL200
| Lift capacity | 145 lbs |
| Power supply | 24V battery powered / 110V recharge (external power supply required; rechargeable, 110V cord included) |
| Lowered height | 2" |
| Raised height | 47" |
| Base dimensions | 27" wide x 30" deep |
| Tower height | 65 1/2" |
| Carriage height fully raised | 71 1/2" |
| Cycles per charge | 200 |
| Design | Offset column allows access to lug nuts; low profile design; roller arms for re-positioning; built-in tie down; one-touch operation; battery level indicator |
| Shipping weight | 200 lbs |
⚠️ Installation Requirements

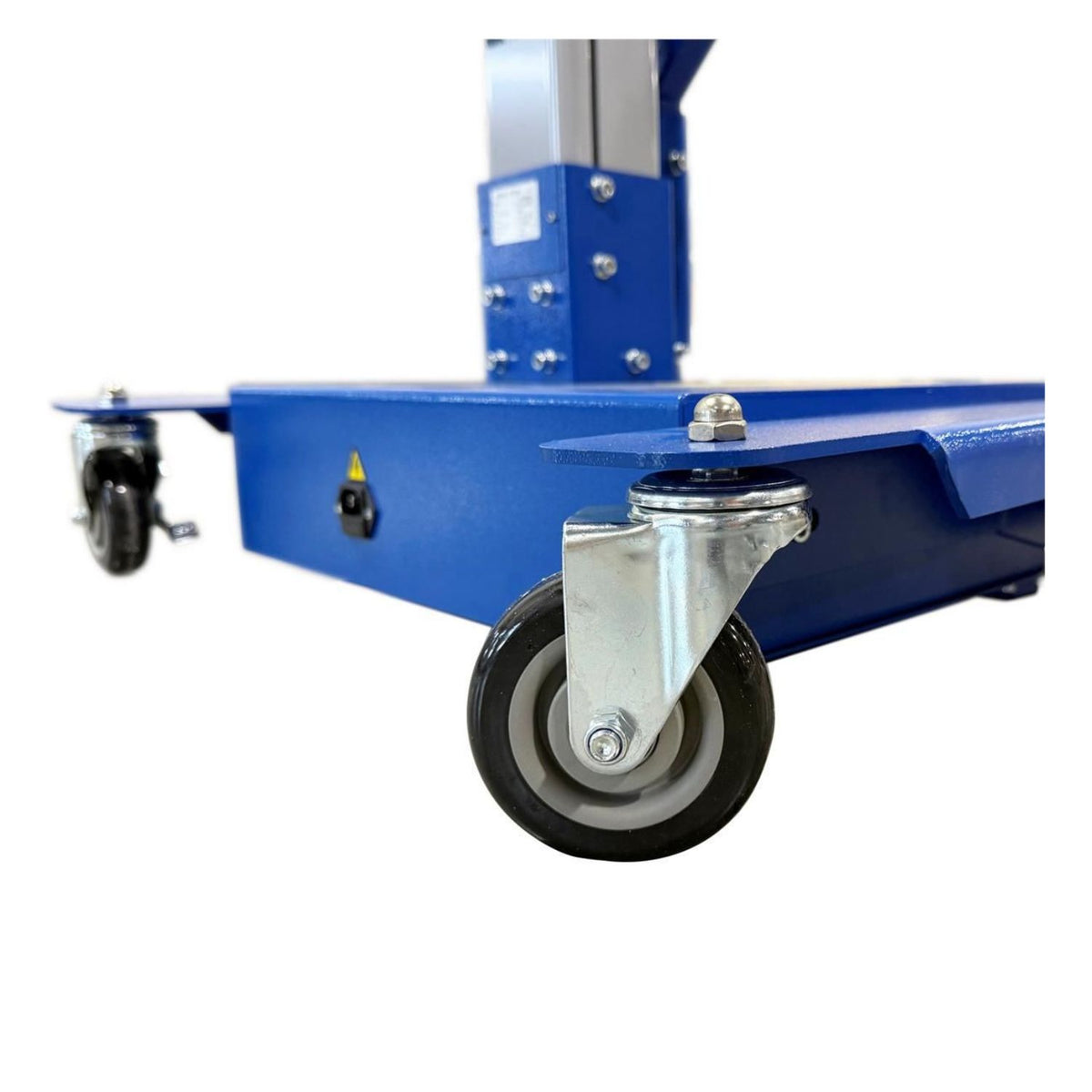

- Rolls on casters — no installation; position it where the wheels are
- Charging: 110V outlet with the included recharge cord (external power required)
- 24V battery operation — no air supply needed at the point of use
- Alamo delivers it — and services what we sell
Atlas® Automotive Equipment Warranty - Atlas WL200
Atlas covers its wheel lifts with a 90-day parts warranty — buy it from a shop that services what it sells.
| Component | Coverage Term |
|---|---|
| Parts | 90 days (parts only) |
Warranty service is coordinated through Alamo Equipment & Service — call (817) 865-3707 and we help get the issue moving.
Warranty terms can change. Confirm exact coverage at the time of purchase. Warranty can be void if the lift is installed improperly or not anchored per spec.
❓ Frequently Asked Questions - Atlas WL200
What does "off-set" do for me?
The offset column moves the lift structure out of the lug-nut line — you get a straight shot at the fasteners instead of working around the tool.
Will it handle truck wheels?
No — 145 lbs covers car and light-truck wheels. For truck and bus wheels, the WL200T (220 lbs) is the tool.
Does it need shop air?
No — battery powered (24V) with a 110V recharge cord included, so it works in bays without air drops.
How low does it start?
Two inches — the low-profile design reaches work that starts near the floor, then lifts to 47".
Why Buy the Atlas WL200 from Alamo Equipment & Service?
- We sell what fits. Heaviest wheel + working height — we confirm the right model (WL200 vs WL200T vs LM130S) before you order.

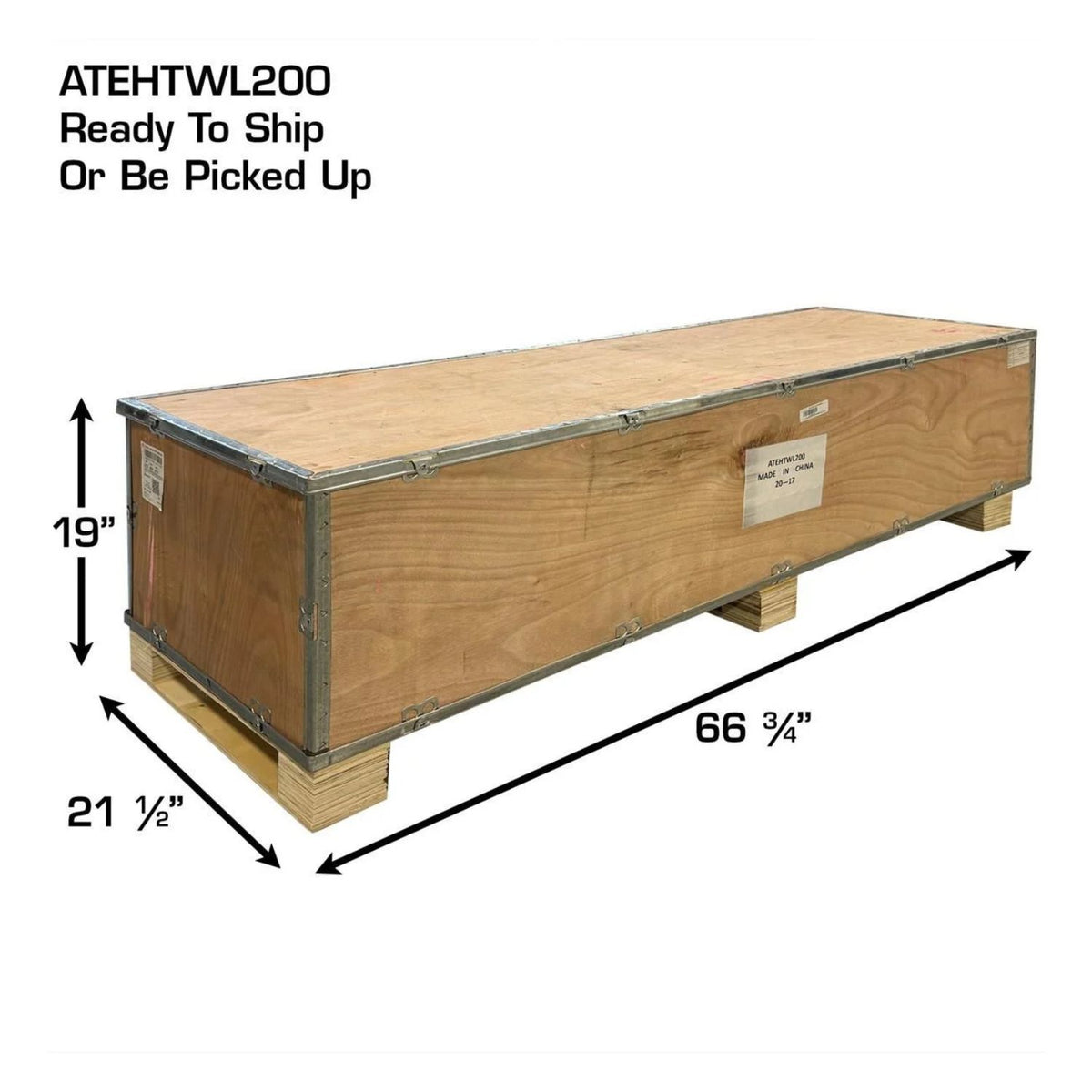

- We deliver it. 200 lbs ships freight, coordinated by us.
- We service it. Battery, hydraulics, and casters — serviced by the shop that sold it.
- We know the line. Three wheel lifts, three duty classes — one call gets you the honest pick.
- Injury math. The tool that stops the dead-lift pays for itself before the first complaint.
